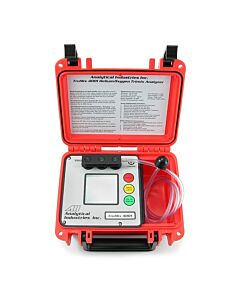

Analytical Industries Palm 'D handheld oxygen and TruMix 4001 trimix analyzers, for easy and reliable measurements. Replacement oxygen sensors for a variety of diving gas analyzers.

15 Items

per page
Set Descending Direction

15 Items

per page
Set Descending Direction

Calibrating Oxygen Analyzers for Diving

Analyzing oxygen requires the analyzer first be calibrated and that calibration requires a "known" gas. The gas most often used for calibration is Air, commonly described as 20.95% Oxygen. However, it's really not always 21%, in fact the Compressed Gas Association says Air can contain from 19.0% to 23.5% Oxygen and still be considered Air. Beyond the variation in actual gas composition, several other factors should be considered. Environmental factors such as barometric pressure and humidity, affected by both altitude and weather, will affect the calibration. Some inexpensive manually calibrated analyzers provide compensation charts to compute the calibration target value. The most sophisticated analyzers will automatically measure several environmental factors to determine the target value.

Another source of variation is that all galvanic oxygen sensors are never perfectly linear across the entire range, so use a calibration gas that is reasonably similar to your target. For example, it's best to analyze 80% oxygen by calibrating with pure oxygen rather than air. Linearity is greatly affected by temperature so oxygen analyzers or the sensor itself contain circuitry to compensate for temperature. However, temperature compensation is not perfect and sudden changes in temperature can result in significant variations so try to perform your calibration and analysis at stable room temperature whenever possible. Perhaps the most common source of calibration error is performing the calibration with still ambient air, then performing the actual analysis on flowing gas. If you are sampling directly from the tank and manually controlling flow with the valve, rather than using a flow limiter, the calibration is even more error prone.

As a general rule we recommend first calibrating with compressed Air from a scuba tank before measuring sport Nitrox mixtures up to 40% and, whenever possible, calibrating with pure oxygen when measuring accelerated decompression Nitrox mixtures of 50% or more. Here at Dive Gear Express we are about 13 feet above sea level and it's usually pretty humid, so we find that on any given day our local shop collection of analyzers in use at our fill station will need to be calibrated to ambient Air at anywhere from 20.4% to 20.6% as our known. Similarly, when calibrating with pure Oxygen we set slightly less than 100% as our known and then validate by sampling Air. Otherwise, just assuming Air is always 21% for manual calibration can result in pure oxygen analyzing at something like 103% which is nonsense. Given all the sources for error, our long experience is that most divers obtain a result that is slightly higher than actual because of calibration error and excessive flow. Sometimes we see a result that is lower than actual because of poor sampling technique.

Given that digital depth gauges are typically only accurate within 3 to 5 feet, and analog depth gauges can be even less accurate, obsessing over obtaining an exact analysis of the breathing gas is unnecessary. We've even seen multiple bottom timers that varied from each other by a minute or two over the course of a single dive. The reality is that for the purposes of measuring sport Nitrox mixtures the tenths of a percent value is just noise. Many experienced sport Nitrox blenders will truncate their analysis result rather than round the tenths when labeling cylinders or programming dive computers. It's not that critical; 30.8% and 33.3% are the same thing for the purposes of sport diving: 32% Nitrox. New analyzer owners often are surprised to discover their own analysis of Nitrox fills does not match what they earlier saw or were told in the local dive shop. Variations of 1% are to be expected and are acceptable, considering the enormous number of variables involved. However, significantly more than plus or minus 1% difference from the expected result deserves further investigation.

For technical diving, we don't recommend using the hand held analyzers for blending applications or using their results for calculating decompression. Please use a technical grade analyzer that has built-in compensation for barometric pressure, moisture and the effect of inert gases like helium. You must also use a measured 2 lpm flow and performing frequent calibration using precisely known gas is a necessity. Because of the cumulative nature of inherent inaccuracies with instrumentation we use in diving, it's always best practice to be conservative in managing decompression and oxygen exposures.
