Sidemount Systems

Sidemount isn't just for cave divers anymore. Sidemount systems are popular with technical divers for their trim characteristics as well as open water divers wishing to transition into technical diving down the road. Utilizing the sidemount harness and butt plate hard points, tanks are attached with a strap and bungee system that allows primary, stage, deco and bailout tanks to ride closely at the diver's side, yet not be jammed under the arms.

16 Items

Set Descending Direction

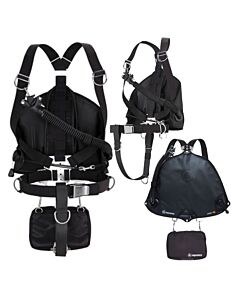

  1. Apeks WSX-45 Sidemount System, Complete
    Apeks WSX-45 Sidemount System, Complete
    $1,099.00

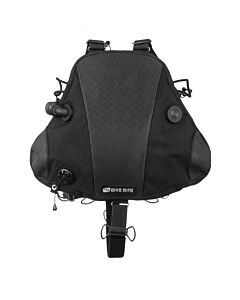

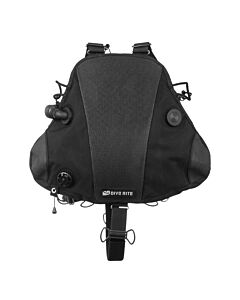

  2. Dive Rite Nomad Ray Sidemount BC
    Dive Rite Nomad Ray Sidemount BC
    $799.00
  3. Front View

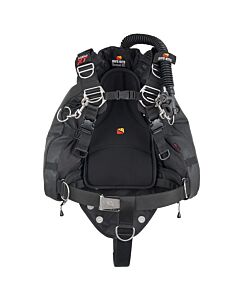

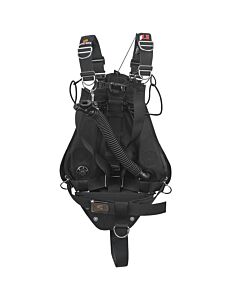

    Dive Rite Nomad XT System
    As low as $998.00
  4. Front View
    Dive Rite Nomad 2nd Generation LS Sidemount BC
    As low as $649.00
  5. Nomad XT Wing - Front
    Dive Rite Nomad Wing
    As low as $540.00
  6. Front View
    Dive Rite No Mount Tank BC
    $199.00
  7. Dive Rite Modular Tech Butt Plate
    Dive Rite Modular Tech Butt Plate
    $89.00

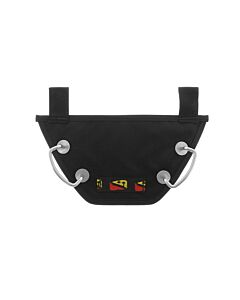

  8. Dive Rite Nomad LT/LS Butt Plate
    Dive Rite Nomad LT/LS Butt Plate
    $89.00
  9. Dive Rite Nomad Weight Plate
    Dive Rite Nomad Weight Plate
    $114.00

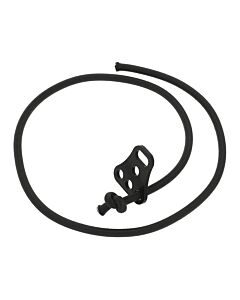

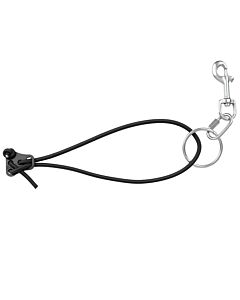

  10. Dive Rite Adjustable Bungee System (ABS)
    Dive Rite Adjustable Bungee System (ABS)
    $23.00
  11. Dive Rite Adjustable Bungee System - No Hardware
    Dive Rite Adjustable Bungee System - No Hardware
    $6.00

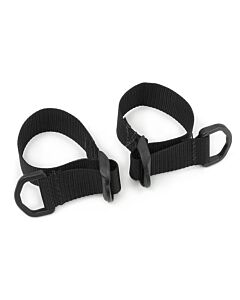

  12. Dive Rite Chokers for Sidemount, Set of TWO
    Dive Rite Chokers for Sidemount, Set of TWO
    $7.00
  13. Travel/Sidemount Stage Strap for Large Cylinders
    Dive Rite Travel/Sidemount Stage Strap
    $79.00
  14. Top View

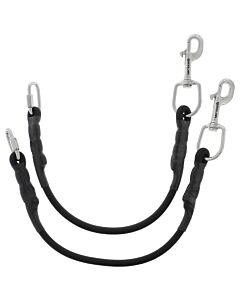

    Mares XR Stage Bungees (Pair)
    $49.95
  15. Top View

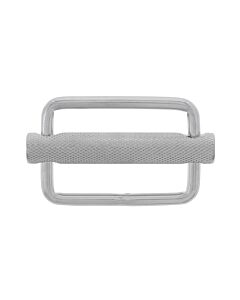

    DGX Slidable Buckle for D-Ring
    $7.50
  16. XR Rubber Ring
    Rubber Sliding D-Ring
    $2.95

Nomad XT/LTZ/LT/LS Tank Mount Configuration Options

Backmount Single Primary (XT) - Thread two standard { 36 in | 91.44 cm } Dive Rite stainless steel cam buckle tank straps through the strap slots on the harness soft backplate to dive the Nomad with a backmount single tank. If you prefer you can also use a single tank adapter with the TransPac doubles mounting plates. (Although you may have to flatten the plates, turn them over, or shorten the bolts to keep them from sticking you in the back. Using delrin speed nuts instead of wing nuts helps too.) Tank straps, single tank adapter sold separately. Of course in this configuration you still have the option of sidemount to carry additional cylinders.

Backmount Doubles Primary or Rebreather (XT) - Use the standard TransPac doubles mounting plates to attach manifold and banded double tanks or rebreathers with standard { 11 in | 27.94 cm } centers bolts. Doubles mounting plates sold separately. In this configuration you sidemount your stage, deco or bailout cylinders.

Sidemount Tanks (XT, LTZ, LT, LS) - Use stage straps, ring bungees and optional neck chokers to mount primary, deco or bailout tanks on each side. With the sidemount system, the base of the stage strap is clipped to the butt plate and ring bungees are used to secure tank necks to the harness. Some people prefer to just lay the cylinder necks in the bungees, others prefer to use the Dive Rite Neck Chokers that allow the stage strap clips to be used to attach the cylinder neck to the bungees. Stage straps sold separately.
