Palm CO Carbon Monoxide Analyzer

Palm Carbon Monoxide Analyzer

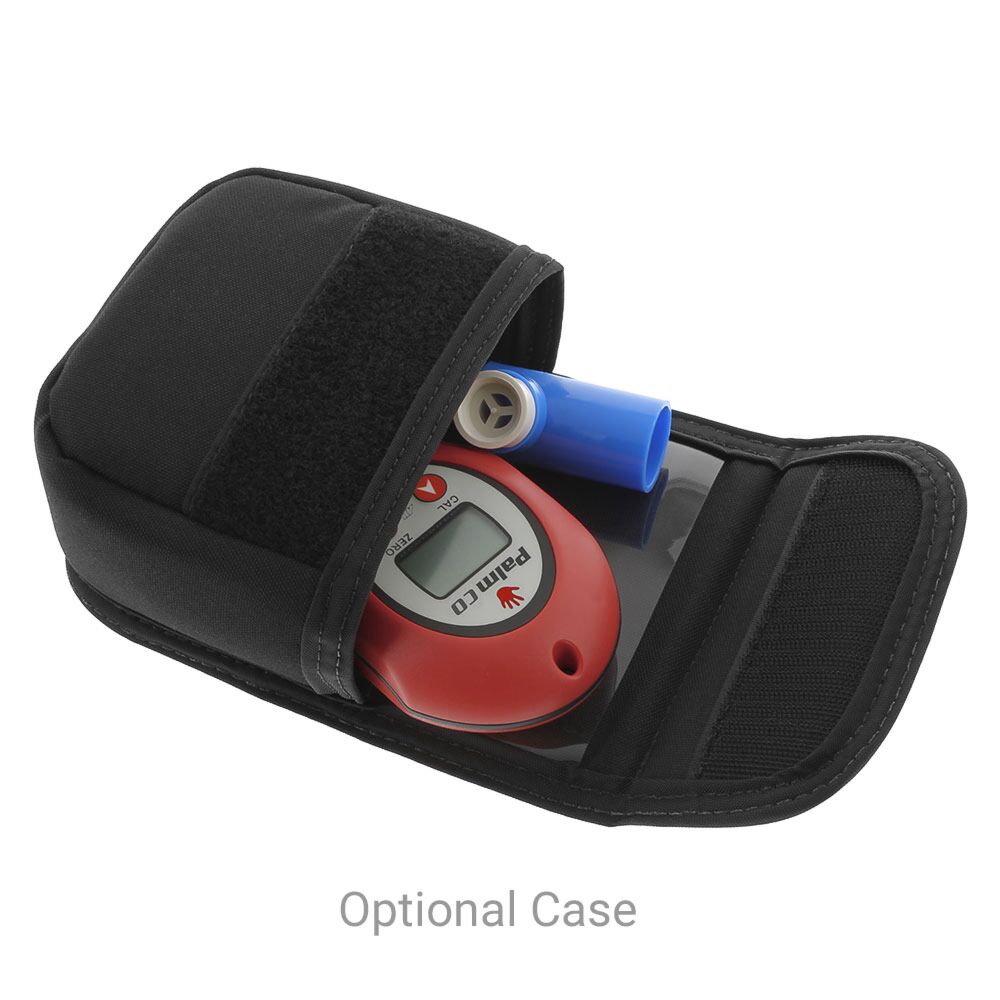

Palm Carbon Monoxide Analyzer Easily Stored in Optional DGX Padded Storage Bag Blue Tee Adapter Is Included Palm CO
  • Portable, accurate and affordable Carbon Monoxide analyzer
  • Durable sealed impact resistant housing
  • Easy one button calibration
  • User-replaceable CO sensor maintains accuracy
  • Typical sensor life of 24 months

Palm CO Carbon Monoxide Analyzer

$395.00
In Stock
SKU
ADI-PalmCO

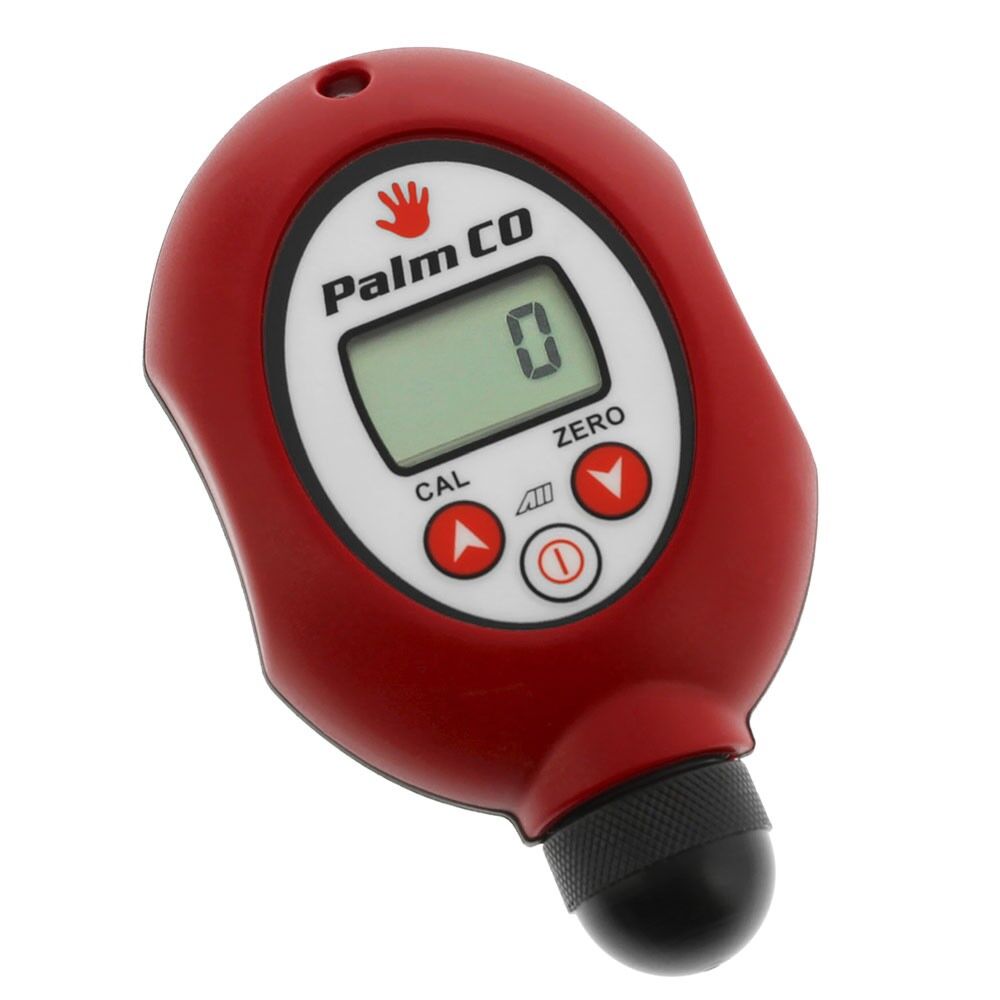

The Analytical Industries Palm CO Carbon Monoxide Analyzer is ergonomically designed to fit in the palm of your hand and is the most cost effective and reliable analyzer available for validating the presence of Carbon Monoxide gas in scuba cylinders.

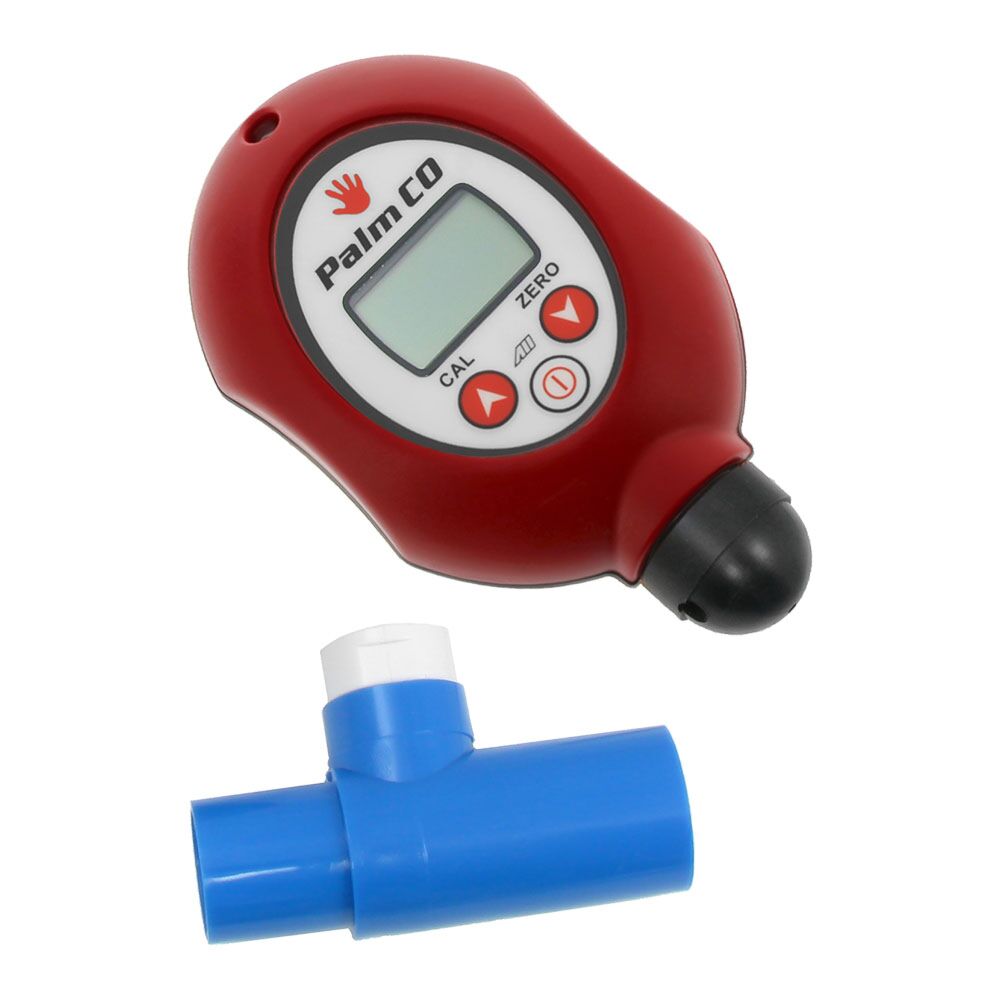

The Analytical Industries Palm CO Carbon Monoxide Analyzer is portable, accurate and affordable; and our customers tell us this unit is extremely easy to use. The user-replaceable thermally compensated sensor maintains accuracy levels that exceed dive industry standards. Just hold the Palm CO directly to the cylinder valve outlet and crack open the valve slightly until the reading is stable; works with both Yoke and DIN valves with only one hand and no adapter needed! A blue tee adapter for optional use with a yoke valve is also included. An optional 2 liter-per-minute flow sampling adapter for the standard BC inflator hose quick-release fitting is also available. This adapter makes it easy to check your gas even after you have attached your regulator to your tank. An optional padded storage bag is also available.

The durable impact resistant housing is sealed for excellent water resistance, includes an on/off switch and allows for user-replacement of the two 1.5V AA alkaline batteries with an approximate life of 13,000 hours of continuous use. Ergonomically designed to comfortably fit your hand, the Palm CO offers a very compact form factor of { 2.7 in | 6.9 cm } wide by { 4.1 in | 10.4 cm } tall by { 1.4 in | 3.6 cm } deep and { 7 oz | 196 g } weight. With a user-replaceable carbon monoxide sensor and typical sensor life of 24 months, the AII Palm CO Carbon Monoxide Analyzer is an excellent value solution for your long-term needs. A calibration gas (bump gas) that must be obtained locally is suggested to confirm functionality before each use.

  • Accuracy: +1 PPM, +5% of reading after factory calibration
  • Analysis: 0-25 PPM carbon monoxide (CO)
  • Application: Check carbon monoxide concentration in compressed air tanks
  • Calibration: Certified span gas mixture of carbon monoxide concentration between 10-20 PPM with balance air
  • Connections: Dome adapter; option BC adapter with restrictor
  • Controls: Soft touch keypad for ON/OFF and Calibration
  • Dimensions: 2.72” x 4.1” x 1.35”; weight 7 oz. (196 grams)
  • Display: 2 digit LCD 1.1” x .625”; resolution 1 PPM CO
  • Flow Sensitivity: None between 0.2 to 10 liters per minute
  • Humidity: Non-condensing 15-90% RH
  • Pressure: Ambient 80-120 kPa
  • Power: (2) 1.5V AA alkaline batteries; 450 hrs of use
  • Response Time: 90% of final FS reading in 30 seconds
  • Sensor Model: OSV-22-AF Carbon Monoxide Sensor
  • Sensor Life: 24 months
  • Storage Temp.: 3º to 35ºC (37.4ºF to 95ºF) for 6 mos in original sealed shipping package
  • Temp. Range: 0º to 50ºC (32ºF to 122ºF)
  • Warm-up Time: 30 seconds
  • Warranty: 12 months analyzer and sensor
More Information
Brand Analytical Industries
SKU ADI-PalmCO
Weight 2.000000

Customer Reviews

Tek Tip Warning Image WARNING

Although tolerant of ordinary non-condensing humidity and water resistant, no analyzer is waterproof. Operation of any analyzer in boat spray, even brief immersion in water, or damp storage such as with wet dive gear may cause corrosion of the internal electronics or deposits on the face of the sensor. The result can be erratic operation such as error codes, battery warnings, or possibly inaccurate analysis readings without any indication of a fault. Always operate and store your analyzer in dry conditions, and if you suspect the analyzer has been exposed to wet conditions then discontinue use until the equipment has been serviced.
