Faber F7-HP100 Cylinder w/Boot, Hot Dipped Galvanized

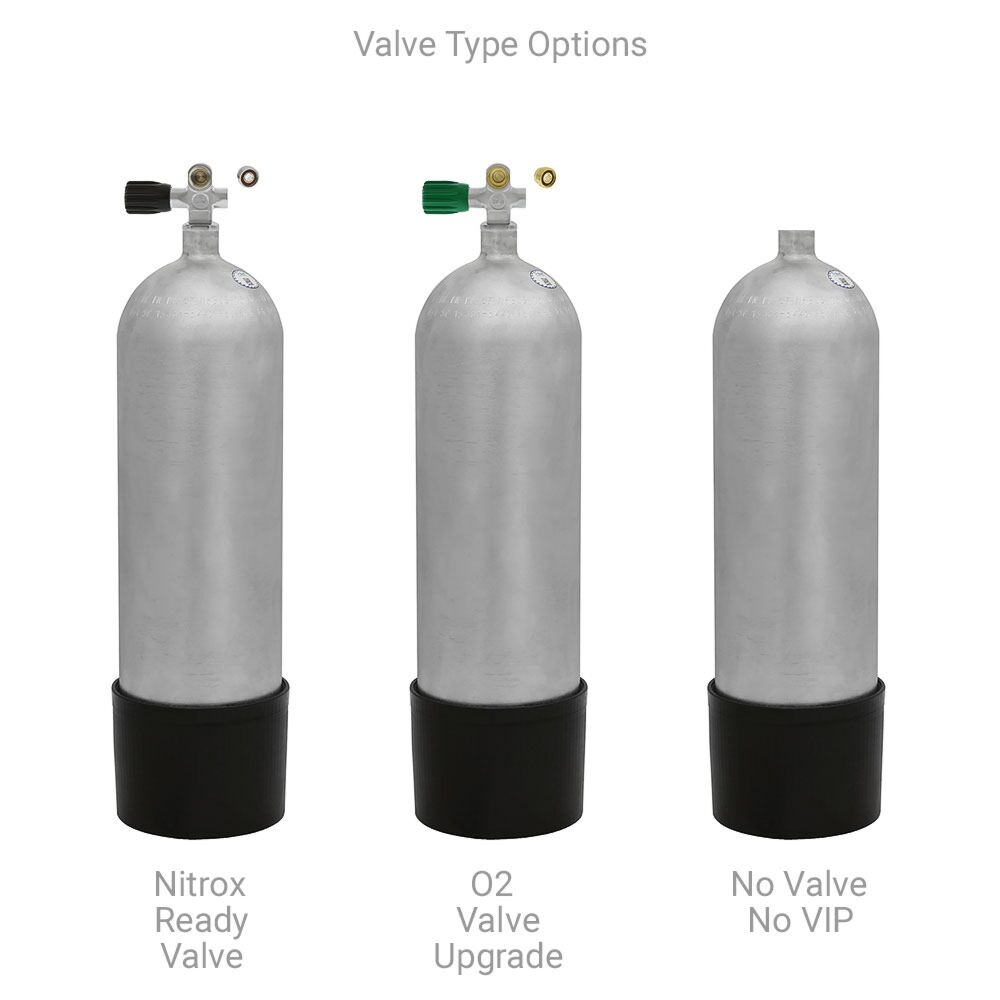

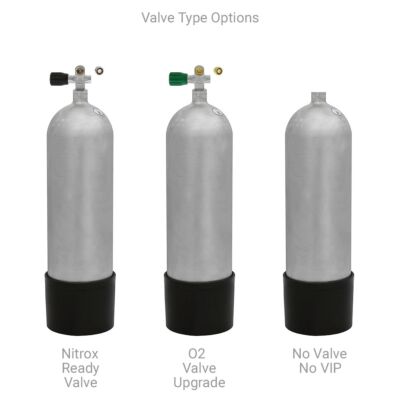

Valve Type Options
Valve Type Options Cylinder Size Comparison Premium Valve Options Premium O2 Valve Options Boot is Included Sample VIP How We Pack a Cylinder for Shipment Faber Cylinders for scuba diving - divefaber.com
  • 100 cubic feet, 3442 PSI service pressure, 7.25-inch diameter
  • Durable unpainted hot-dipped galvanized finish
  • Phosphatized corrosion resistant internal surface
  • Nitrox Ready tank and valve with VIP decal
  • Choice of valve style, assembled and ready-to-fill (contiguous US ground shipping only)

Faber F7-HP100 Cylinder w/Boot, Hot Dipped Galvanized

As low as $404.00
† See Note Below
SKU
SPM-F7-100-HDG-P
Faber High Pressure Steel F7-HP100 steel SCUBA cylinder in hot-dipped galvanized finish with boot and choice of valve.

Faber cylinders for the US market are manufactured in Italy and imported to the US via containerized sea freight. Currently the best information we have is our order for HP100 steel cylinders should be available in late September 2024. Use the "Notify me..." link above for an immediate email when we receive our order.

Prices for this cylinder does NOT include free shipping.

Questions? Cylinder FAQ and Valve FAQ

The Faber HP-Series SCUBA Cylinders are manufactured using deep-drawn chrome molybdenum steel resulting in a light weight cylinder with excellent buoyancy characteristics. Manufactured in Italy by Faber, these 3442 PSI service pressure cylinders are imported for the North American market in an unpainted hot-dipped galvanized finish. Hot-dip galvanizing offers excellent durability and corrosion protection for steel scuba tanks. The hot-dipped galvanized finish is heavy duty "industrial grade", with minor cosmetic imperfections that in no way impacts their durability or function. The inside of Faber cylinders also feature a unique phosphatized hardening treatment to create a corrosion resistant internal surface.

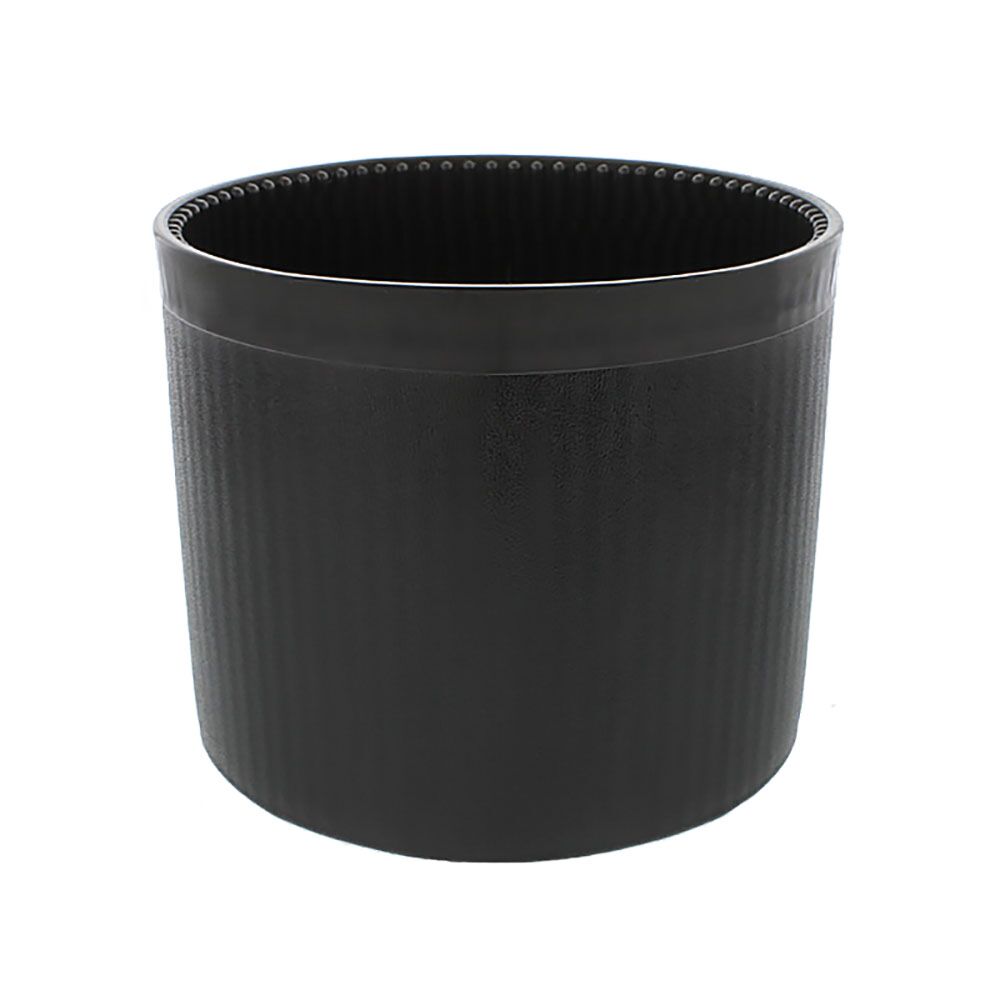

Dive Gear Express ships your Nitrox Ready cylinder with the valve installed (contiguous US ground shipping only). Unless you select no valve, the valve included in our price is a very high quality DGX Premium Pro Valve in your choice of design, plus a DIN/K insert to make the valve suitable for use with both DIN or Yoke regulator fittings. The cylinders ordered with valves have a current month Nitrox Ready decal. The Dive Gear Express price also includes a very high quality self draining tank boot.

Our "DGX Complete" Setup Includes:

  • Nitrox Ready Faber HP Hot Dip Galvanized Cylinder w/Boot

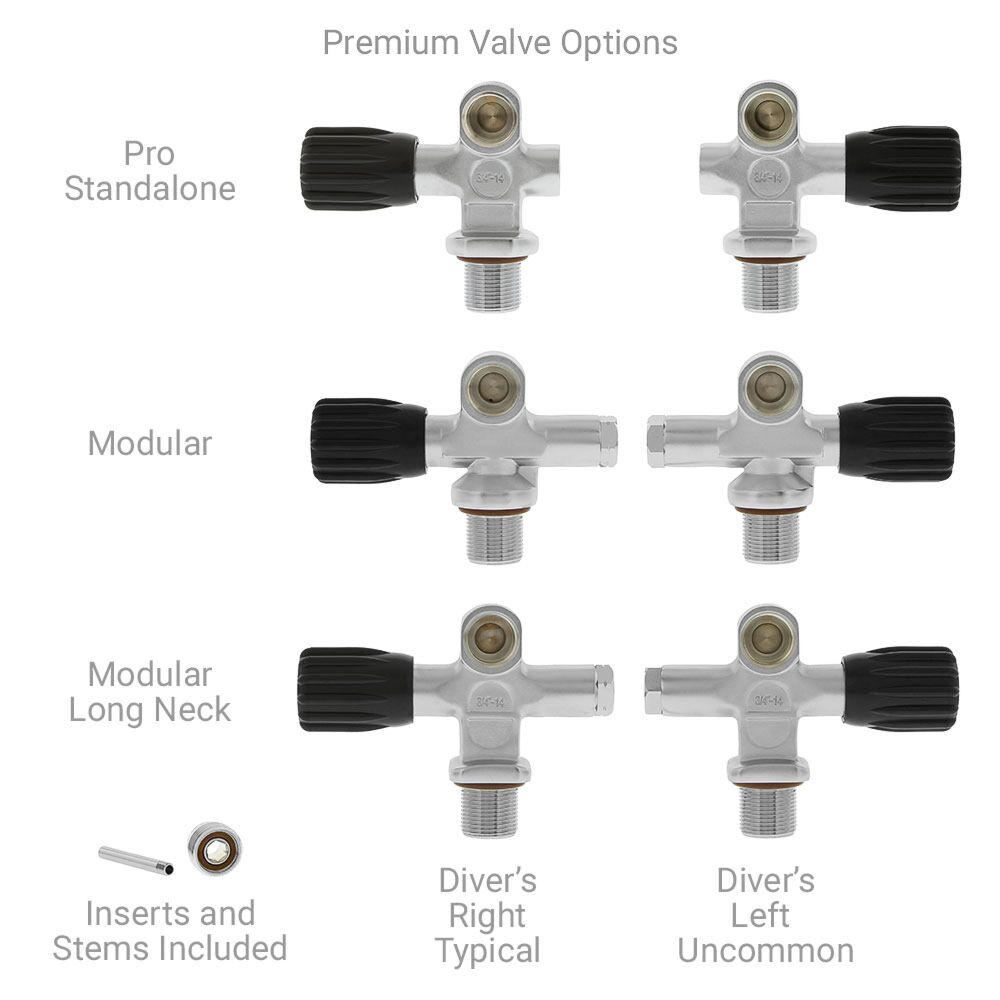

  • DGX Premium Pro Valve in choice of design and configuration
  • DIN/K Insert for use with Yoke regulator fittings
  • Spare O-ring for valve face
  • Valve Protector Cap
  • Current Nitrox Ready Decal †

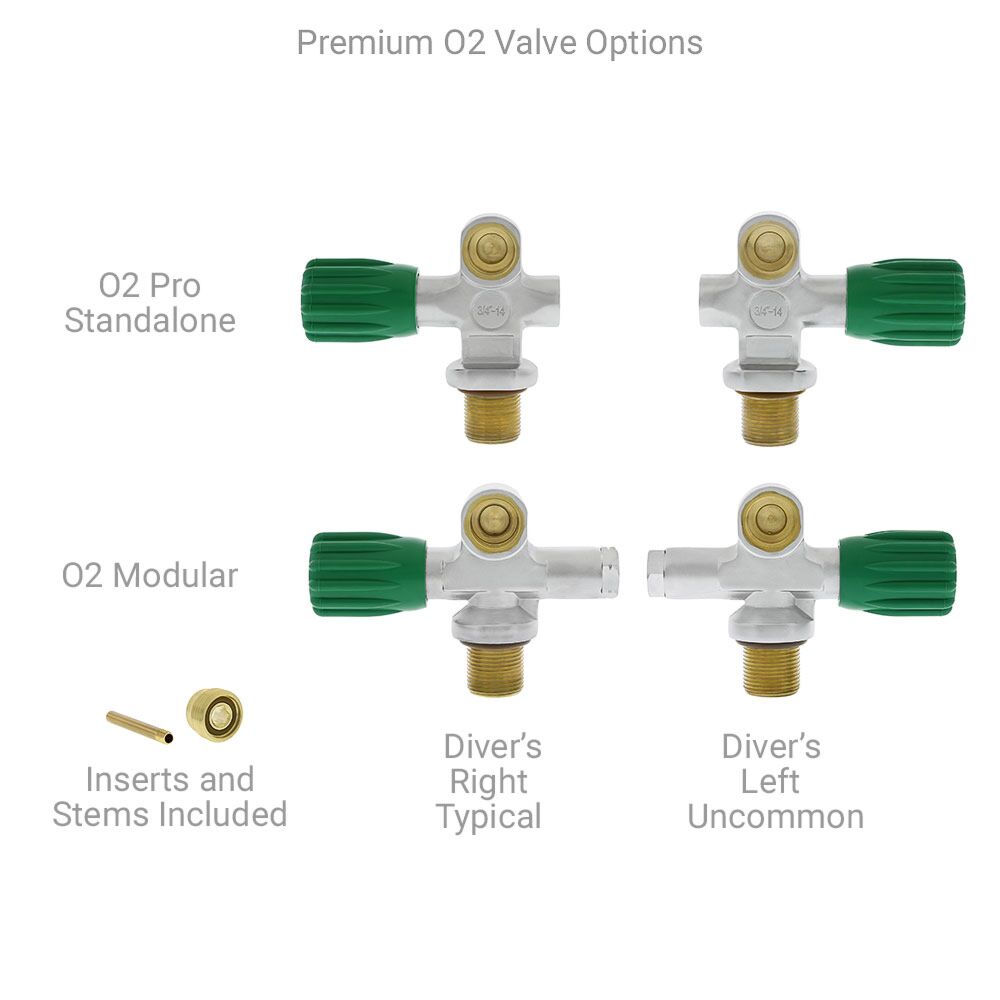

† Our shop evidence of inspection 3" X 6" dated decal (aka "VIP sticker") states "this cylinder and valve are suitable for service with compressed gases containing greater than 23.5% oxygen." That means the cylinder and valve, prior to initial use, are oxygen clean and oxygen compatible. If you plan to use this cylinder with gases containing more than 40% oxygen then the upgrade to our DGX Premium Oxygen Valve is suggested. If you select the No Valve / No VIP option, then the VIP decal and dust cap is NOT included.

Questions? Cylinder FAQ and Valve FAQ

More Information
Brand Faber
SKU SPM-F7-100-HDG-P
Weight 36.500000

Customer Reviews

Steel High Pressure Cylinders by Faber

Features of All Faber HP Steel SCUBA Tanks
from Dive Gear Express

  • Hot zinc spray or dipped external galvanization
  • Phosphatized corrosion resistant internal surface
  • Both U.S. DOT-SP13488-3442 and Canadian TC-SU7694-237 markings
  • 0.750-14 NPSM (3/4 NPS) threaded neck opening
  • Cylinder and valve are Nitrox Ready


How to Select a SCUBA Tank

Our factual but easy-to-read article helps you make this big decision by giving you information on:

  • Aluminum tanks versus steel tanks
  • Tank paints, coatings, and finishes
  • Tank dimensions and capacity recommendations

For details read How to Select a SCUBA Tank.

SCUBA Tanks must be hydrostatically tested every five years (60 months). We always ship Faber cylinders with a current hydro test date. Due to manufacturing and import cycles, the popular sizes of Faber cylinders typically have a factory hydro date less than 12 months old. However less popular sizes of Faber cylinders may have a factory hydro date up to 24 months old as these are manufactured and imported less frequently.

Our cylinders and valves are Imperial 3/4 NPS neck threads, NOT Metric M25 neck threads, and the valves have overpressure relief devices. The cylinders have US DOT and Canadian CTC markings suitable for use ONLY in North America. Our cylinders and valves are NOT CE approved and NOT suitable for use in the European Union. Cylinders are NOT marked appropriately for use in Australia and New Zealand.

Faber HP Cylinders at Dive Gear Express

Cylinder Service
Pressure (psi)
True Air †
Capacity (ft3)
Diameter
(inches)
Height *
(inches)
Weight *
(pounds)
Buoyancy **
Full : Empty (pounds)

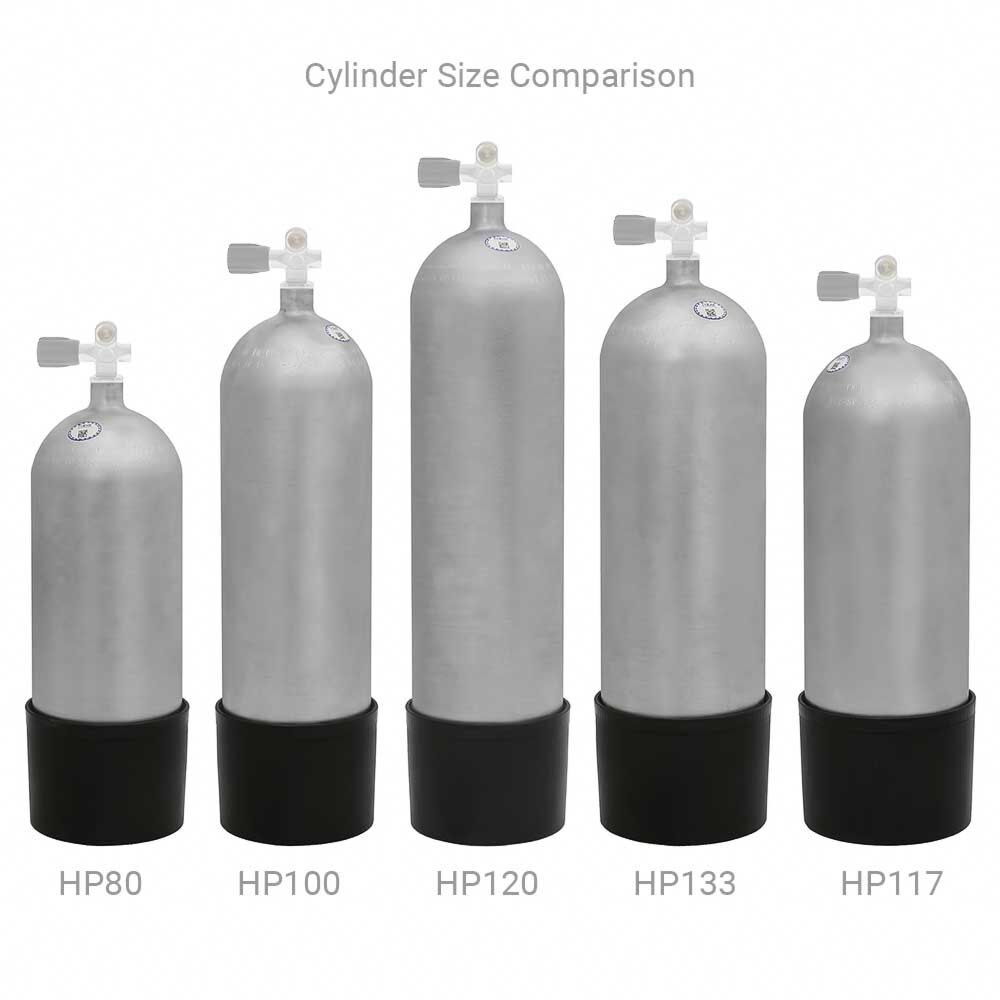

F7 Steel HP80 3442 ≈ 80.1 7.25 20.8 28.3 - 8.1 : - 1.7
F7 Steel HP100 3442 ≈ 101.3 7.25 25.3 34.0 - 8.4 : - 0.6
F7 Steel HP120 3442 ≈ 120.1 7.25 29.1 39.2 - 8.8 : + 0.7
F8 Steel HP117 3442 ≈ 117.8 8.00 24.2 37.6 - 9.1 : + 0.2
F8 Steel HP133 3442 ≈ 133.5 8.00 26.9 42.4 - 9.1 : + 1.5
Comparison Only
Aluminum 80
3000 ≈ 77.6 7.25 26.1 31.9 - 1.8 : + 3.2
* Height and weight is for cylinder only, i.e. less valve.
** Buoyancy specification is for cylinder and valve in seawater at 500 psi.
Specifications are NOMINAL and supplied by Sea Pearls as of 2018.
†  Visit Calculating SCUBA Cylinder Free Gas Capacities for more information about True Capacity values.
