DGX Custom - DGX Gears Harness Package - Mares XR

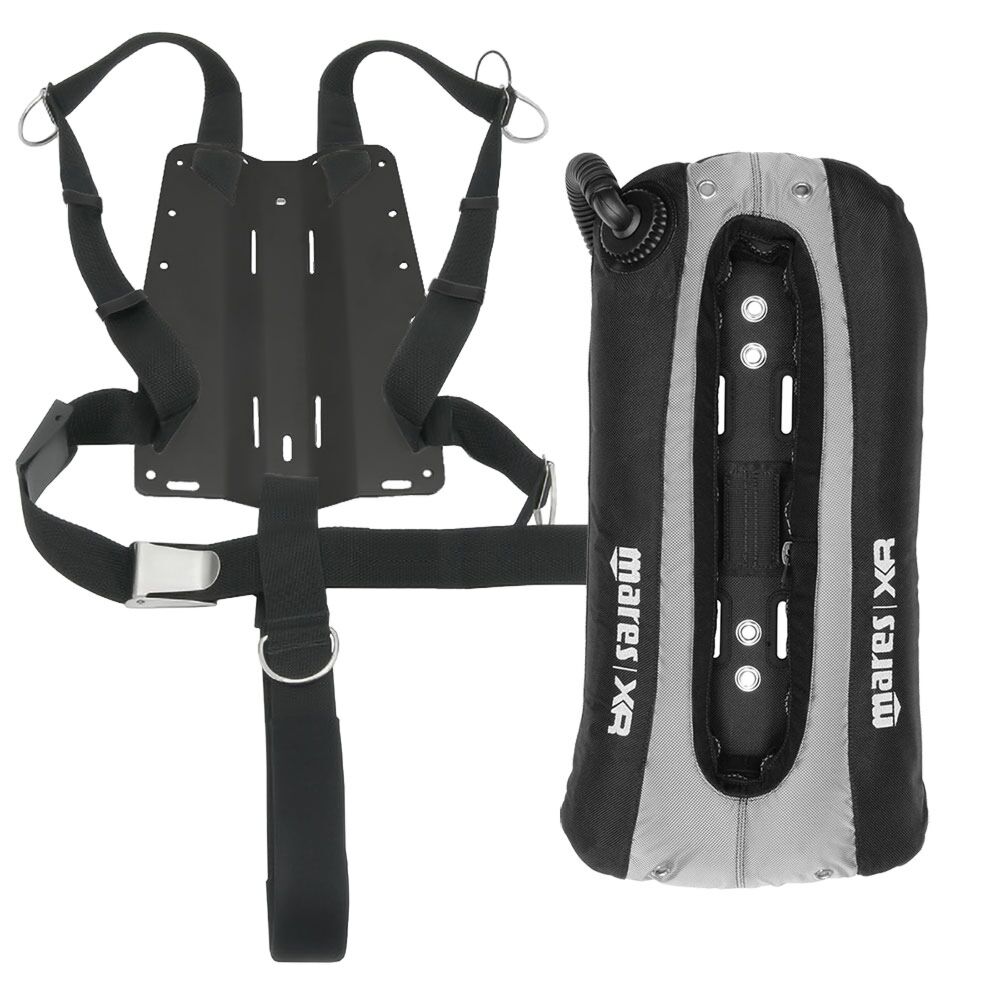

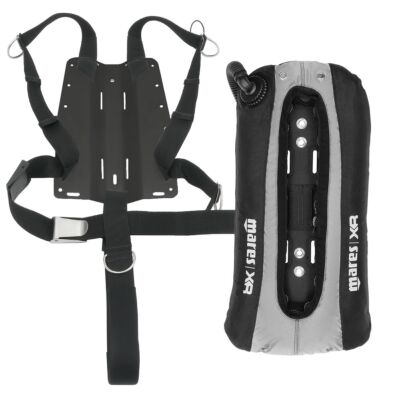

XR Singles {22 lb | 10 kg}, Aluminum Backplate and Harness w/ 2-Inch Crotch Strap

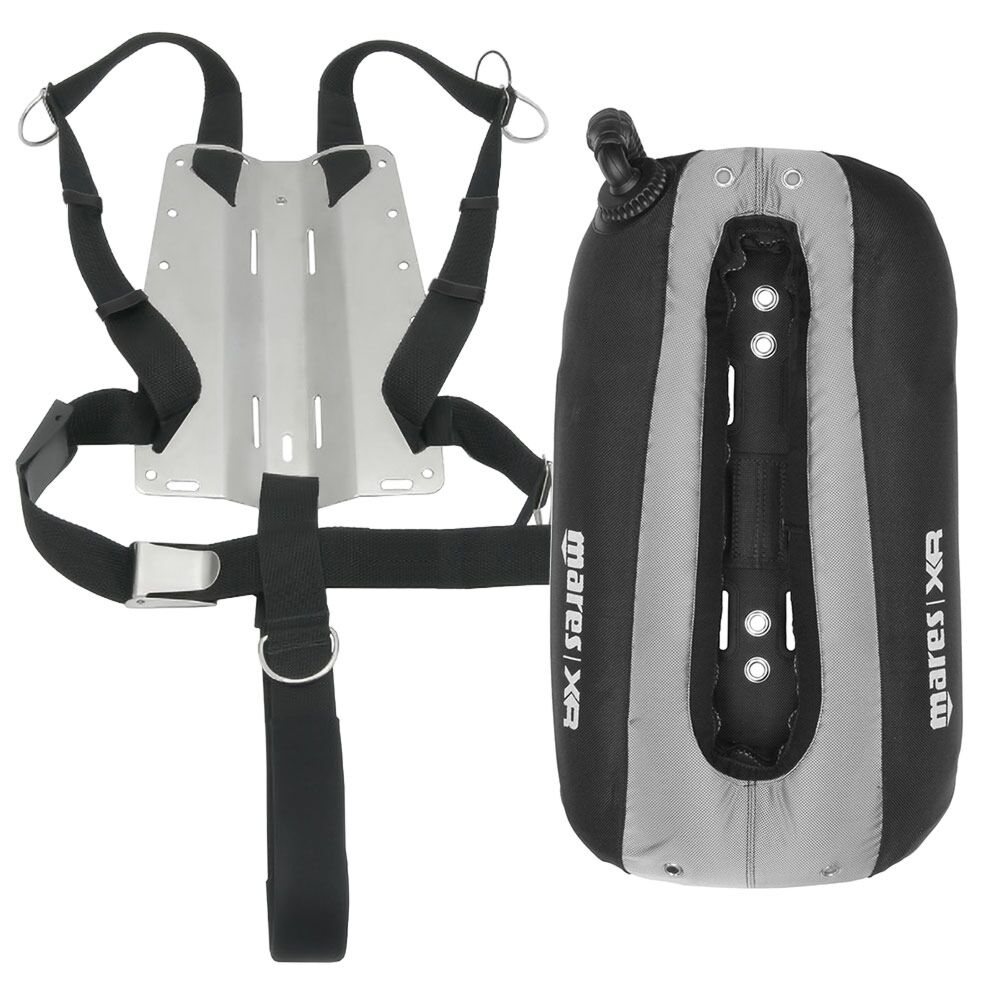

XR Singles {22 lb | 10 kg}, Aluminum Backplate and Harness w/ 2-Inch Crotch Strap Components of the DGX Gears Harness XR Singles {34 lb | 16 kg}, Stainless Steel Backplate and Harness w/ 2-Inch Crotch Strap
  • A complete hogarthian (DIR) configuration
  • Heavy duty nylon continuous webbing harness with choice of crotch strap
  • Sturdy metal backplate with stainless buckle
  • Easy to assemble - easy to maintain

DGX Custom - DGX Gears Harness Package - Mares XR

As low as $449.00
Most Options - In Stock
SKU
PK-251015
Build a custom configured BC using our exclusive DGX Gears style harness and backplate, together with the Mares XR brand wing.

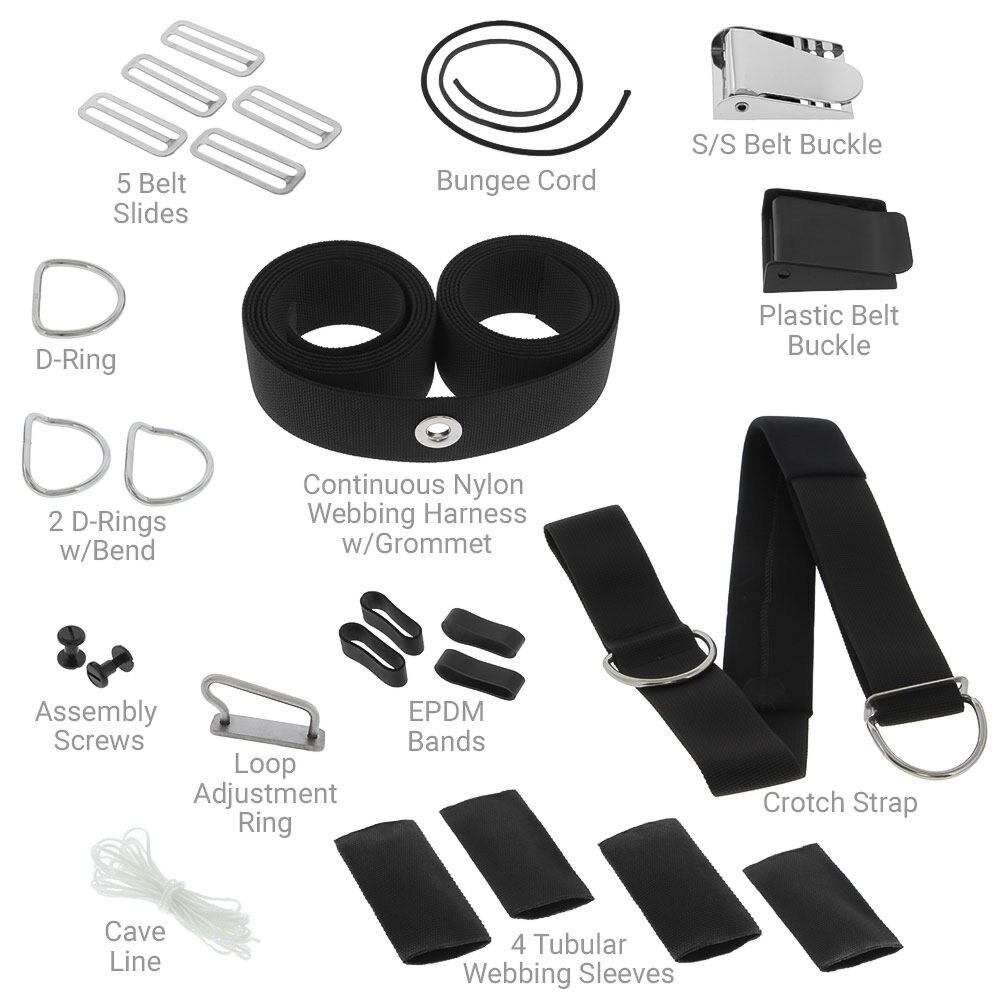

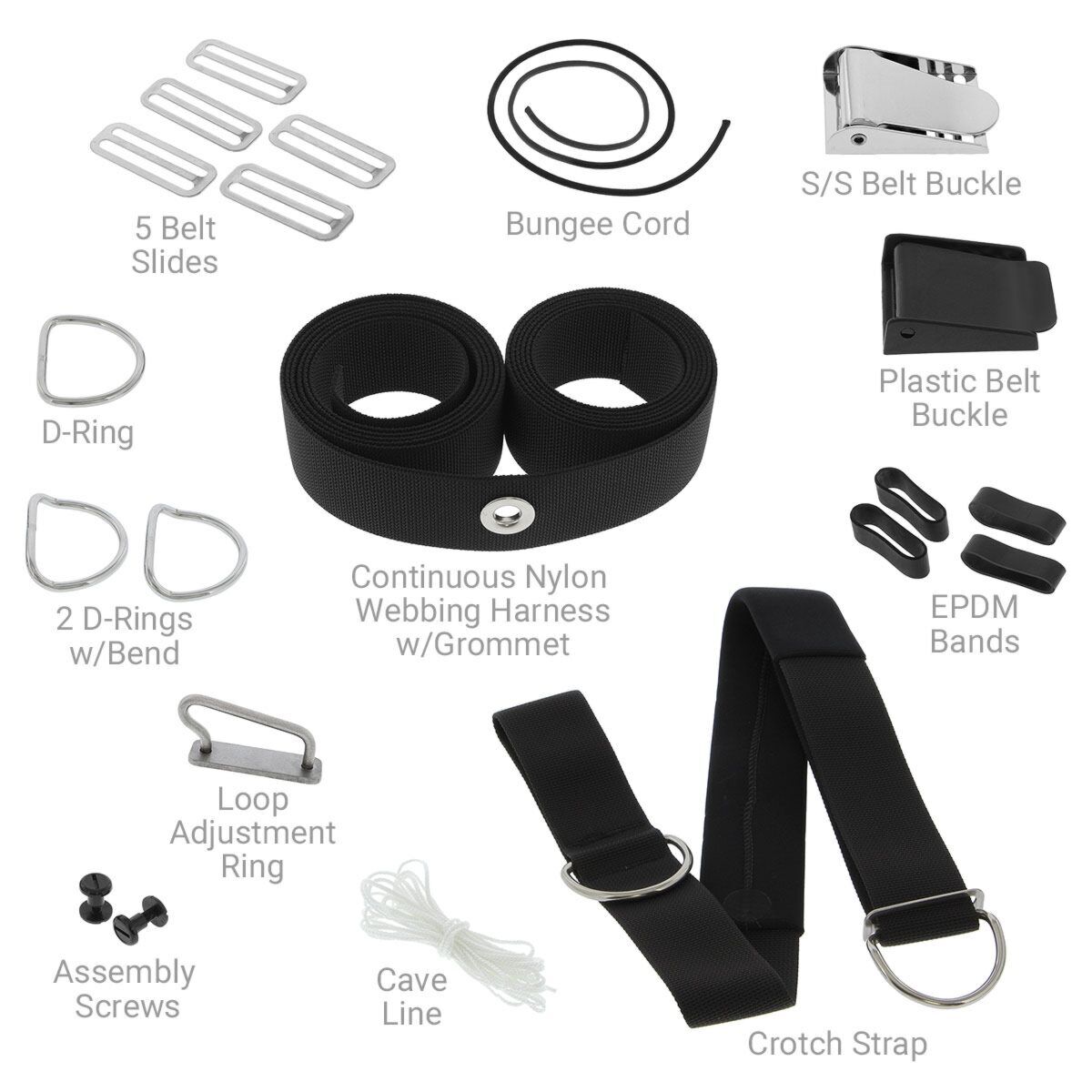

The DGX Gears Harness Package includes a lot of quality extras: webbing sleeves for improved abrasion resistance, choice of crotch straps, loop adjustment ring, durable neoprene elastic bands, additional webbing slides to support a variety of assembly options, extra buckle for securing light canister or accessory pocket, snap line and of course a copy of our very detailed assembly and fitting instructions.

  • Aircell: Your choice of Mares XR Singles Wing { 22 lb |10 kg } or { 34 lb |16 kg } lift)
  • Optional: Upgrade to Mares XR Doubles Wing { 44 lb | 20 kg } or { 52 lb | 24 kg } for maximum lift option
  • DGX Gears Harness with all S/S hardware
  • Your choice of crotch strap with the harness:
    • The popular {1.5 in | 3.8 cm} Crotch Strap is noticeably more comfortable and with a side-release buckle is a welcome change from outdated traditions to the convenience of a crotch strap that can be adjusted on-the-fly. The {1.5 in | 3.8 cm} crotch strap uses a soft black webbing that measures {38 in | 97 cm} in length with a {2,200 lbs | 100 kg} tensile strength and weighs {3 oz | 85 g}.
    • The traditional {2 in | 5 cm| Crotch Strap has a sewn-loop and includes a neoprene sleeve to protect exposure suit from abrasion. The {2 in | 5 cm} black webbing crotch strap measures {42 in| 107 cm}in length, with 2,800 lbs tensile strength and weighs {6oz |170g}.
  • Backplate: Choose DGX aluminum OR upgrade to DGX stainless steel

For single tank diving with Mares XR singles wing you will need to add two optional S/S cam buckle tank straps and an optional single tank adapter if you wish. The singles 22lb wing is perfect for { 7.25 in | 12 L } cylinders like the AL80 and HP100. The singles 34lb wing is the best choice for physically larger single tanks. The Donut or Horseshoe style wing is best suited to doubles and we do not recommend the use of the these wings with singles.

Aluminum backplates are the most popular with freshwater divers and divers using steel tanks. The { 2 lb | 0.9 kg } aluminum backplate has a durable anodized black finish. Compared to bare uncoated aluminum, the durable anodized aluminum finishes provide greater corrosion resistance and better consistency in appearance.

Stainless steel backplates are most popular with saltwater divers and divers using aluminum tanks and/or drysuits. The { 5 lb | 2.3 kg } stainless steel plates are polished, passivated, and given a matte finish. Passivation treatments improve the surface condition of stainless steel by dissolving iron that has been embedded in the surface during forming, machining or polishing.

The DGX custom webbing harness systems do NOT come assembled as your personal sizing for the harness must be done during assembly.

DGX Gears Harness Assembly Instructions

More Information
Brand Mares Extended Range
SKU PK-251015
Weight 10.000000
