DGX Custom - DGX Gears Singles Harness / Backplate / Wing Package

DGX Singles Harness and Wing Package with AL Backplate

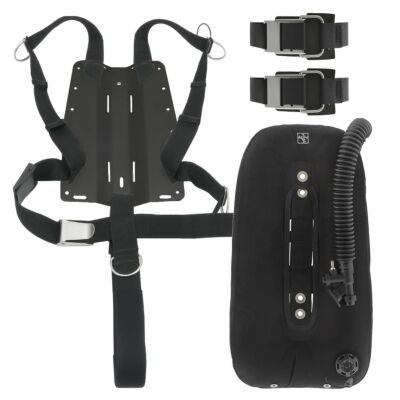

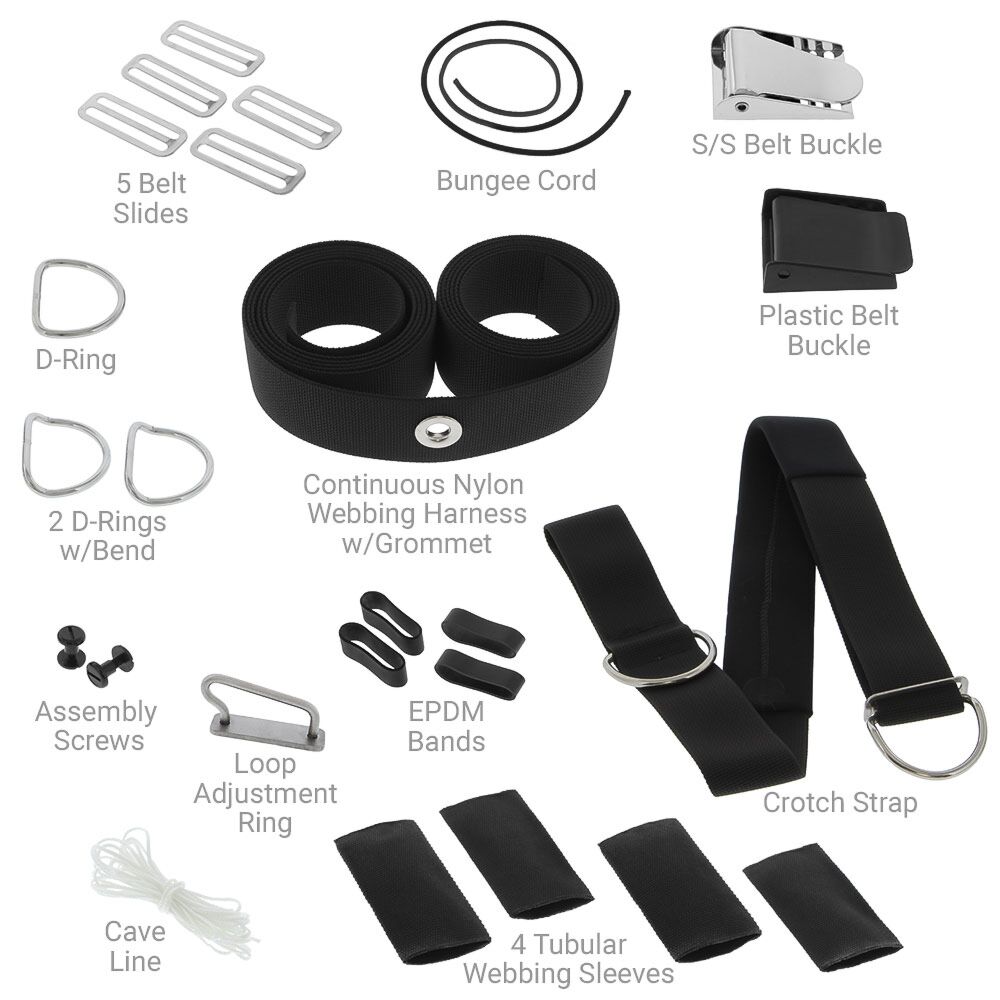

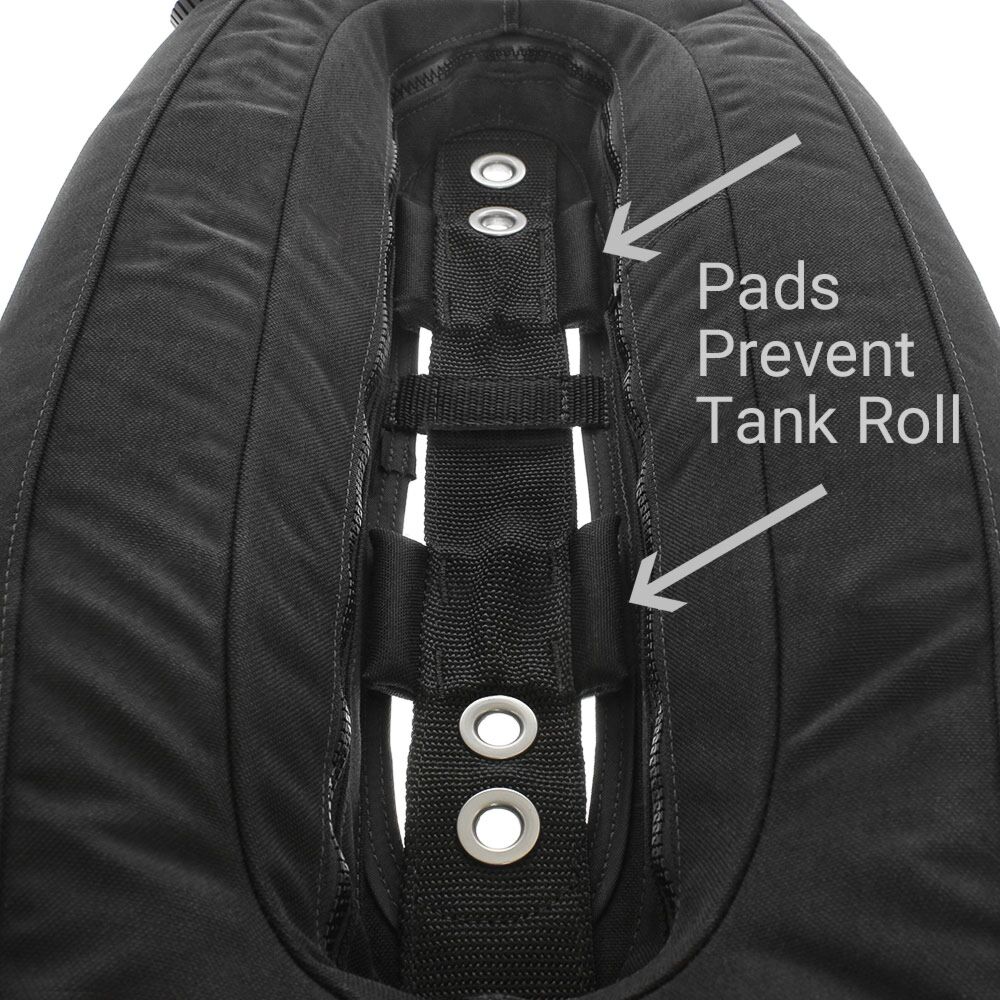

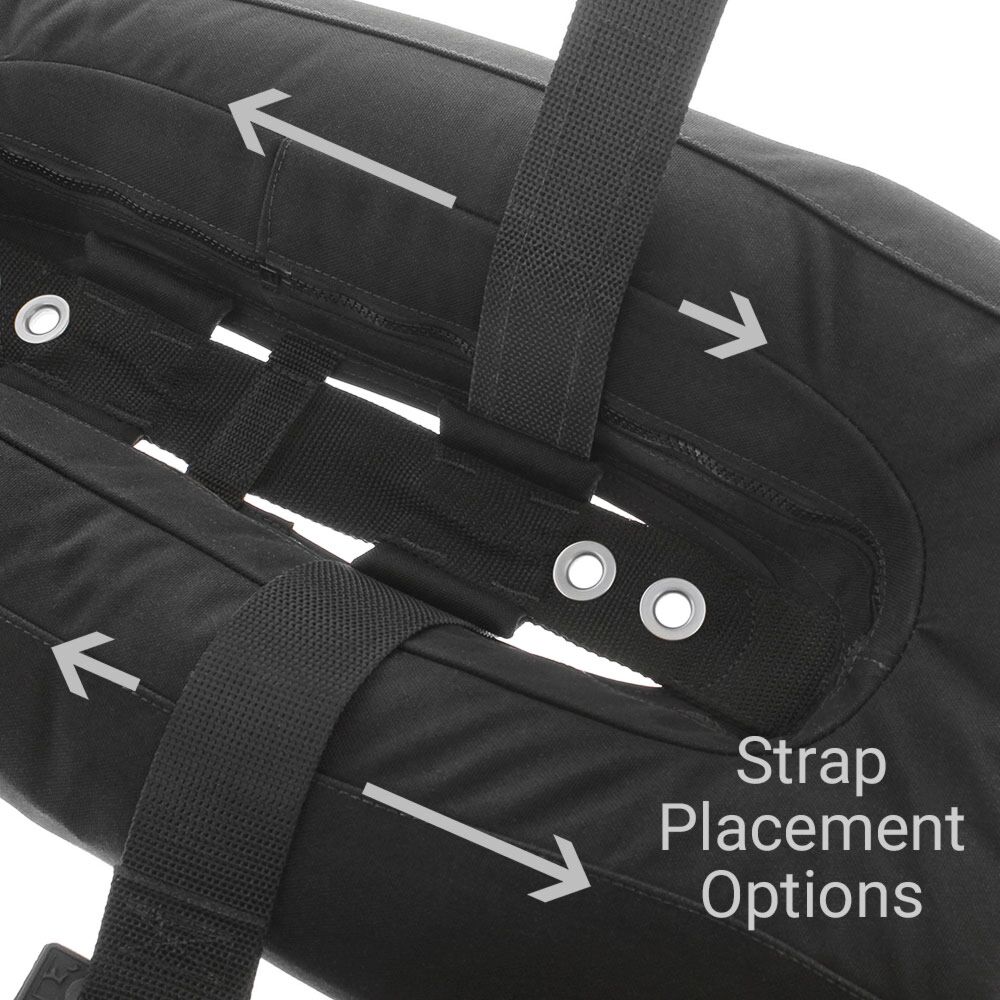

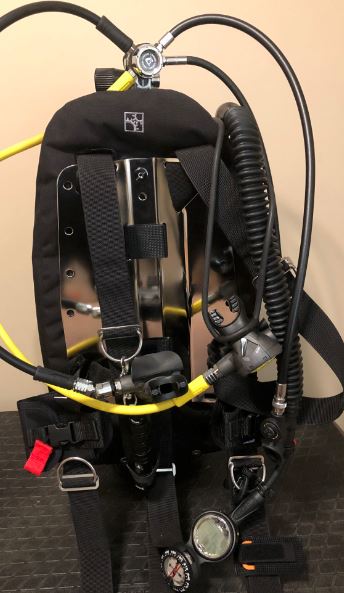

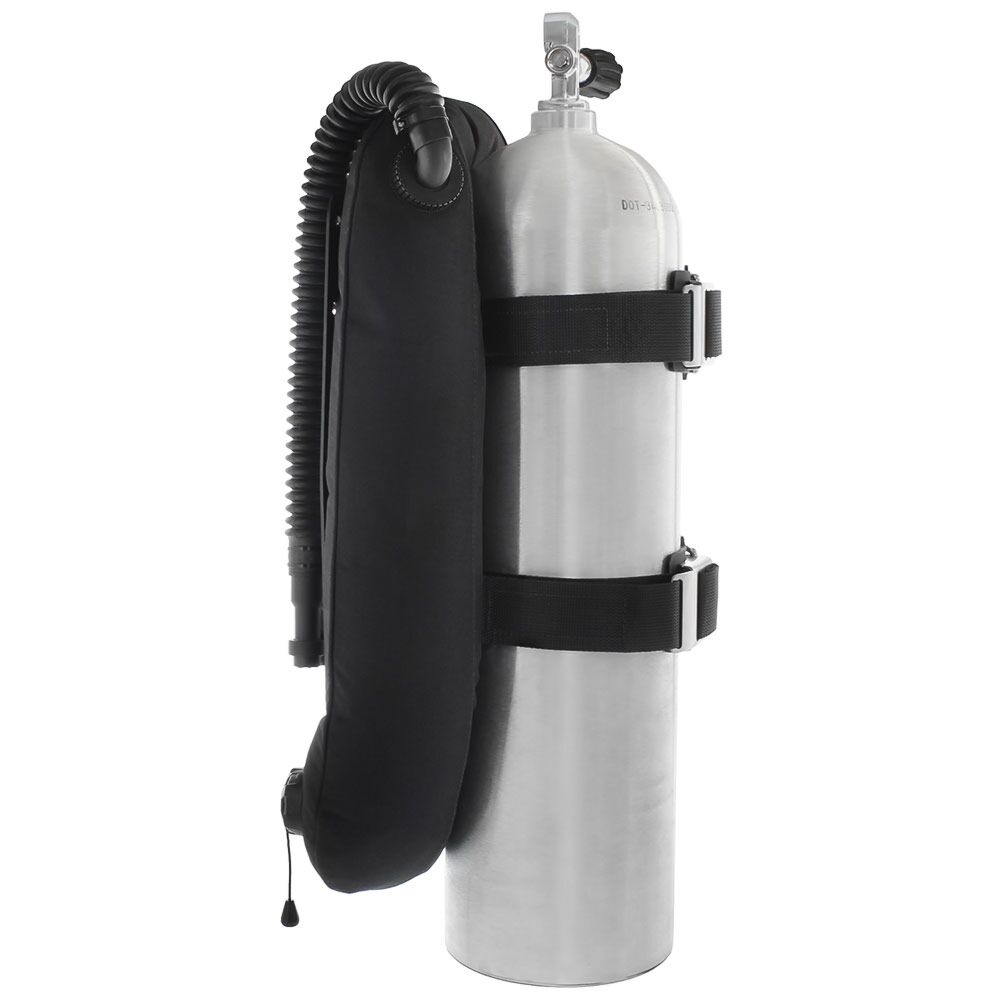

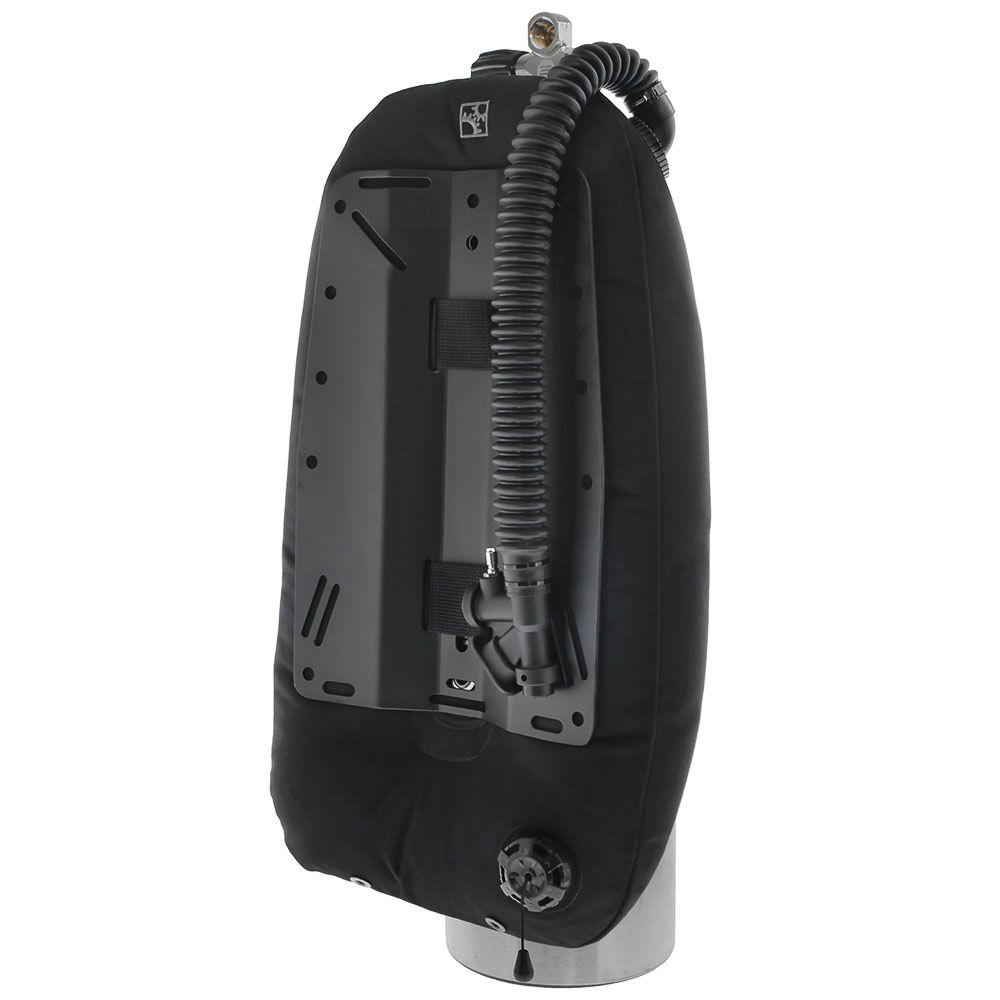

DGX Singles Harness and Wing Package with AL Backplate Components of the DGX Gears Harness - Option to Select 1.5-Inch or 2-Inch Crotch Strap Choice of 1.5 in or 2.0 in crotch straps Integrated Roll Control Optional BCI Backup Regulator With Hose Tank Strap Placement Can Be Adjusted DGX Gears Wing, AL Backplate and Straps Mounted on AL80 DGX Gears Wing, AL Backplate and Straps Mounted on AL80 How to Attach a Backplate and Wing
  • Excellent quality and value for single tank diving
  • Modular backplate and wing system for versatility
  • Simplicity and durability for years of heavy use
  • DGX Gears harness with all S/S hardware
  • Includes crotch strap and tank straps

DGX Custom - DGX Gears Singles Harness / Backplate / Wing Package

As low as $399.00
In Stock
SKU
PK-251311
A basic DGX backplate/wing/harness package for single tank diving at a value price.

A basic backplate/wing/harness package for single tank diving at a value price. This fully integrated BCD uses a DGX Gears (S1) aircell together with a DGX premium quality metal backplate, harness webbing, padded crotch strap, stainless steel hardware, DGX tank straps with Stainless Steel hardware and other accessories. Includes a { 16 in | 40.6 cm } corrugated hose with plain elbow.

Included with this Package:

  • DGX Gears (S1) { 30 lb | 13.6 kg } Single Tank Wing
  • Wing includes a { 16 in | 41 cm } Corrugated Hose with a Plain Elbow Inflator Assembly
  • DGX Gears Harness with all S/S hardware
  • Your choice of crotch strap with the harness:
    • The popular {1.5 in | 3.8 cm} Crotch Strap is noticeably more comfortable and with a side-release buckle is a welcome change from outdated traditions to the convenience of a crotch strap that can be adjusted on-the-fly. The {1.5 in | 3.8 cm} crotch strap uses a soft nylon webbing that measures {38 in | 97 cm} in length with a {2,200 lbs | 1,000 kg} tensile strength and weighs {3 oz | 85 g}.
    • The traditional {2 in | 5 cm| Crotch Strap has a sewn-loop and includes a neoprene sleeve to protect exposure suit from abrasion. The {2 in | 5 cm} nylon webbing crotch strap measures {42 in| 107 cm}in length, with {2,800 lbs | 1,270 kg} tensile strength and weighs {6oz |170g}.
  • Select DGX Aluminum OR upgrade to Stainless Steel Backplate
  • DGX tank straps with Stainless Steel hardware
  • DGX Plastic Assembly Screws (2)

It does NOT include a BC inflator hose but we suggest a { 22 in | 56 cm } option for use with the included corrugated hose assembly.

This rig can accommodate the typical Aluminum 80 or Steel LP-85, HP-80 or HP-100 tanks. Includes Aluminum backplate or upgrade to Stainless Steel, upgrade to add weight pockets or shoulder pads. Approximate weight of harness & wing with aluminum backplate is { 6 lb | 2.7 kg }, or { 9 lb | 4 kg } with the stainless plate.

The DGX single tank wing features a narrow low profile design with a lift capacity of { 30 lb | 13.6 kg } and includes a { 16 in | 41 cm } corrugated hose with a plain elbow. The two tank strap slot design allows for a more secure tank attachment option of using two (2) cam straps. It is constructed from durable 1000 Denier nylon outer shell material and further enhanced with a heavy-duty urethane coated 200 Denier nylon laminated bladder.


The ultimate tool for streamlining, upgrade your DGX backplate/wing/harness package with our optional DGX Gears BC Integrated Backup Regulator. The breathable inflator replaces the standard K-style inflator, combining an alternate air source with a power-inflator. This configuration also makes it quicker and easier to find your backup regulator because you reach for and operate your inflator several times throughout each dive. In an emergency out-of-air donation, you always donate the primary regulator in your mouth and switch to breathing from the BCI.

The DGX Gears BC Integrated Backup Regulator will be installed on the corrugated inflator hose and is fed by the first stage in the same manner as any regulator. It is supplied with a hi-flow quick coupling adapter together with an included low-pressure flex regulator hose that also supplies the power-inflator - thus eliminating the traditional long hose and dangling octopus regulator that is a hassle. The advantage of using a high-flow QD adapter with an ordinary low-pressure regulator hose is that should the hose later need to be replaced due to age or damage, you do not have to source a hose with a specialized QD fitting.

  • Large, shape and color differentiated buttons are easy-to-use, even with gloves.
  • The easy purge cover is located on the bottom of the unit so it will not be affected by strong currents.
  • Downstream demand valve with venturi assist for performance and reliability at any sport diving depth.
  • Includes inlet protective cap to keep out water and particulates.
  • The screw-on corrugated hose nipple makes the entire second stage easily detachable from the wing.
  • Proven design meets the requirements of EN250 for an auxiliary emergency breathing device integrated with a buoyancy inflation system.

Ready to dive, we install the DGX Gears BC Integrated Backup Regulator option on your wing corrugated hose along with the QD push-on adapter and LP regulator hose.


Sorry, but at this low price we are unable to make any substitutions.

The DGX custom webbing harness systems do NOT come assembled as your personal sizing for the harness must be done during assembly.

DGX Gears Harness Assembly Instructions

This package does not include a "Single Tank Adapter" because the STA is a product which predates modern backplate and wing designs that include pre-cut slots for cam straps. Using the straps threaded through the backplate snugs the tank and wing up very tight against the backplate and does not allow the tank to rock. Using an STA would set the tank farther away from the backplate and allow the tank to rock slightly by pivoting from side to side on the bolts. The plastic assembly screws included with this package can be used to attach the wing directly to the metal backplate when rigged for a single tank without a single tank adapter. Note that this function is just cosmetic, omitting the assembly screws does not cause a problem and most experienced divers don't bother to use them. Without the assembly screws, when the BCD is taken off a single tank, the wing will hang loose on the cam straps.

More Information
Brand DGX Gears
SKU PK-251311
Weight 10.000000
