Dive Rite Voyager EXP Wing

$384.00
In Stock
SKU
DR-BC4700-x
With an oval shape, the Dive Rite Voyager Wing is a lightweight, low-profile aircell that is great for travel and warm-water, single tank diving. The Voyager EXP comes standard with a pull-to-dump remote exhaust elbow, { 16 in | 40.6 cm } corrugated hose, and { 22 in | 55.9 cm } low pressure BC inflator hose.

Dive Rite Voyager EXP Wing

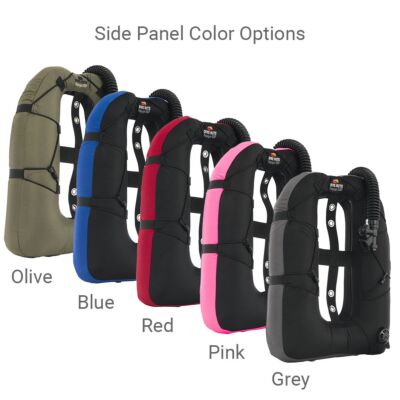

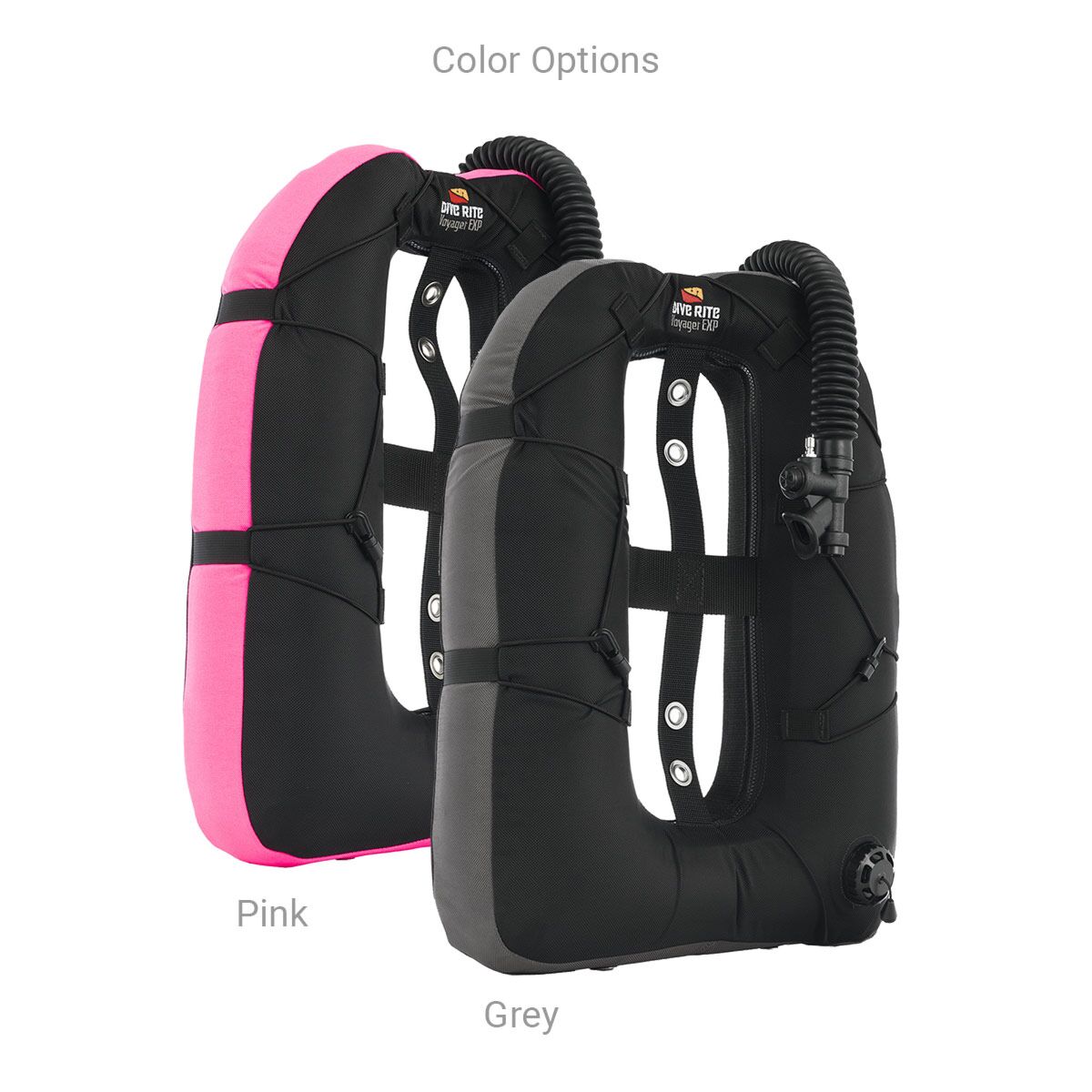

Side Panels Available in OLIVE, BLUE, RED, PINK and GREY
Side Panels Available in OLIVE, BLUE, RED, PINK and GREY Grey / Black Travel EXP Wing - Front Olive Green Travel EXP Wing - Front Olive Green Travel EXP Wing - Back
  • Designed for Single Tank Diving only
  • Compact Donut shape design Provides { 35 lb | 16 kg } of lift
  • Includes Gusset Control System for maximum streamlining
  • Includes pull-to-dump remote exhaust elbow
  • Works with any brand backplate and webbing harness

At { 35 lb | 16 kg } of lift, the oval design of the Dive Rite Voyager EXP series is an outstanding wing for single-tank diving with their low-profile, donut-shape design. The Voyager EXP wing provides greater stability and control in the water. Donut-style or 360 degree wings promote an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim. Streamlined side panels and a minimalist, oval shape create a higher-lift wing that remains unobtrusive instead of bulky. This is ideal for divers with larger statures or those who dive in cold water and/or require more weight. The Gusset Control System streamlines the wing, keeping it close to the body. The Voyager EXP accommodates almost ANY single cylinder up to 95ft3 / 15 L tank. When used as a part of the Dive Rite modular BCD system, it can be matched with either a TransPac, Transplate or any metal backplate and webbing harness.

Made from the durable 1680 ballistic nylon EXP material, with a 1680 ballistic nylon diver's side panel in a (PINK, BLUE, RED, Olive Green or GREY ). The EXP aircell is further enhanced with a heavy-duty, 210 denier nylon laminated bladder. The standard inflation assembly is a { 16 in | 40.6 cm } corrugated hose with a { 22 in | 55.9 cm } low pressure BC inflator hose and pull-to-dump remote exhaust elbow. This is the inflation assembly we suggest for an open water single tank diving environment.

Voyager EXP wing Approximate dimensions uninflated: {22 in H x 19 in W | 59 cm x 48 cm}

Please note that Dive Rite no longer includes assembly screws with these wings. They can be ordered separately, see related products.

More Information
Brand Dive Rite
SKU DR-BC4700-x
Weight 4.000000

Customer Reviews

Dive Rite Air Cells Overview

Dive Rite's wings utilize either a 360 degree, donut-style bladder design that provides an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim, or the Retro style horseshoe design, allowing divers to target lift where it’s needed to balance out their rig and stay in trim. The heavy-duty 210 denier nylon laminated inner bladder is pinch and puncture resistant, chemical resistant and resists the growth of microorganisms. Each airtight inner bladder is surrounded by an outer fabric shell (available in two different versions) and an oral/power inflation assembly. The outer fabric shell protects the wing from tears and abrasion.

Air Cell EXP & XT Versions
Available
Test
Lift
Dual Version
Available?
Use with
Singles?
Use with
Doubles?
Gusset
Control?
Travel Wing YES (Both) 25 lb NO YES NO NO
    11.3 kg
Voyager Wing YES (Both) 35 lb NO YES NO YES
    15.9 kg
Rec Wing YES (Both) 45 lb YES YES YES YES
    20.4 kg
Classic Wing XT Only 60 lb YES NO YES YES
    27.2 kg
Classic Retro Wing EXP Only 40 lb NO NO YES NO
    18.1 kg
Classic Retro Wing EXP Only 55 lb NO NO YES NO
    24.9 kg
CCR Wing XT Only 40 lb YES NO YES YES
    18.1 kg
Nomad Wing XT Only 50 lb YES     YES
    27.0 kg

EXP versions - The EXP series wings have an outer fabric shell made of tough 1680 denier ballistic nylon. The EXP wings are available in black with gray side panels. EXP series wings feature a one year warranty.

XT versions - The XT series outer fabric shell, built upon the legendary toughness of SuperFabric® brand technology, is outstandingly rugged. SuperFabric is a technical fabric resistant to cuts and abrasion. Created with a base fabric and then overlaid with tiny guard plates, this proprietary armored surface, along with material science and strategic geometric patterns, transform ordinary fabric into SuperFabric brand materials. Spacings between the guard plates allow for flexibility and breathability, yet are small enough to keep sharp objects from penetrating. Dive Rite's XT Armored wings have the durability of SuperFabric outer side with a 1000 denier Cordura® inner side to create an armor-clad shell that is impervious to damaging pinches, cuts and abrasions. The Dive Rite XT wings feature a LIFETIME GUARANTEE.

Lift Capacity - A very common error when selecting a wing is to choose a size much too big, causing a "taco effect" that makes managing buoyancy considerably more difficult. The cylinder size, type and configuration, not lift capacity, is the best guide to selecting the correct wing.

For details read Suggestions for Selecting a Wing.

Inflation Assemblies - Configurations are available with a pull-to-dump remote exhaust elbow for sport diving applications that favor ease of use, or a plain elbow for technical diving applications that favor simplicity. Most divers prefer the { 16 in | 40.6 cm } corrugated hose with a { 22 in | 55.9 cm } low pressure BC inflator hose. But, some technical divers seeking ultra-streamlined configurations prefer the { 12 in | 30.5 cm } corrugated hose and { 15 in | 38.1 cm } low pressure BC inflator hose; especially on doubles.

Singles & Doubles Wings - While the Rec wing design can be adjusted for occasional use with singles, keep in mind they are not designed to be used primarily as singles wings and they are not optimal with singles. Realistically, there is no wing perfect for both singles and doubles, or even a wing perfect for all doubles. If the range of cylinder configurations which you dive is broad, then the best choice for efficient and comfortable diving may be to own more than one wing.

Dual versions - The dual bladder wings offer the same versatility and lift capacity of the single bladder wings, but also incorporate two bladders to provide back-up inflation. The dual option is ideal for technical divers who dive wet and do not have a drysuit as alternate buoyancy. Or, for any diver who want to ensure their backup buoyancy has the same lift capacity as their primary.

Gusset Control System - The GCS is used to streamline the shape of the Dive Rite wings to keep the excess of these larger wings from wrapping around the cylinders or "flapping." The GCS does not create a bungee wing because it does not restrict air flow; instead the GCS promotes added streamlining and buoyancy control, yet allows the wing to full inflate to its full capacity. The GCS can be disabled by moving two clips to release all tension on the cord, allowing the wings to fully inflate without any retraction effect from the GCS. For those who prefer not to use the Gusset Control System, the cord may be removed entirely. For details read Dive Rites' Gusset Control System (GCS).
