Dive Rite's EX35 Primary Canister Light utilizes the latest LED technology, push button control and a high efficiency head design. The EX35 boasts an impressive 4300 lumen output in a sleek and compact package.

Package includes: EX35 light, expedition canister battery, rigid Goodman handmount with QRM, charger, and protective EVA carrying case.

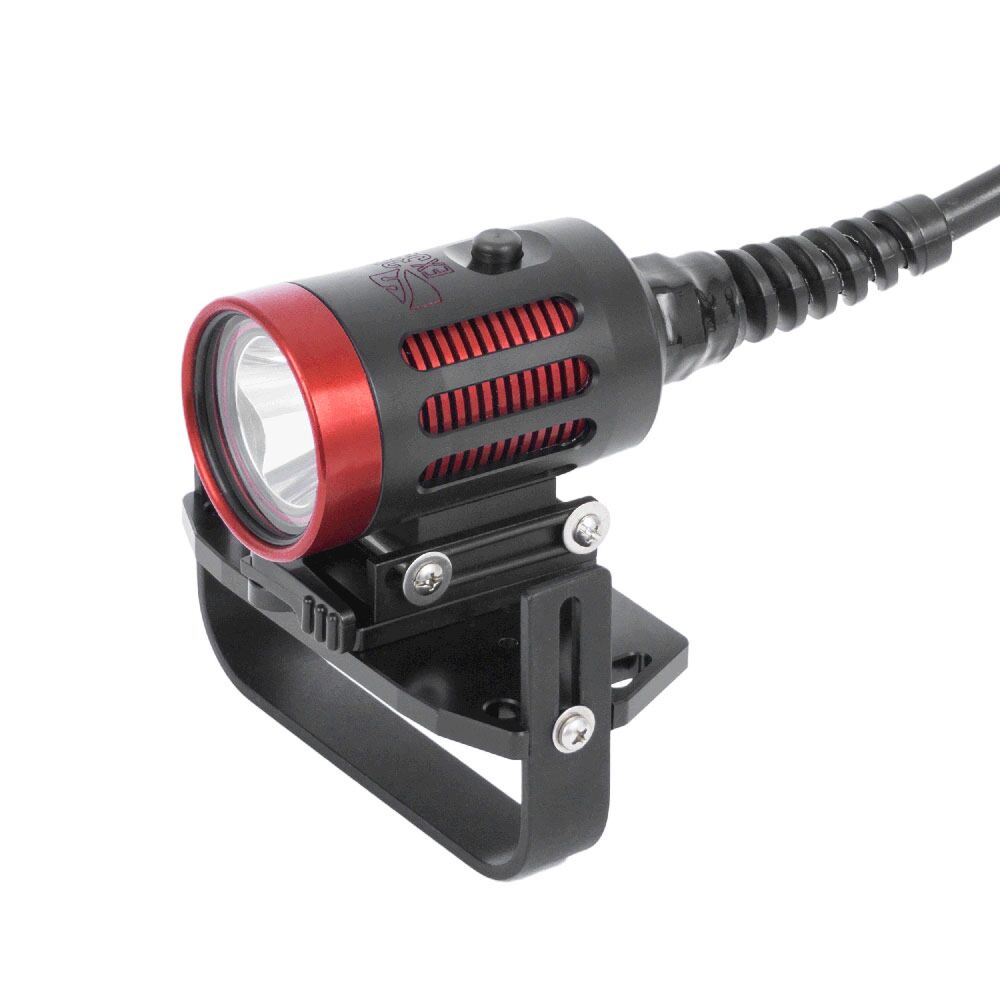

The EX35 light head was designed for maximum heat dissipation. The red color anodized aluminum head efficiently removes heat allowing the Cree XHP35 HI LED to be driven at 35 watts while increasing service life and output. The CNC machined black Delrin outer cover adds a visual color contrast and protection for the heat sink fins.

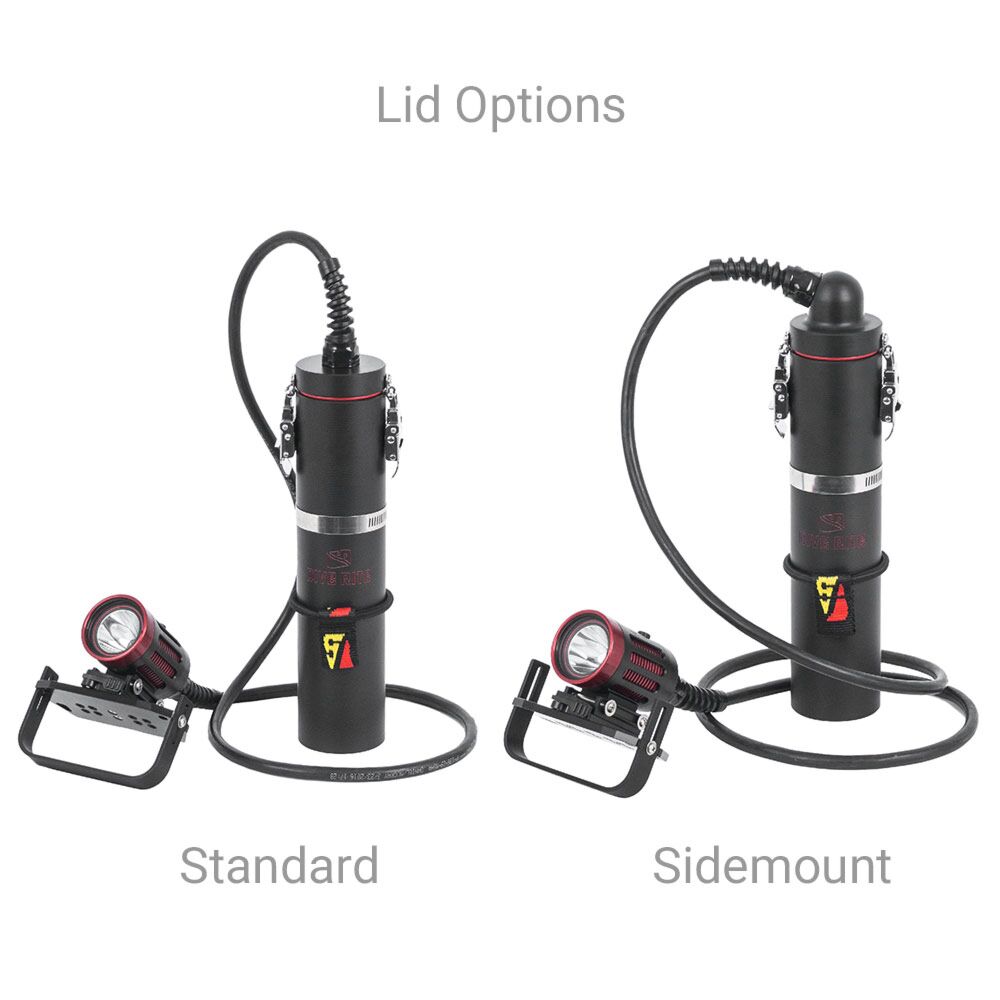

The small footprint, single die LED combined with a smooth reflector produces a tight 6° beam angle ideal for punching through the dark or signaling a buddy, while still providing a wide halo of light around the hotspot to illuminate the space around you. The TSA airline approved UN38.3 tested, 150Wh expedition battery canister and the battery canister lid is available with a straight lid or a 70-degree lid for sidemount. The straight lid has {48 in | 122 cm} of cord and the 70-degree lid has {60 in | 152 cm} of cord.

The EX35 Primary Canister Light is operated using a magnetic push button on the head which eliminates the failure points associated with toggle or piezoelectric switches. A simple user interface allows the diver to easily switch between five (5) power modes on the fly to match diving conditions. High power modes are ideal for big open caves with good visibility, while the diver may choose to go to a lower power mode in smaller areas or reduced visibility, or for additional burn time. The EX35 also has a strobe mode for when you really need to get someone’s attention.

An integrated microprocessor control unit constantly monitors temperature and battery voltage. Low battery is indicated by 3 flashes and it automatically steps down output to increase usable burn time so you are never left in the dark unexpectedly.

Features:

Power Mode Lumen Output Burn Time

• 100% 4300 lumens 6 hrs (1 hr @ max lumens *)
• 50% 2150 lumens 12 hrs
• 25% 1075 lumens 24 hrs
• 5% 215 lumens 120 hrs
• 1% 43 lumens 600+ hrs
• Strobe 4300 lumens (10% duty cycle) 60 hrs

* Note:Burn time on 100% power mode is: One hour @ peak 4300 lumens output + five hours of gradual taper. At six hours, the light flashes three times to indicate low battery and steps down to 1% power mode to conserve power for up to an additional 16 hours before shutting off.

A rigid Goodman Handmount with locking QRM comes standard with the EX35 Primary Canister Light. The Goodman Handmount allows for quick removal of the light from the diver's hand. Add a thump loop to the handmount to make switching hands even easier.

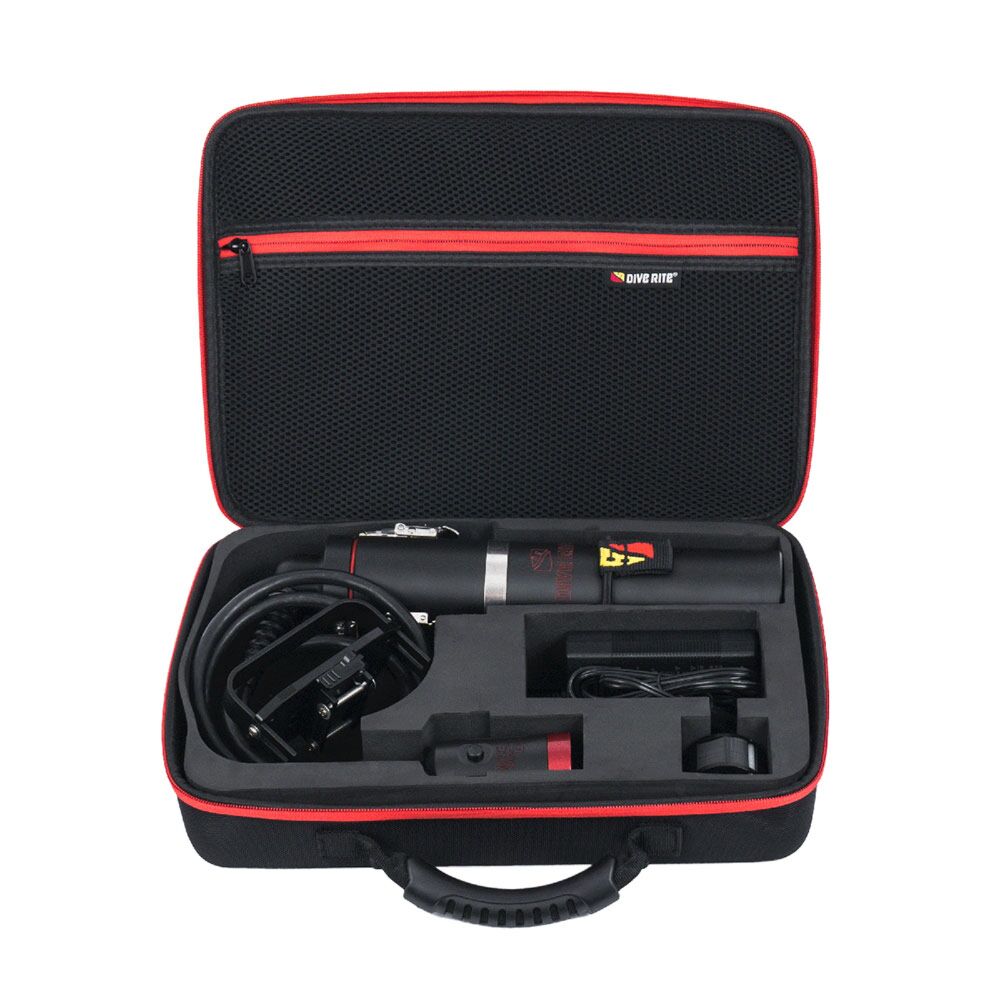

The EX35 Primary Canister Light comes complete in a protective Dive Rite EVA carrying case for travel and storage.

• Durable CNC machined Delrin and aluminum construction
• LED: Cree XHP35 HI driven at 35 watts produces 4300 lumens @5700 Kelvin
• Beam Angle: tight 6° spot
• Magnetic push button controls 5 power levels from 100% down to 1% plus full power strobe mode
• Integrated microprocessor control unit monitors temperature and battery voltage
• Blinks 3 times to indicate low battery and automatically steps output down to increase usable burn time
• Unique head design keeps operating temperatures low and output high
• Airline approved, UN38.3 tested, 150 Wh expedition canister battery
• Depth Rating: 500 feet (152m)
• Proudly designed, manufactured, and assembled in the USA

• Optional Accessories:

  • Glove soft handmount with QRM
  • Elastic soft handmount
  • Goodman thumb loop
  • Video diffuser
