OmniSwivel Manual Injection Valve

$287.99
In Stock
SKU
OSI-MIV-1

Use the OmniSwivel Manual Injection Valve to manually control addition of gas.

OmniSwivel Manual Injection Valve

OmniSwivel Manual Injection Valve
OmniSwivel Manual Injection Valve Threaded 3/8-Inch Female Inlet and Outlet Ports With Optional BC Inflator QD Post and 9/16-Inch Male LP Fitting With Two Optional 9/16-Inch Male LP Fittings With Optional BC Inflator QD Post and 9/16-Inch Male LP Fitting
  • Solid brass construction for maximum durability
  • Two 3/8-inch female inlet ports and one 3/8-inch outlet port
  • Allows for remote manual addition of gas in CCR applications
  • Includes oxygen compatible materials and O-Rings
  • This is the Version #2 MIV with all female ports

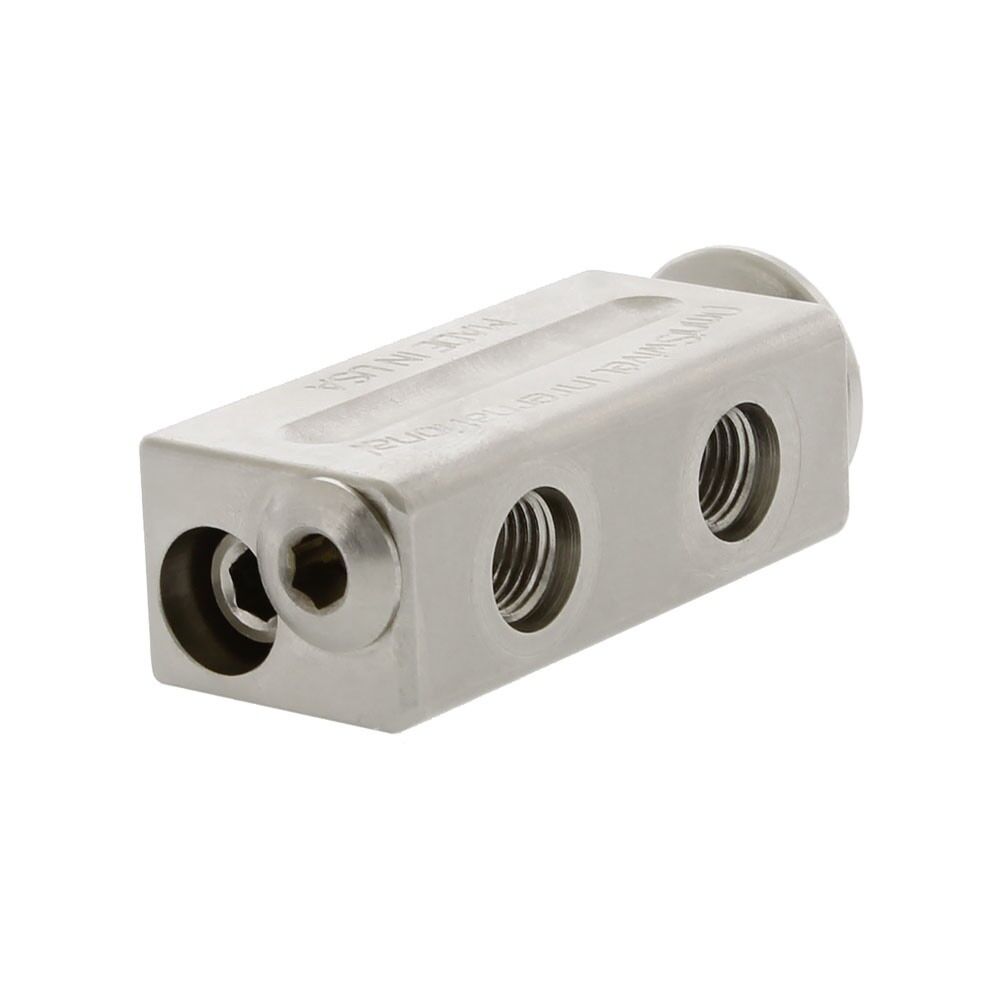

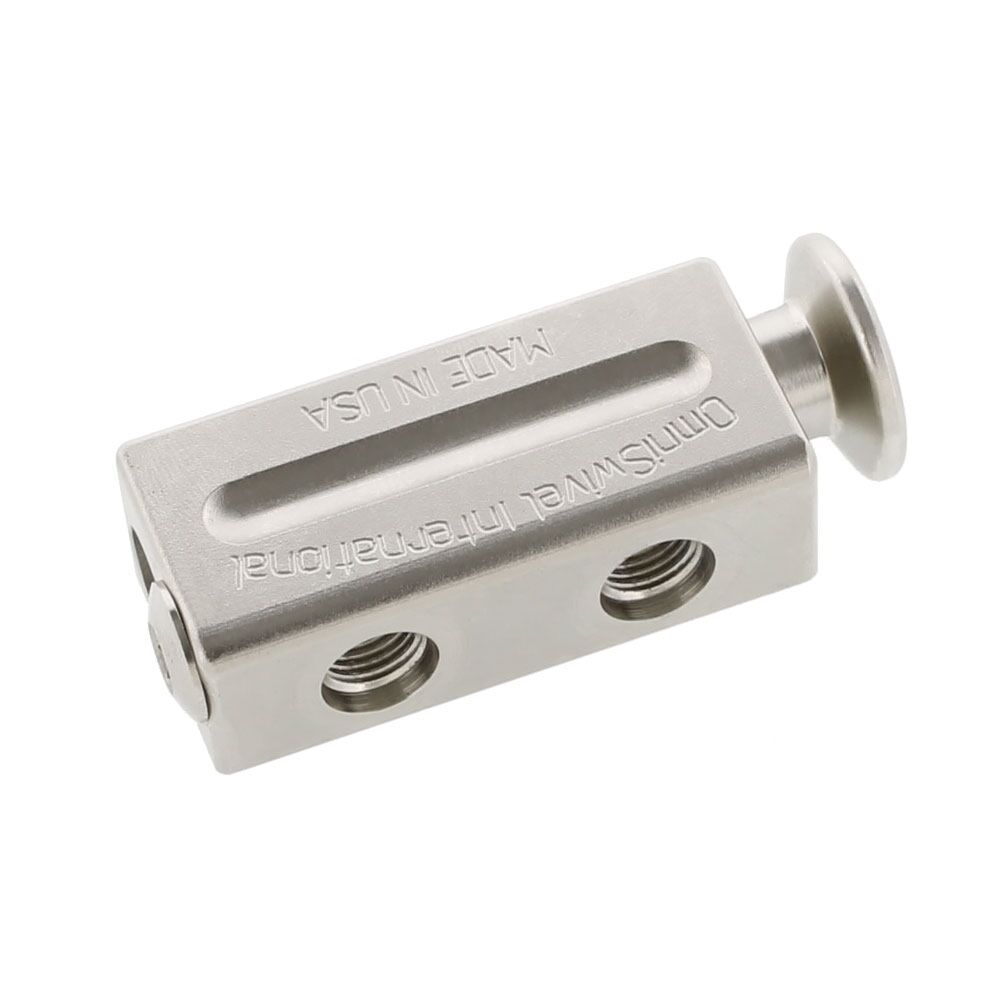

OmniSwivel Manual Injection Valve features solid brass construction for maximum durability and oxygen compatible materials and o-rings. It includes threaded 3/8-inch femae inlet ports and outlet ports which can accept a variety of adapters. Typical application is for remote manual addition of gas in CCR applications, but we've seen several creative uses for this device over the years.

An additional 3/8-inch female inlet port is located on opposite side of push button and is capped with a 3/8-inch low pressure regulator plug.

Dimensions: L= { 3.25 in | 8.25 cm } x W = { 0.75 in | 1.9 cm } x H = { 1.15 In | 2.92 cm } (w/o adapter)

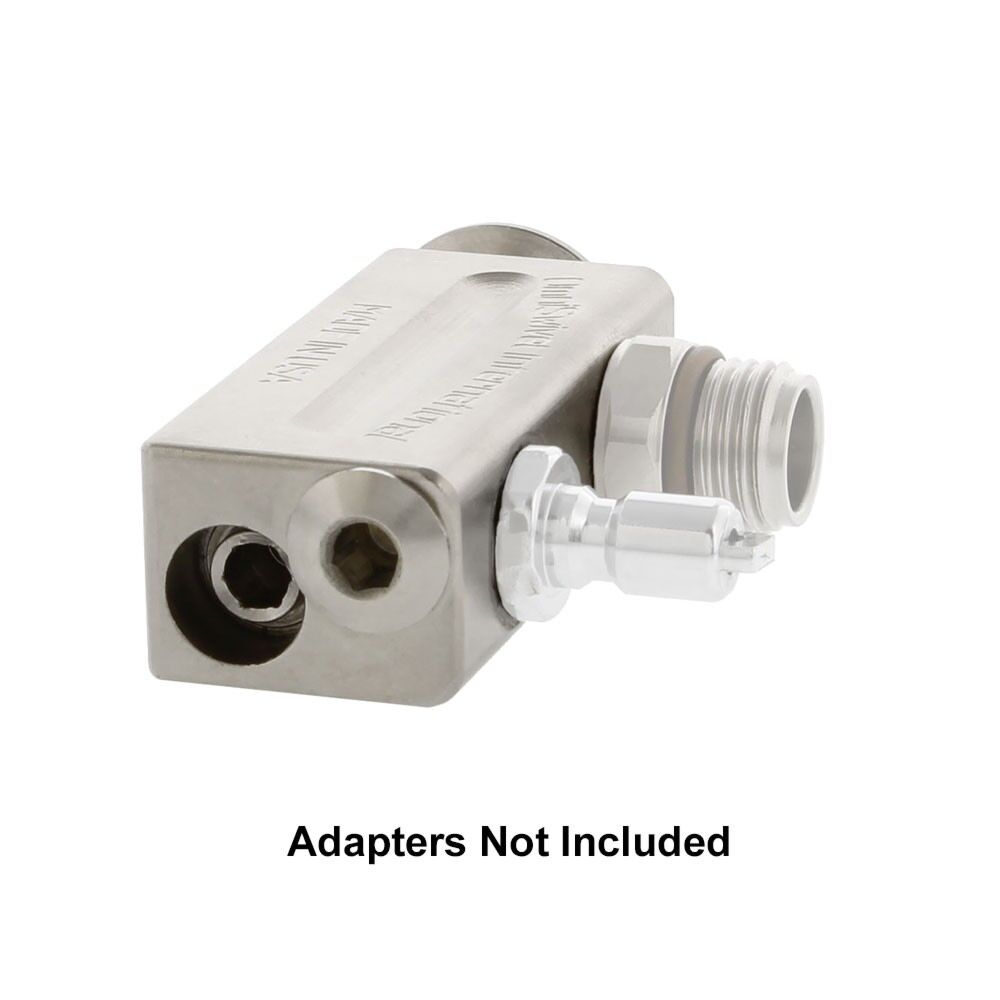

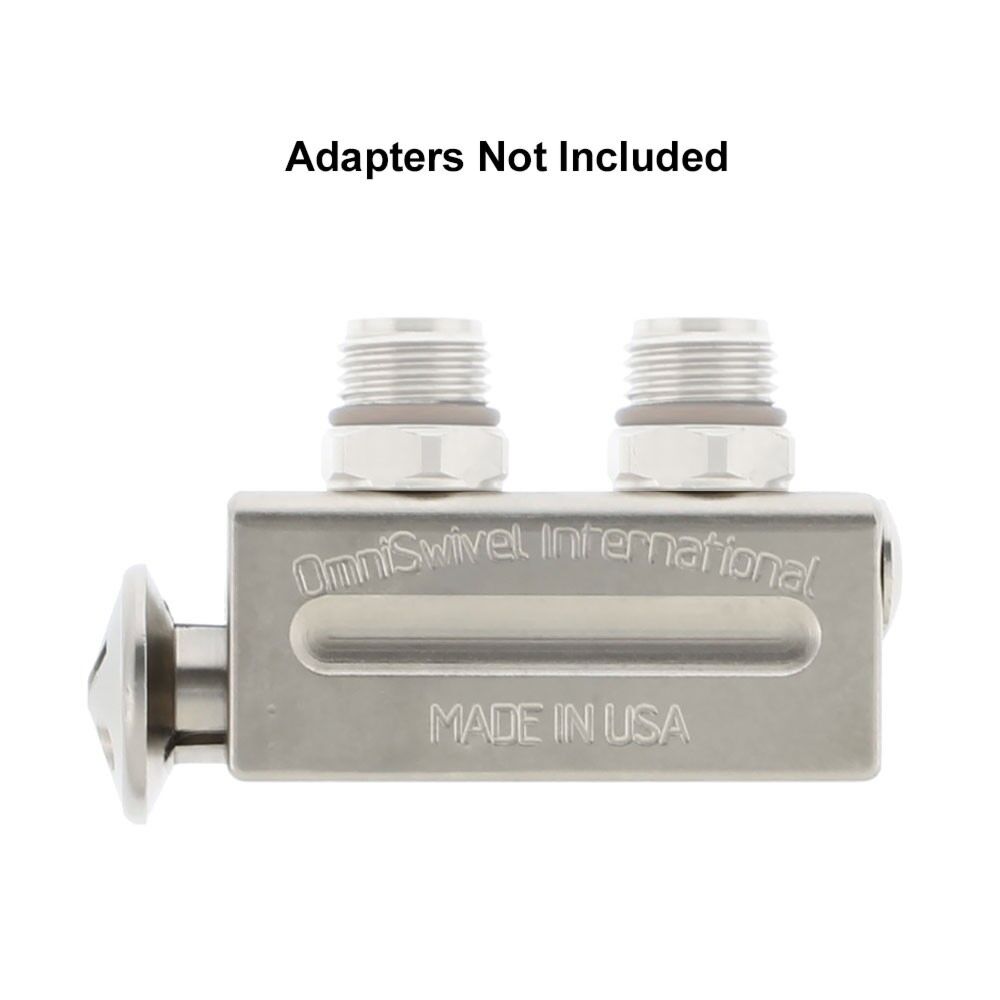

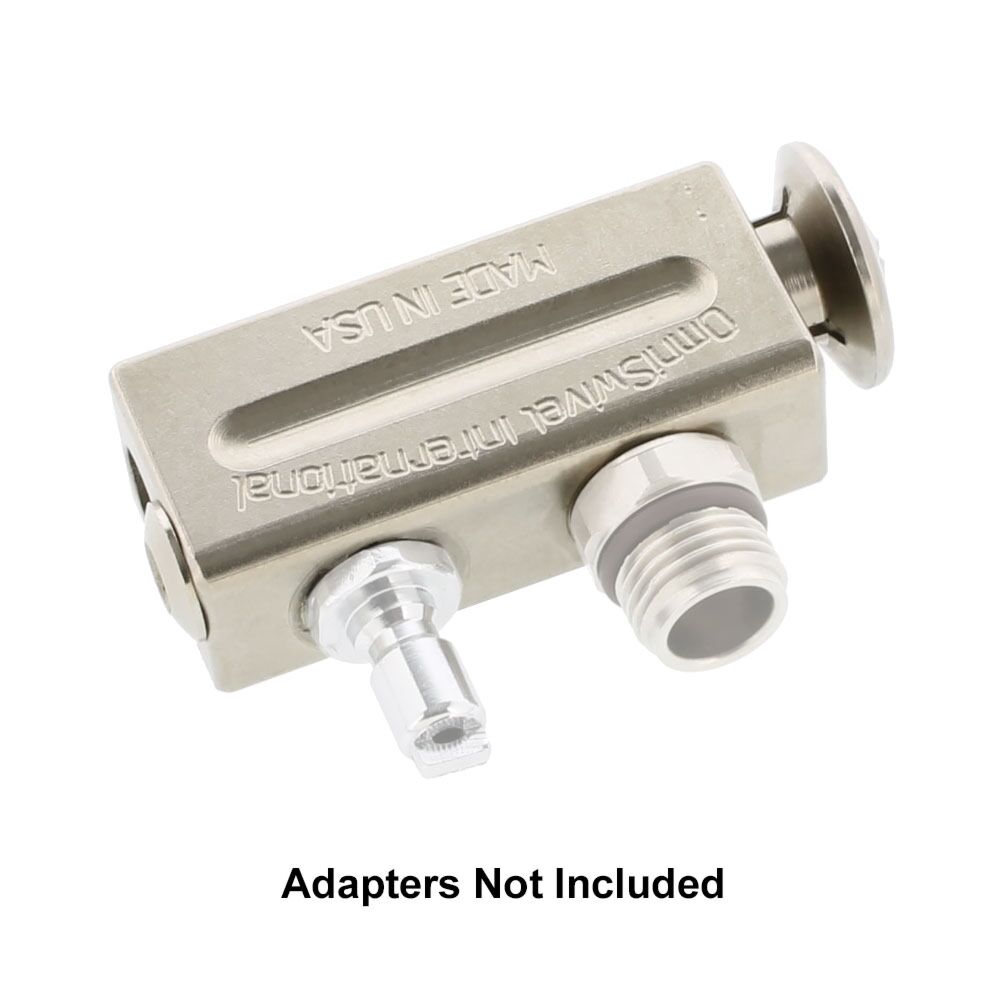

NOTE: Adapters and fittings shown are NOT included. This is the MIV block ONLY.

Omniswivel recommends the three internal 010 Viton O-Rings should be replaced every 200 dives or annually, whichever comes first.

More Information
SKU OSI-MIV-1
Brand OmniSwivel
Weight (lbs) 1.0000
