Highland Giant Orange Surface Marking Tube { 10 ft | 3.0 m }

$90.00
In Stock
SKU
XSS-HL202-OR

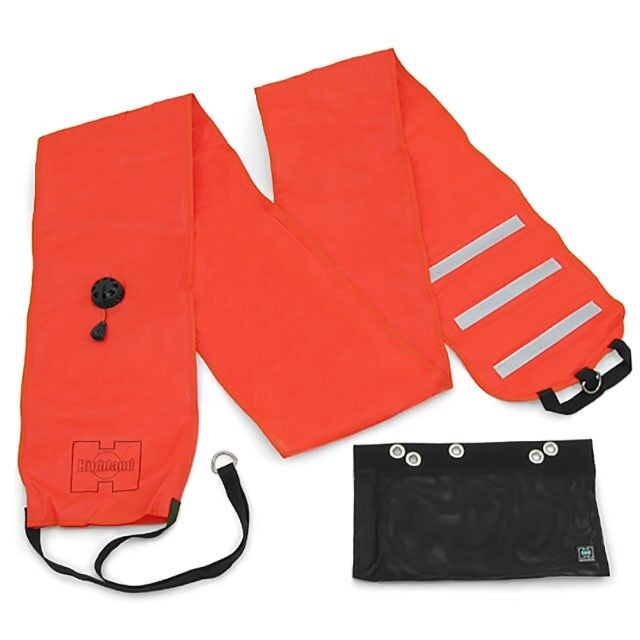

Highland Giant { 10 ft | 3.0 m } Orange Surface Marking Tube w/All-Mesh Sleeve

Highland Giant Orange Surface Marking Tube { 10 ft | 3.0 m }

Highland Orange Giant { 10 ft | 3.1 m } SMT
Highland Orange Giant { 10 ft | 3.1 m } SMT

For those who are really serious about being seen at a distance, nothing is going to work better than the Highland Giant Surface Marker Tube. This is BIG, { 10 ft | 3.0 m } tall and { 11 in | 28 cm } wide. There are three large bands of U.S Coast Guard approved 3M SOLAS (Safety Of Life At Sea) reflective tape to enhance surface visibility in marine environments. The marker includes a stainless steel D-ring at the top to attache a strobe and also has an elastic loop to hold a chemical light stick. Includes a special wider 6.5-inch X 14-inch all-mesh carry sleeve for backplate attachment.

The semi-closed design is a hybrid of open and closed types that can be used two different ways:

  • The tube is open at the bottom as with the lift bag and incorporates an funnel-shaped (aka 'duck-bill') internal baffle that allows the tube to be inflated as usual with a regulator second stage at depth, but prevents the tube from unintentionally deflating should it fall over while on the surface.

  • The tube also has an oral/power inflator that allows the tube to be inflated at the surface or at depth. Perfect for rebreather divers, using the oral/power inflator with the low pressure hose on a bailout bottle makes inflation manageable without the use of diluent gas.

The hybrid marking tube includes a compact over pressure valve to allow excess gas to vent during ascent and pull dump to deflate the bag before boarding the boat or when being rolled up for storage.

NOTE: The hybrid marking bag is not fully closed by design and if you inflate it when dry (i.e. at home, to 'test' it), you will discover gas slowly leaks out through the bottom baffle. This does not cause a problem in actual in-water use, where the water will cause the baffle to seal. Although the marking tube should NOT be used as a lift bag, for emergency purposes a fully inflated tube may be considered to have approximately { 75 lb | 34 kg } of lift when completely submerged.

More Information
SKU XSS-HL202-OR
Weight 0.500000
Size One Size
Brand XS Scuba
Tek Tip Warning Image WARNING

This device includes a non-locking hose quick-connect that supports easy and rapid power-inflation at the surface using the standard quick-disconnect low-pressure BC inflator hose. However, there are some safety concerns using that mode for deployment while at depth. Disconnecting the inflator hose from your BC at depth could compromise your buoyancy control in an emergency. Although the inflation connector on the device is non-locking, there is a possibility connectors could jam and fail to easily separate if the connectors are not clean and well maintained. As with any such bag, it is also possible to create enough lift such that it could begin to drag you to the surface if there is any delay in release and the rapid power-inflation feature can reduce the time available before release.

For deployment at depth we suggest using an alternate low-pressure quick-disconnect inflator hose mounted on a stage or bailout bottle, rather than the primary BC inflator hose, for power inflation of this device. If this is your first experience with power-inflation SMB or lift-bag deployment at depth, first practice this type of deployment under controlled conditions.
