DGX QD Y-Block: LP Reg Hose = BC Inflator X 2

Two BC Quick Disconnect Fittings
Two BC Quick Disconnect Fittings Top View 9/16-Inch M Fitting

DGX QD Y-Block: LP Reg Hose = BC Inflator X 2

$29.00
In Stock
SKU
DX-704255

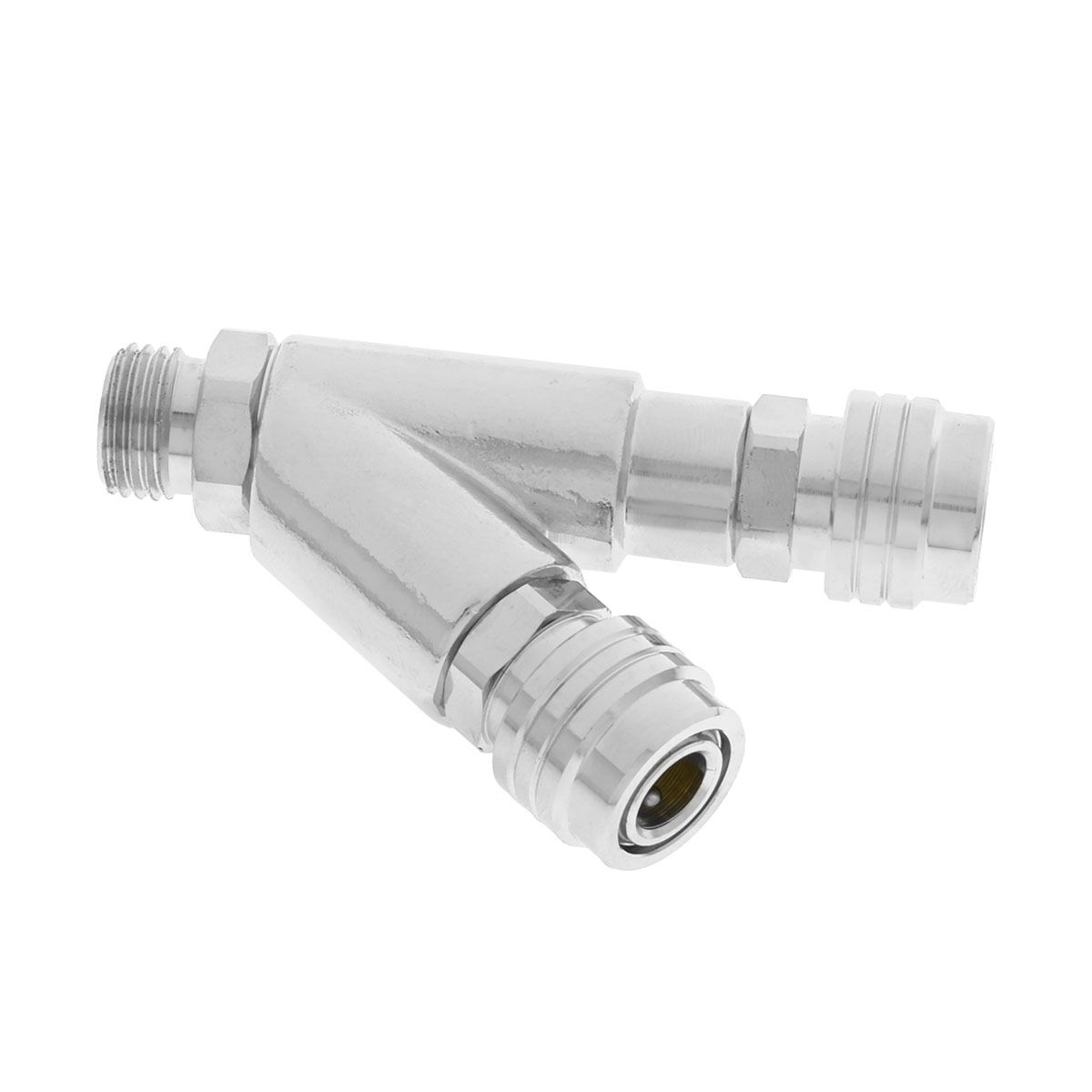

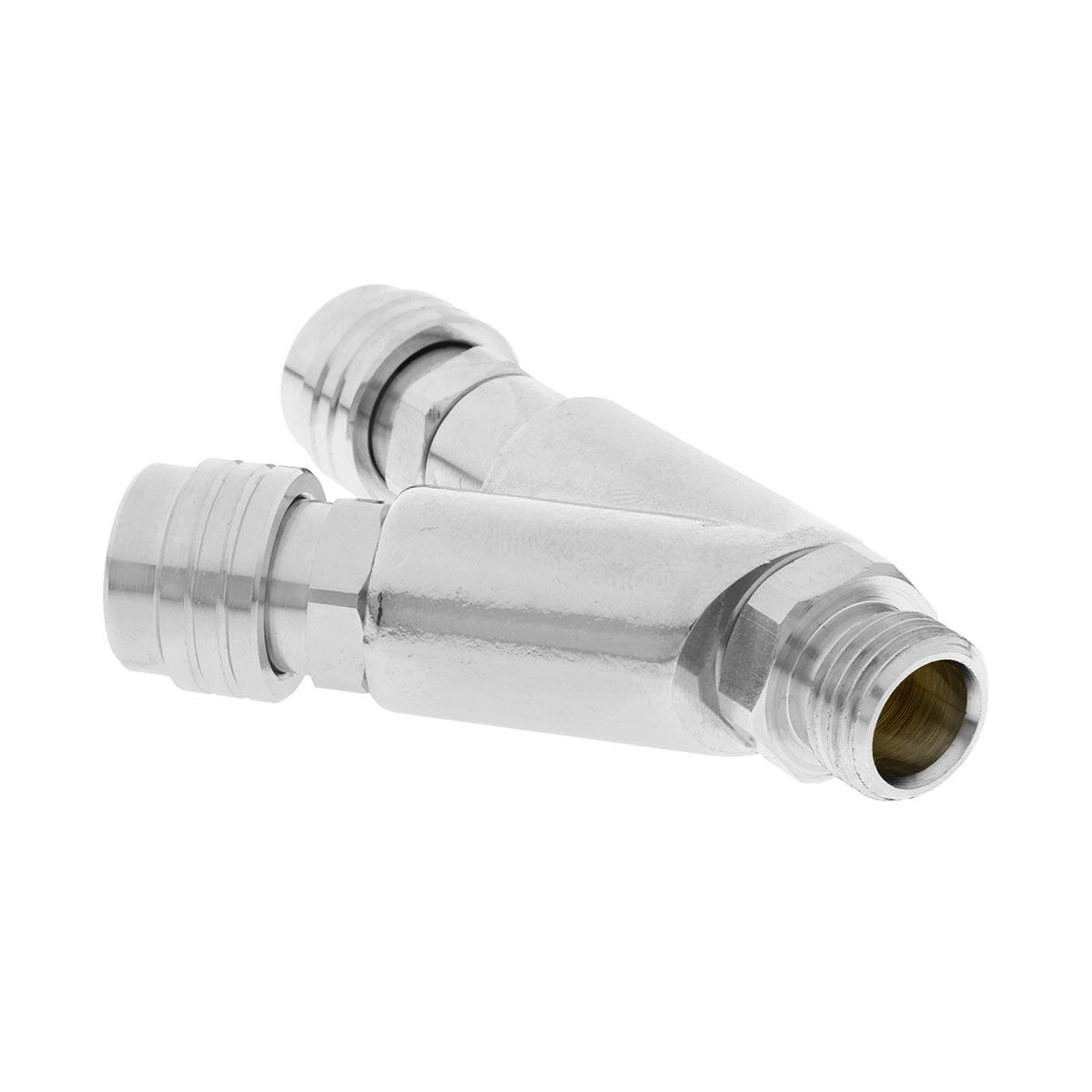

This Y-block connects to the fitting found on low-pressure 2nd stage regulator hoses with a standard 9/16-inch male fitting and provides two standard female BC quick disconnect fittings.
This Y-block connects to the fitting found on low-pressure 2nd stage regulator hoses with a standard 9/16-inch male fitting and provides two standard female BC quick-disconnect fittings. The application for this device is to provide an additional BC quick-disconnect port so that the hose that is connected to a BC power-inflator or CCR manual addition valve (MAV) does not have to be disconnected in order to provide power inflation for another device, typically a surface marker with a power inflation nipple.
More Information
Brand DGX
SKU DX-704255
Weight 0.200000

Customer Reviews

Tek Tip Warning Image WARNING

There is NO universal standard that defines the precise shape and exact dimensions of the compressed gas quick-connect coupling systems used on BCD and drysuit inflators. The different low-flow posts are in theory compatible with the same Schrader valve female coupler, thus you will often see inflator hoses with the same BC QD coupler marketed for use with both BCD and drysuit inflation valves. However, in our experience the hoses with couplers designed for one style of post are less likely to be entirely compatible with another style post. We have also encountered occasional incompatibilities in the fittings even within the same style, especially when there are many years difference in age between the female coupling and the male post.

These circumstances can cause compatibility issues with the connection: the fittings will not connect at all; the fittings will not securely connect and can self-disconnect without any overt user action; the fittings will securely connect but gas will not flow; the fittings will connect but can exhibit leaks. Whenever using 3rd party connectors you should always be careful to validate compatibility of the connectors.

When using any quick connect / quick disconnect fitting system, best practice is to fully retract the locking collar, push the female fitting completely on the post, while holding the fitting down on the post release the locking collar, visually ensure the collar is fully locked, then pull back on the hose to ensure the fitting is solidly locked on the post.
