EZ-On Inflation Hose

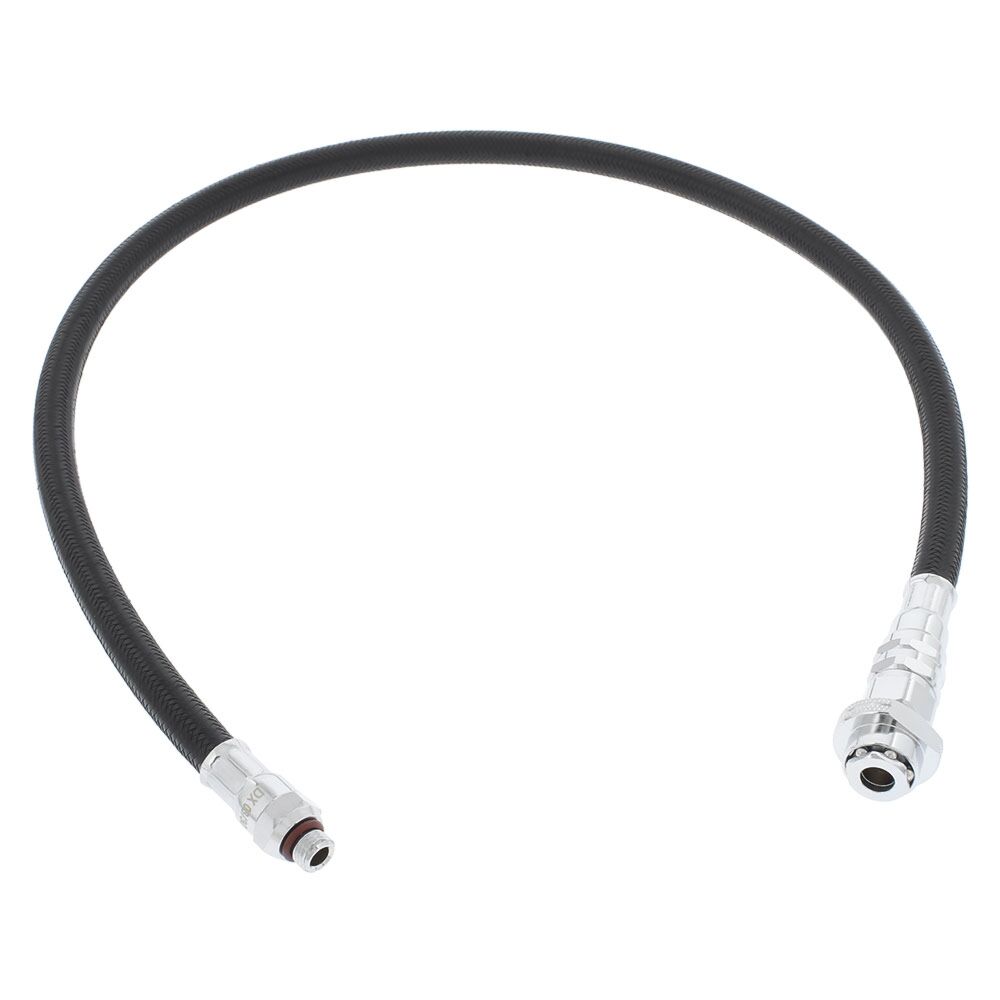

{ 30 in | 76 cm } EZ-On Drysuit Inflation Hose

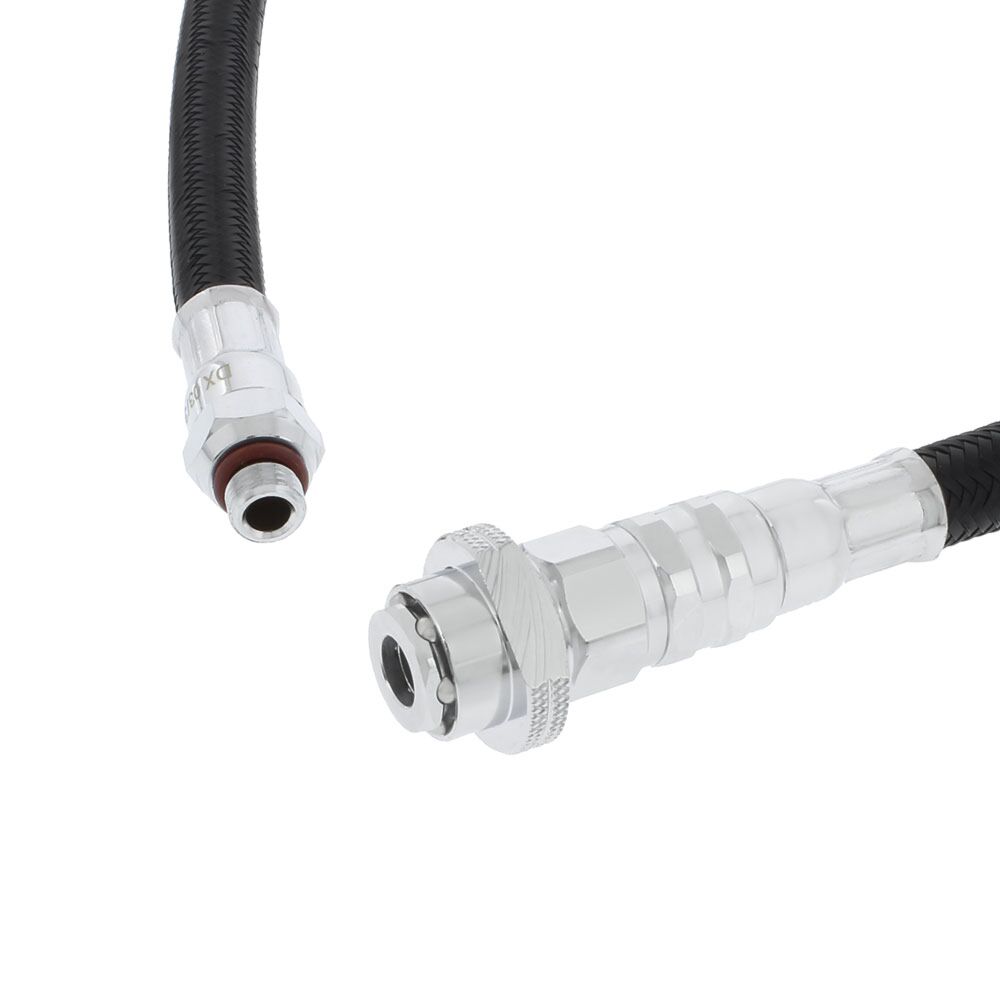

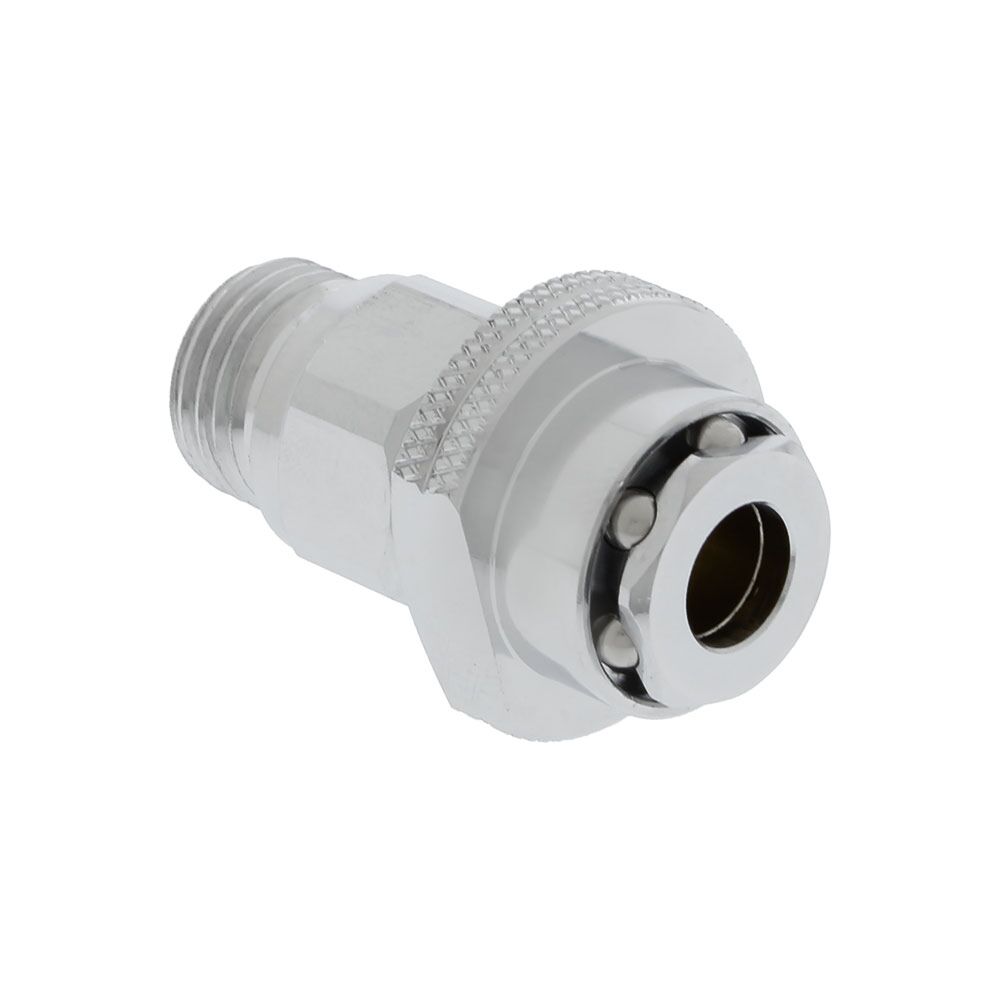

{ 30 in | 76 cm } EZ-On Drysuit Inflation Hose Close-Up of Adapter and Fittings EZ-ON Adapter
  • Simply push to attach to inflation post - no need to pull the locking collar back to connect
  • Collar has 'flat' side - works very well in tight areas
  • Easy to attach and remove even with heavy gloves
  • Offers a flow rate of approximately 260-280 LPM
  • Choice of hose lengths with standard UNF 3/8-inch male fitting to 1st stage

EZ-On Inflation Hose

$31.95
In Stock
SKU
DX-7034xx-EZON
The EZ-On Quick Disconnect Adapter assembled with a standard low-pressure braided flex hose works particularly well to produce an extremely flexible drysuit inflator hose solution.

The EZ-On Quick Disconnect Adapter assembled with our standard low-pressure braided flex hose works particularly well to produce an extremely flexible drysuit inflator hose solution. When disconnected, the collar will remain slightly retracted and just push on to attach to the inflation post (i.e. no need to pull back the collar) then once pushed on to the post the collar will automatically slide forward and lock. The adapter has a positive six-point locking mechanism that requires the collar to be pulled back to disconnect.

The large collar makes it easy to remove even with heavy gloves and is a much better solution than the 'hose hat' add-ons for standard BC inflator hoses. The collar also has a 'flat' area that makes it work very well in tight areas such as next to drysuit inflator valves. This adapter offers a flow rate of approximately 260-280 LPM.

Most drysuit inflation valves with International posts used in recreational diving can accept a standard (aka Schrader) quick disconnect inflator hose, but need a longer length. For drysuit divers, where the hose routes under their arm to a chest mounted power-inflator, the typical length is { 30 in | 76 cm } and sometimes a bit shorter or longer depending on the location of the power-inflator relative to the first stage. However, most drysuit divers prefer a quick disconnect fitting with a wide flange that makes it easier to get a positive lock with the inflation fitting.

Dive Gear Express braided flex hoses are constructed with an inner lining of High Syntactic Polyvinyl Chloride. HS-PVC is a member of the TPE family of plastics. The inner lining is reinforced with an inner sheath of braided fiber and an outer jacket of braided filament. External double-braiding better resists the snags and abrasions encountered in diving. Double braided hoses are much more flexible, a third lighter, UV & kink resistant and stronger than rubber. Hose has a UNF 3/8-inch male fitting for standard 1st stage low-pressure port.

More Information
Brand DGX
SKU DX-7034xx-EZON
Weight 0.350000

Customer Reviews

Tek Tip Warning Image WARNING

There is NO universal standard that defines the precise shape and exact dimensions of the compressed gas quick-connect coupling systems used on BCD and drysuit inflators. The different low-flow posts are in theory compatible with the same Schrader valve female coupler, thus you will often see inflator hoses with the same BC QD coupler marketed for use with both BCD and drysuit inflation valves. However, in our experience the hoses with couplers designed for one style of post are less likely to be entirely compatible with another style post. We have also encountered occasional incompatibilities in the fittings even within the same style, especially when there are many years difference in age between the female coupling and the male post.

These circumstances can cause compatibility issues with the connection: the fittings will not connect at all; the fittings will not securely connect and can self-disconnect without any overt user action; the fittings will securely connect but gas will not flow; the fittings will connect but can exhibit leaks. Whenever using 3rd party connectors you should always be careful to validate compatibility of the connectors.

When using any quick connect / quick disconnect fitting system, best practice is to fully retract the locking collar, push the female fitting completely on the post, while holding the fitting down on the post release the locking collar, visually ensure the collar is fully locked, then pull back on the hose to ensure the fitting is solidly locked on the post.
