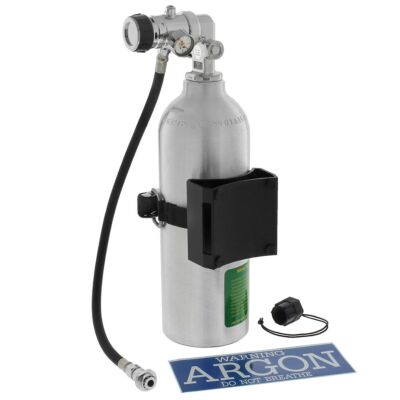

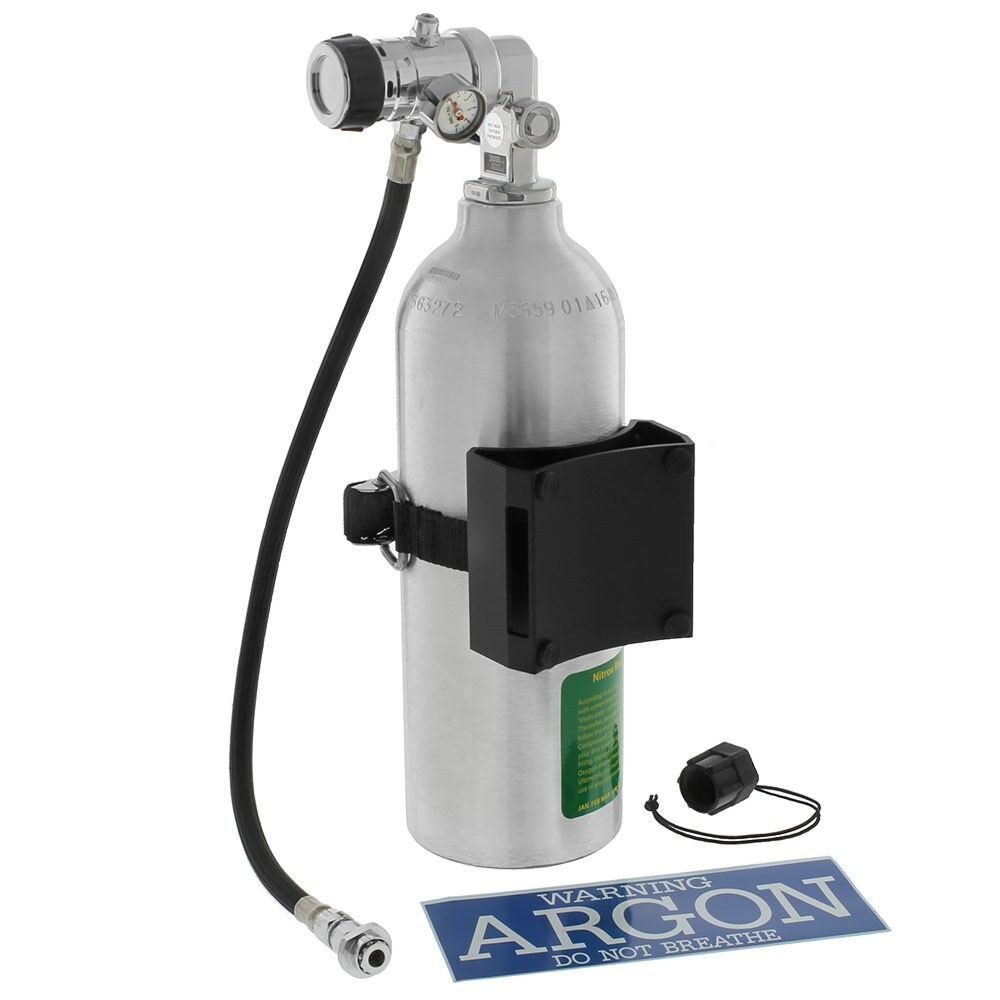

DGX Custom - EZ-ON Drysuit Inflation Kit

Completely assembled system for drysuit inflation using Air or Argon
Choose AL-13 or AL-19 Aluminum Cylinder size
Choose the hose length for your specific needs
Includes EZ-ON Pony mounting system, first stage OPV and mini-SPG
Includes valve, quick disconnect, VIP and Argon decal

DGX Custom - EZ-ON Drysuit Inflation Kit

Name: DGX Custom - EZ-ON Drysuit Inflation Kit
Brand: DGX
SKU: PK-545020
Price: 389.00 USD
Availability: InStock

Next Business Day

As low as $389

In Stock

SKU

PK-545020

Prices include FREE continental 48 U.S. shipping!

Cylinder prices do NOT include international shipping, or shipping to Alaska, Hawaii, APO/FPO, or U.S. Territories.

The Innovative EZ-ON Drysuit Inflation Kit is an all-in-one solution that delivers all the essentials for drysuit inflation using Air or Argon, assembled into a complete package.

Cylinder Size?

Flex Hose Length?

SPG?

Add Tank Strap?

Qty

Details

Configure a custom solution to meet your needs:

Choice of AL-13 or AL-19 Aluminum Cylinder and Valve w/Argon Decal

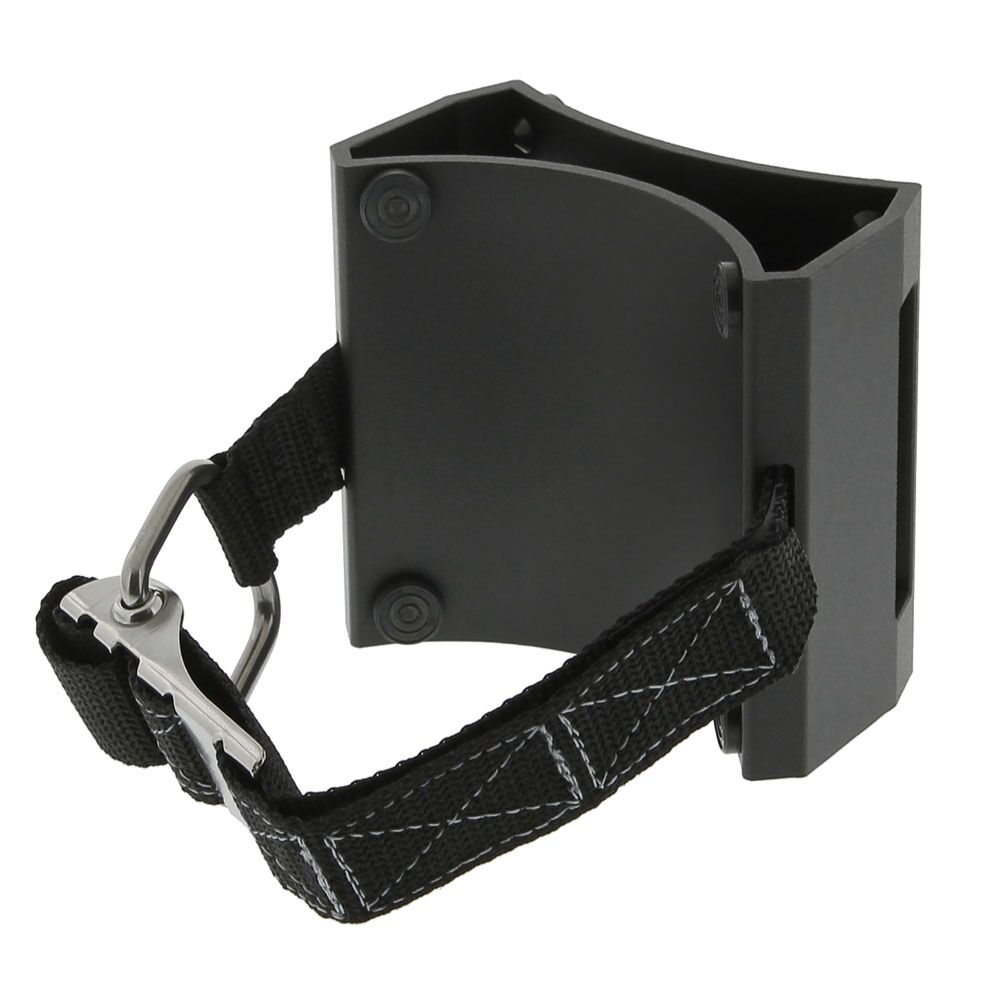

EZ-ON Pony Mount

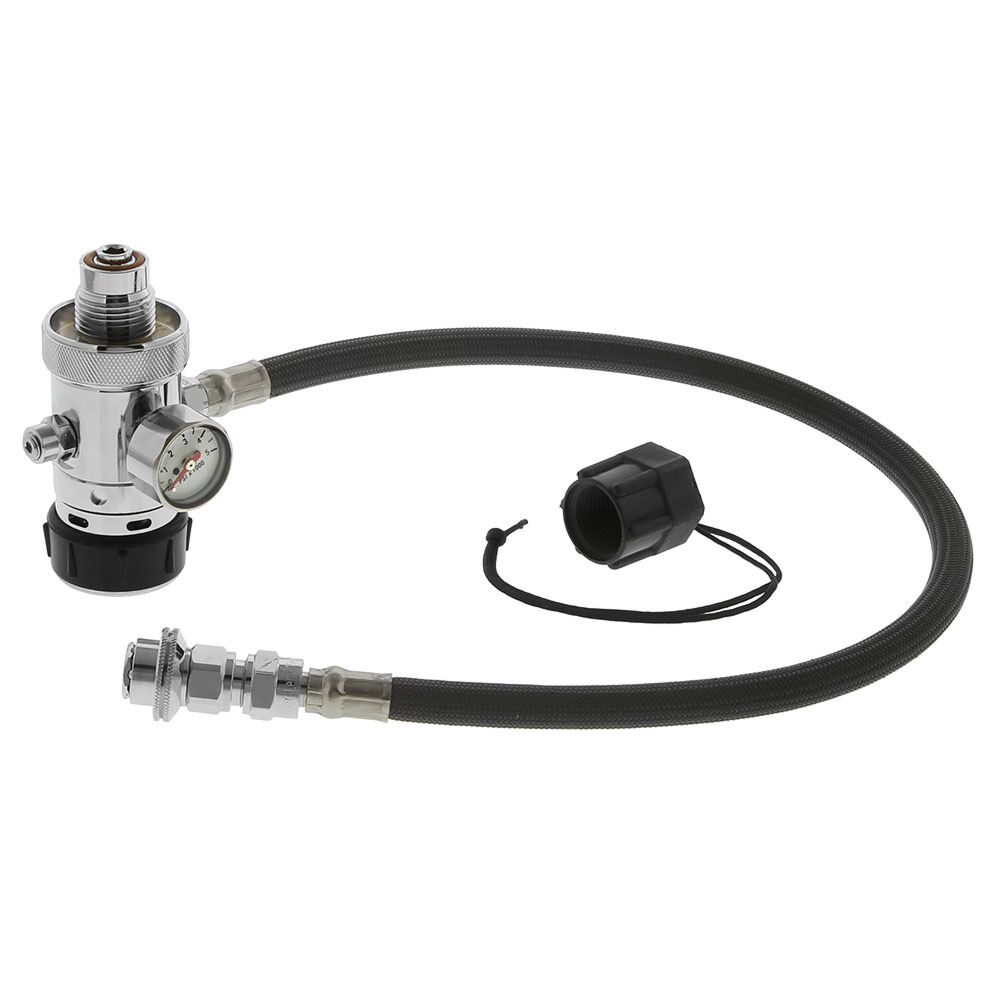

Piston Inflation Regulator w/OPV & DIN Cap
Choice of Flex hose length w/ EZ-ON quick disconnect adapter
Choice of Mini-SPG in PSI or BAR
Optional standard cam buckle tank strap

The regulator, OPV, flex hose, EZ-ON quick disconnect adapter, and Mini-SPG are shipped fully assembled. The cylinder and valve are also shipped fully assembled with VIP sticker attached, however the argon decal is shipped loose. If wish to use the pony mount with doubles, you will need to add a standard Cam Buckle Tank Strap around one of the cylinders in the doubles set in order to use the pony mount.

More Information

More Information
Product Name	DGX Custom - EZ-ON Drysuit Inflation Kit
Brand	DGX
SKU	PK-545020
Weight	10 lb
Country of Manufacture	United States
HS Code	9506.29

Reviews

Warning

There is NO universal standard that defines the precise shape and exact dimensions of the compressed gas quick-connect coupling systems used on BCD and drysuit inflators. The different low-flow posts are in theory compatible with the same Schrader valve female coupler, thus you will often see inflator hoses with the same BC QD coupler marketed for use with both BCD and drysuit inflation valves. However, in our experience the hoses with couplers designed for one style of post are less likely to be entirely compatible with another style post. We have also encountered occasional incompatibilities in the fittings even within the same style, especially when there are many years difference in age between the female coupling and the male post.

These circumstances can cause compatibility issues with the connection: the fittings will not connect at all; the fittings will not securely connect and can self-disconnect without any overt user action; the fittings will securely connect but gas will not flow; the fittings will connect but can exhibit leaks. Whenever using 3rd party connectors you should always be careful to validate compatibility of the connectors.

When using any quick connect / quick disconnect fitting system, best practice is to fully retract the locking collar, push the female fitting completely on the post, while holding the fitting down on the post release the locking collar, visually ensure the collar is fully locked, then pull back on the hose to ensure the fitting is solidly locked on the post.

Tek Tip

Choosing the Best Inflation Hose Length

For BC power inflator hoses with the ordinary quick-disconnect Schrader fitting, the most common length seen on the 'jacket' style BC is {26 in | 66 cm} or {28 in | 71 cm} because the large-diameter corrugated hose length is relatively long and most sport first stage regulators are 'fixed' port orientations which can result in less than optimal hose routing. Our observation of divers in the water is these one-length-fits-all hoses are often too long, causing the hose to 'bow' out and the inflator assembly to lay at an inconvenient or improper location with the resulting increase in drag. Using a shorter BC hose is particularly beneficial if the diver has added a powered alert whistle inline with the BC power-inflator.

For divers using back inflation, the typical length seen on the 'wing' style BC is {22 in | 56 cm} because the large-diameter corrugated hose is usually a little shorter on wings. This length generally works well on singles where the regulator first stage has swivel ports and on doubles where the hose will coming off the 5th port of the divers right post regulator. Some cave divers prefer a short corrugated hose where the inflator rests at their shoulder rather than their chest, and the BC power-inflator hose is typically {18 in | 46 cm} long. We don't have a recommendation for sidemount divers as the lengths are very sensitive to the configuration, but the {15 in | 38 cm} length is popular and we even see some sidemount rigs using {9 in | 23 cm} hoses, although with short hoses A-framing can be an issue.

BC integrated backup second stages are a special case and require a hi-flow quick coupling. You can not use a standard BC inflator QD hose Schrader fitting to supply a BC integrated alternate air source, as the device would not receive enough gas due to the flow restriction of a standard Schrader fitting. To replace the hose for one of these devices, you will need to use a {26 in | 66 cm} LP regulator hose plus a BC Integrated 2nd Stage Adapter.

Most drysuit inflation systems use the same fitting as found on BCs, but need a longer length. For drysuit divers, where the hose routes under their arm to a chest mounted power-inflator, the typical length is {30 in | 76 cm} or sometimes {36 in | 91 cm} depending on the locations of the power-inflator relative to the first stage supply. We've also seen some drysuit inflation systems which relied upon a special flow-restrictor orifice in the first stage fitting of the hose rather than in the inflator valve itself and while the drysuit inflator hose appears to be the same as an ordinary BC inflator hose, it is not the same. You should consult the manual that came with your drysuit to be certain your drysuit inflator valve can use a standard BC inflator hose.

Finally, we sometimes hear from someone seeking a BC hose for the backup power-inflator of their redundant bladder wing. There is controversy regarding the use of dual bladder wings, and we won't join the debate here. However, rapidly diagnosing a dribbling or runaway power-inflator plus other issues introduced by an additional BC inflation hose, leads some experienced divers who choose to dive with redundant bladder wings to avoid connecting the backup power-inflator. Instead the backup BC is only inflated orally in an emergency.
