DGX High Flow QD

In Stock
This convenient quick disconnect package by DGX offers high-flow performance to provide quick disconnect between standard low-pressure hose and second stage regulator.

DGX High Flow QD

DGX High Flow Quick Disconnect Pair

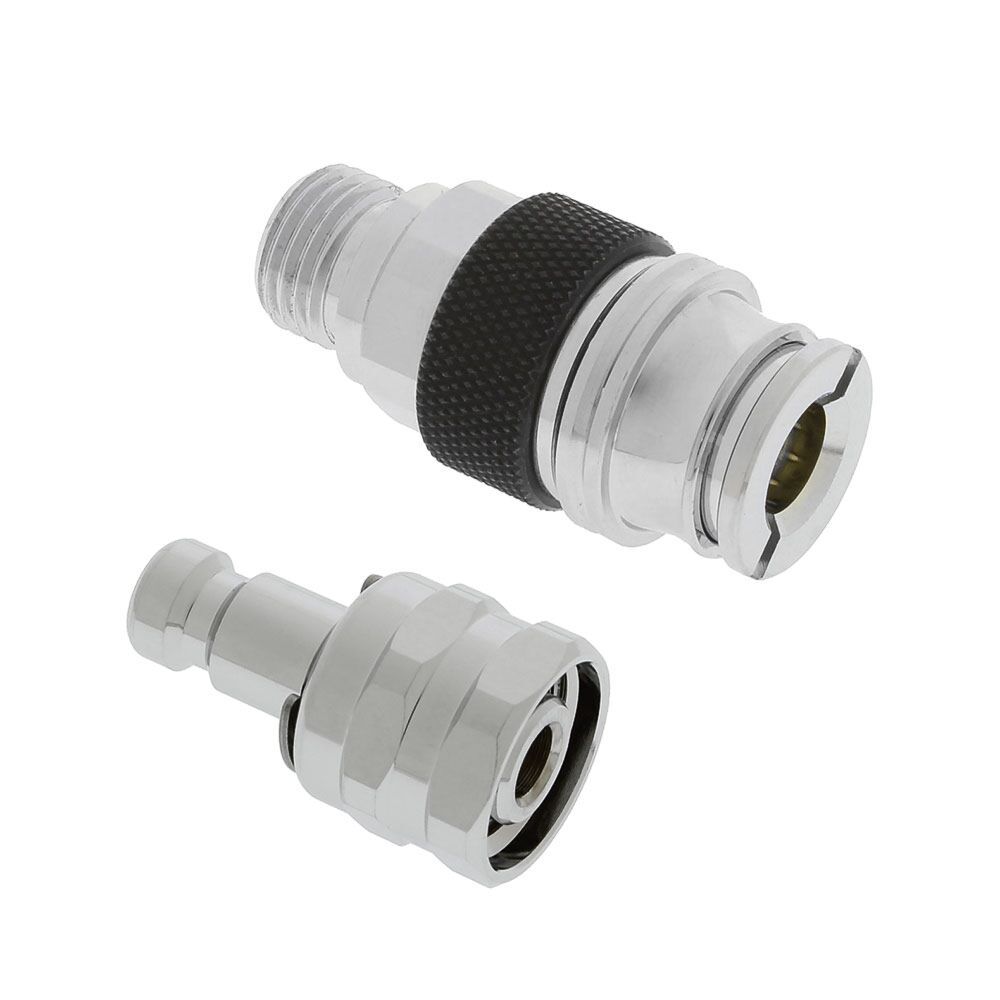

DGX High Flow Quick Disconnect Pair 9/16 M = QD F 9/16 M = QD F 9/16 F = QD M 9/16 F = QD M 9/16 M = 3/8 F Coupling
  • Attach quick disconnect between low-pressure hose and 2nd stage
  • Automatically seals supply side when disconnected
  • High flow performance (unlike a typical BC quick disconnect)
  • Nitrox Ready with chrome plated brass construction
  • Add optional coupling to join two hoses with QD in between

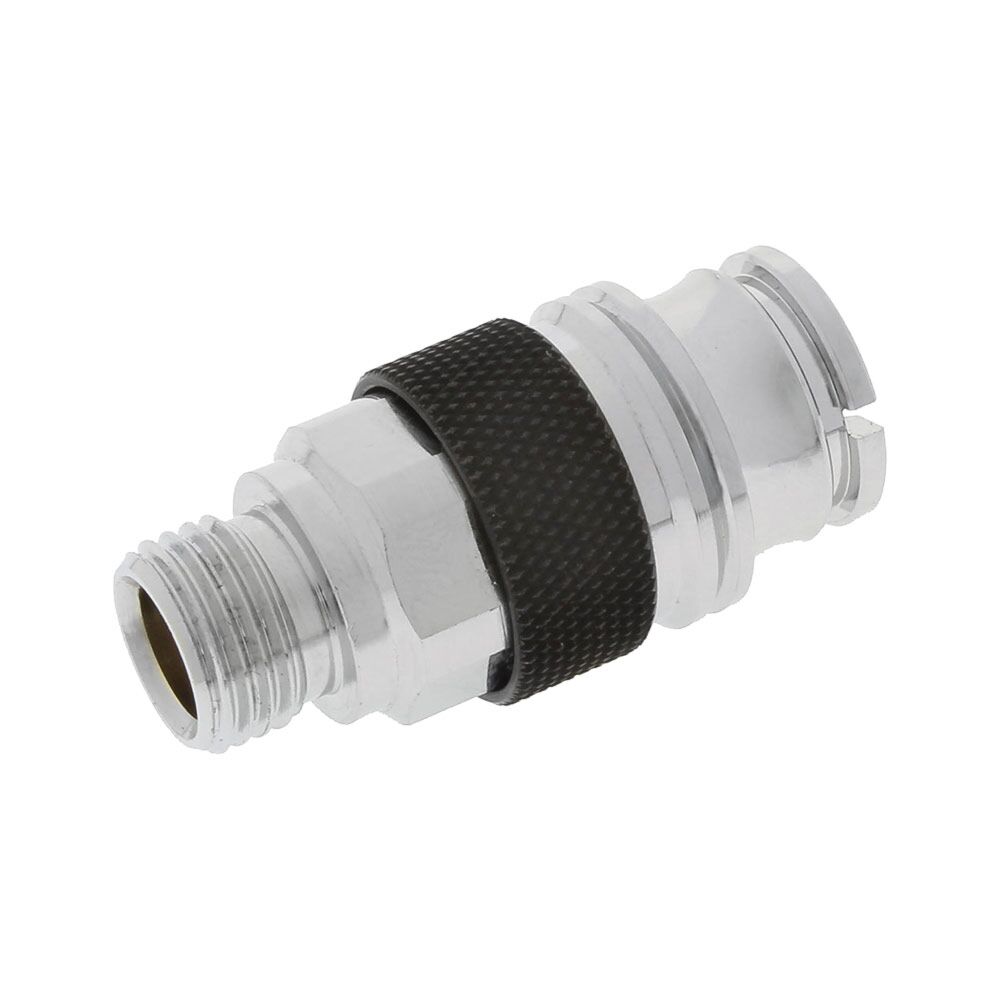

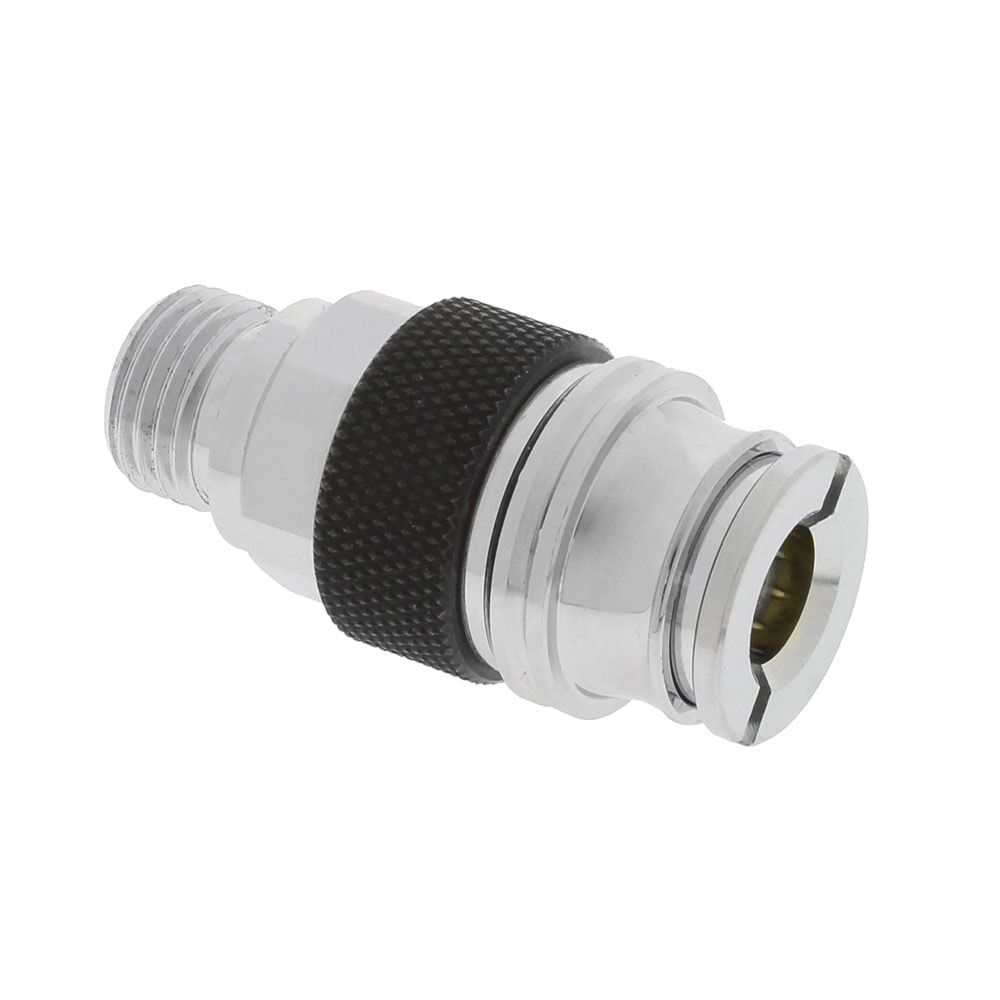

This convenient quick disconnect package offers high-flow performance to provide a quick disconnect between a standard low-pressure hose and second stage regulator. The standard 9/16-18 UNF female end screws attaches to the standard male threads found on most second stage regulators and at the other end is a QD male post. The standard 9/16-18 UNF male end screws into an ordinary LP regulator hose for the gas supply, and the other end of the adapter is a QD female fitting that accepts the QD male post on the second stage. Made of chrome plated brass and Nitrox Ready.

When pushed together to form a locked connection, the QD fittings permit unrestricted bidirectional gas flow in the low-pressure hose. Pull the slide-release to disconnect and automatically seal to block gas flow from the low-pressure supply on the QD female fitting. This also allows the QD male fitting to be connected or released while the QD female fitting is pressurized, although connection and release are much easier to accomplish when un-pressurized. This DGX version DOES provide a backup locking collar to prevent inadvertent disconnection.

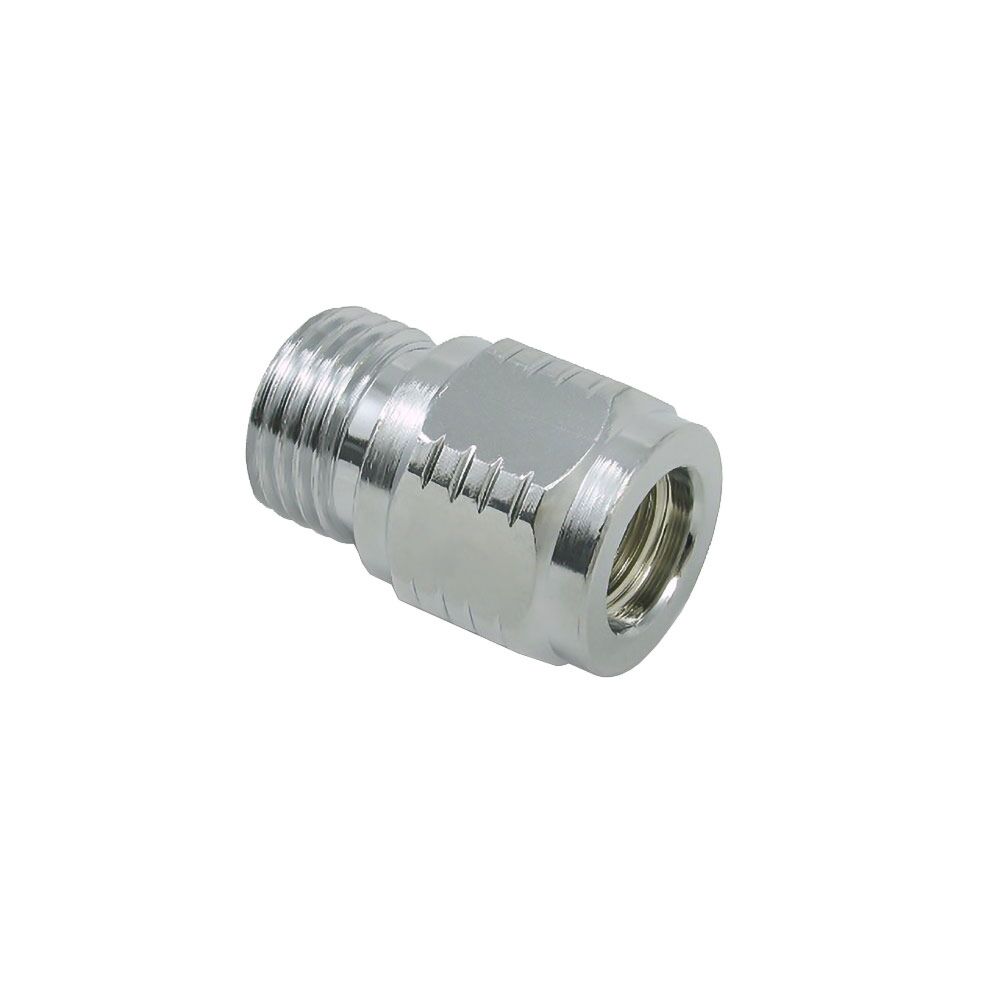

The individual female and male QD fittings are also available separately if your application needs more of one fitting than the other. For example you have multiple second stages but only one supply hose, or you have multiple supply hoses but only one second stage. Add an optional hose coupling that allows two standard low-pressure regulator hoses to be joined together into one longer regulator hose with the quick disconnect in the middle instead of the end. The coupling accepts the 9/16-18 UNF end of the QD male fitting, and the other end of the coupling accepts a standard 3/8-24 UNF low-pressure hose fitting.

More Information
Brand DGX
Weight 0.100000

Customer Reviews

5 out of 5 stars
2 Reviews
100% of customers
recommend this product
5 stars 2 (100%)
4 stars 0 (0%)
3 stars 0 (0%)
2 stars 0 (0%)
1 star 0 (0%)
Sort by
Verified Buyer
Awesome piece of gear.
Aug 19, 2022
Awesome piece of gear. I use this with OTS Spectrum FFM to easily disconnect from the primary. Great price and quality.
Was this review helpful? 0
Verified Buyer
I have used these on PSD systems and Tec/Rebreather systems.
Feb 24, 2022
I have used these on my manifold block for Public Safety Diving for years now, and as an instructor I recommend them to the teams I train. Not only does it make cleaning and storage of the system easier, but the primary use is in case of entrapment. Using these, other divers can switch out tanks with the trapped diver on his block without the need for him to remove his FFM, preventing both exposure to environmental contaminates and temperatures. Also helps with preventing psychological stress caused by having to remove a FFM to use a normal secondary reg.
Was this review helpful? 0
Tek Tip Warning Image WARNING

Using any type of quick disconnects to switch between gas supplies while in the water has the risk of introducing at least a few drops of water contamination in the line. Sometime later this has the potential to cause a malfunction in any devices that are downstream of the disconnect. The diver should close the upstream shutoff or valve, perform the switch, then open the valve and operate the downstream device to clear the line. Dive Gear Express recommends that in-water switching using quick disconnects only be performed as an emergency procedure. For in-water switching that does not run the risk of contamination through the quick disconnects, consider using a gas switch block.
