PSR-11-39-MEG Oxygen Sensor

$80.00
In Stock
SKU
ADI-PSR-11-39-MEG
The Analytical Industries (AI) PSR-11-39-MEG is a special version of the PSR-11-39-MD which provides compatibility for the ISC Megalodon CCR.

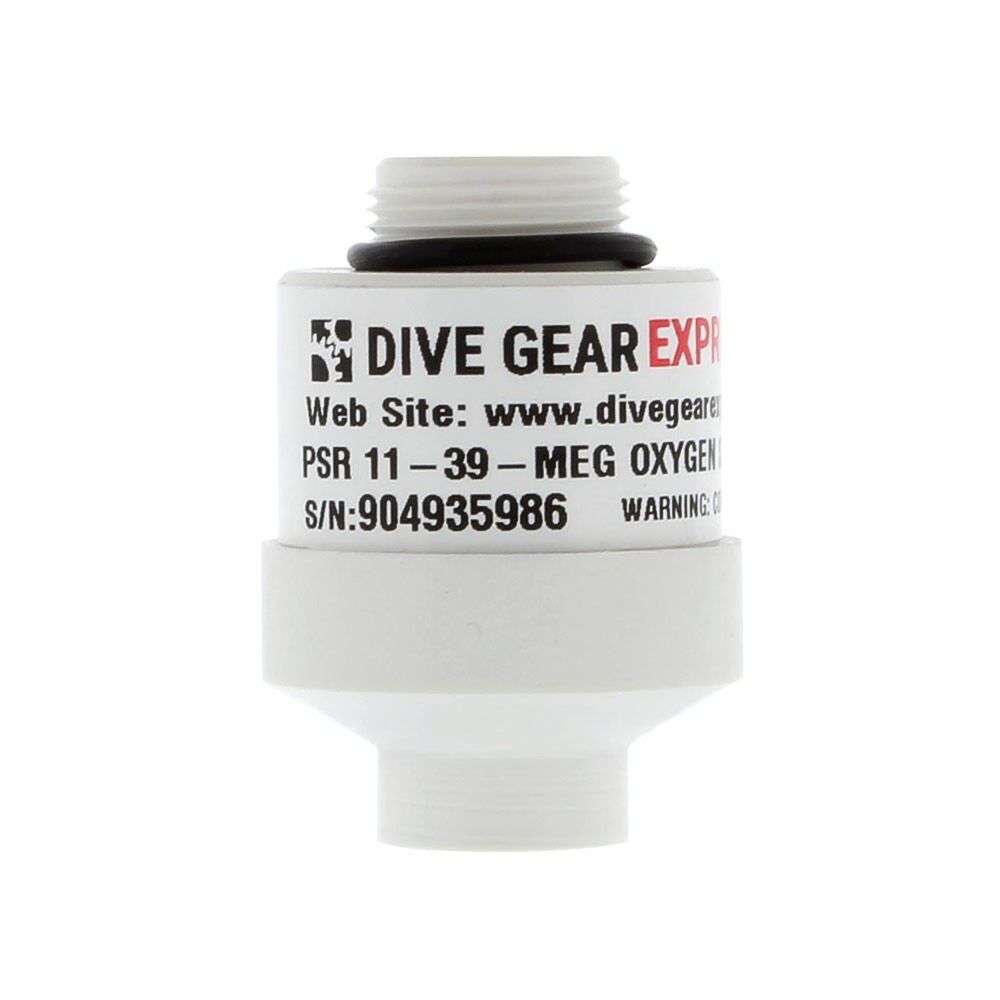

PSR-11-39-MEG Oxygen Sensor

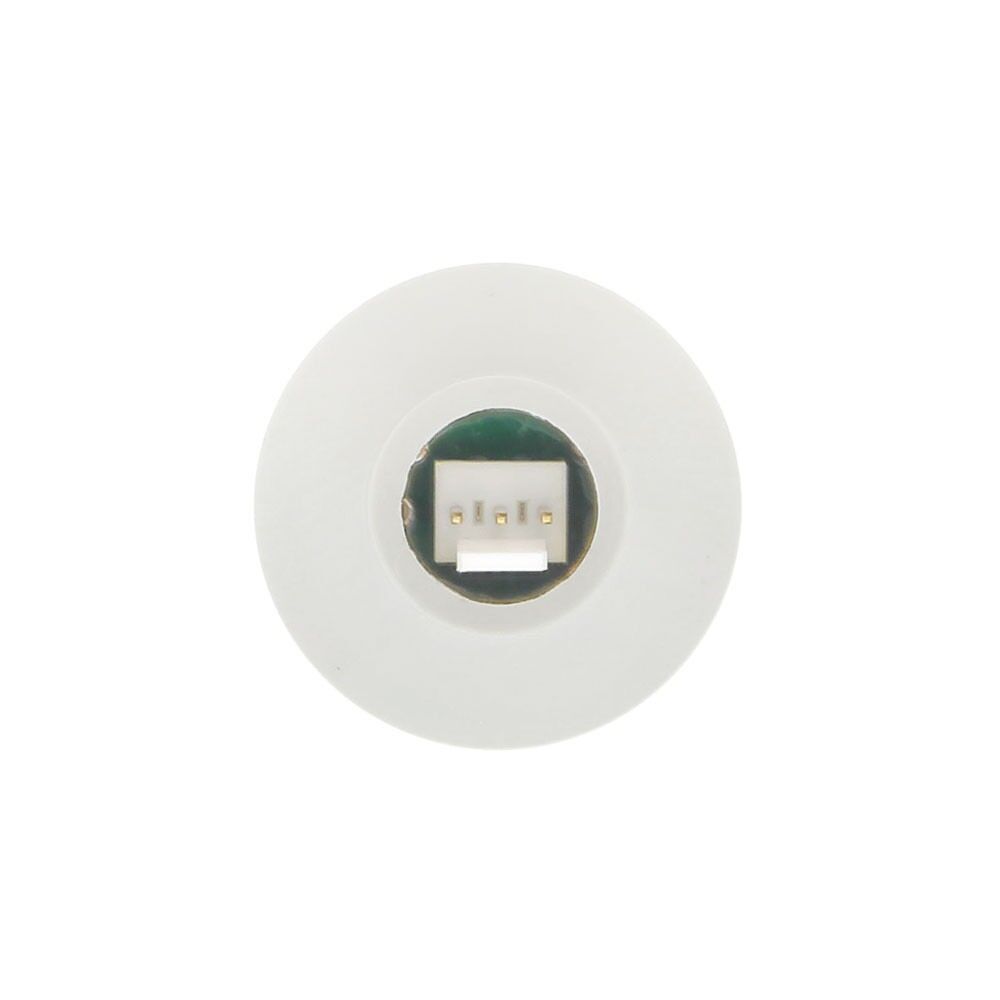

3-Pin Molex Connector

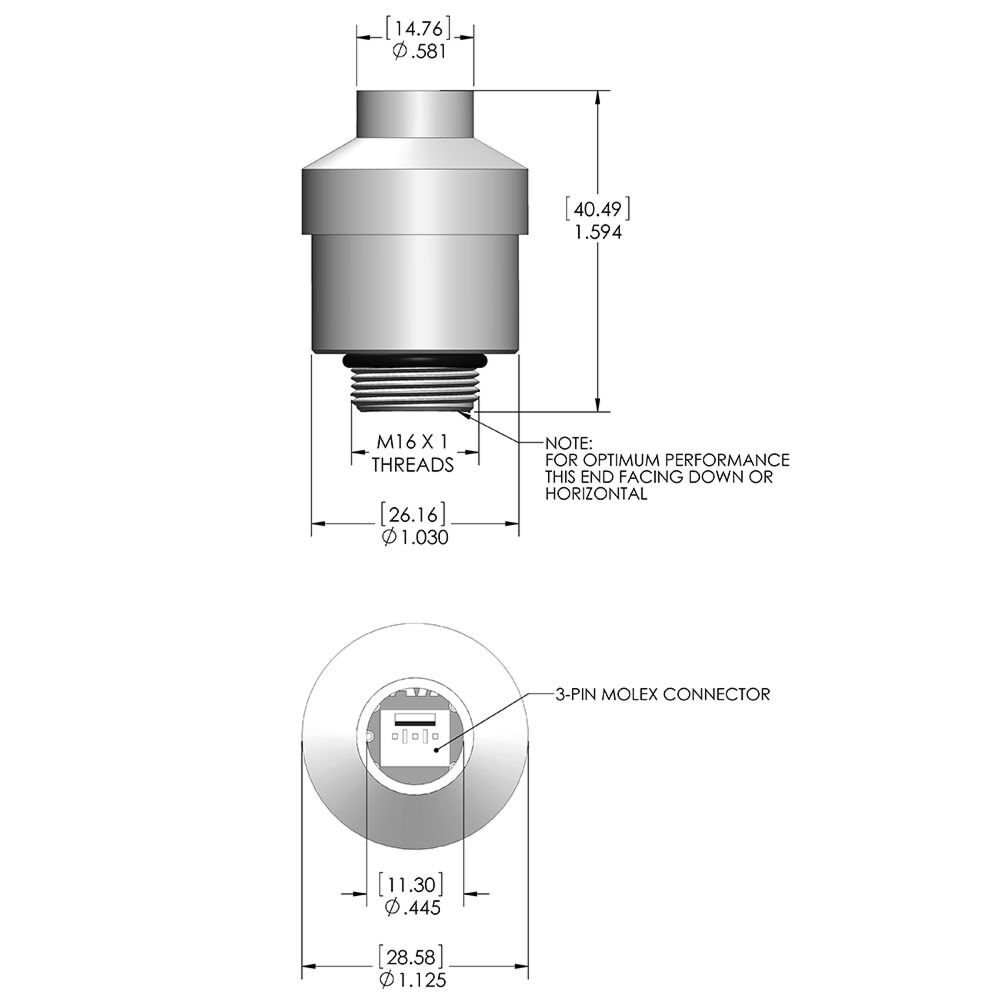

3-Pin Molex Connector PSR-11-39-MEG Oxygen Sensor Dimensional Drawing
  • Oxygen sensor with 3-pin Molex connection
  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Dated test results included with each sensor
  • Use only when recommended by your rebreather OEM

The PSR-11-39-MEG provides compatibility for all the ISC Megalodon CCR models. The Analytical Industries (AI) PSR-11-39-MEG is a special output range version. TheĀ mV specification is 9.5 mV to 13 mV as compared to the 8 mV to 14 mV of the industry standard PSR-11-39-MD sensor. The dimensions of the cap are also slightly different to fit the tighter spaces in some of the ISC models.

Features

  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Conformal coating
  • Temperature compensated
  • Hydrophobic membrane

AI brand diving sensors ship with the documentation of a final pressure test for each sensor. The sensor is tested at approximately one ATA in air and 100% oxygen, then tested again at 1.8 ATA in oxygen, and the millivolt readings are recorded for all measurements. The results document that the cell is within specifications for current and linearity up to a PO2 exceeding 1.6 ATA. The dated test results are included in the package with each individual sensor.

More Information
SKU ADI-PSR-11-39-MEG
Brand Analytical Industries
Weight 0.5000
