G-Dive Drysuit Bellows Neck Seals

Rating:
87% of 100
As low as $20.95
Most Options - In Stock
SKU
GDI-xD-N1-x

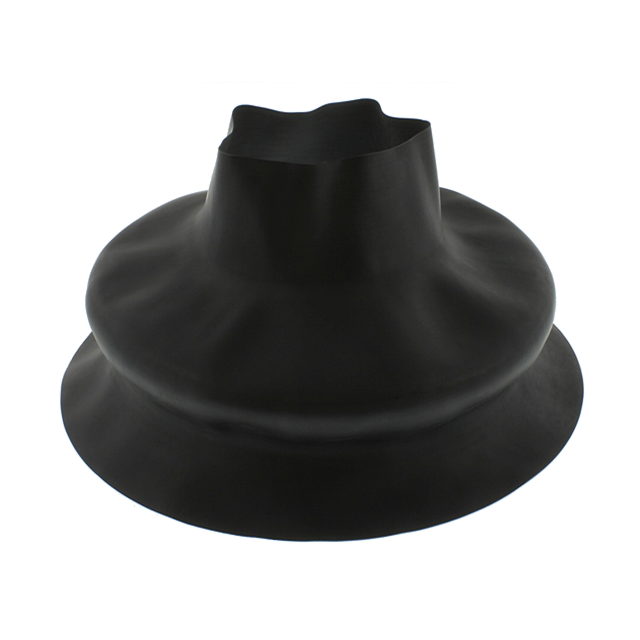

Bellows Neck Seal

G-Dive Drysuit Bellows Neck Seals

Drysuit Bellows Neck Seals
Drysuit Bellows Neck Seals G Dive Neck Seals Sizing

The standard design neck seal found on most drysuits offers a {10in | 252mm} mounting diameter at the base, three different latex thickness options, and a variety of choices for neck sizing - see sizing chart below. As a general rule, the seal opening should be trimmed to be no smaller than 80% (i.e. maximum of 20% less) than your actual measurement of the relaxed neck circumference, tighter than that could cut off blood flow to your brain.

Latex Thickness Options:
  • Flexible (FD): 0.5mm to 0.7mm - More flexible with more stretch than the standard
  • Standard (GD): 0.7mm to 1.0mm - Usual thickness found on most seals
  • Heavy Duty (HD): 1.0mm to 1.4mm - Thicker, thus more durable, but less comfortable

Neck Seal Size Chart

Standard Bellow Neck Seal - 10" Mounting diameter (standard)
Item # Size Quality Neck Circumference /Diameter Fits** Thickness
FD-N1-S Small Flexible 9.15" / 2.91" 10"-13" 0.5-0.7mm
FD-N1-M Medium Flexible 10.5" / 3.34" 12"-15" 0.5-0.7mm
FD-N1-L Large Flexible 11.9" / 3.79" 14"-17" 0.5-0.7mm
FD-N1-XL* X-Large Flexible 13.5" / 4.30" 16"-20" 0.5-0.7mm
GD-N1-S Small Standard 9.15" / 2.91" 10"-12.5" 0.7-1.0mm
GD-N1-M Medium Standard 10.5" / 3.34" 12"-14.5" 0.7-1.0mm
GD-N1-L Large Standard 11.9" / 3.79" 14"-16.5" 0.7-1.0mm
GD-N1-XL X-Large Standard 13.5" 16"-19" 0.7-1.0mm
HD-N1-S Small Heavy Duty 9.15" / 2.91" 9.5"-11.5" 1.0-1.4mm
HD-N1-M Medium Heavy Duty 10.5" / 3.34" 11"-13" 1.0-1.4mm
HD-N1-L Large Heavy Duty 11.9" / 3.79" 12.5"-14.5" 1.0-1.4mm
HD-N1-XL X-Large Heavy Duty 13.5" / 4.30" 14.5"-17" 1.0-1.4mm

* Item is special order, contact Dive Gear Express for availability.
** Fit is only a guideline, as personal preference for comfort varies widely among divers.

More Information
SKU GDI-xD-N1-x
Weight 0.2000
Brand G-Dive
Customer Reviews
Most Helpful Customer Reviews
  1. Size chart is wrong

    By Maureen R.

    on 26 September, 2019

    Very disappointed with this item - I was at the upper end of the medium size on their size chart and it is too loose. I tried it on, and it felt like an OK fit, and that I probably would not have to trim it.
    AFTER installing it on my drysuit, a process which was very time-consuming and required the help of 2 friends, I found that the seal is indeed too large and it leaks all around. Very annoying to have measured myself, compared to the size chart, and then find that the chart is wrong.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  2. Neck gasket.

    By Russ P.

    on 3 October, 2018

    Excellent product and delivery.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  3. The best company I work with

    By Timothy H.

    on 27 September, 2018

    I build and repair dry suits in the Seattle area, and-These guys are by far the best company. They are helpful , reliable, supportive, and efficient. They have a great selection and just a great business to work with!!!
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  4. Ran a little large

    By Matthew B.

    on 27 July, 2018

    Overall great seals. Very durable (I got a standard thickness). Only caveat is that the seal ran a little large for me. I had ordered a large and was right in the middle of the size range, but when it arrived, it was far too loose on my neck. I bought a medium and that is working great.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  5. heavy duty neck gasket

    By Teresa G.

    on 18 April, 2018

    Double thickness latex feels durable and the price was excellent. Installation went fine.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
See all 9 reviews
