The TransPlate (2021 Model) harness is a new Dive Rite innovation designed specifically for hard backplates, now easier to set up and adjust.

Dive Rite TransPlate Harness Only (2021 Model)

Dive Rite TransPlate Harness 2021 Model
Dive Rite TransPlate Harness 2021 Model Harness Components Preassembled Shoulder Straps Are Weaved Through Top Slot of Backplate Waist Straps Held in Place with S/S Belt Slide TransPlate Harness from Dive Rite - How to Assemble
  • Accommodates both single and double tank diving
  • Adjustable ergonomic padded shoulder straps
  • Quick release buckles on both shoulders
  • Chest strap for weight distribution and snug fit
  • Backed with the Dive Rite Lifetime Warranty

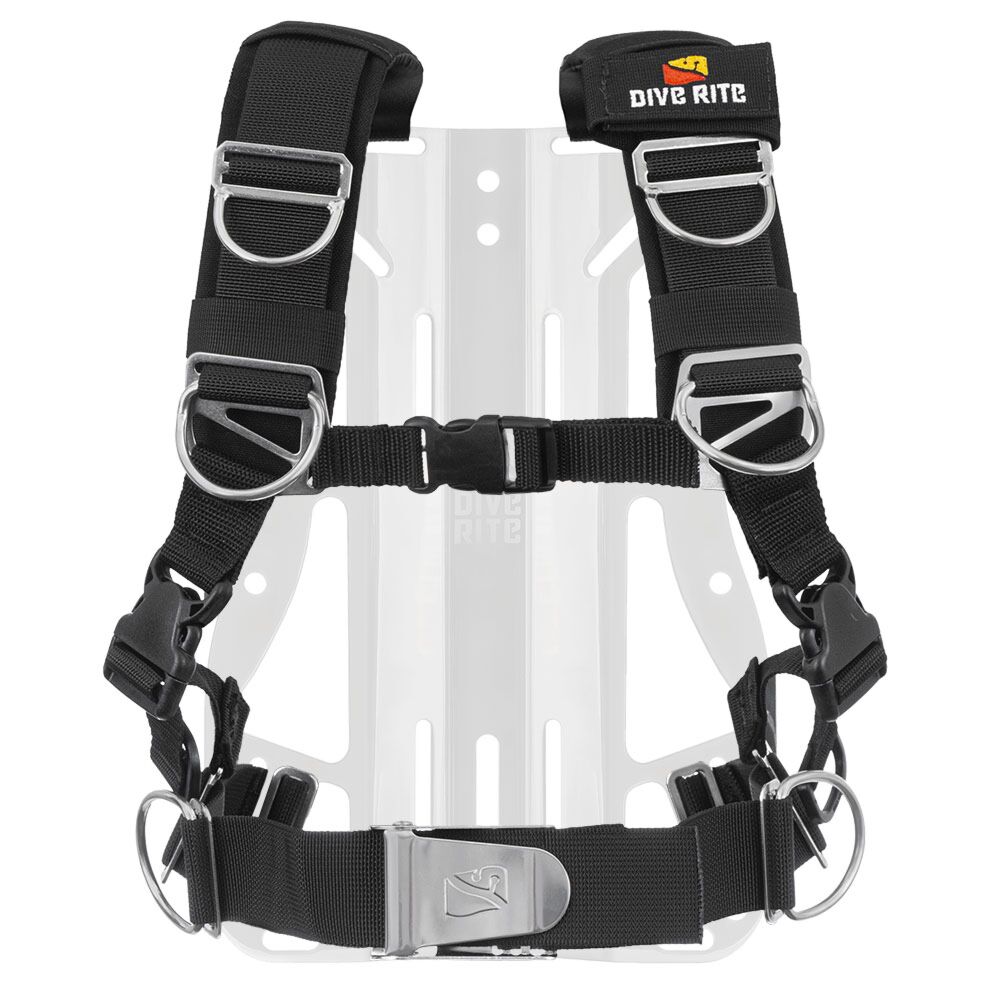

The (2021 Model) TransPlate harness utilizes many features and benefits of the TransPac harness for divers who demand comfort and the perfect fit when using a backplate. The TransPlate transforms as quickly and as easily to accommodate everything from single cylinders to doubles with stage and deco bottles. New features include pre-assembled shoulder straps and an easier attachment of the waist straps to the backplate. The adjustable padded shoulder straps cinch for a perfect fit, stay where you set them, and allow easy switching between wetsuit and drysuit. The elegant and simple design of the adjustable shoulder straps don't interfere with the waist straps, meaning the waist D-rings don't move when you adjust the shoulders. The shoulder and waist D-ring positions are adjustable or can be removed entirely, and additional D-rings and buckles can easily be added for special needs. Canister lights, bellows pockets and other accessories can be quickly mounted or removed at the waist belt.

Already have your backplate and air cell? Then all you need to purchase is the TransPlate harness itself. The harness shoulders and waist belt quickly install on any hard backplate. The harness comes complete with shoulder and waist D-rings, but does not include a backplate.

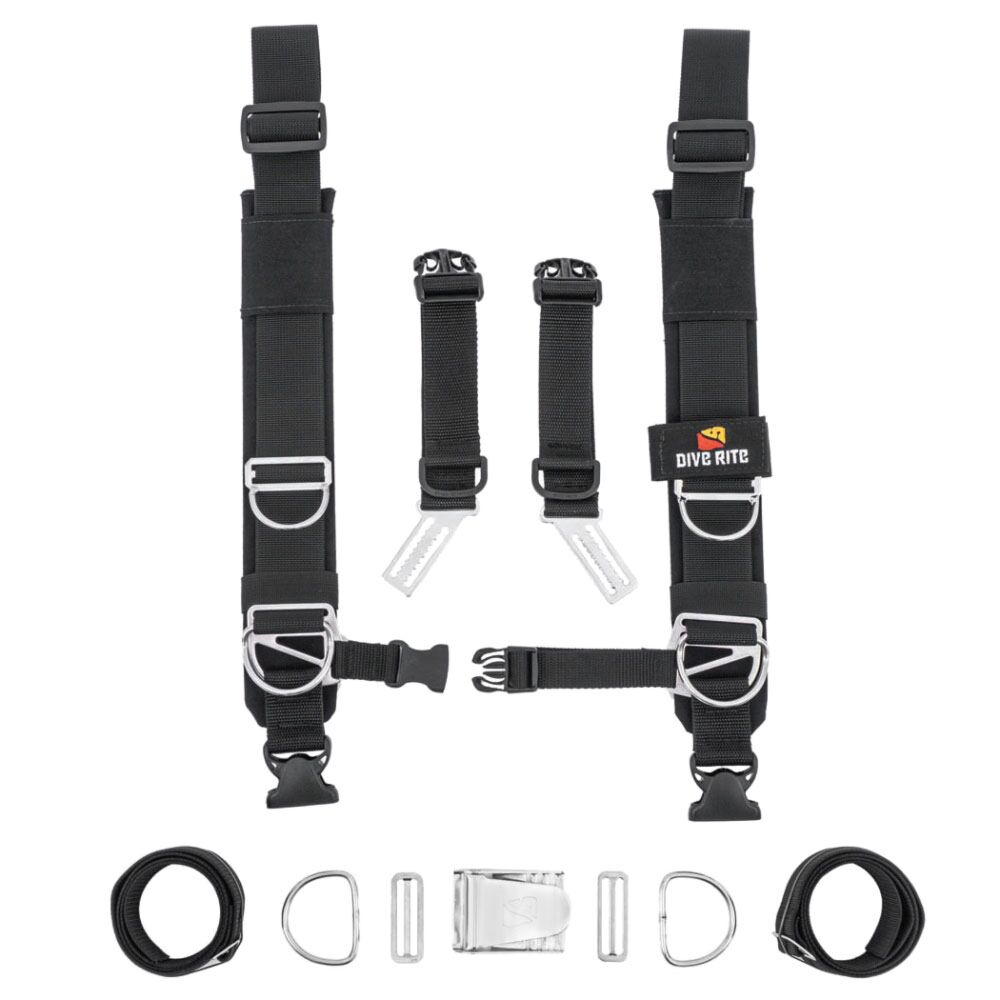

Harness Includes:

  • Two shoulder strap assemblies with { 2 in | 5.1 cm } webbing, shoulder pads, chest strap, D-rings, S/S transition plates and epaulets
  • Two { 1.5 in | 3.8 cm } lower shoulder strap assemblies with quick release buckles and S/S side plates
  • Two { 2 in | 5.1 cm } x { 36 in | 91 cm } waist webbing pieces with pre-sewn S/S slides
  • Two { 2 in | 5.1 cm } S/S D-rings
  • Two { 2 in | 5.1 cm } S/S belt slides
  • S/S belt buckle

Please see video and product attachment for assembly instructions.

More Information
Brand Dive Rite
SKU DR-T3550
Weight 3.000000

Threading a 3-Slot Quick-Release Belt Buckle

For harness and weight belt applications, we recommend only using a three-slot metal buckle with a pinned hinge mechanism that is riveted. We also suggest using a design that has a positive detent on the closure. The webbing should be woven through all three slots and then back upon itself through the wider end slot. Weave S/S Belt Buckle

Starting from the front of the metal buckle, thread the left waist strap through the larger end slot of the buckle. If using the buckle on backplate harness, position the buckle approximately { 18 in | 45.7 cm } of webbing length from the plate left waist slot. Then thread the webbing from the back through the center slot and through the front of the inner most slot. Finally, thread the webbing through the back of the larger end slot so there are two thicknesses of webbing through one slot and pull the weave tight.

To easily use your buckle: lift the tang to 90° angle in relation to the base of the buckle, then touch the free end of the webbing to the tip of tang and slide the webbing down the tang and into the slot. Pull the webbing through the buckle and push down on the tang until you feel the detent engage for a secure closure.
