Dive Rite Classic XT Wing

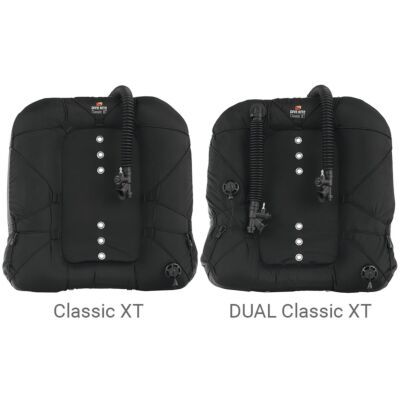

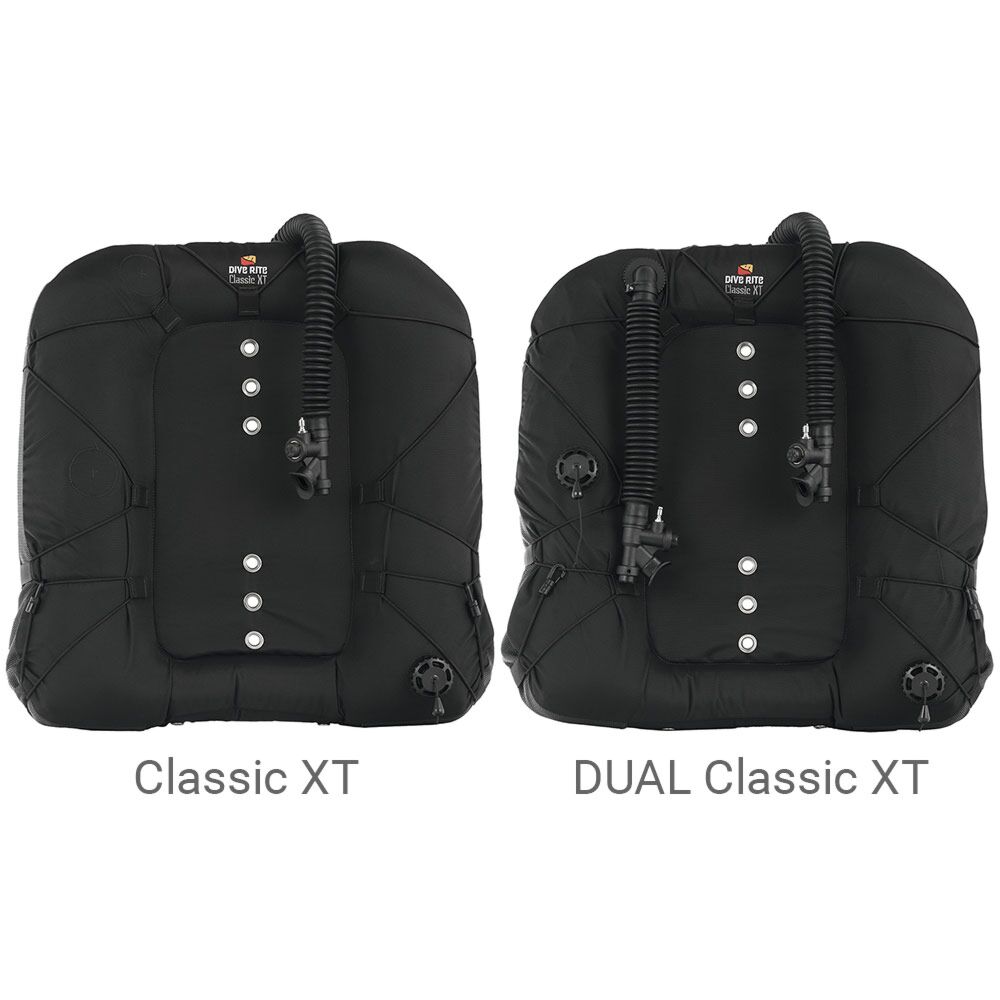

DR Classic and DUAL Classic Wings

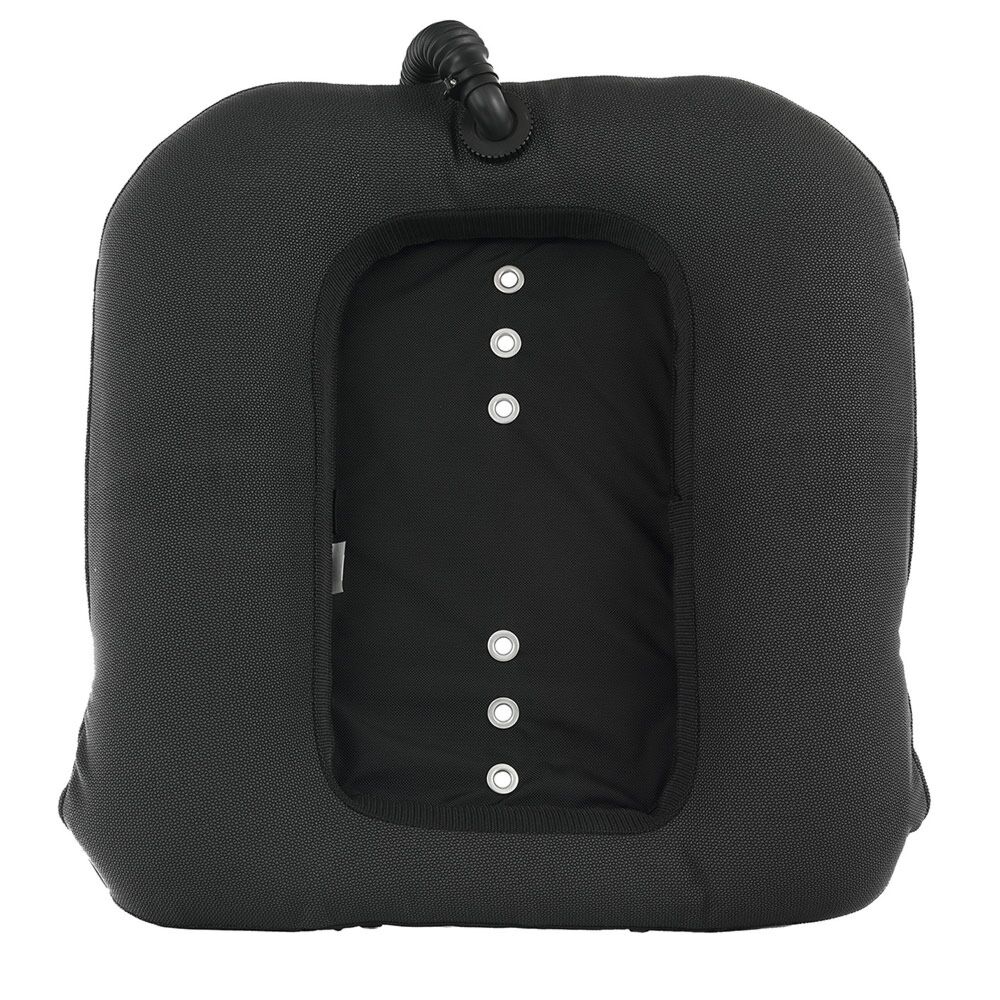

DR Classic and DUAL Classic Wings Back View Inflation Assembly Options
  • Designed for double tanks {65 lbs | 27.2 kg) of lift
  • Made from rugged SuperFabric® XT material
  • Donut-shape design provides excellent stability
  • Gusset Control promotes effective streamlining
  • Heavy-duty 210 denier nylon laminated bladder

Dive Rite Classic XT Wing

As low as $530.00
In Stock
SKU
DR-BC5400-X
At full capacity, the Classic offers { 60 lb | 27.2 kg } of lift, ideal for divers who use use mid to heavy weight steel cylinders with 8-inch diameters. This is our best selling Dive Rite doubles wing.

The Dive Rite Classic XT Wing is designed for use with larger tanks. Designed solely for double tanks and with the option of a single or dual bladder, the Classic Wing provides 65 lbs. (27.2 kg) of lift, which can accommodate two 104 ft3 (17 L) back mounted cylinders and two 80 ft3 (11L) stage bottles.

Supporting heavy doubles and stage bottles is one thing, but being able to properly balance and stabilize that amount of heavy gear for proper trim while swimming is where the Classic XT Wing really shines. The donut-shape design provides excellent stability and control while diving by keeping a volume of inflation on the top, sides, and bottom. This, along with an optional integrated Gusset Control, System (GCS) that reduces “taco” effect and promotes effective streamlining, puts buoyancy where it is most needed (throughout the torso supporting the weight of the tanks) for superior horizontal trim. The GCS is not like a bungee wing because it does not restrict airflow; instead, the GCS promotes added streamlining and buoyancy control, yet allows the wing to inflate to its full capacity.

Designed to handle the extremes, the Classic XT Wing is built using rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, along with a 1680 ballistic nylon side panel. Inside the SuperFabric outer shell a heavy-duty, 210 denier nylon laminated bladder enhances the ruggedness and superior performance of the Classic Wing. The standard inflation assembly is a { 12 in | 30.5 cm } corrugated hose with a { 15 in | 38.1 cm } low pressure BC inflator hose and your choice of pull-to-dump remote exhaust elbow or a plain elbow. Also available with a { 16 in | 40.6 cm } corrugated hose, { 22 in | 55.9 cm } low pressure BC inflator hose, and plain elbow.

More Information
Brand Dive Rite
SKU DR-BC5400-X
Weight 5.000000

Customer Reviews

Dive Rite Air Cells Overview

Dive Rite's wings utilize either a 360 degree, donut-style bladder design that provides an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim, or the Retro style horseshoe design, allowing divers to target lift where it’s needed to balance out their rig and stay in trim. The heavy-duty 210 denier nylon laminated inner bladder is pinch and puncture resistant, chemical resistant and resists the growth of microorganisms. Each airtight inner bladder is surrounded by an outer fabric shell and an oral/power inflation assembly. The outer armored fabric shell protects the wing from tears and abrasion.

Air Cell Test
Lift
Dual Version
Available?
Use with
Singles?
Use with
Doubles?
Gusset
Control?
Travel XT Wing 25 lb NO YES NO NO
  11.3 kg
Voyager XT Wing 35 lb NO YES NO YES
  15.9 kg
Rec XT Wing 45 lb YES YES YES YES
  20.4 kg
Classic XT Wing 60 lb YES NO YES YES
  27.2 kg

XT versions - The XT series outer fabric shell, built upon the legendary toughness of SuperFabric® brand technology, is outstandingly rugged. SuperFabric is a technical fabric resistant to cuts and abrasion. Created with a base fabric and then overlaid with tiny guard plates, this proprietary armored surface, along with material science and strategic geometric patterns, transform ordinary fabric into SuperFabric brand materials. Spacings between the guard plates allow for flexibility and breathability, yet are small enough to keep sharp objects from penetrating. Dive Rite's XT Armored wings have the durability of SuperFabric outer side with a 1000 denier Cordura® inner side to create an armor-clad shell that is impervious to damaging pinches, cuts and abrasions. The Dive Rite XT wings feature a LIFETIME GUARANTEE.

Lift Capacity - A very common error when selecting a wing is to choose a size much too big, causing a "taco effect" that makes managing buoyancy considerably more difficult. The cylinder size, type and configuration, not lift capacity, is the best guide to selecting the correct wing.

For details read Suggestions for Selecting a Wing.

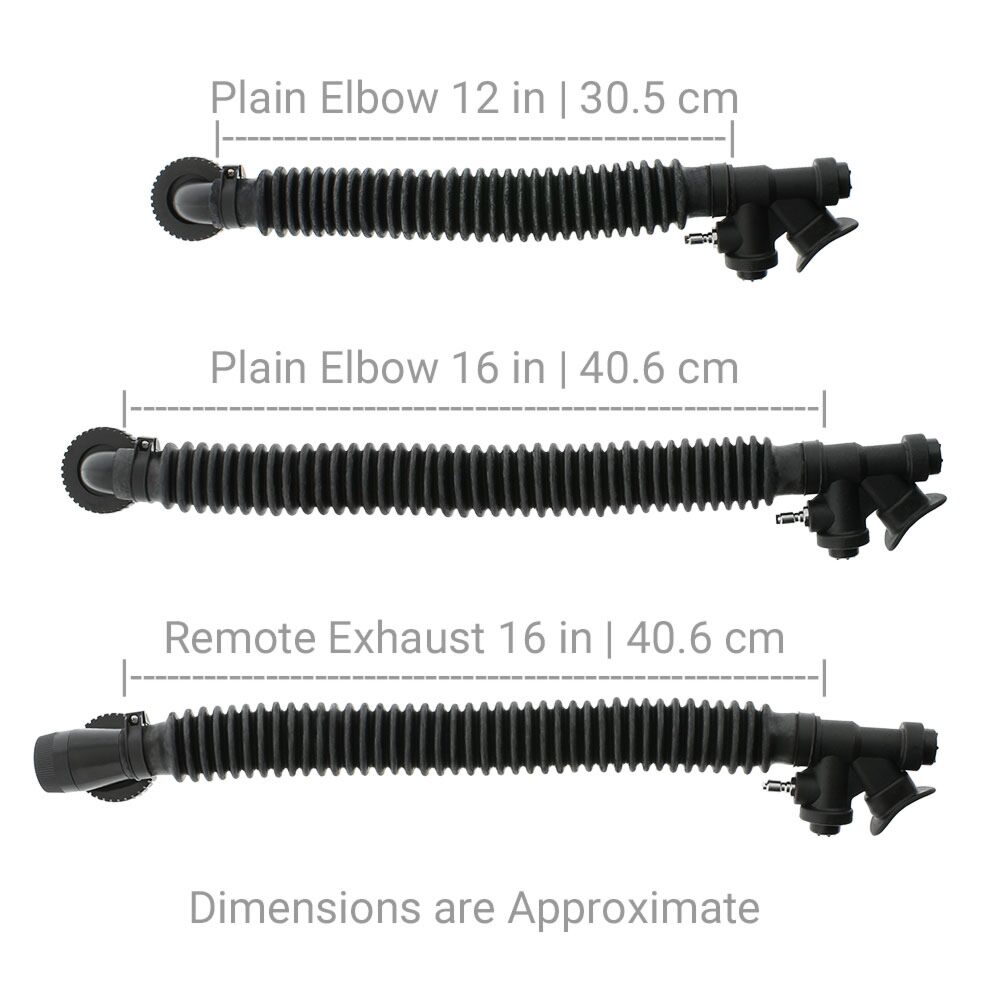

Inflation Assemblies - Configurations are available with a pull-to-dump remote exhaust elbow for sport diving applications that favor ease of use, or a plain elbow for technical diving applications that favor simplicity. Most divers prefer the { 16 in | 40.6 cm } corrugated hose with a { 22 in | 55.9 cm } low pressure BC inflator hose. But, some technical divers seeking ultra-streamlined configurations prefer the { 12 in | 30.5 cm } corrugated hose and { 15 in | 38.1 cm } low pressure BC inflator hose; especially on doubles.

Singles & Doubles Wings - While the Rec wing design can be adjusted for occasional use with singles, keep in mind they are not designed to be used primarily as singles wings and they are not optimal with singles. Realistically, there is no wing perfect for both singles and doubles, or even a wing perfect for all doubles. If the range of cylinder configurations which you dive is broad, then the best choice for efficient and comfortable diving may be to own more than one wing.

Dual versions - The dual bladder wings offer the same versatility and lift capacity of the single bladder wings, but also incorporate two bladders to provide back-up inflation. The dual option is ideal for technical divers who dive wet and do not have a drysuit as alternate buoyancy. Or, for any diver who want to ensure their backup buoyancy has the same lift capacity as their primary.

Gusset Control System - The GCS is used to streamline the shape of the Dive Rite wings to keep the excess of these larger wings from wrapping around the cylinders or "flapping." The GCS does not create a bungee wing because it does not restrict air flow; instead the GCS promotes added streamlining and buoyancy control, yet allows the wing to full inflate to its full capacity. The GCS can be disabled by moving two clips to release all tension on the cord, allowing the wings to fully inflate without any retraction effect from the GCS. For those who prefer not to use the Gusset Control System, the cord may be removed entirely. For details read Dive Rites' Gusset Control System (GCS).
