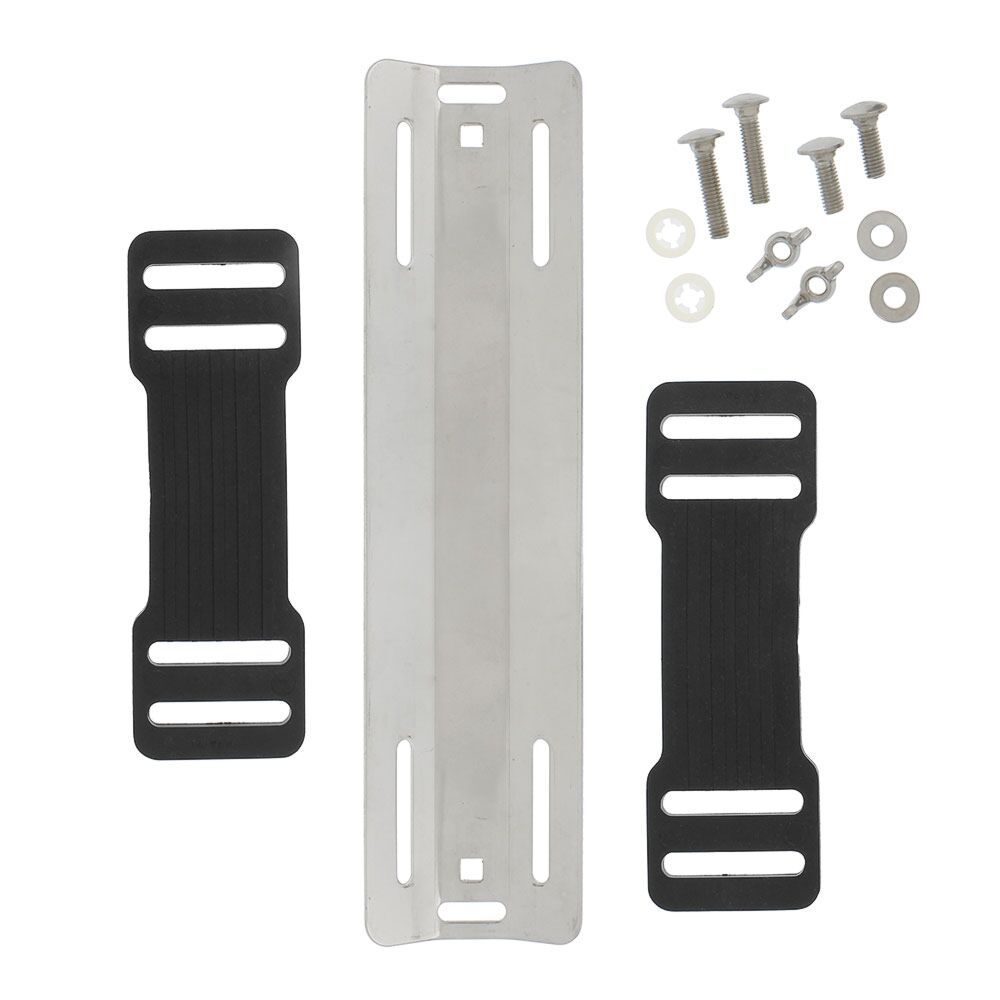

Complete Kit - STA Plus Hardware and Pads

Constructed of marine grade 304 stainless steel
{13.0 in | 33 cm} Standard length is appropriate for ALL size aircells
Includes 2 rubber pads for a secure cylinder
Includes all stainless hardware required
Allows for rapid switch from double to single cylinder

DGX Premium Single Tank Adapter

Name: DGX Premium Single Tank Adapter
Brand: DGX
SKU: DX-204005x
Price: 35.00 USD
Availability: InStock

Next Business Day

Starting at $35

In Stock

SKU

DX-204005x

For divers who frequently switch their harness, backplate and wing between double tank and single tank rigs, or between backmount and sidemount configurations, the DGX Single Tank Adapter (STA) is a convenient way to attach cam straps to a backplate without having to thread the cam straps through the backplate slots and reweave the cam buckles.

Details

The DGX Premium Standard STA is constructed of marine grade passivated 304 stainless steel.

This standard length { 13.0 in | 33 cm } / { 1.1 lb | 0.50 kg } version is appropriate for ALL size aircells. The width is { 3.1 in | 7.9 cm }.

The adapter includes all stainless hardware, including pairs of both { 1.0 in | 2.5 cm } and { 1.5 in | 3.8 cm } long 5/16-18 thread carriage bolts (with some backplates the longer bolts are needed) on { 11 in | 28 cm } centers, metal washers and wing nuts, plastic retaining washers, along with two rubber pads to protect the tank. Two S/S Tank Straps are available as an option.

More Information

More Information
Product Name	DGX Premium Single Tank Adapter
Brand	DGX
SKU	DX-204005x
Weight	1.12 lb
Country of Manufacture	Taiwan
HS Code	9506.29

Reviews

Tek Tip

Single Tank Mounting with Backplates

If you occasionally switch between doubles and singles, you can configure your backplate (including the soft backplates of the TransPac and Nomad) to attach to a single tank by adding two tank straps threaded through the tank strap slots of the backplates. Note that when a traditional metal backplate is off the tank, the wing will hang loose on on the straps. This is cosmetic and does not otherwise cause problems, but if you wish you can use two plastic assembly screws to hold the wing against the backplate. Omitting the STA also reduces weight.
If you frequently switch between doubles and singles, you may prefer the speed and convenience of adding the straps using an optional single tank adapter mounting plate. Using an STA means the strap buckles never have to be unthreaded and re-weaved plus the STA also holds the wing in place with the plate when off the tank and adds weight to the rig. Some backplate and wing designs include provisions for tank strap slots, but if you have an backplate or a wing design without the tank strap slots then you must add straps using a single tank adapter.

We are often asked if the tank mount would be more stable and secure using the STA, as opposed to threading the cam straps directly through the backplate. We've tested several configurations and discovered that threading the straps through the backplate is at least as stable as when using an STA. Using an STA sets the tank farther away from the backplate and allows the tank to rock slightly by pivoting from side to side on the bolts. Using the straps threaded to through the backplate snugs the tank and wing up very tight against the backplate and does not allow the tank to rock.

Finally, although a common practice we do not recommend transporting your wing sandwiched between a backplate and single tank adapter, they should be disassembled to individual components with the soft goods packed separately from the hard metal components. The hard edges of the plate and STA if stored together with the wing and if subjected to ordinary impact could puncture the bladder inside the wing and cause a leak.
