DGX Gears Premium O2 Dual-Outlet Manifold w/Isolator

DGX Premium O2 Dual-Outlet Manifold w/Isolator

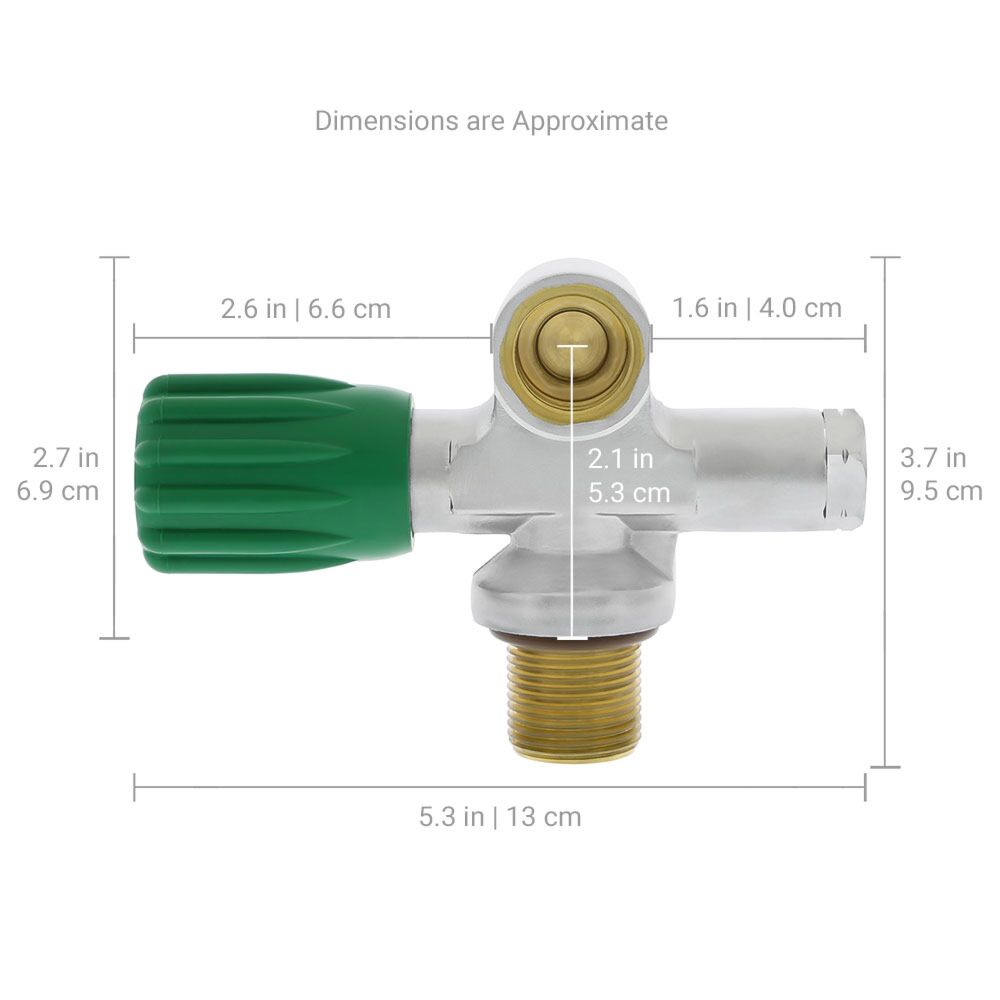

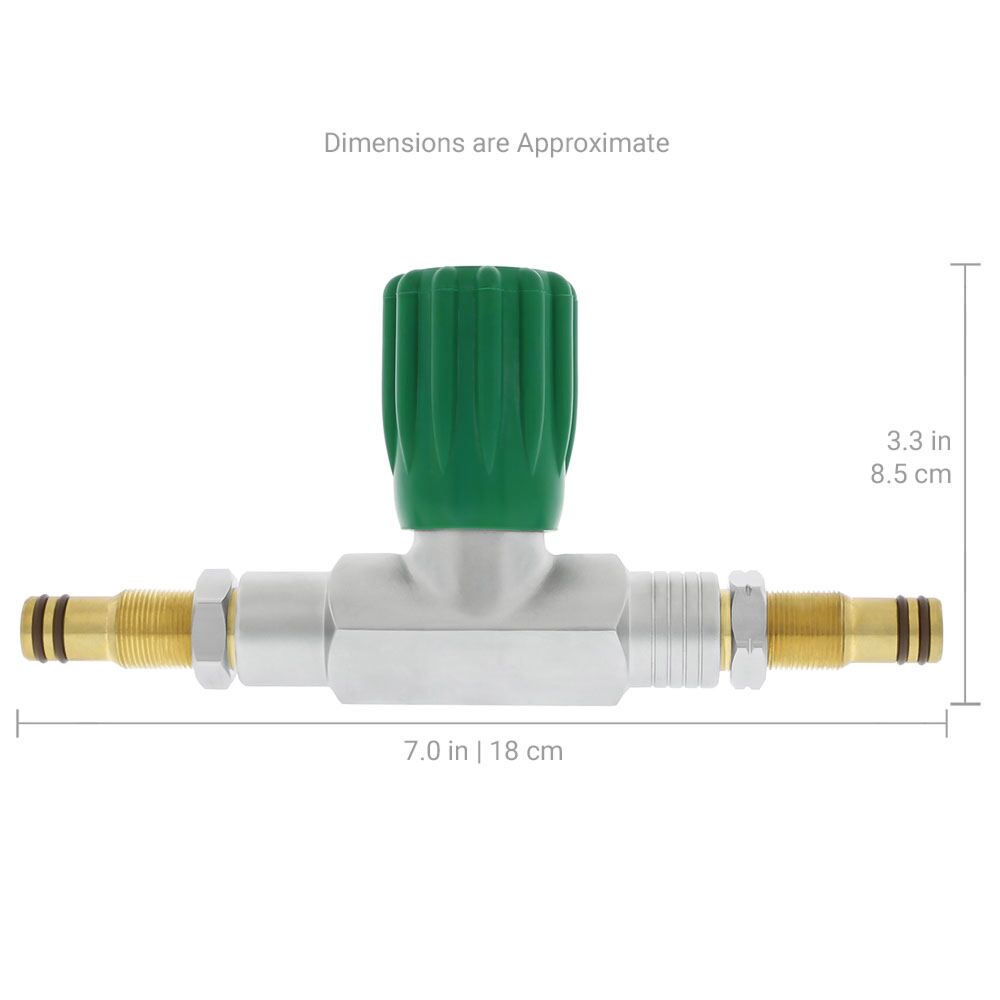

DGX Premium O2 Dual-Outlet Manifold w/Isolator O2 Modular Valve Dimensions O2 Center Bar Dimensions
  • Left and Right modular valves w/ isolation crossbar
  • 8.5-inch adjustable center-to-center spacing
  • NO chrome plating on friction surfaces
  • Standard 0.750-14 NPSM (3/4 NPS) neck threads
  • Valves have 5250 psi burst disks

DGX Gears Premium O2 Dual-Outlet Manifold w/Isolator

$249.00
In Stock
SKU
DX-722450-O2

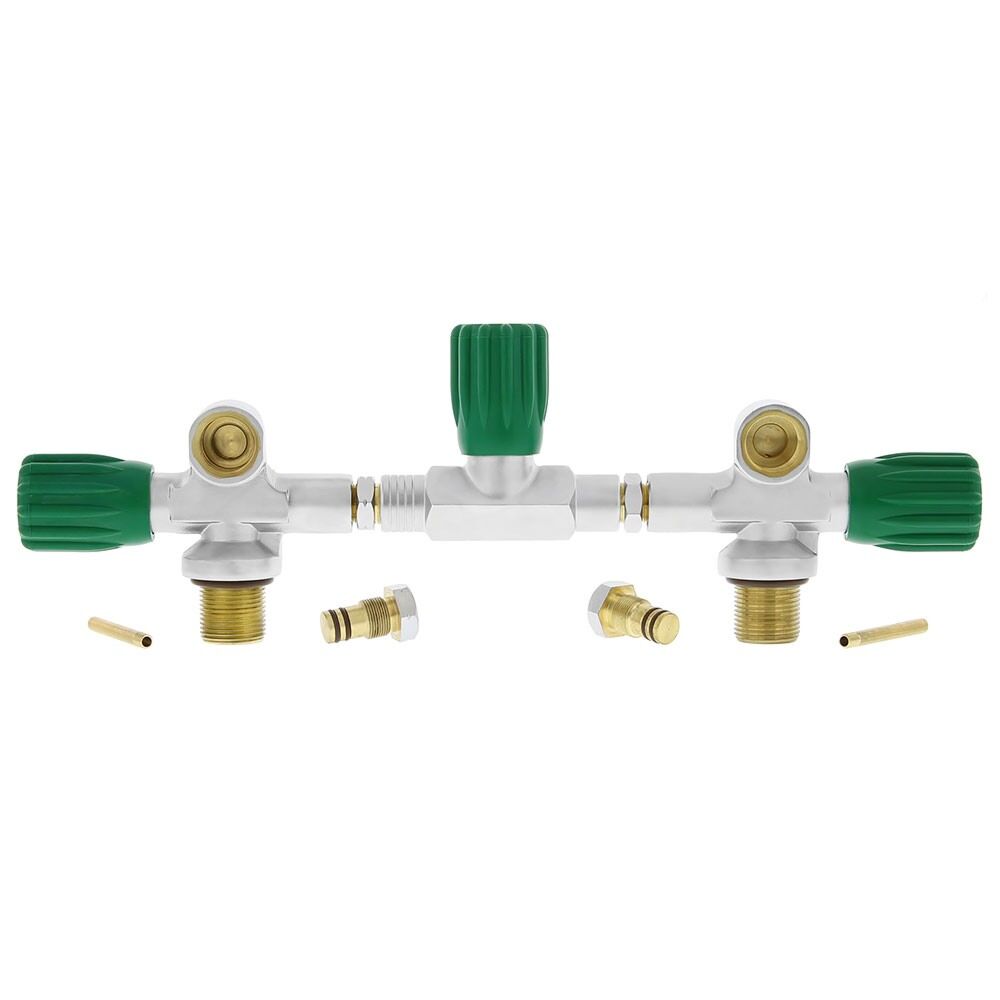

The manifold consists of left and right DGX Premium O2 modular valves with an isolation crossbar offering 8.5-inch adjustable center-to-center spacing that perfectly fits any diameter scuba cylinders using standard tank bands.

WE WANT TO PROPERLY SET YOUR EXPECTATIONS: The inlet and outlet on these oxygen compatible valves are oxygen clean copper metal alloy (aka "brass") which exhibit some discoloration that is NOT aesthetically pleasing as electroplated chrome finishes typical of other SCUBA valves. If you consider the cosmetics to be important, and maximum compatibility with pure oxygen is less of a concern, then we recommend choosing our standard Nitrox Ready DGX Premium Valves over the DGX Premium O2 Valves.

The DGX Premium O2 manifold consists of left and right DGX Premium O2 modular valves with an isolation crossbar offering 8.5-inch adjustable center-to-center spacing that perfectly fits any diameter scuba cylinders using standard tank bands. The modular barrel design connectors incorporate double O-ring seals known for their robust reliability. Also includes the port plugs so you can reconfigure your doubles as left and right singles if the need arises.

How to Assemble Double Cylinders

DGX Premium O2 valves are oxygen clean, using oxygen compatible materials, lubrication free, and when sealed in the original factory packaging is also free of organic and particle contamination. The DGX Premium O2 valve seat & plug assembly has finer threads, making the initial opening action of the valve more gradual and requiring several more turns to fully open than the standard SCUBA valve. The DGX Premium O2 valves have inlet and outlet threads, modular port threads and port plug, seat & plug assembly, dip tube, burst disk assembly and optional DIN-to-Yoke adapters that are not chrome plated. The outside body and other non-friction surfaces of the DGX Premium O2 valve remain chromed for the sake of cosmetics. The DGX Premium O2 valve includes a green colored handwheel and the head of the burst disk assembly is also green.

DGX valves have DIN outlets that can accept optional removable inserts (sold separately) so the valves may be used with yoke connectors. You may see this style of outlet variously described as Pro, 200-Bar DIN (G 5/8 BSP), or 232-Bar DIN. All these different names apply to exactly the same style valve outlet, which is suitable for use with the 3442 psi service pressure cylinders and any DIN style regulator or (with the addition of an optional insert) converted for any yoke style regulator. Inlets have standard 0.750-14 NPSM (3/4 NPS) neck threads for use with all modern aluminum and steel SCUBA tanks and include a 5250 psi burst disk. DGX valves include a nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves. The rubber with stainless steel insert handwheel design is the preferred choice of technical divers and several optional handwheel colors are available.

More Information
Brand DGX Gears
SKU DX-722450-O2
Weight 5.250000

Customer Reviews

Tek Tip Warning Image WARNING
According to our suppliers, these products are constructed with oxygen compatible materials and factory cleaned for use with compressed gases in excess of 23.5% oxygen. Nonetheless, the 'clean state' of this equipment applies only prior to initial use. Thereafter, periodic inspection and cleaning are a necessity. You must meticulously follow the recommendations of the US Department of Transportation (DOT), Compressed Gas Association (CGA), and other federal/state/local agencies, plus your dive training agency for equipment maintenance, handling, storage, labeling, filling, transport and use of compressed gases. Oxygen-related fires and explosions can result in serious injury or death. Ultimately, you must make the final decision to assume all risks associated with the use of any compressed gases, including those in excess of 23.5% oxygen.
