DGX Premium Modular Valve, Left (Uncommon Side)

Rating:
100% of 100
$39.00
In Stock
SKU
DX-722412
The DGX Premium Modular Valve, Left (Uncommon Side) can be used as a stand-alone valve or with a cross bar with an isolator valve in a doubles manifold.

DGX Premium Modular Valve, Left (Uncommon Side)

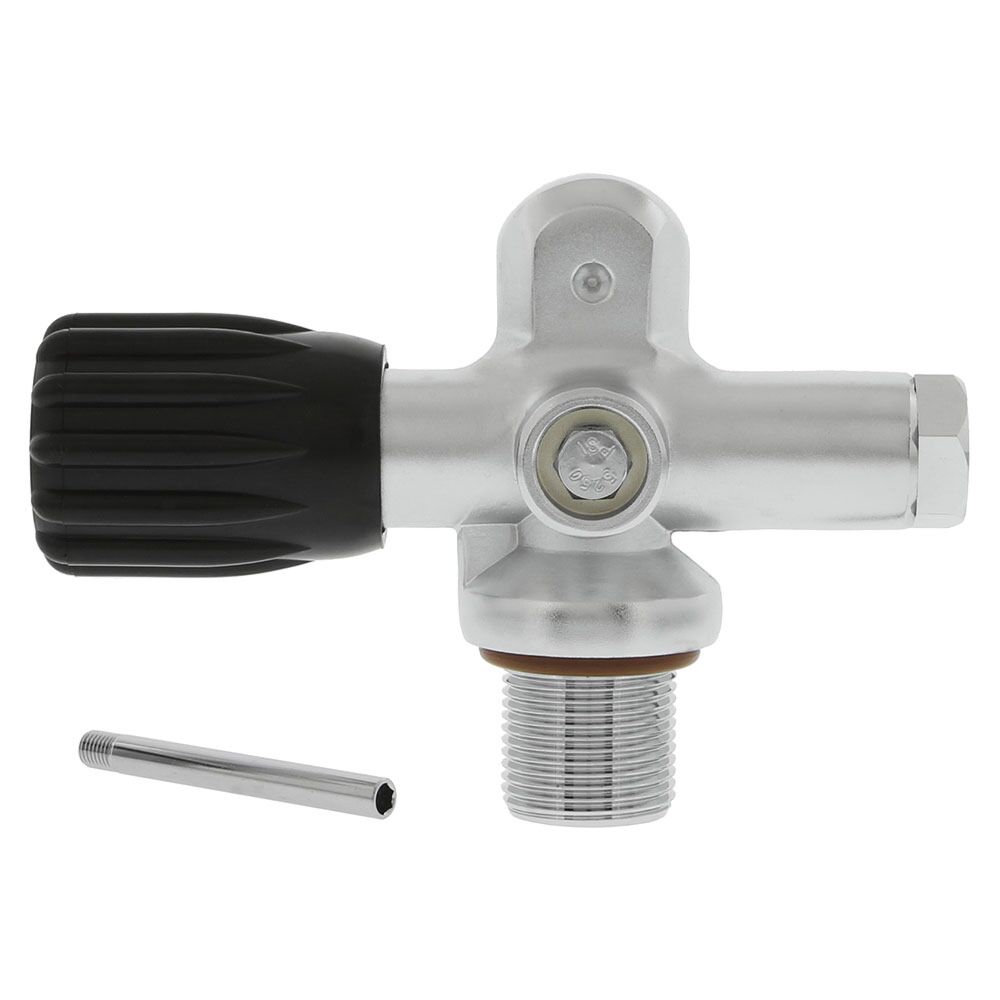

Left (Uncommon Side) DGX Modular Valve - Front

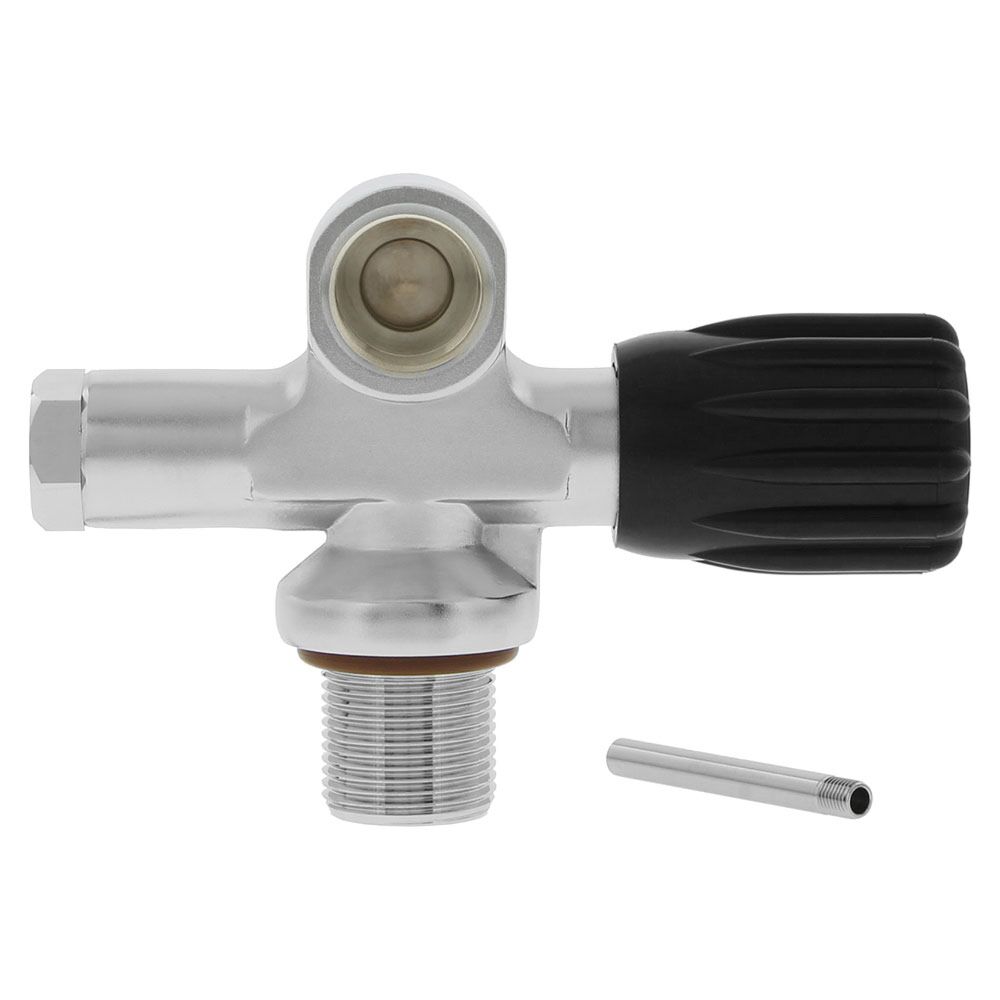

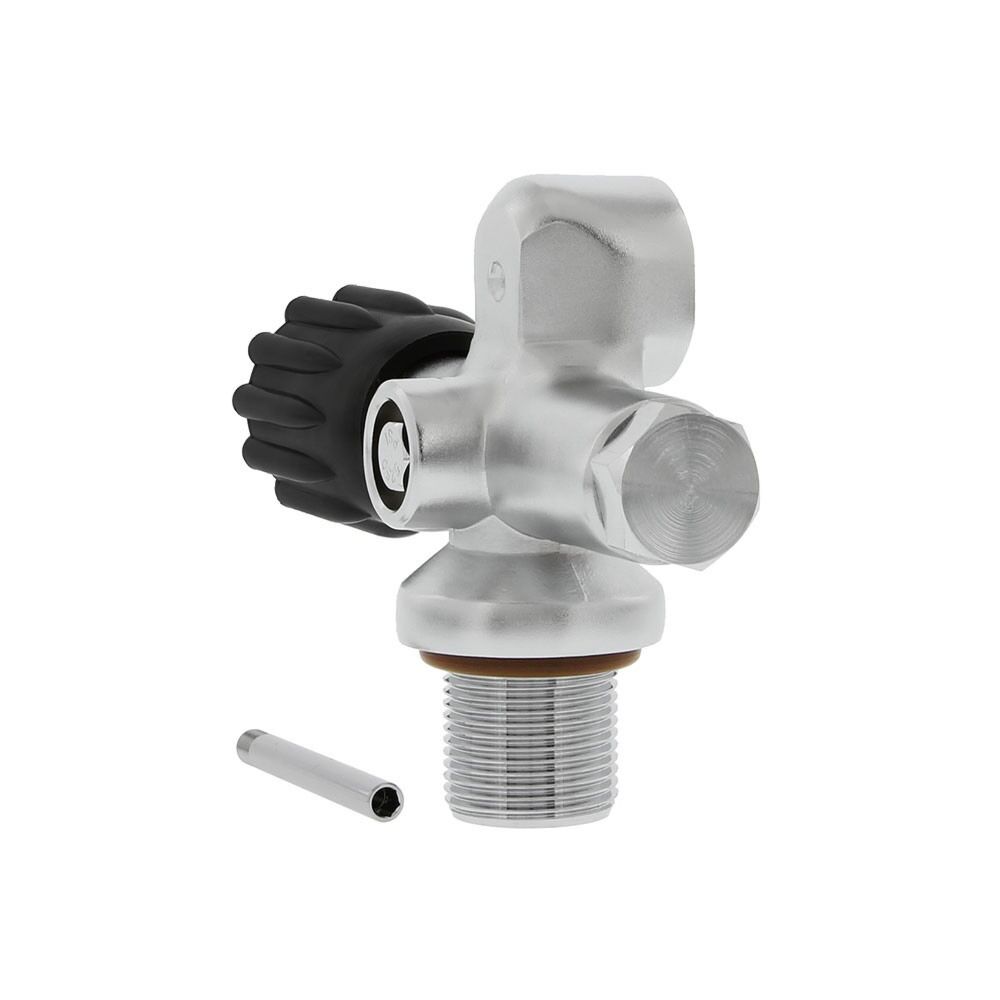

Left (Uncommon Side) DGX Modular Valve - Front Left (Uncommon Side) DGX Modular Valve - Back Left (Uncommon Side) DGX Modular Valve - Side
  • Standard 0.750-14 NPSM (3/4 NPS) neck threads
  • DIN outlet can accept Yoke inserts (sold separately)
  • Nitrox Ready - Chromed Brass Construction
  • Valves have a recessed 5250 psi burst disk

DGX Premium Modular Valve, Left (Uncommon Side) is Nitrox Ready, using oxygen compatible materials and when sealed in the original factory packaging is also free of organic and particle contamination. The valves have DIN outlets that can accept optional removable inserts (sold separately) so the valves may be used with yoke connectors. You may see this style of outlet variously described as Pro, 200-Bar DIN (G 5/8 BSP), or 232-Bar DIN. All these different names apply to exactly the same style valve outlet, which is suitable for use with the 3442 psi service pressure cylinders and any DIN style regulator or (with the addition of an optional insert) converted for any yoke style regulator. Inlets have standard 0.750-14 NPSM (3/4 NPS) neck threads for use with all modern aluminum and steel SCUBA tanks and include a threaded 'dip tube' with hex opening for easy installation. Valves have a 5250 psi burst disk. The modular plug and dip tube are included.

The DGX Premium valves include a nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves. The rubber with stainless steel insert handwheel design is the preferred choice of technical divers. The black color handwheel is standard, and several optional handwheel colors are available.

More Information
SKU DX-722412
Brand DGX
Weight (lbs) 2.5000
Customer Reviews
Most Helpful Customer Reviews
  1. 1 person found the following review helpful
    Really good value and fast

    By

    on

    Really good value and fast shipping Thanks
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  2. 1 person found the following review helpful
    best valves around

    By

    on

    best valves around
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  3. 1 person found the following review helpful
    DGX valves

    By

    on

    Tried these for the first time and seem to be a great quality item.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
  4. 1 person found the following review helpful
    Excellent

    By

    on

    These valves are great and I highly reccomend them. I used a left and right for my sidemount tanks. I like that they're modular in case I ever decide to set them up for back mount. I also like for valve drills the capped off part makes for a nice hand grip while turning the knob. Much lower profile than most other valves as well.
    Comment Was this review helpful to you? Thank you for your feedback! You already voted Sorry, we failed to record your vote. Please try again
Post a comment as
Only registered users can write comments. Please, Sign in or create an account
Only registered users can write reviews. Please, Sign in or create an account

Do You Know Your Right From Your Left?

Modular valves come in right-hand and left-hand designs, referring to the side of the valve handwheel, not to which direction the valve opens. This can be confusing because there is not industry-wide agreement on the perspective from which the valve is viewed.

  • Dive Rite assigns left and right from the perspective with your face toward the valve opening. If the valve is on and blowing air in your face, then you reach out with your left hand and can touch the valve handwheel knob it is a left handed valve. Thus Dive Rite says that the typical standalone valve is left-handed.
  • Thermo assigns left and right from the perspective with your face away from the valve opening (i.e., the tank is on your back). If the valve is on and blowing air on the back of your neck, then you reach back with your right hand and can touch the valve handwheel knob it is a right handed valve. Thus Thermo says that the typical standalone valve is right-handed.
  • DGX Premium Valves use the same method to assign left and right as Thermo does so a DGX Premium typical standalone valve is right-handed. However, because of the possibility of confusion we prefer to use the terms Typical and Uncommon to indicate the side of the handwheel.

While both right- and left-hand valves always close and open using the "righty-tighty, lefty-loosey" rule, this can cause problems when modular valves are mounted on single tanks. Well-meaning individuals who fail to notice a valve with the handwheel on the uncommon side and reach to check "air is on" might actually close a valve believing they are doing the diver a favor of opening it. To prevent this from happening, it's a good idea to call modular valve configurations to the attention of divemasters and buddies.
