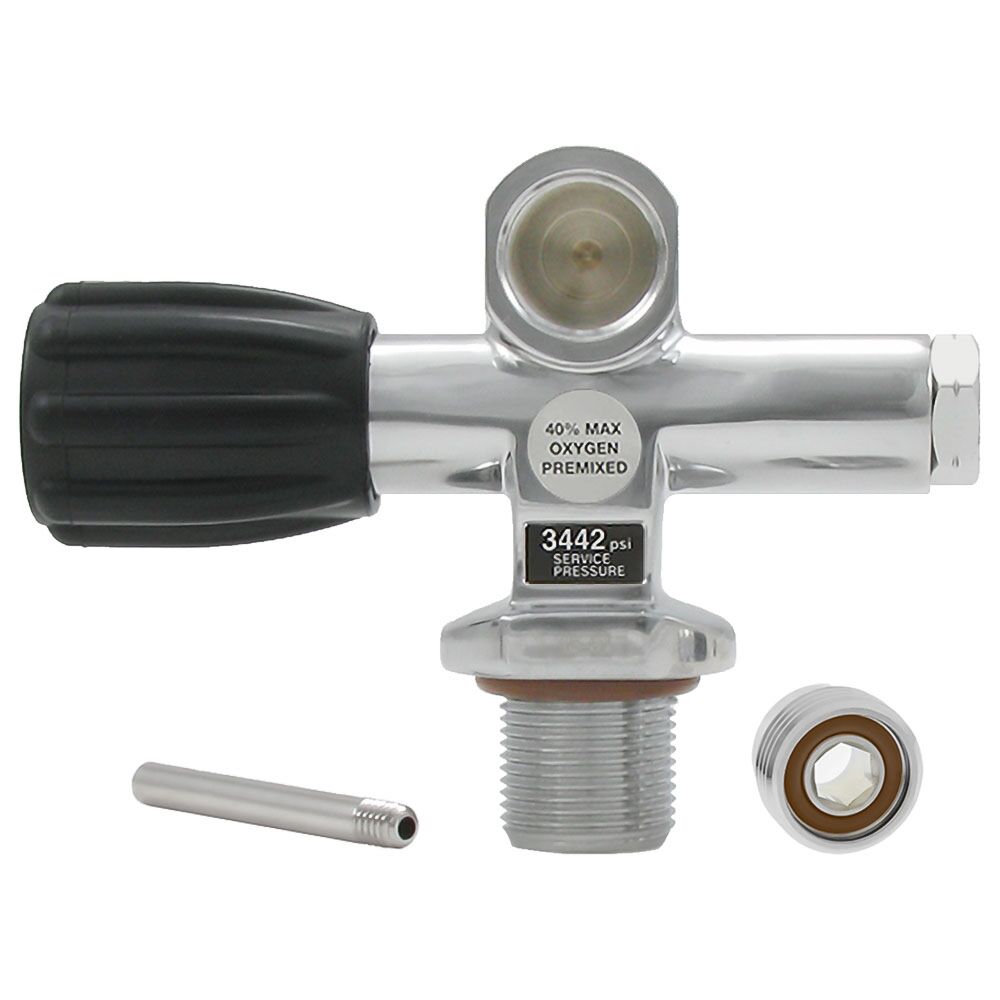

Thermo Pro DIN/K Modular Valve, Right (Typical Side)

$80.00
In Stock
SKU
SPM-VA200R-34N
Thermo Pro DIN/K Modular Valve, Right (Typical Side)

Thermo Pro DIN/K Modular Valve, Right (Typical Side)

Thermo Pro DIN/K Right Modular Valve
Thermo Pro DIN/K Right Modular Valve
  • Standard 0.750-14 NPSM (3/4 NPS) neck threads
  • DIN outlet can accept Yoke inserts (Included)
  • Nitrox Ready - Chromed Brass Construction
  • For use with maximum oxygen content of 40%

Thermo Pro DIN/K Modular Valve, Right (Typical Side) are Nitrox Ready, using oxygen compatible materials and when sealed in the original factory packaging is also free of organic and particle contamination. Each and every Thermo Pro DIN/K valve receives eight-step testing and is pressurized to full working pressure. The Thermo Pro DIN/K valve meetsCGA V9-2009 Compressed Gas Association Standard for Compressed Gas Cylinder Valves.

  • Modular valve connectors incorporate double O-ring seals known for their robust reliability. The double O-ring seal design is the preferred choice of cave and wreck divers.
  • You may see this style of outlet variously described as Pro DIN/K, 200-Bar DIN/K (G 5/8" BSP), 232-Bar DIN/K, or 'Convertible'. All these different names apply to exactly the same style valve outlet, which is suitable for use with the 3442 psi service pressure cylinders and any DIN style regulator or (with use of the included insert) any yoke style regulator.
  • Inlets have standard 0.750-14 NPSM (3/4 NPS) neck threads for use with all modern aluminum and steel SCUBA tanks. Inlets include a threaded 'dip tube' with hex opening suitable for easy dependable installation with a hex key.
  • Nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves. The rubber with stainless steel insert handwheel design is the preferred choice of cave divers. The black handwheel is standard, and an optional green handwheel is available.
  • A one-piece safety assembly (burst disk) eliminates the possibility of mismatched components. This greatly reduces the likelihood of accidental incorrect installation of the safety assembly and protects the integrity of your diving cylinder. The safety device is shielded by the valve body to avoid damage during transportation or while diving. Valves have a 5250 psi burst disk.

Note that port plugs used on the modular valve with the typical side handwheel are notched on the corners of the wrench flats. The notches indicate the screw threads are reversed, and must be rotated clockwise to remove and rotated counter-clockwise to install. This is the opposite of typical screw threads and attempting to remove the notched plug using counter-clockwise force will permanently damage the valve.

Why is the "40% MAX OXYGEN PREMIXED" label on Thermo Valves?

More Information
Brand Thermo
SKU SPM-VA200R-34N
Weight 2.500000
