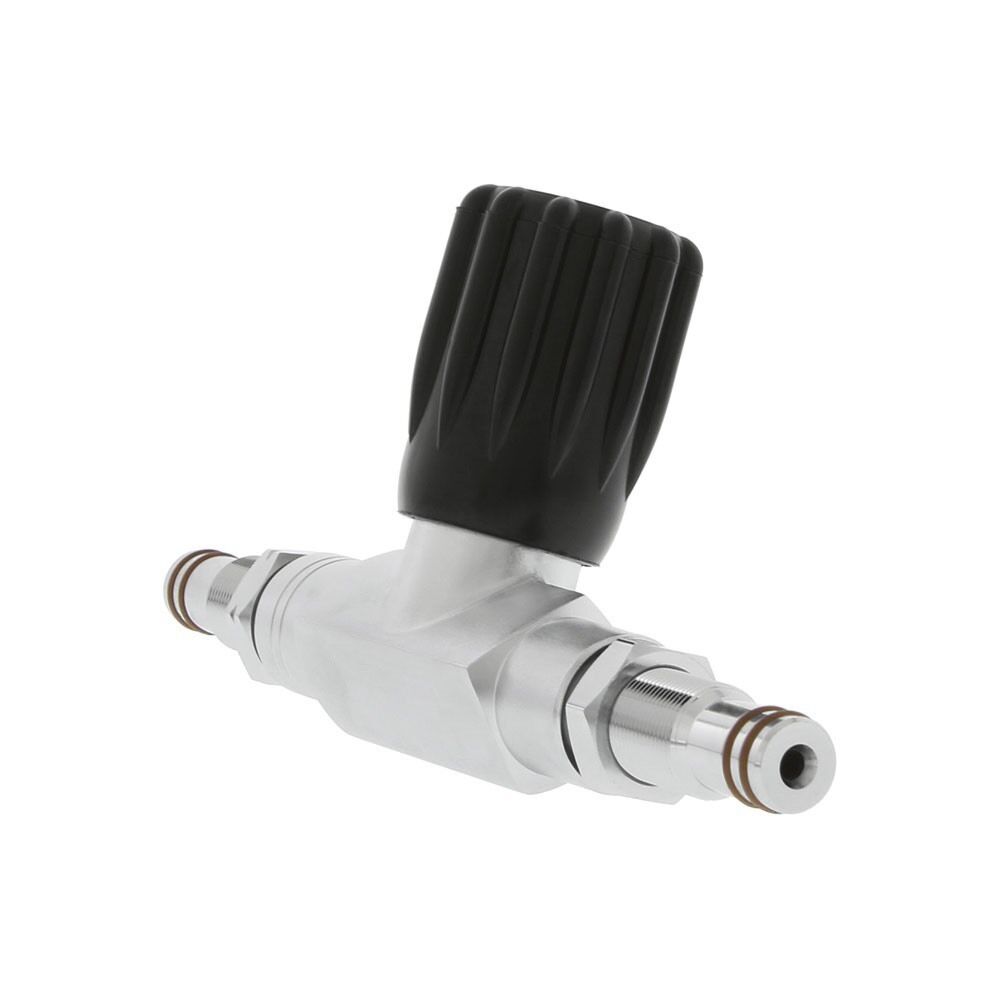

DGX Premium Center Bar w/Isolator Valve

$39.00
In Stock
SKU
DX-722430
The DGX Premium Center Bar w/Isolator Valve incorporates double O-ring seals known for their robust reliability.

DGX Premium Center Bar w/Isolator Valve

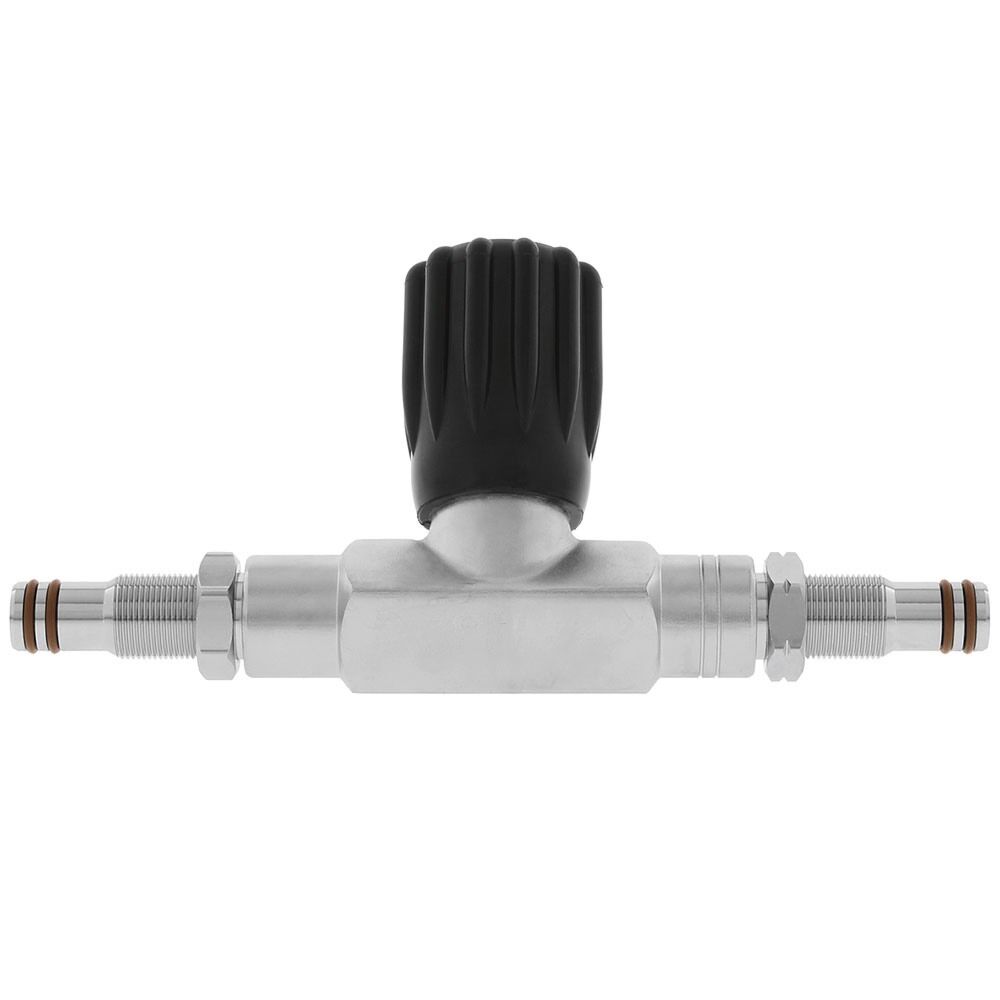

DGX Center Bar - Front
DGX Premium Center Bar w/Isolator Valve DGX Center Bar - Front

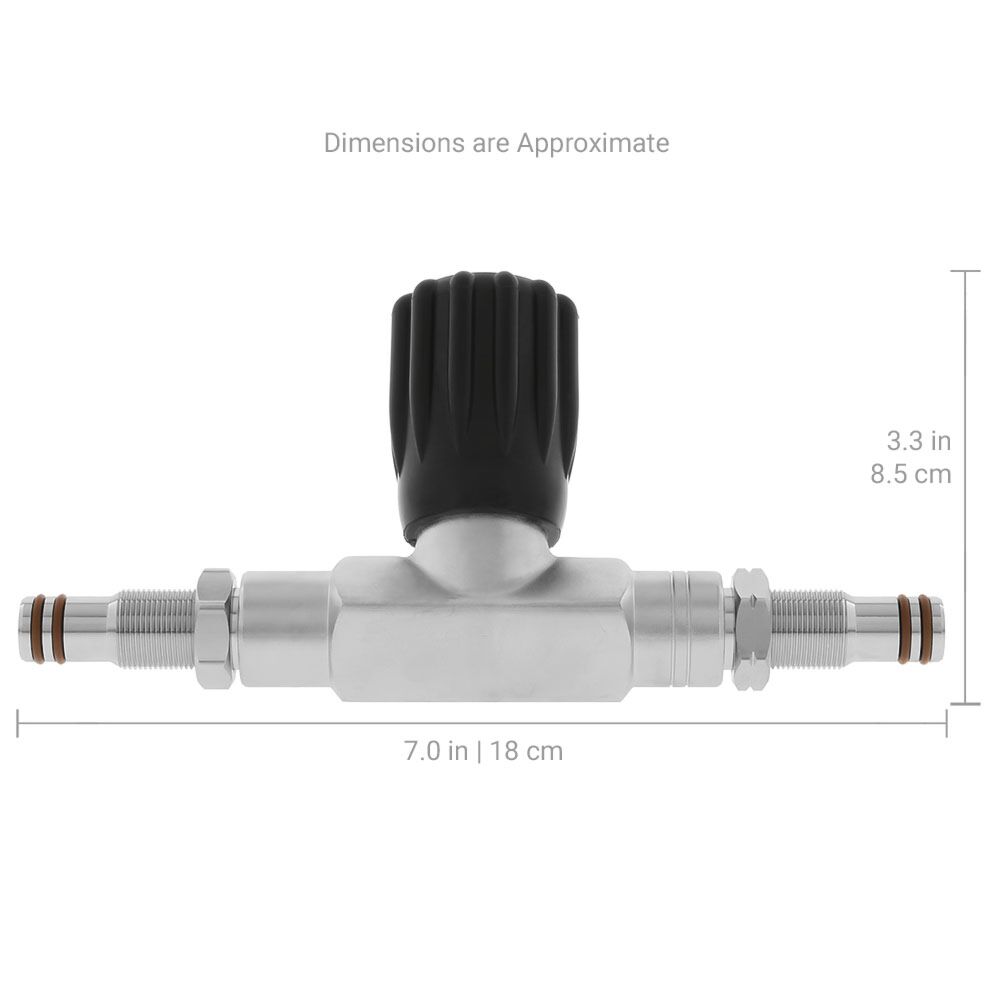

  • 180 mm size for 8.5-inch center to center spacing
  • Nitrox Ready - Chromed Brass Construction
  • Modular barrel design w/double O-Ring seals

This doubles manifold isolation cross bar is the standard 180 mm size suitable for use with standard 8.5-inch center to center manifold spacing.

DGX Premium valves are Nitrox Ready, using oxygen compatible materials and when sealed in the original factory packaging is also free of organic and particle contamination. The modular barrel design connectors incorporate double O-Ring (012) seals known for their robust reliability.

The DGX Premium valves include a nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves. The rubber with stainless steel insert handwheel design is the preferred choice of technical divers. The black color handwheel is standard, and several optional handwheel colors are available.

More Information
SKU DX-722430
Brand DGX
Weight 2.5000
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

YOU MAY ALSO BE INTERESTED IN THE FOLLOWING PRODUCT(S)

Manifold Crossbar Isolator Valves May Not Improve Safety

The use of an isolator valve on the manifold cross bar of doubles is a relatively recent introduction in the sport, but their use is now nearly universal in technical diving performed in North America. The idea is that the effect of catastrophic containment failure in the gas path on one cylinder (i.e. burst disk or neck o-ring failure) can be 'isolated' from the other cylinder by closing the crossbar valve.

Very early manifold designs did not have isolator valves and used joints that were face style using metal-to-metal or single o-ring seals. Diving in overhead environments might result in a hard impact directly on on the crossbar and the impact could cause a seal failure with rapid gas loss. The introduction of a third valve in the crossbar itself, termed an isolator valve, was a deemed an improvement in safety. Eventually it became apparent that the barrel style joint with double o-ring seals was far more reliable and today the early manifold designs with face style seals are no longer considered acceptable equipment for technical diving. With modern barrel style double o-ring manifolds, while catastrophic gas loss failures can happen in theory, they are very uncommon and occur nearly exclusively during or within a few minutes after filling. In-water failures on double o-ring design manifolds are more like mermaids; the stuff of legends but reliable accounts of anybody having seen one are rare indeed.

Most divers don't realize that isolator valves are not benign... there have been several accidents directly attributable to isolator valves. That's because isolator valves are notorious for being closed and not getting checked prior to fill operations or during pre-dive preparations. There is a significant body of accidents associated with blending errors caused by closed isolator valves, particularly as mixed gas diving has become increasingly widespread. We've even seen 'near misses' and aborted dives that resulted from valve shutdown drills in which the isolator valve was inadvertently left closed.

With the introduction of double o-ring seals on modern cross bar designs, the safety case for the isolator seems pretty thin. Our advice: while we don't advocate eliminating the isolator valve, we recommend that you never, ever, close your isolator unless you have an emergency. Even so, we've seen well meaning but ignorant fill station operators, divemasters and other individuals needlessly close the isolator valve when the doubles set was outside of the supervision of the diver. Consider using a Vindicator, red handwheel or other kind of indication so you are always reminded to check your isolator valve is open during filling, before gas analysis and just before you get in the water.
