DGX S/S Loop Adjustment Ring
We've seen plenty people struggle to don and doff their continuous loop harness because: (1) they are unable perform the required "chicken wing" maneuver due to limited mobility in a shoulder, or (2) they are wearing a heavy dry suit and undergarment, or (3) they simply have a preference for exceptionally snug harness fit. There are a lot of solutions to making the shoulder strap of webbing harnesses more easily adjustable on backplates, but most involve using either plastic devices or cutting the webbing.

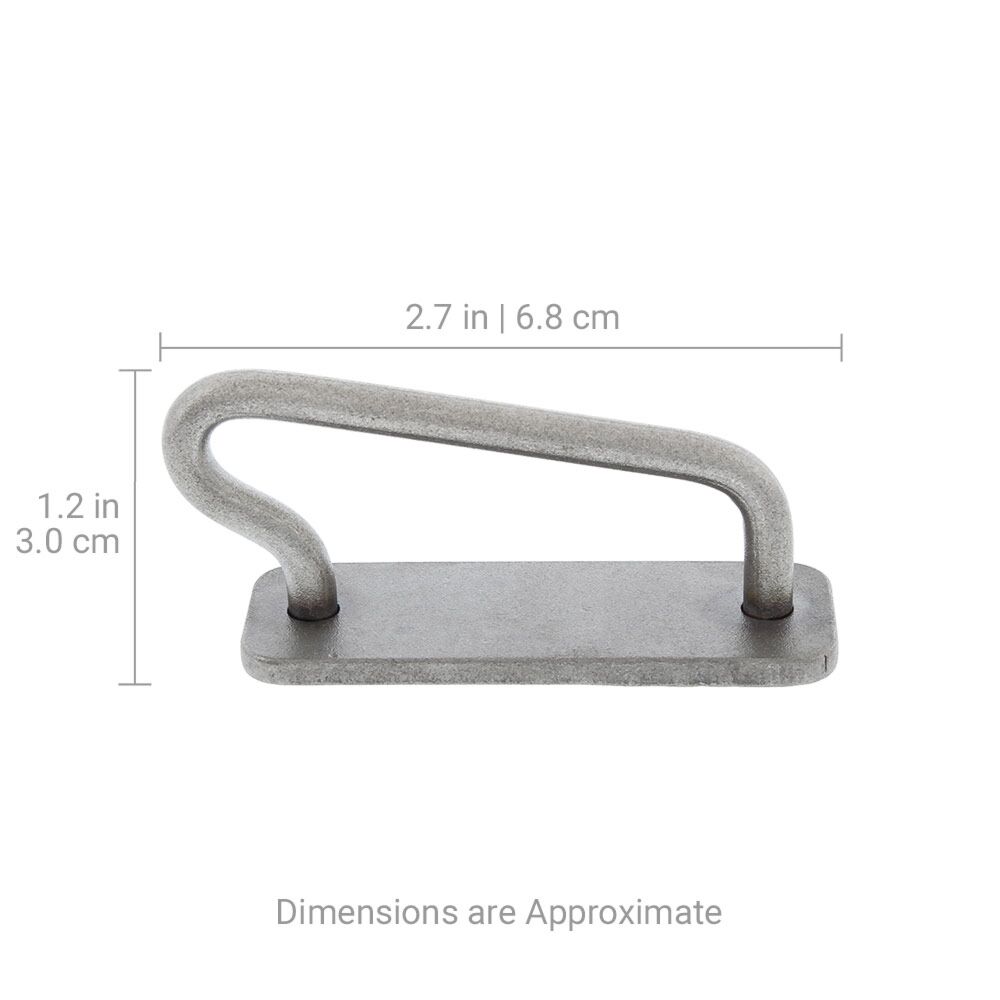

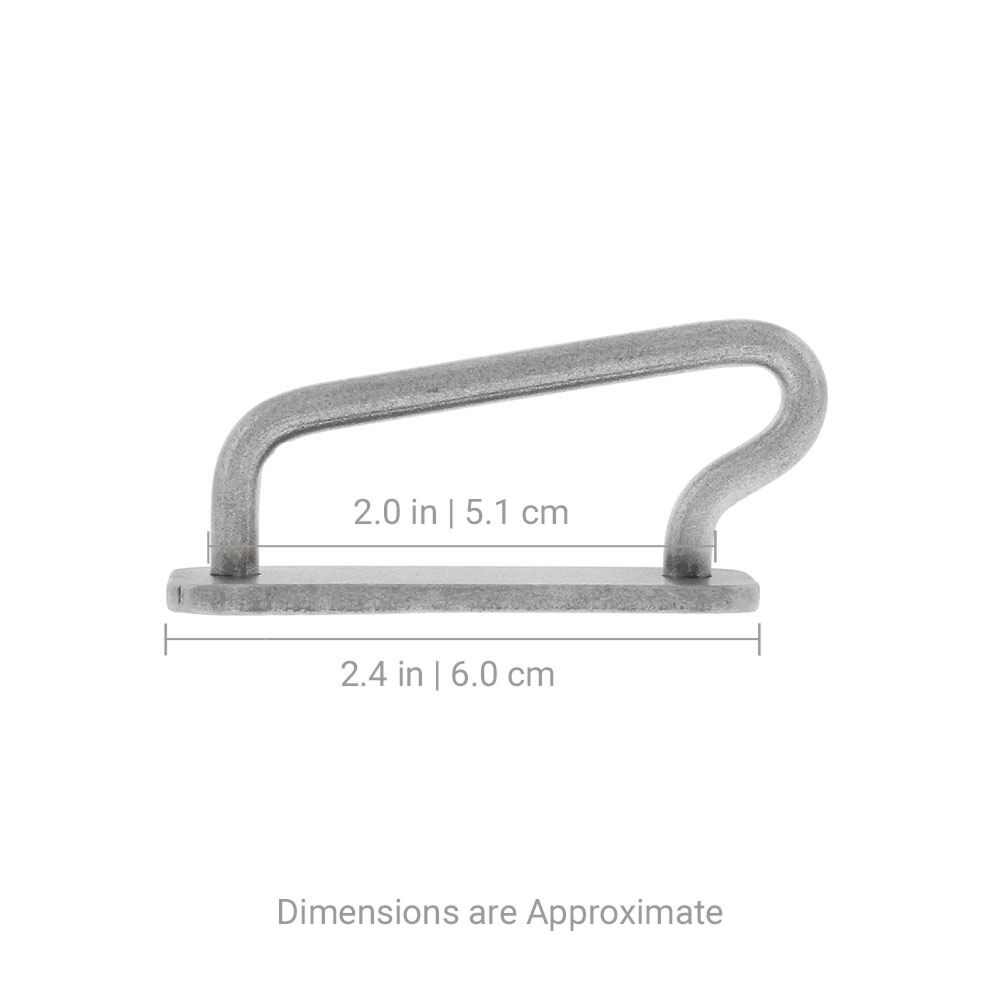

The stainless steel Loop Adjustment Ring (LAR) allows the left shoulder strap of any 2-inch continuous webbing (aka 'hogarthian', aka 'DIR') harness to be freely adjustable, making your harness much easier to doff and don. Easy to install without cutting the webbing, the LAR is especially useful with drysuits and for those divers with limited shoulder mobility. Made of marine grade stainless steel, the device works with a 2-inch continuous webbing harness and any metal backplate (although the use of some force may be required to initially snap the ring in place on some plates.)

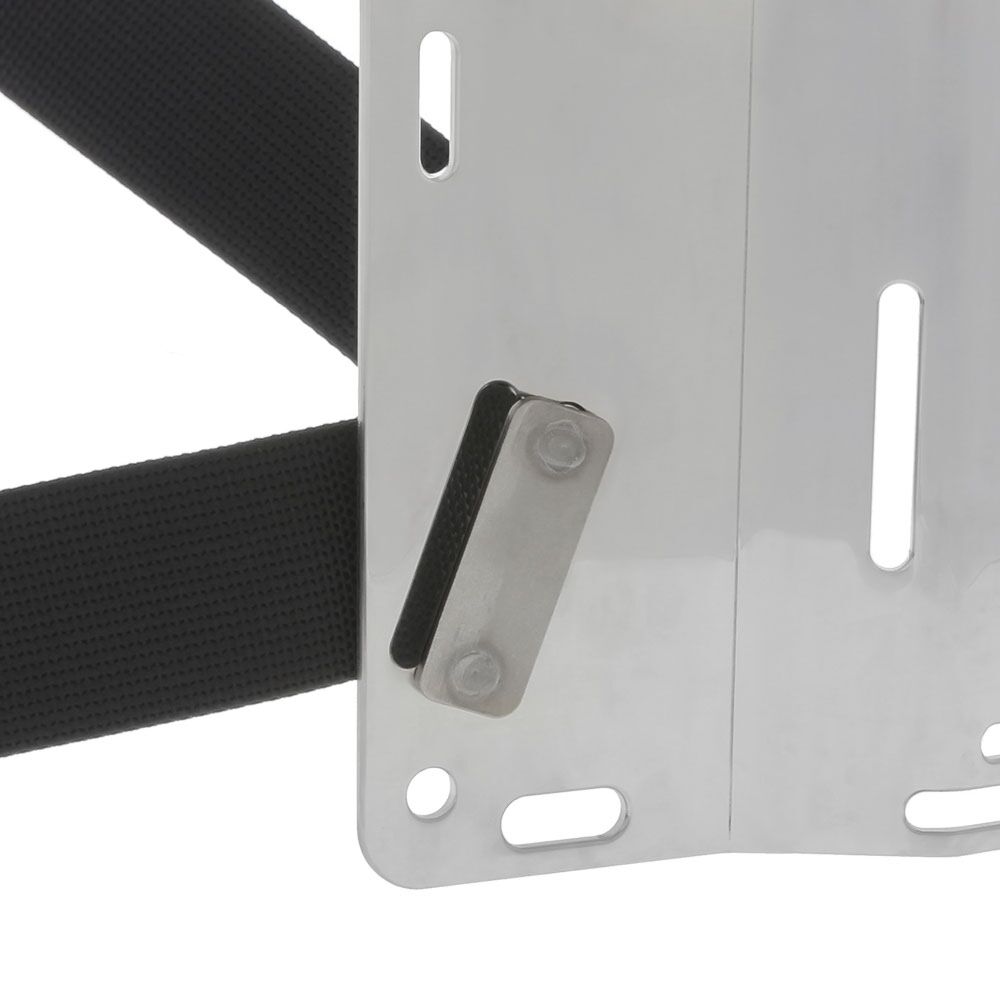

During initial assembly of your webbing harness just insert the LAR into the back of the diver's left waistband slot on the plate prior to threading the webbing. Instead of weaving the left side of the harness waistband through the plate, simply thread it through the LAR. The left shoulder webbing becomes freely adjustable, yet remains completely secure. It's also easy to add to an already assembled plate and harness; remove the waistband buckle and any left side accessories such as your knife plus the D-ring, unweave the waistband webbing only from the left side of the plate, insert the LAR, thread the waistband through the LAR, then reinstall the D-ring and buckle. The LAR could alternately be installed on the right side or even on both sides. However, when used on the right side then something such as a belt slide or D-ring must be permanently installed as a stop, which might cause issues with positioning the right side accessories such as light canister.

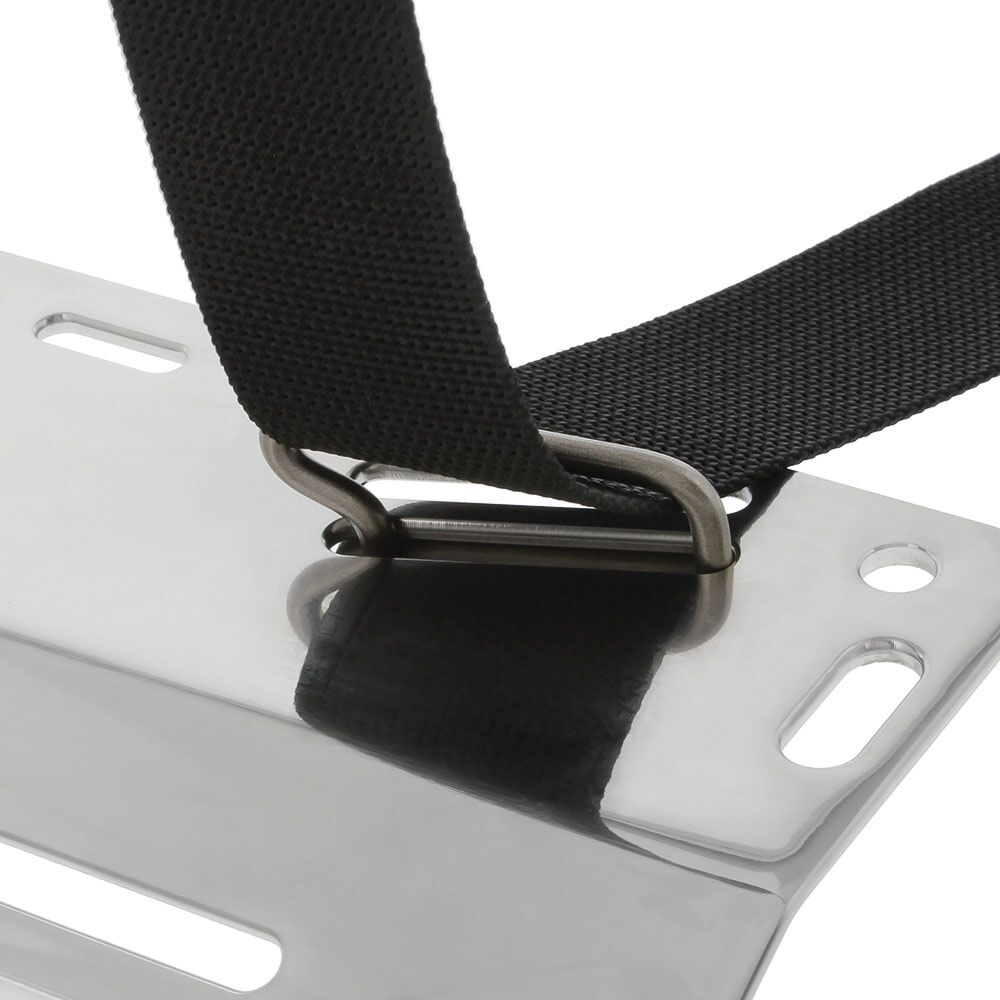

Using the LAR is easy - before donning the harness increase the length of the left shoulder webbing by pulling the webbing back through the device until the waistband is stopped by the left waist D-ring. Don the harness starting first with your left arm then your right arm, next pull the left waist band straight out from your body until the should strap is snug as you like, finally thread your crotch strap then add your right side accessories and buckle the waistband as usual. Once the harness is fastened and the webbing is under load, the upper part of the device grasps the waistband webbing as securely as if it were threaded through the plate.
The LAR is manufactured from stainless steel. A common misconception among divers is that stainless steel does not corrode at all. In particular, stainless steel near or in contact with other metals having strongly dissimilar electro-potentials, especially aluminum (such as an aluminum backplate), can induce galvanic corrosion. In cases of galvanic corrosion where the stainless item is in close proximity to some types of iron or copper metals, rust or other color stains will electrolytically transfer to the surface of the stainless item; this is harmless nor is this a defect.
| Brand | DGX Gears |
|---|---|
| SKU | DX-60260 |
| Weight | 0.100000 |
Customer Reviews
StainLESS does not mean StainPROOF
A common misconception among divers is that stainless steel does not corrode at all. There are various types of stainless steel, each with different corrosion properties, that make a specific grade more or less suited to a particular application. Because there is no perfect stainless steel, the selection of the grade is often a compromise between corrosion resistance and malleability. Stainless grades selected because they hold a sharp cutting edge will corrode relatively fast compared to other grades. The most corrosion resistant grades are not usually a good choice for bolt snaps and hand tools because depending on the use application they may not offer the best wear resistance or may be too brittle.
Stainless steel can be treated to form a chromium oxide protective layer on the surface of stainless steel using a chemical immersion process that will also simultaneously remove any free iron from the surface. This process, known as passivation, is routinely applied to marine grade stainless steel products used in diving. The resulting clear, almost invisible, layer of chromium oxide prevents corrosion by stopping oxygen from reaching the underlying metal. This allows it to withstand damage from corrosives including many acids, bases, and detergents, as well as salt water. However, depending on environmental conditions you may notice some surface 'stains' that can form on various stainless items. In general these are cosmetic in nature and we recommend you allow the cosmetic stains to remain when practical. Using an abrasive is likely to remove the invisible corrosion resistant film, allowing corrosion to spread and ultimately making the corrosion worse.
StainLESS does not mean StainPROOF and all diving products made of stainless steel must receive some basic care to help minimize corrosion. Rinse any stainless steel components in dive equipment with fresh water after diving or when otherwise in contact with salt water, allow them to dry and do not store them in damp or moist environments. Make sure any storage sheath or pouch is also rinsed and allowed to dry before returning the stainless item to the pouch. When rinsing bolt snaps, be sure to work the bolt action several times to eject any saltwater trapped in the slider and spring mechanism. In particular, avoid storing stainless steel near or in contact with other metals having strongly dissimilar electropotentials, especially aluminum, such that moisture can induce galvanic corrosion. In cases of galvanic corrosion where the stainless item is in close proximity to some types of metals, rust or other color stains will electrolytically transfer to the surface of the stainless item.

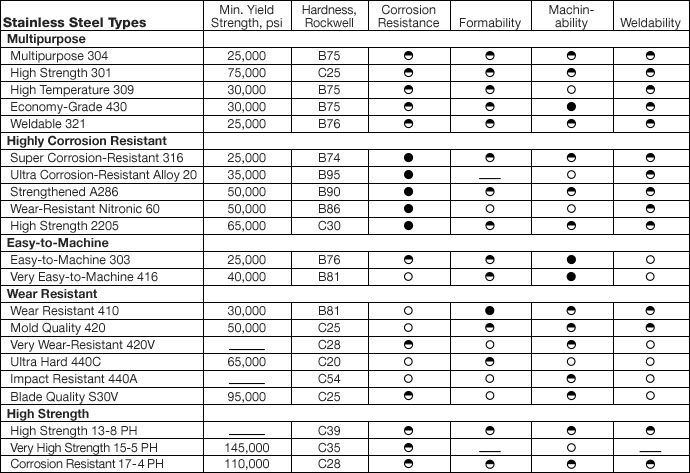

Click on the graphic to see a table of some stainless grades and their properties
- Hardness - As hardness increases, metals become more wear resistant but they may be less malleable. Some types of stainless steel harden by cold working, and others can be heat treated. The 300 series hardens by cold working, many in the 400 series can be hardened by heat treating.
- Formability - Stainless steel is generally formable and bendable, but types that harden by cold working can require more force to bend than carbon steel.
- Machinability - During machining, stainless steel can become gummy and stick to cutting tools, making it typically more difficult to machine than steel.
- Weldability - Take care to clean stainless steel before and after welding operations. Contaminants, such as lubricants and particles from grinding tools, will reduce corrosion resistance at welded points.
- Finish - Stainless steel does not always have a shiny finish. In fact, stainless steel is available in a number of finishes, ranging from an unpolished, dull surface to a reflective mirror-like shine.
