DGX Custom - DGX Gears XTRA Doubles Reg Package

$699.00
In Stock
SKU
PK-366002
Everything you need for a high performance regulator setup in a Hogarthian doubles configuration. The package using DGX Gears XTRA regulators is completely assembled by Dive Gear Express.

DGX Custom - DGX Gears XTRA Doubles Reg Package

DGX Gears XTRA Doubles Reg Package
DGX Gears XTRA Doubles Reg Package XTRA First Stage - Two Included XTRA Second Stage - Two Included Large Tek Regulator Bag Included in the Package DGX Gears XTRA 1st Stage Automatic Closure
  • Assembled, tested and shipped to you ready-to-dive
  • High performance balanced diaphragm design
  • Choose braided flex or rubber hoses and hose lengths
  • Salt, Fresh, Warm or Cold Water and Nitrox Ready
  • Includes DGX Large Tek Regulator Bag

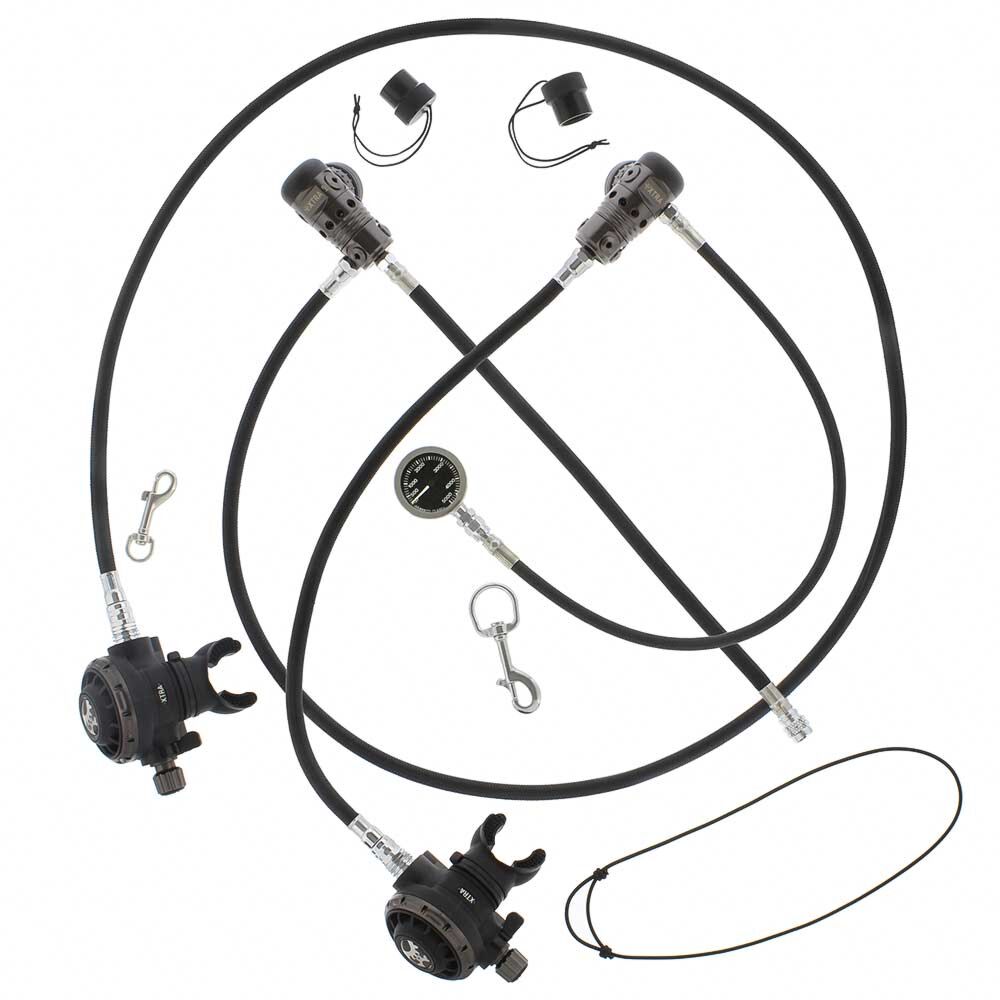

The DGX Gears XTRA Doubles Regulator Package is completely assembled by Dive Gear Express and includes:

  • Two DGX Gears XTRA First Stages
  • Two DGX Gears XTRA Second Stages
  • One { 60 in | 152 cm } or { 84 in | 213 cm } LP Reg Hose for the primary
  • One { 22 in | 56 cm } LP Reg Hose for the secondary/backup
  • One "Brass and Glass" SPG with { 24 in | 61 cm } or { 26 in | 66 cm } HP Hose
  • One { 18 in | 46 cm } or { 22 in | 56 cm } BC Hose
  • Necklace, two S/S Bolt Snaps, two DIN Caps
  • DGX Large Tek Regulator Bag

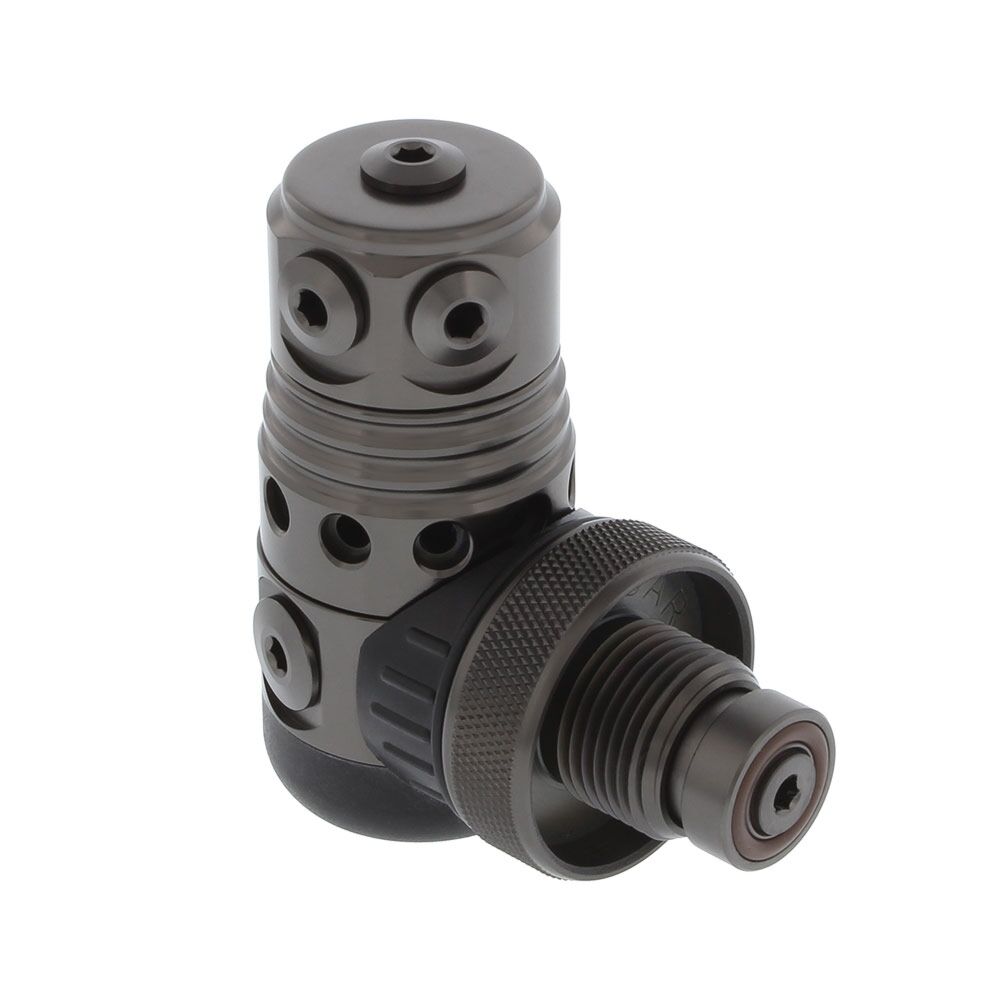

The DGX XTRA 1st stage is a balanced flow-through piston in a PFD chrome-plated brass body that provides constant and effortless airflow unaffected by depth, tank pressure, or breathing rate. Two opposing high pressure 7/16-inch ports allow the first stage to be positioned either up or down. Five high-flow low pressure 3/8-inch ports on a swivel turret maximize hose routing options. The fifth port on top of the turret offers an additional hose routing option that is popular for backmount manifolded double cylinder or sidemount configurations and is a good choice as both primary and backup first stage.

A spring insulating coating, body insulating bushing, anti-freeze cap, bigger body and cap thread all work in concert with the XTRA to improve cold-water performance. Anti-freeze protection radically increases breathing reliability when diving in the most extreme water temperatures. External intermediate pressure adjustment enables technicians to fine-tune performance quickly and easily. The first stage is environmentally sealed for cold water performance, comes standard with a 300-BAR DIN connector, and is Nitrox Ready.

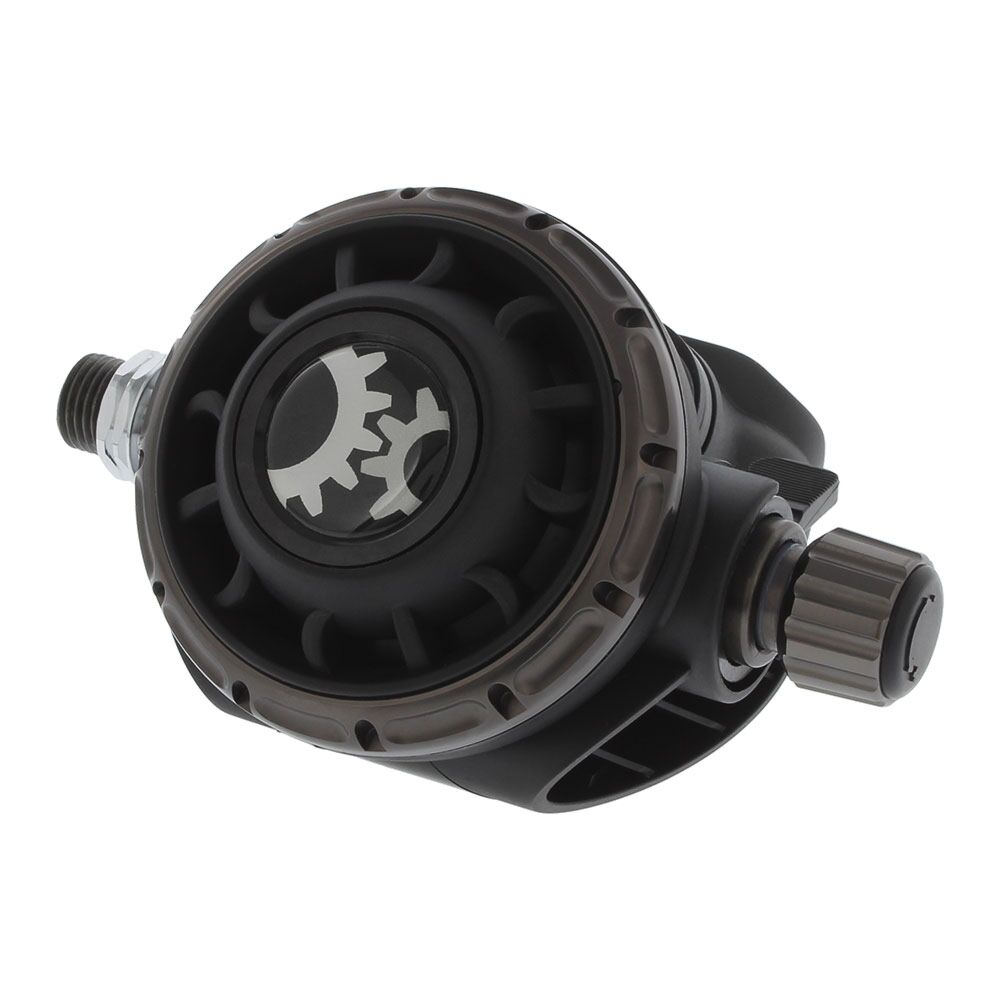

The DGX XTRA 2nd stage is a balanced adjustable second stage featuring metal components for light weight and increased resistance to freezing when diving in extreme conditions and reduced inhalation effort at varying depths and supply pressures. A diver-adjustable inhalation effort knob fine-tunes air delivery to suit changing depths, water conditions and diver preference. The ultra-comfortable orthodontic mouthpiece is easy to grip yet doesn’t inhibit airflow.

The DGX XTRA 2nd stage features nylon fiberglass design casing and diaphragm for breathing sensitivity, regardless of position in the water. A high-flow exhaust valve reduces exhalation for better overall breathing comfort. The venturi-Initiated vacuum assist dive/pre-dive switch reduces free flow in cold water or when used as an octopus.

Our recommended service interval is every two years or one hundred dives.

More Information
SKU PK-366002
Weight 10.000000
Brand DGX

How Long is Your Hose?

Dive Gear Express offers regulator configurations that are suitable for hogarthian (aka 'DIR') style diving. A subset of our other regulator packages, the design of the second stages in these selected packages allows the cover to be removed and replaced underwater in order to clear silt or debris, a hogarthian requirement. True hogarthian or not, all of these DGX Custom regulator packages are already configured for hogarthian hose routing to eliminate bowing and dangling hoses. You get the correct length hoses and there is no extra 'hose kit' to buy, making these packages an even better value.

Hogarthian hose routing for doubles yields 'standard' hose lengths that work most divers, but not everyone. Nearly all overhead divers with doubles use a standard { 84 in | 2.1 m } LP hose but a few open water divers use a shorter { 60 | 1.5 m } LP hose for their primary second stage, and both put the backup second stage on a { 22 in | 56 cm} LP hose hung on a necklace directly below their chin. Most doubles divers use a standard {24 in 61| cm} HP hose for their pressure gauge, but some divers (either diving singles or who like to hold their gauge a little further away for reading) prefer a slightly longer {26 in | 66 cm} HP hose. Most divers select a standard {22 in | 56 cm} BC power inflator hose, but a few divers prefer to have the power inflator rest very high on their shoulder and use a shorter {18 in | 46 cm} BC hose. Our configuration tool allows you to build a regulator package to your specifications.
