DGX Custom - DGX Gears D6 Regulator

As low as $299.00
In Stock
SKU
PK-741002

The DGX Gears D6 is an environmentally sealed, balanced diaphragm first stage regulator with a balanced and adjustable second stage that offers excellent quality, performance and value.

DGX Custom - DGX Gears D6 Regulator

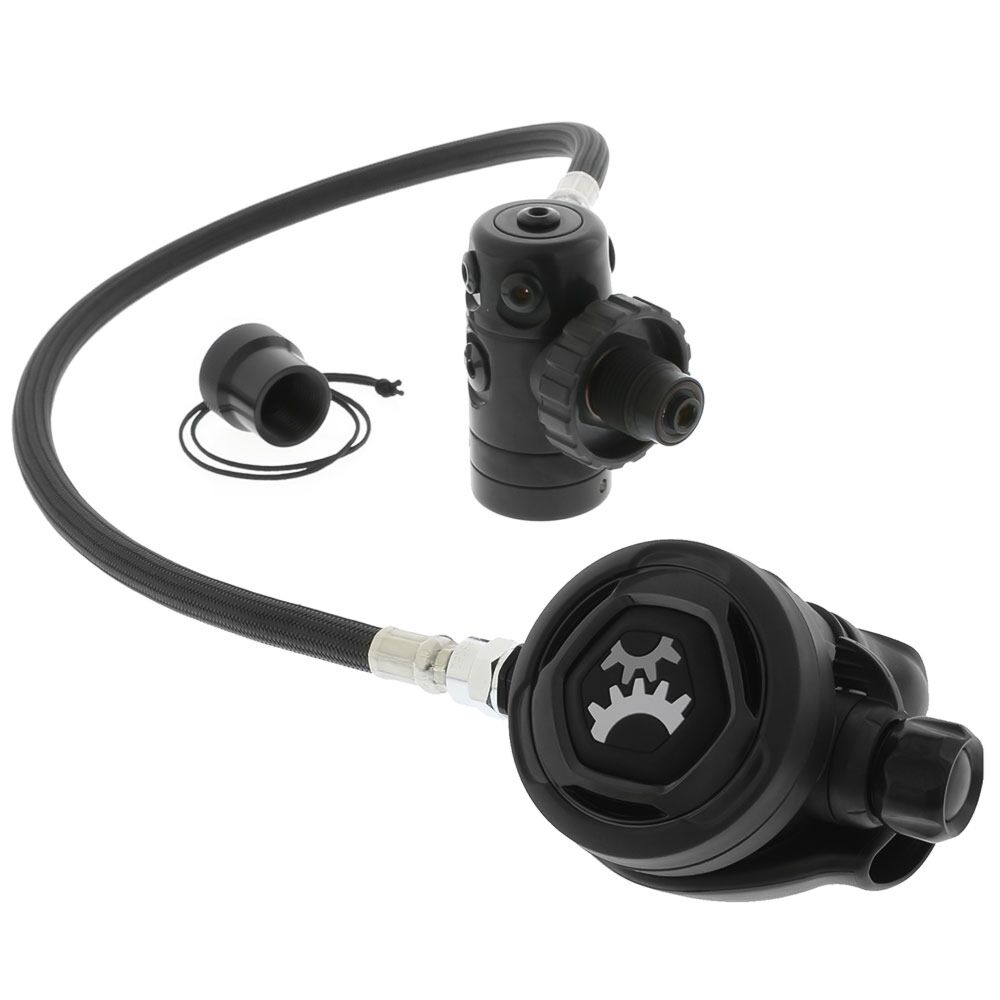

DGX Gears D6 Basic Package

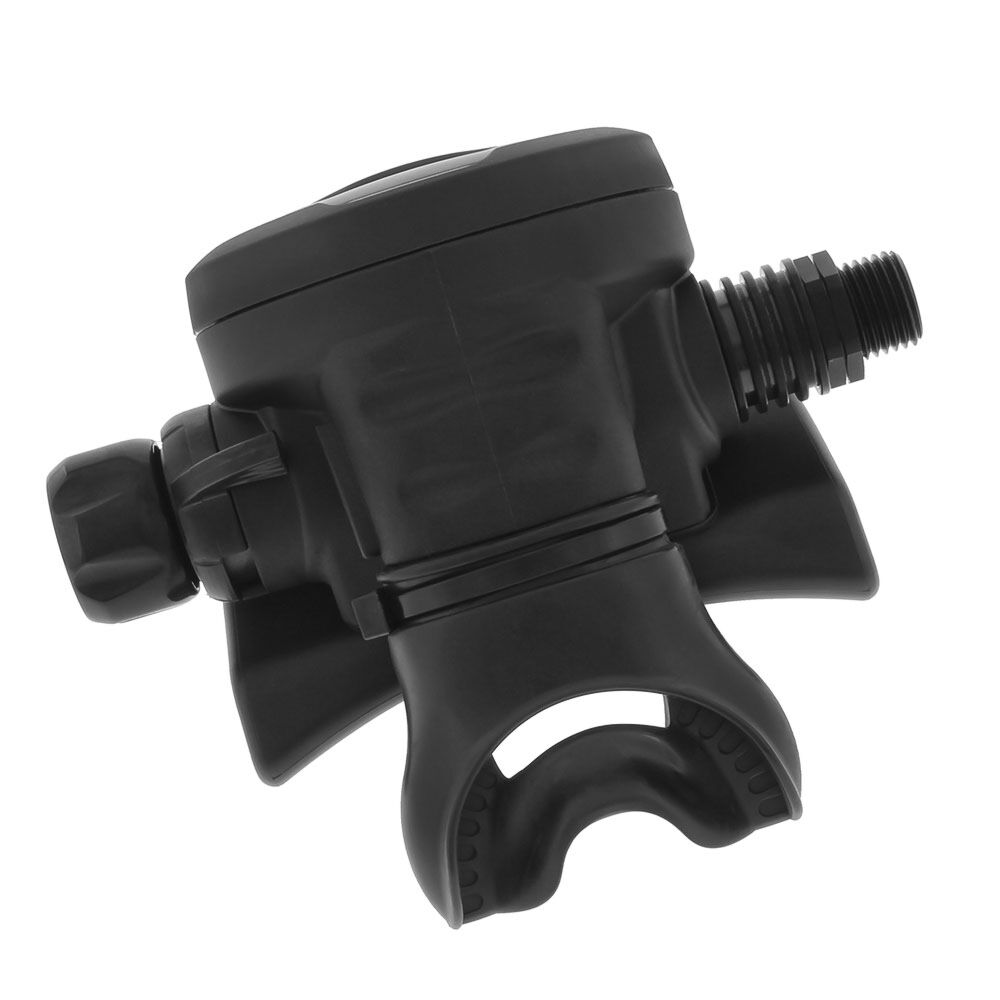

DGX Gears D6 Basic Package Symmetric Design and Port Alignments Fifth Port on Top of the Turret Black Soft Touch Silicone Front Cover Rear View
  • High performance balanced diaphragm first stage
  • Swivel turret design w/ 5 LP ports and 2 HP ports
  • Low profile balanced adjustable second stage
  • Cold Water and Nitrox Ready

The DGX Gears D6 regulator includes an environmentally sealed, balanced diaphragm first stage together with a balanced and adjustable second stage that offers excellent quality, performance and value. This regulator package is assembled by Dive Gear Express using DGX Gears D6 first and second stages, together with our flex or rubber hose in your choice of length and also includes a free DIN regulator cap.

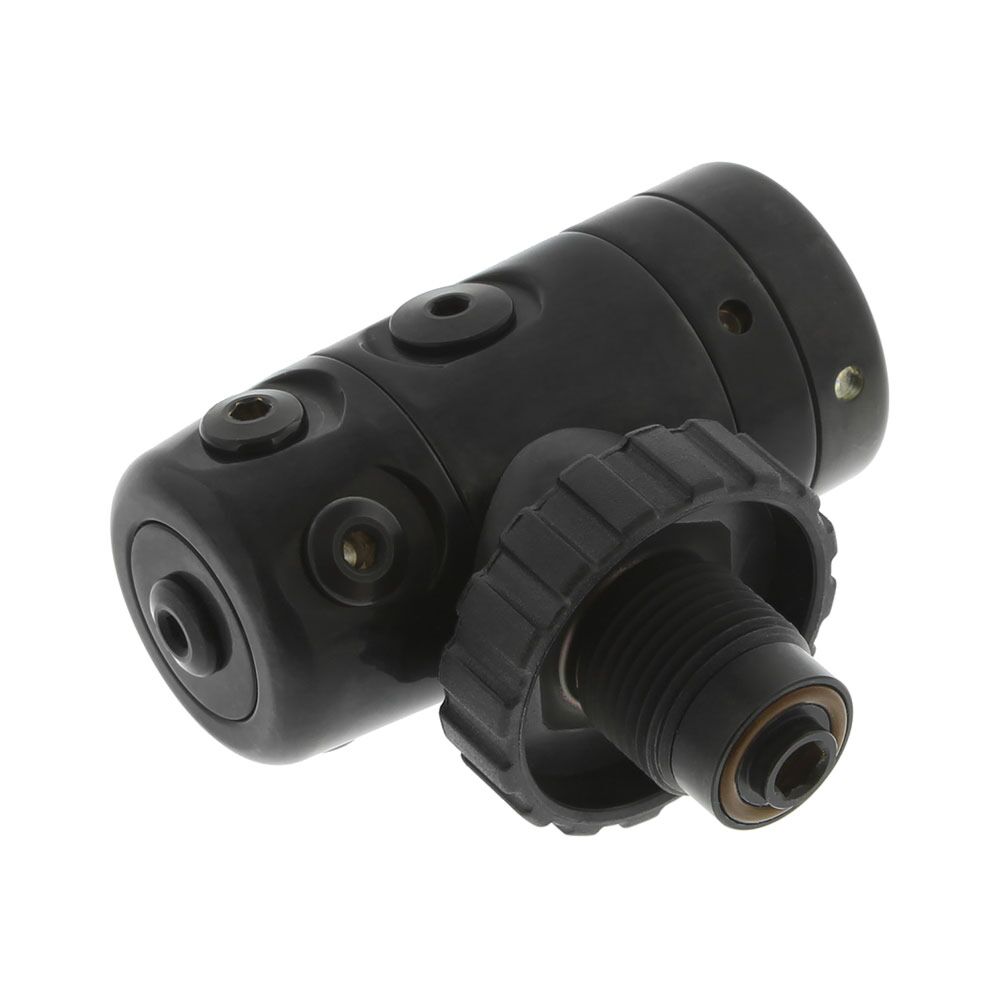

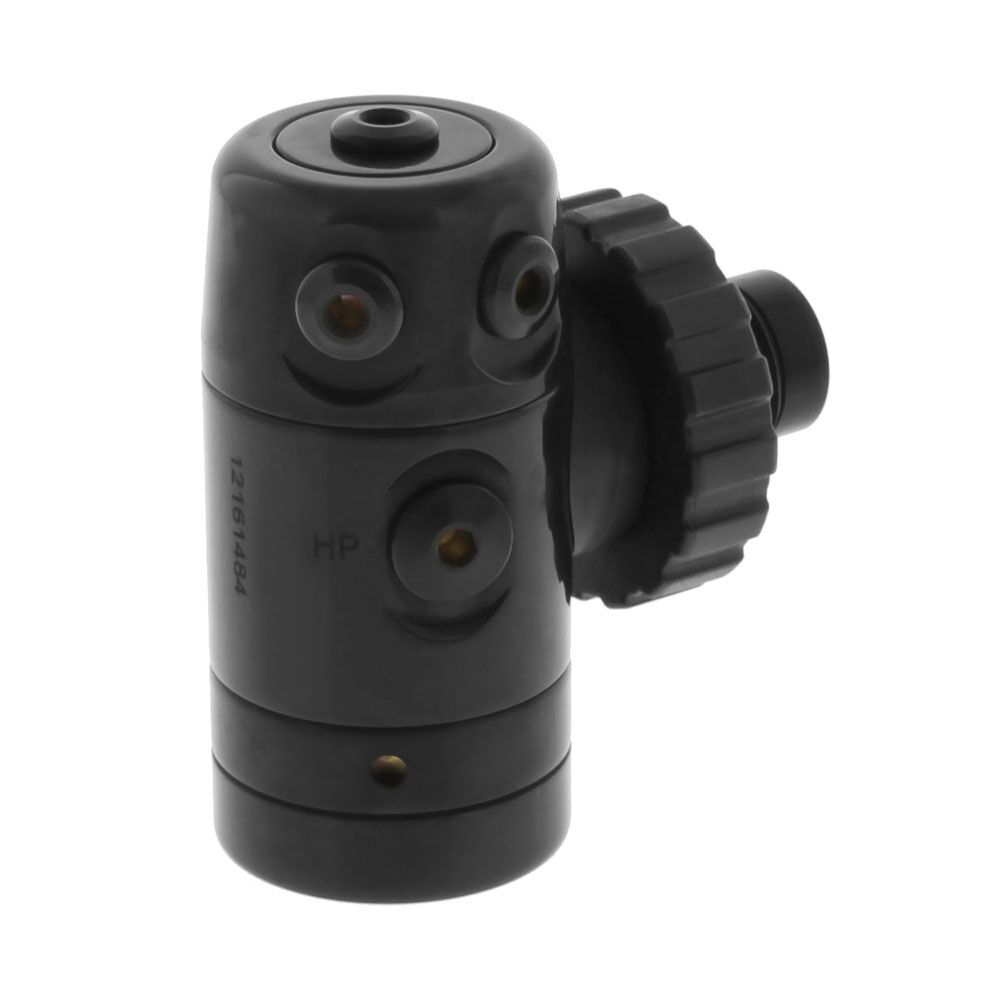

The DGX Gears D6 first stage is a balanced diaphragm design featuring five standard size low pressure 3/8-inch ports on a swiveling turret, and two standard size high pressure 7/16-inch ports. The first stage features a symmetric design and port alignments that support a huge variety of mounting orientations and hose routings. The fifth port on top of the turret offers an additional hose routing option that is popular for backmount manifolded double cylinder or Sidemount configurations and is a good choice as both primary and backup first stage. Environmentally sealed for cold water performance, the DGX comes standard with a 300-BAR DIN connector and is Nitrox Ready.

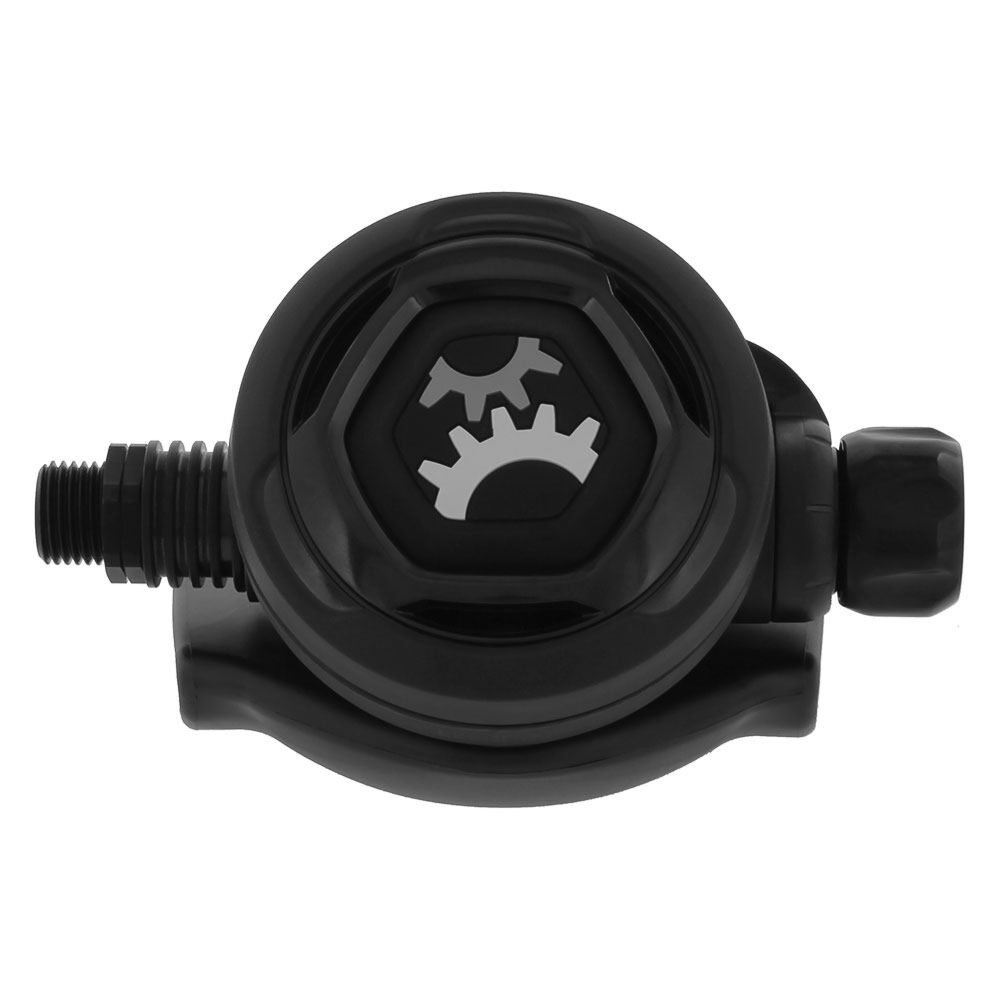

The DGX Gears D6 second stage is pneumatically balanced for excellent breathing at depth. Internally it contains a chrome plated brass air barrel for performance and durability. The black soft touch silicone front cover for easy purge and along with a user adjustable breathing resistance knob. It also offers the venturi (Dive/Pre-Dive) switch for better flow control when needed and to reduce free flow upon initial entry.

Any competent service tech will have no issues with service of the DGX Gears regulator models. Our suggested service interval for all DGX Gears regulators is every two years or one hundred dives. There is nothing unique about DGX Gears regulators in terms of service requirements and needs no special equipment beyond that found on the typical regulator technician bench. We believe our customers also have the right-to-repair, so we publish detailed service manuals and we sell without restriction all service parts and periodic service kits for the DGX Gears brand regulators. See the Product Attachments tab of the periodic service kits for service manuals including IPB and torque values.

More Information
Brand DGX Gears
SKU PK-741002
Weight 5.000000

What is the knob and lever on my second stage?

The knob and lever are used to alter the breathing characteristics of some types of regulator second stages. All our downstream design second stages, including the DGX Xtra and D6, Dive Rite XT2 & XT4, and MaresXR HR, are high performance and include a knob to adjust inhalation cracking pressure (aka opening effort.) Some second stages, including the DGX Xtra and D6 along with the Dive Rite XT2 & XT4, offer a lever to disable/enable venturi assisted inhalation. The Mares XR HR uses a unique Vortex Assisted Design (VAD) system that does not require a venturi lever. Upstream designs with a servo-assist valve, such as the ultra high performance Poseidon Xtreme, don't normally incorporate these features because the design inherently obviates most of the need for them. Many special application designs that are light duty, such as backup (aka 'octo', 'safe second', 'alternate') and BCD integrated second stages, may omit the adjustable cracking pressure and/or the venturi assist features for the sake of simplicity.

The knob is for adjustment of the cracking pressure, i.e. the inhalation force it takes to trigger the second stage valve to open and begin to flow breathing gas to the diver. Some people might refer to this as the 'breathing resistance' but this is a misnomer because once the gas starts flowing, adjusting the cracking pressure during inhalation will have minimal effect. On most high performance designs turning the knob all the way out (counter clockwise) will cause a slight hiss or dribble of free flowing gas and turning it all the way in (clockwise) will make it difficult to breathe from the regulator. Start by setting the knob in the middle of the adjustment range and then turn the knob to set the cracking pressure to your personal preference. Some divers find a setting they like and never change it, other divers will occasionally adjust it during the dive based on changes in their physical effort and depth.

Many high performance second stage designs include a venturi assist feature that reduces breathing resistance by automatically increasing gas flow during inhalation. Regulators with the venturi assist enabled are prone to free flow if the second stage is not in the mouth. The venturi lever set in the pre-dive position (-) will substantially eliminate this tendency. Second stages in pre-dive mode WILL deliver breathing gas, but with some increased breathing resistance because the venturi assist feature has been disabled. On the primary second stage, you should push this lever in to the dive position (+) when you put the regulator in your mouth. On second stages not in the mouth during the dive the switch remains in pre-dive position; should circumstances require its use while in-water, once breathing from the regulator just switch the lever from pre-dive to dive mode.

The knob and the lever have related yet different functions, the knob determines how easy it is to start the breathing gas flowing to the diver and the lever determines how easy it is to maintain the breathing gas flow. Most lever designs are on/off with little or no range of adjustment to the venturi effect, the adjustment knob by design has a significant range of settings. Both can be set to minimize the possibility of free flow.

Some divers (especially those who use a breathing pattern called 'skipping') incorrectly believe that by using the adjustments to decrease the regulator performance they will conserve gas. In fact, improperly adjusted second stages have the opposite tendency to cause most divers to retain CO2 and increase their respiration rate thus gas usage while at the same time causing some discomfort and/or headache.
