Compact In-Line Valve

$39.00
In Stock
SKU
DX-72240X
The Compact In-Line Valve is popular for use with most rebreathers. The green color knob is usually seen on the oxygen side, the black color knob is usually seen on the diluent side; they are otherwise identical.

Compact In-Line Valve

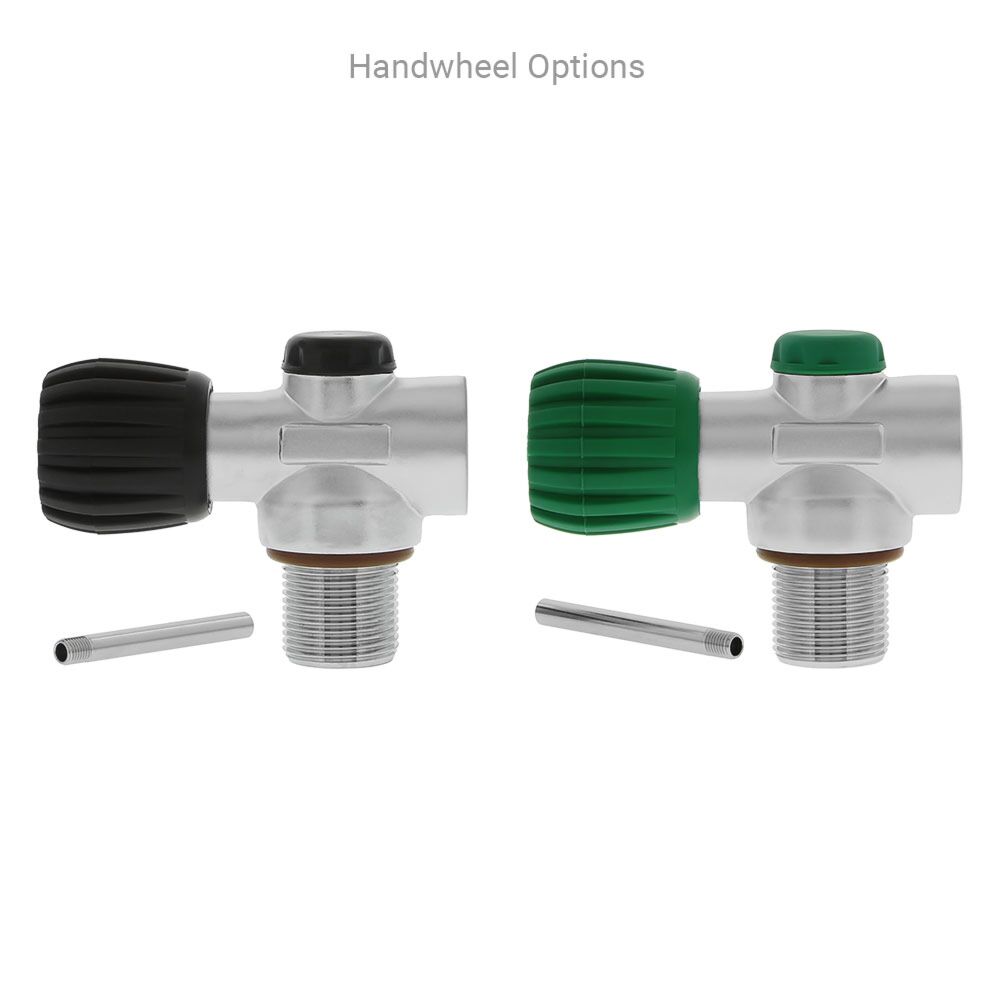

Front View - Black and Green Handwheel Options

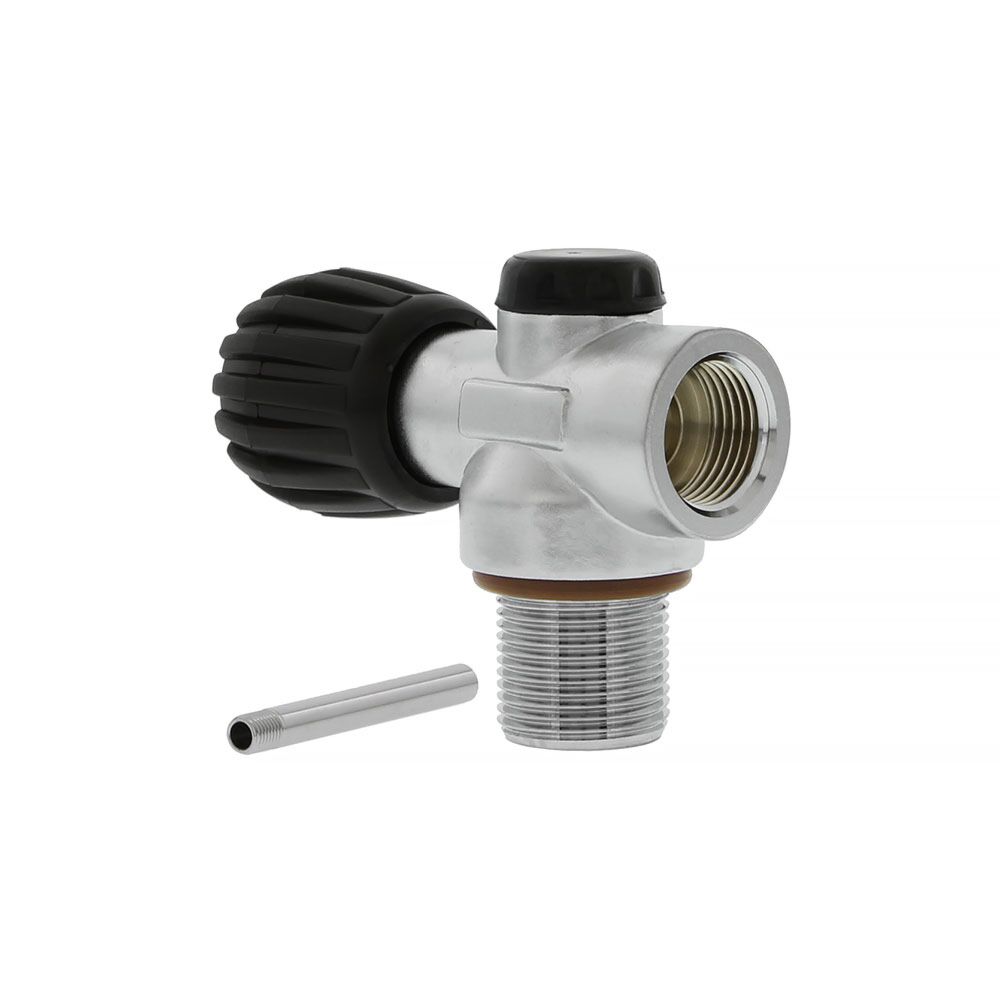

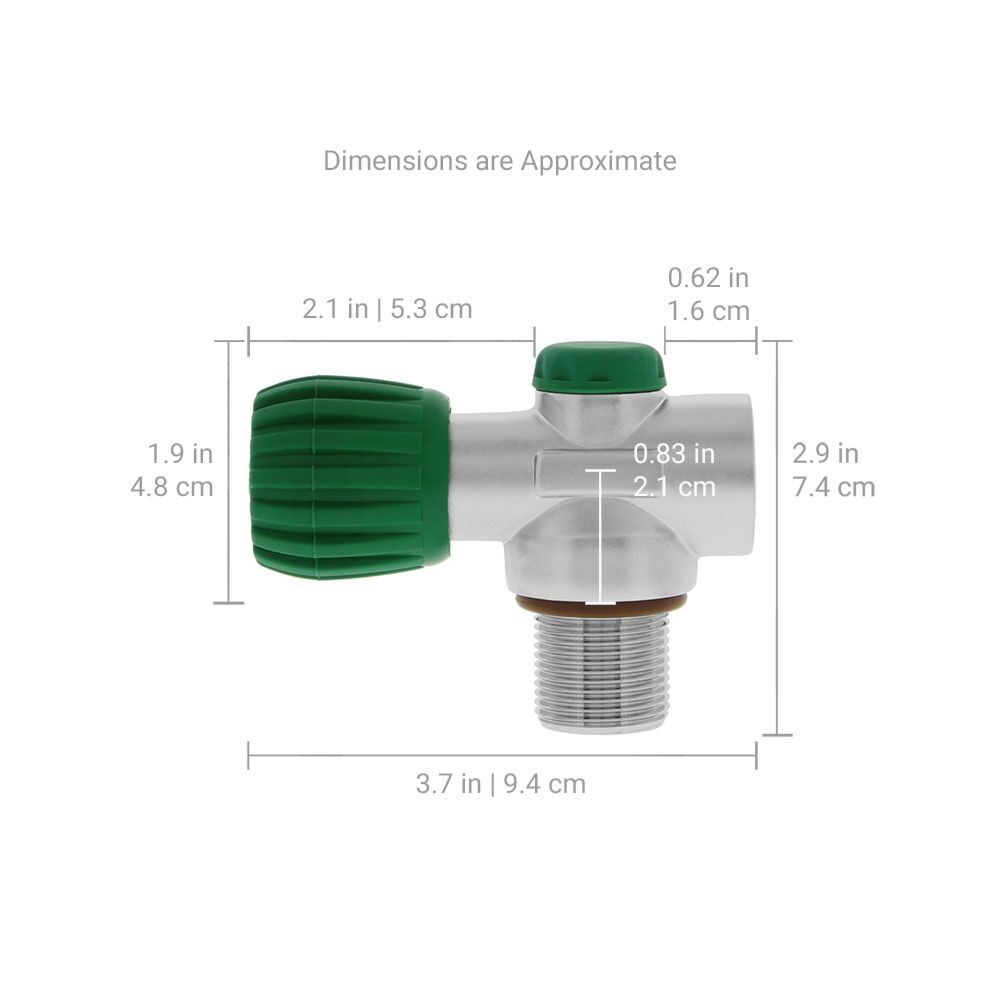

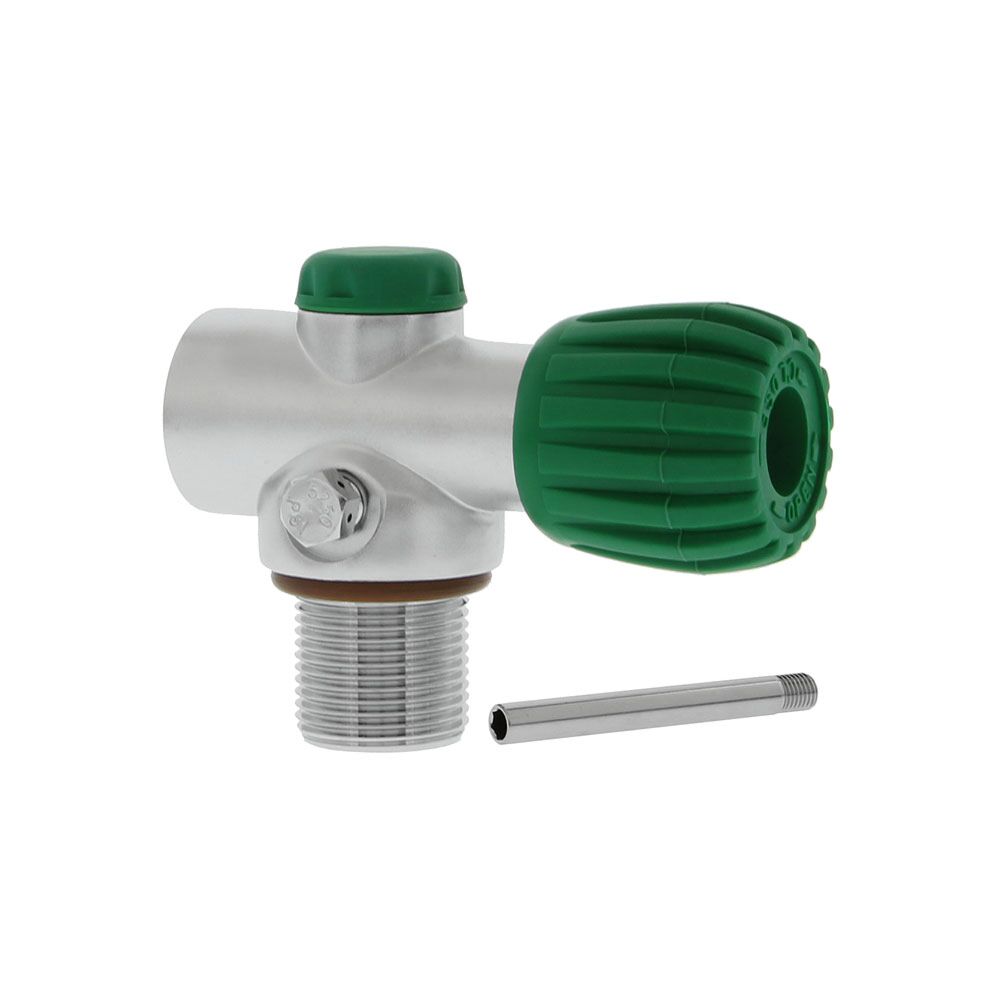

Front View - Black and Green Handwheel Options Dimensions are Approximate Reverse Angle View with Black Knob Reverse View with Knob Oriented to Diver's Left, also Showing Burst Disk
  • Standard 0.750-14 NPSM (3/4 NPS) neck threads
  • Suitable for either 3000 or 3442 psi cylinders
  • Nitrox Ready - Chromed Brass Construction
  • Valves have a 5250 psi burst disk
  • Perfect design for most rebreathers, choice of knob color

The Compact In-Line Valve is Nitrox Ready, using oxygen compatible materials and lubrication. This generic valve is the traditional low height in-line design, with a compact hard plastic knob. The green color knob is usually seen on the oxygen side, the black color knob is usually seen on the diluent side; they are otherwise identical. The valves have 200-Bar DIN (G 5/8 BSP) outlets. Inlets have imperial 0.750-14 NPSM (3/4 NPS) neck threads for use with modern aluminum and steel SCUBA tanks manufactured for the North American market and include a threaded 'dip tube' with hex opening for easy installation. Valves have a 5250 psi burst disk.

The Compact In-Line Valve design will NOT accept the Vindicator style after-market safety knobs. Please see our DGX Premium In-line Valve if you are seeking a valve that WILL accept the Vindicator style after-market safety knobs.

More Information
Brand DGX Gears
SKU DX-72240X
Weight 2.500000
Tek Tip Warning Image WARNING

Damaged Outlet on In-line Valve ADVISORY: This traditional style of in-line valve, originally introduced in the late 1990's by AP Valves in the UK their Inspiration rebreather, was low height in order to fit inside a tight space under its back cover. In-line valves are still widely seen today with a variety of different rebreathers, although we are not aware of any modern rebreather that requires the low height or the bumper. The short in-line valve can be a challenge to tighten or loosen on the cylinder neck inlet because there is no place to get solid contact with an ordinary open-end wrench and specific techniques are required to avoid damage. However, technicians who are unfamiliar with this particular design have been known to just hammer on the side of the DIN outlet to loosen or tighten the valve and cylinder. Such forceful impact can cause the outlet opening to become very slightly out-of-round (see photo of an extreme example) such that DIN fittings will no longer screw in fully and properly seat. If you do not actually require the traditional version (and you probably do not), instead we recommend our DGX Gears Premium In-line Valves because they are a little bit taller in order to provide a proper wrench flat for easy installation and removal.
