DGX Gears Premium O2 In-Line Valve

$59.00
In Stock
SKU
DX-722404x-O2
DGX Premium O2 In-Line valves for rebreather applications are oxygen clean, using oxygen compatible materials and a lubrication free design.

WE WANT TO PROPERLY SET YOUR EXPECTATIONS: The inlet and outlet on these oxygen compatible valves are oxygen clean copper metal alloy (aka "brass") which exhibit some discoloration that is NOT aesthetically pleasing as chromed brass finishes typical of most SCUBA valves.

DGX Gears Premium O2 In-Line Valve

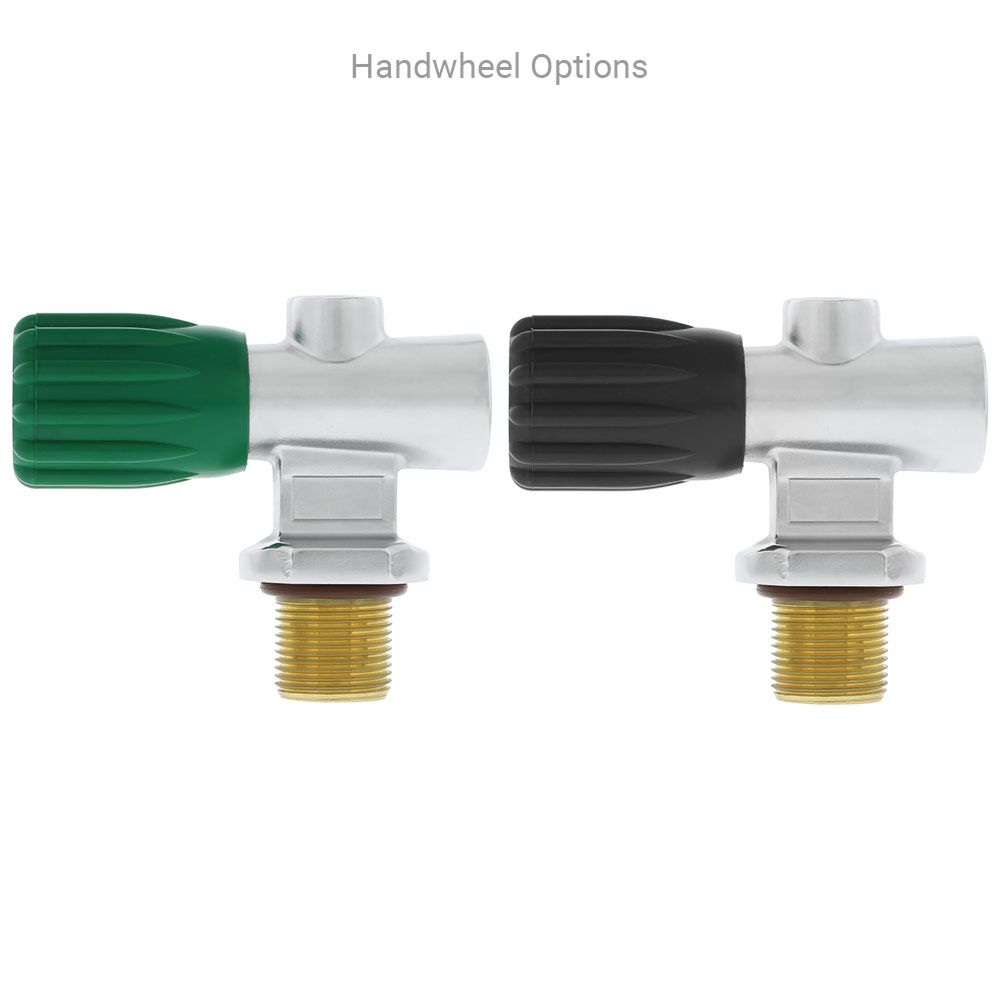

Front View - Green and Black Handwheel Options

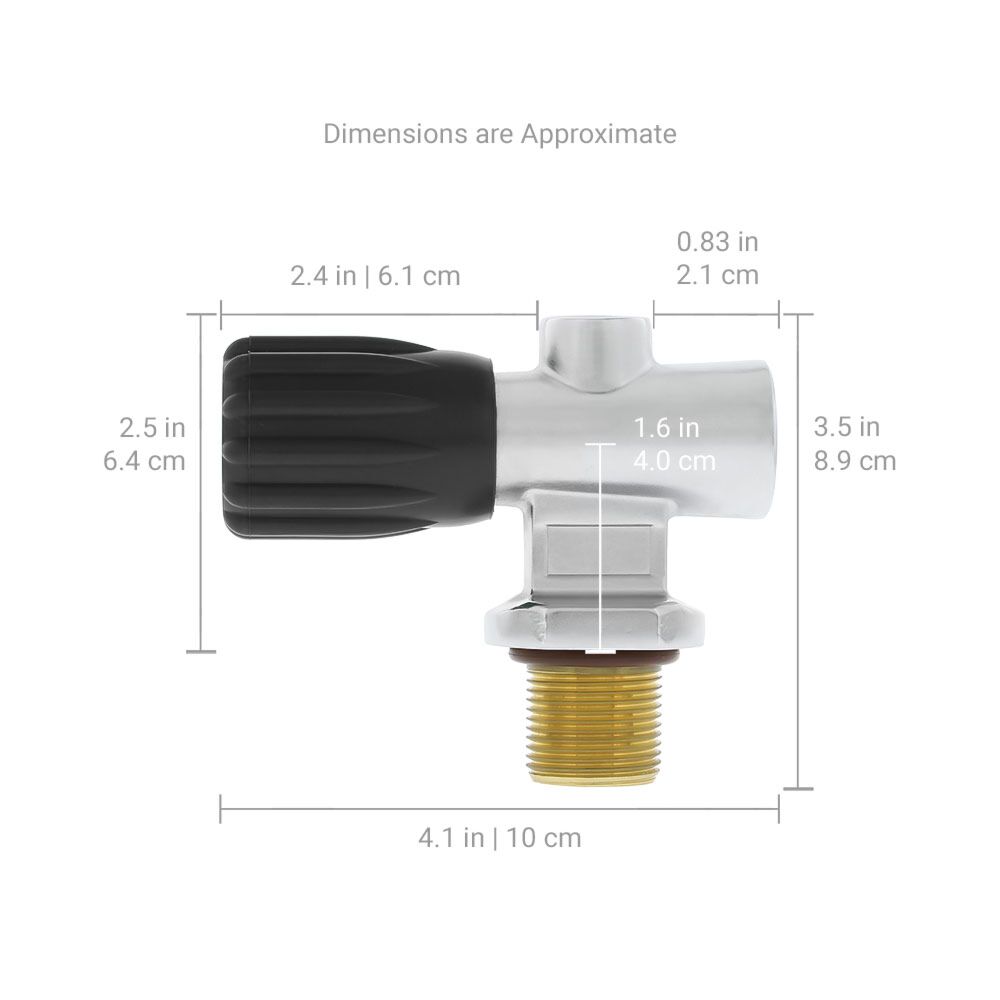

Front View - Green and Black Handwheel Options Dimensions are Approximate 200-Bar DIN Outlet 5250 PSI Burst Disk
  • Oxygen compatible and clean
  • Slow and gradual opening action
  • NO chrome plating on friction surfaces
  • Standard 0.750-14 NPSM (3/4 NPS) neck threads

WE WANT TO PROPERLY SET YOUR EXPECTATIONS: The inlet and outlet on these oxygen compatible valves are oxygen clean copper metal alloy (aka "brass") which exhibit some discoloration that is NOT aesthetically pleasing as electroplated chrome finishes typical of other SCUBA valves. If you consider the cosmetics to be important, and maximum compatibility with pure oxygen is less of a concern, then we recommend choosing our standard Nitrox Ready DGX Premium Valves over the DGX Premium O2 Valves.

DGX Premium O2 valves are oxygen clean, using oxygen compatible materials, lubrication free, and when sealed in the original factory packaging is also free of organic and particle contamination. The DGX Premium O2 valve seat & plug assembly has finer threads, making the initial opening action of the valve more gradual and requiring several more turns to fully open than the standard SCUBA valve. The DGX Premium O2 valves have inlet and outlet threads, modular port threads and port plug, seat & plug assembly, dip tube, burst disk assembly and optional DIN-to-Yoke adapters that are not chrome plated. The outside body and other non-friction surfaces of the DGX Premium O2 valve remain chromed for the sake of cosmetics. The DGX Premium O2 valve includes your choice of a green or black color handwheel. The black color is usually seen on the diluent cylinder and green color is usually seen on the oxygen cylinder, but the valves are otherwise identical except for knob color.

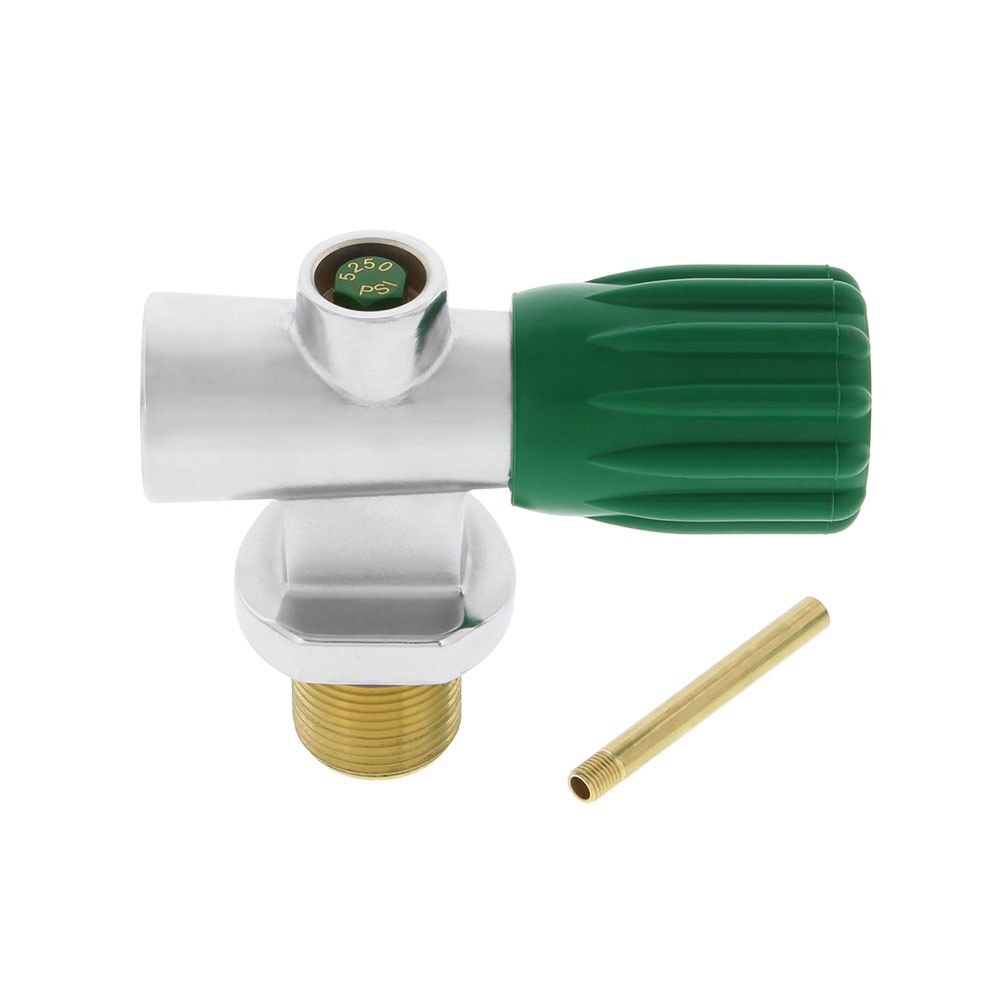

The DGX Premium O2 In-Line valve has a 232-Bar DIN (G 5/8 BSP) outlet, suitable for use with the 3442 psi service pressure cylinders and any DIN style regulator. Inlets have imperial 0.750-14 NPSM (3/4 NPS) neck threads for use with modern aluminum and steel SCUBA tanks manufactured for the North American market. The valve includes a 5250 psi burst disk assembly with a green head. DGX valves include a nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves.

This valve WILL also accept the Vindicator #3 knobs.

More Information
Brand DGX Gears
SKU DX-722404x-O2
Weight 2.500000

How are the DGX Premium O2 Valves different from regular SCUBA valves?

The most common technical objections to the use of ordinary SCUBA valves with pure oxygen are: (1) too rapid a speed of opening and (2) chrome plating of the surfaces in contact with high pressure oxygen that are subject to friction or impact, plus (3) improper lubrication. The DGX Premium O2 valves are designed to answer these specific objections, but are otherwise similar to the other Nitrox Ready SCUBA tank valves we sell.

The DGX Premium O2 valve seat & plug assembly has finer threads, making the initial opening action of the valve more gradual and requiring several more turns to fully open than the standard SCUBA valve. The DGX Premium O2 valves are a copper metal alloy body with inlet and outlet threads, modular port threads and port plug, seat & plug assembly, dip tube, burst disk assembly and optional DIN-to-Yoke screw-in adapters that are not chrome plated. Just to be clear, all the SCUBA tank valves sold by Dive Gear Express incorporate oxygen compatible materials including fluorocarbon o-rings, and are oxygen cleaned by the factory. The DGX Premium O2 valves are not any more so in those characteristics than any other SCUBA tank valves we sell.

We want to properly set your expectations: The inlet and outlet on these oxygen compatible valves are oxygen clean copper metal alloy (aka "brass") which exhibit some discoloration that is NOT aesthetically pleasing as electroplated chrome finishes typical of other SCUBA valves. If you consider the cosmetics to be important, and maximum compatibility with pure oxygen is less of a concern, then we recommend choosing our standard Nitrox Ready DGX Premium Valves over the DGX Premium O2 Valves.

Can I use the DGX Premium O2 valves with pure oxygen? Yes and no; this simple question has a complex answer because there is no widely recognized scuba diving standard for what constitutes suitability for oxygen service. The reason why we can't give you a simple unqualified "YES" is related to the associated risks when the circumstances of use are completely outside our control. To dive using oxygen requires you to make an informed decision to accept for yourself the risks of handing the oxygen. For more information please read About Oxygen Disclaimers.
