DGX 70 Degree LP 2nd Stage Swivel: 9/16-Inch M = 9/16-Inch F

Name: DGX 70 Degree LP 2nd Stage Swivel: 9/16-Inch M = 9/16-Inch F
Brand: DGX
SKU: DX-704200
Price: 12.00 USD
Availability: InStock

Next Business Day

$12.00

In Stock

SKU

DX-704200

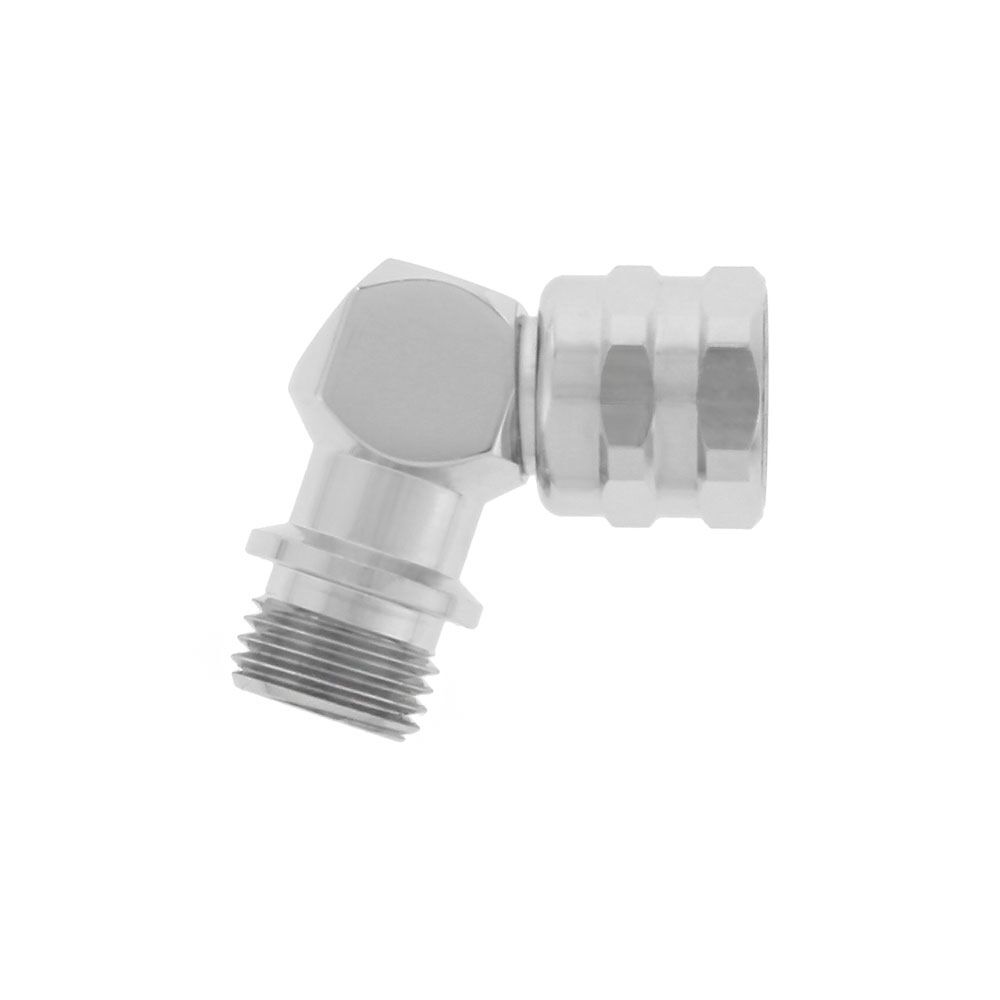

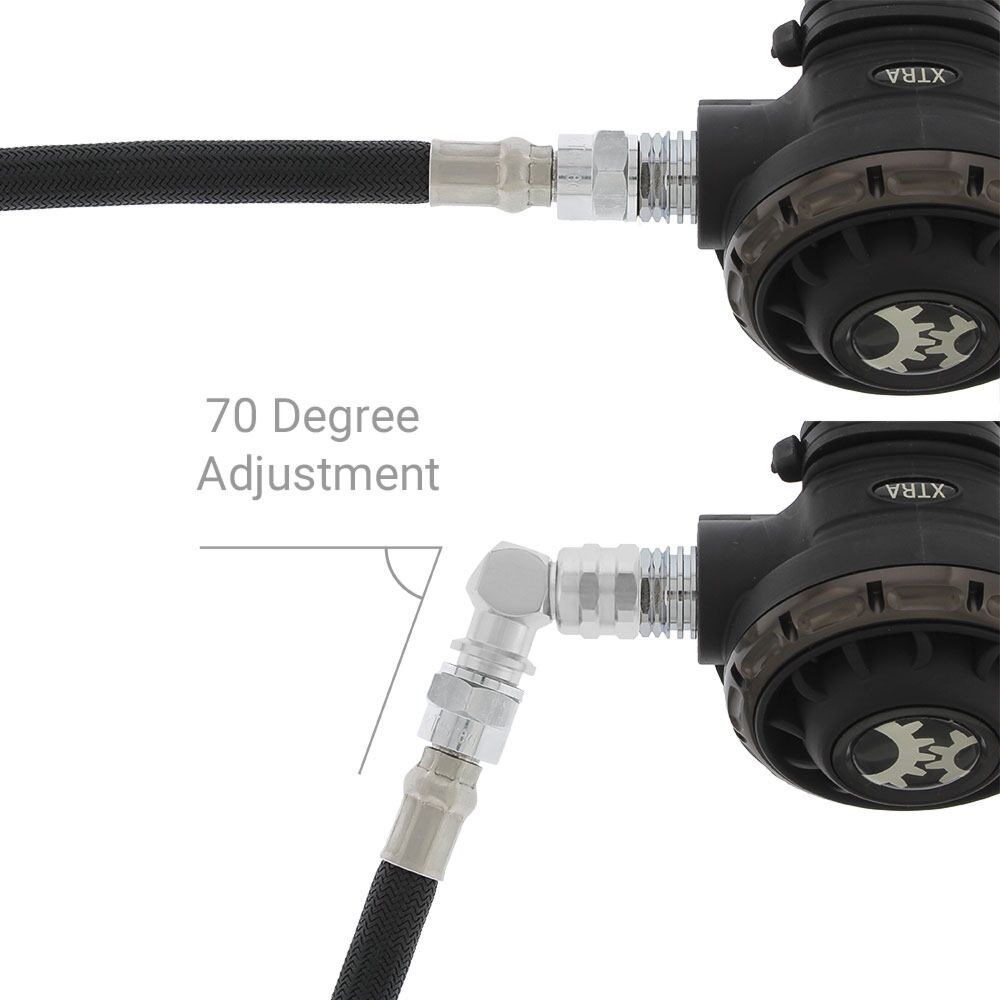

The 70 degree swivel attaches between the regulator second stage and its low pressure hose, routing the hose down the diver's chest and/or under the arm, which increases comfort and streamlining.

Details

The 70 degree swivel attaches between the regulator second stage and its low pressure hose, routing the hose down the diver's chest and/or under the arm, which increases comfort and streamlining. This low-profile adapter is not an omnidirectional swivel and so it maintains its angle and will not allow the regulator to flop around. Sidemount divers use the 70 degree swivel to route their hoses down their chest to the bottles eliminating the need to route the hose around the neck. Some people prefer the 70 degree adapter because it angles the hose slightly away from the neck and face. The replacement O-ring for this adapter is size 010.

More Information

More Information
Product Name	DGX 70 Degree LP 2nd Stage Swivel: 9/16-Inch M = 9/16-Inch F
Brand	DGX
SKU	DX-704200
Weight	2 oz
Country of Manufacture	Taiwan
HS Code	9506.29

Reviews

Tek Tip

Streamlined Open Water Regulator Configuration

The Streamlined Open Water regulator configuration (also known as the "Florida Rig") is designed to keep hoses from dangling and also to maximize diver comfort. This set up is very streamlined and efficient; it's the most popular single tank package configuration style offered by Dive Gear Express. In the streamlined configuration, the hose on the primary regulator routes under the diver's arm, lies flat against the chest, and neatly joins the second stage with a fixed-angle pivot-swivel hose adapter, reducing mouth fatigue because the hose is no longer 'tugging' on your mouth. The backup regulator is tucked safely under the chin, allowing immediate access. In an emergency, the primary is donated while the backup is always instantly available. The SPG is clipped to the waist D-ring using the snap.

International Training (SDI) has provided an animated image that illustrates the benefit of this configuration when donating to another diver. In an emergency, the long hose primary second stage in your mouth is donated to your buddy in need and the short hose backup second stage is transferred to your mouth. Notice the tremendous speed which the out-of-air diver can receive the donation of a known good regulator with the venturi lever and cracking pressure adjustment knob both properly configured; no fumbling to reach a 'safe second' tucked away somewhere. You also gain the streamlined advantage of this configuration that keeps both hose lengths fairly short while routing the hoses much closer to your body. The streamlined configuration is a huge benefit when diving in current and when hunting. However, for best streamlining the diver also needs to leave that snorkel in the gear bag.

Technical divers always donate their longer hose primary, and never color code either regulator. For sport diving with the streamlined configuration, we also prefer the covers of both primary and backup second stages should be black. However, if you agree with the sport diving theory that in an out-of-air situation the donated regulator should be clearly apparent in the golden triangle, then the primary should have the yellow cover. Along the same line of thought, it is probably not a good idea to highlight the backup second stage with a yellow cover since it is on a hose too short to donate. Never-the-less, the photo of this configuration shows the short hose backup with a yellow cover just to differentiate the two regulators for the purposes of this illustration.
