Compact IP Gauge (PSI and BAR)

Name: Compact IP Gauge (PSI and BAR)
Brand: DGX
SKU: DX-701450
Price: 12.00 USD
Availability: InStock

Next Business Day

$12.00

In Stock

SKU

DX-701450

A compact intermediate pressure (IP) gauge for SCUBA applications

Details

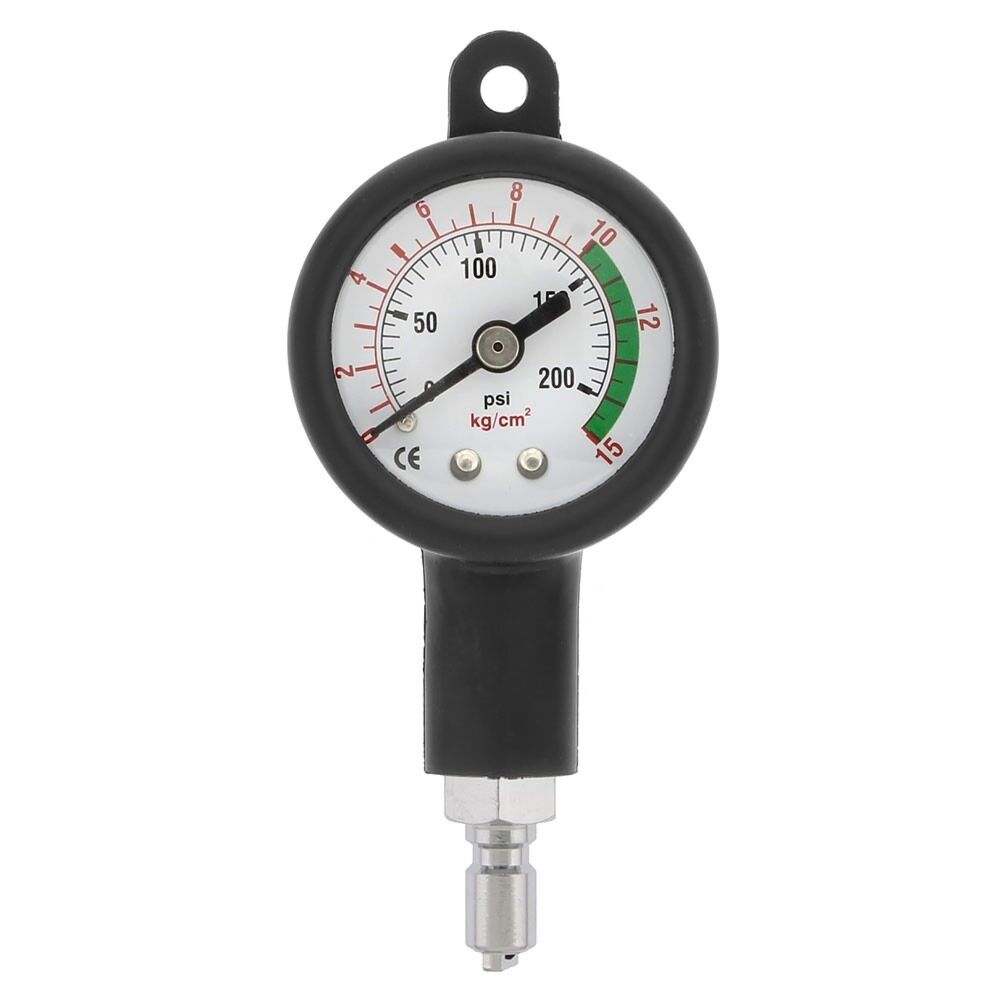

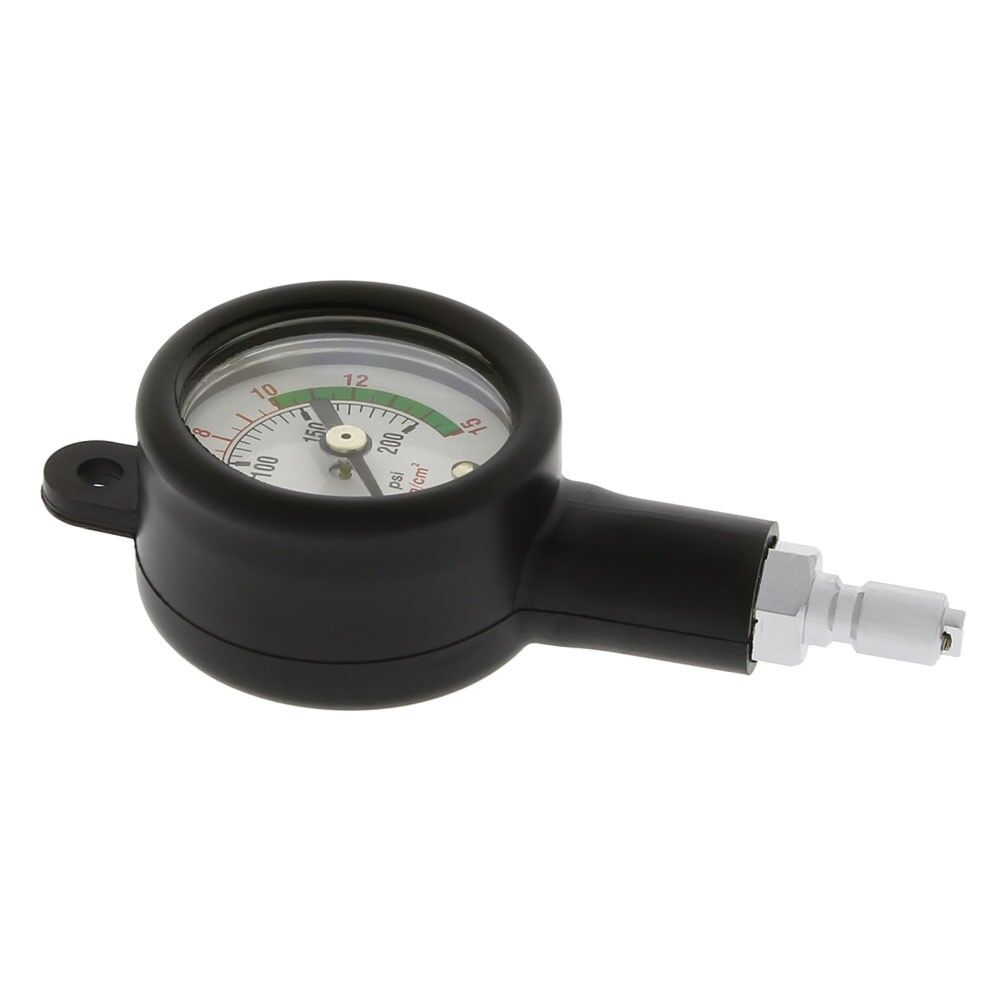

The compact {1.5 in | 3.8 cm } diameter ultra-lightweight dual-scale (PSI and BAR*) intermediate pressure gauge is ready to go with you anywhere. Perfect for helping diagnose problems in the field, it plugs into any standard BC low pressure inflator hose. Brass mechanism inside a plastic body with a chrome plated brass nipple with graduated scales in imperial (10 psi increments) and metric units (0.5 kg/cm2 increments). Dimensions { 1.75 x 3.5 in | 4.45 x 8.9 cm } and weight { 2.6 oz | 7 gm }

*Note: 1 KG cm2 = .980665 BAR

KG/cm2 Kilogram Force per square centimeter

More Information

More Information
Product Name	Compact IP Gauge (PSI and BAR)
Weight	8 oz
Brand	DGX
SKU	DX-701450
Country of Manufacture	Taiwan
HS Code	9026.20

Reviews

Tek Tip

Regulator Intermediate Pressure (IP)

The first stage of a scuba regulator reduces the gradually decreasing high pressure of a scuba tank to supply a constant low pressure to the second stage regulator. This output pressure of the first stage to the second stage is known as the intermediate (aka inter-stage) pressure or IP. When diagnosing regulator problems, it's often very helpful to know if the IP is out-of-range. As the knife edge seat in most first stages wear from use, their IP tends to become higher and will cause the second stage to dribble gas or even free flow. Slightly out-of-range values typically indicate the need for a simple IP adjustment to compensate for wear. Significantly out-of-range values, particularly with "creep," often indicate a more serious impending high-pressure seat failure. In addition, slow recovery time can indicate a clogged inlet filter.

Most modern scuba regulators sold for use with breathing gas, should have an intermediate pressure of about 135 to 140 psig. The unique design of the Poseidon Xstream requires 123 psig and the Poseidon Cyklon is 166 psig. Specialized inflation only first stages and oxygen first stages used on rebreathers usually have IP values in the range of 80 to 110 psig depending on the application.
