Biton BC Inflator O-Ring Kit (O-Rings Only)

Fluorocarbon (FKM) BC Power Inflator O-Ring Kit, Five Pieces

Name: Fluorocarbon (FKM) BC Power Inflator O-Ring Kit, Five Pieces
Brand: DGX
SKU: DX-2055RK
Price: 3.00 USD
Availability: InStock

Next Business Day

$3.00

In Stock

SKU

DX-2055RK

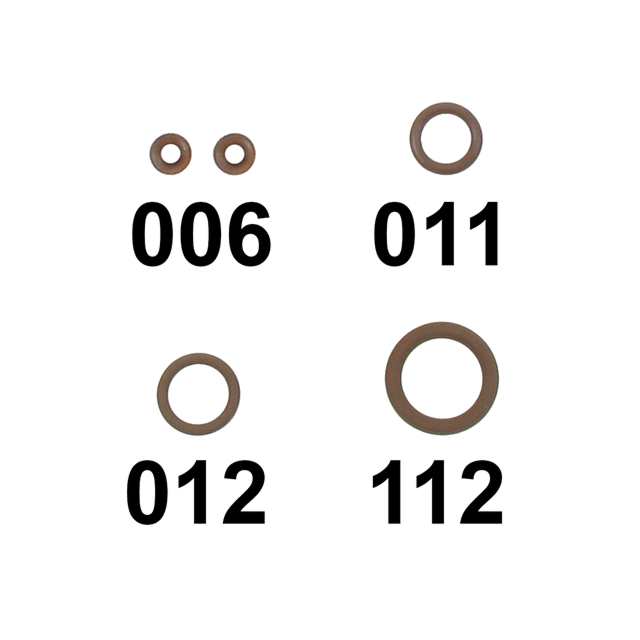

Fluorocarbon elastomer (aka Viton™, aka FKM, aka FPM) BC Inflator O-Ring Kit, five pieces - one each 112, 012, 011, and two 006.

Details

The fluorocarbon elastomer (aka Viton™, aka FKM, aka FPM) BC Power Inflator O-Ring Kit consists of five pieces - one each 112, 012, 011, and two 006 o-rings used in common BC Power Inflators. This is the replacement o-ring kit which is included in the Inflator Service Tool w/O-Ring Kit.

This kit contains the O-rings for the power inflation mechanism. The manual exhaust is not pressurized and operates independently of the power inflation mechanism. The manual exhaust contains an additional #110 O-ring that we've never seen fail. We don't recommend disassembling the manual exhaust assembly, and so we don't include the manual exhaust O-ring in the kit.

More Information

More Information
Product Name	Fluorocarbon (FKM) BC Power Inflator O-Ring Kit, Five Pieces
Brand	DGX
SKU	DX-2055RK
Weight	Less than 1 oz
Country of Manufacture	United States
HS Code	4016.93

Reviews

Tek Tip

How to Overhaul a Power Inflator

If the base of the inflator QD fitting is leaking, use the 1/2" hex to remove the fitting and replace the o-ring. However, look closely if you see a leak. Sometimes the leak is not coming from the base of the fitting, but rather from the connection to the hose. There is a small o-ring in the female end of the hose fitting that is more frequently the source of the leak.

If the inflator is dribbling gas into the BC, we recommend replacing the entire assembly. However, if you wish to overhaul the inflator start by mating the spanner tangs to the two slots of the inlet valve cartridge assembly, then unscrew counter clockwise until the entire assembly can be removed.

Now disassemble the cartridge assembly. Depending on the design of the assembly, use either a flat blade screw driver or the hex to keep the end of the spool from turning while you unscrew the plastic button. Once the button separates from the spool, push the spool out from cartridge barrel. Remove all the o-rings (noting their relative positions and sizes) and clean everything, including the inside of the barrel and the plastic body of the inflator, by briefly soaking in a 50/50 solution of white vinegar and water. If need be, scrub with a light application of a toothbrush but don't use an ultrasonic cleaner.

Replace the o-rings and reassemble. The o-rings must be clean and need not be lubricated. Some people lubricate the small 006 o-rings to provide a smoother operating feel, but we observe they are not lubricated at the factory in new inflators. (We do not lubricate because we think it attracts dirt and just gums up the works so that it has to be more frequently cleaned.) Tighten until snug, but do not over tighten or you will crack the plastic body. If the inflator still leaks or begins to leak within a few dives, then the surfaces which the o-rings seal against are worn and the entire inflator assembly should be replaced.

The manual exhaust is not pressurized and operates independently of the power inflation mechanism. The manual exhaust contains an additional O-ring that we've never seen fail. We don't recommend disassembling the manual exhaust assembly, and so we don't include the manual exhaust O-ring in our kit.
