PSR-11-39-MHD Oxygen Sensor

$79.00
In Stock
SKU
ADI-PSR-11-39-MHD
The PSR-11-39-MHD is a special version of the PSR-11-39-MD which provides a slightly higher mV range.

PSR-11-39-MHD Oxygen Sensor

PSR-11-39-MHD Oxygen Sensor

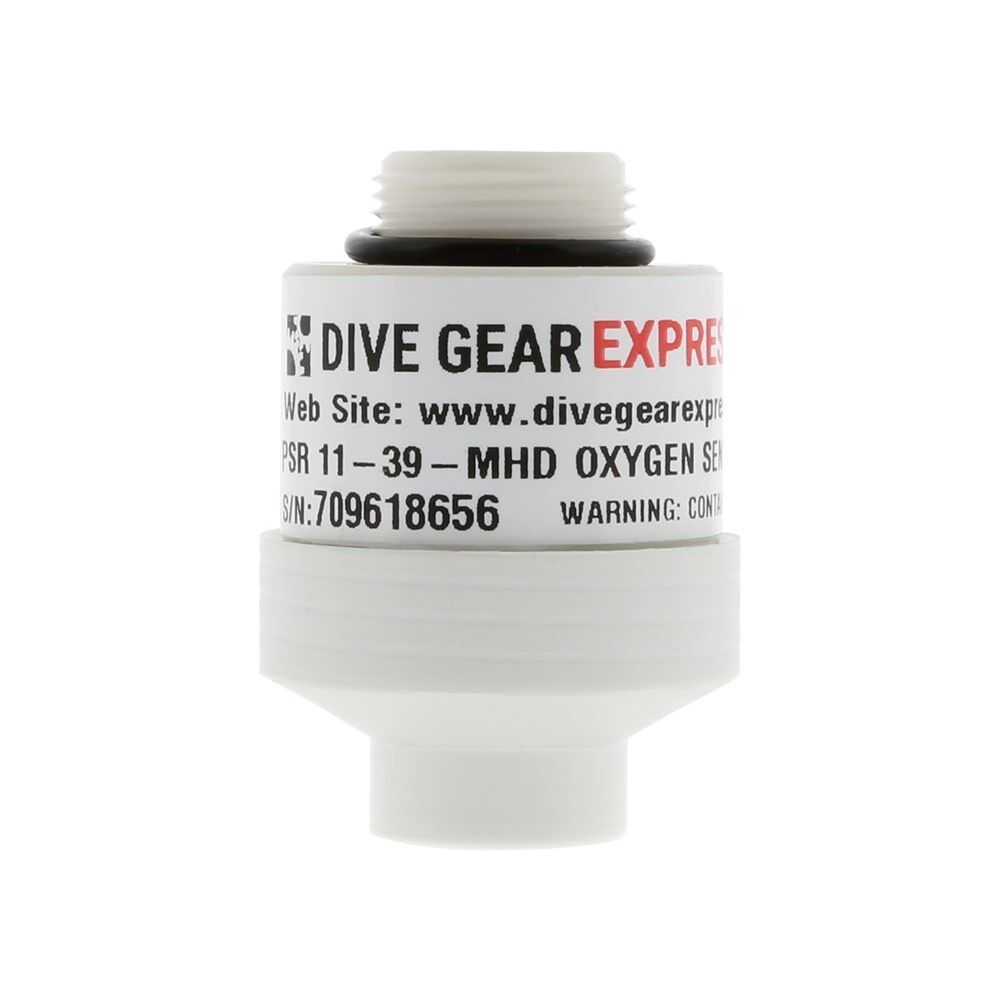

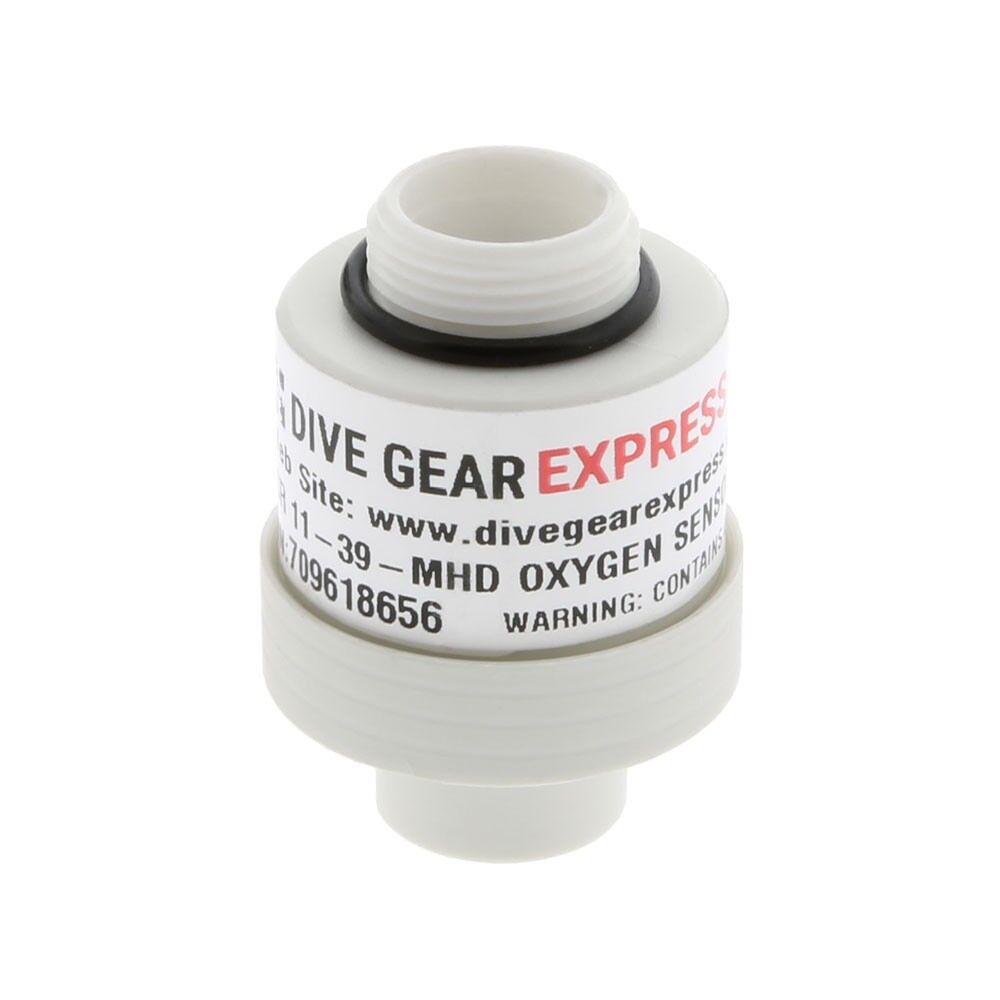

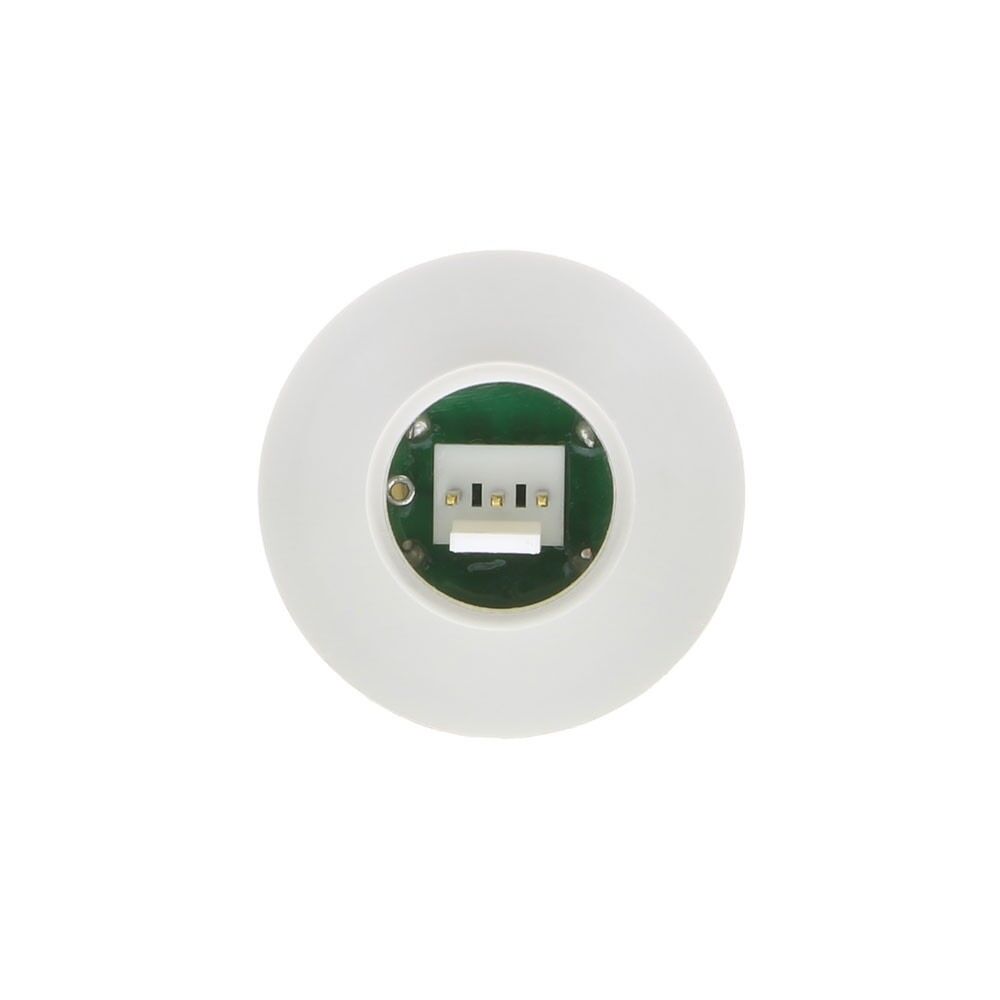

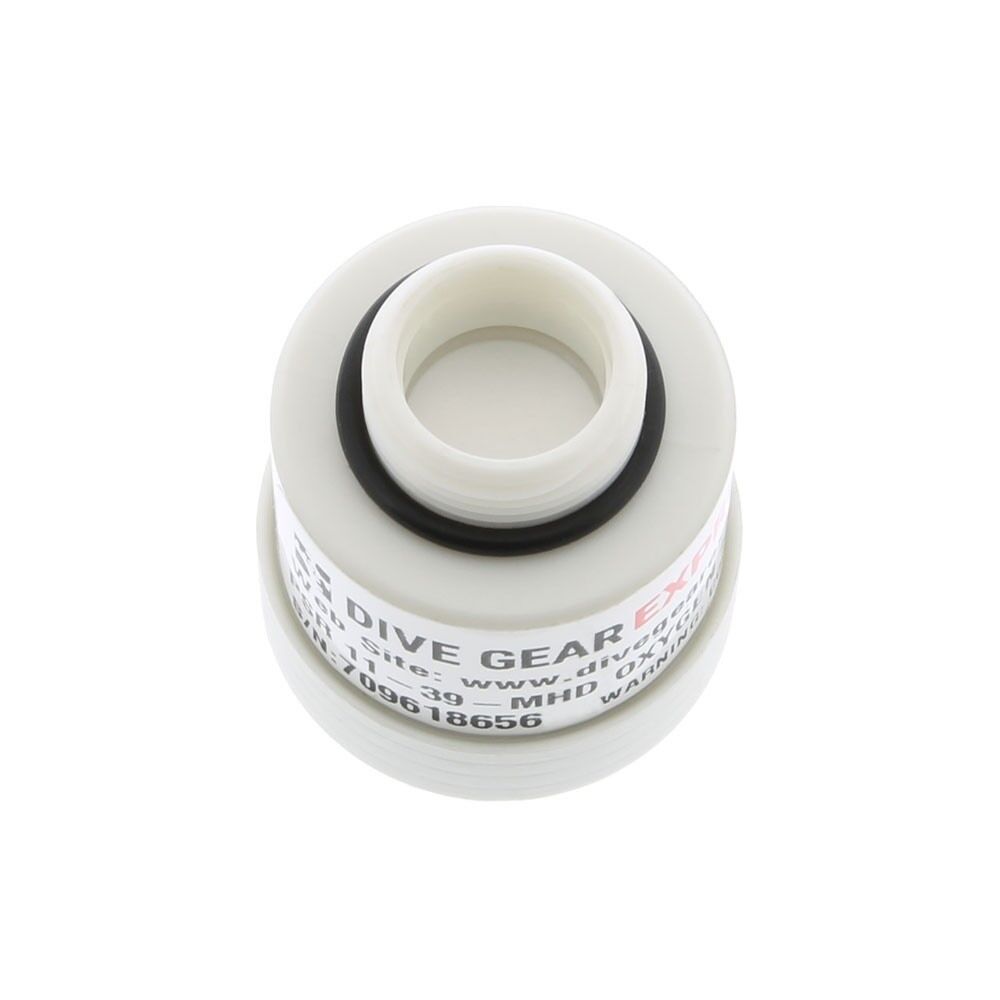

PSR-11-39-MHD Oxygen Sensor 3-Pin Molex Connector Sample Pressure Test Data Front View Hydrophobic Membrane
  • Oxygen sensor with 3-pin Molex connection
  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Dated test results included with each sensor
  • Use only when recommended by your rebreather OEM

The Analytical Industries (AI) PSR-11-39-MHD is a special version of the PSR-11-39-MD which provides a slightly higher mV range. Do not use the MHD version unless recommended by the rebreather OEM for your specific unit because otherwise some sensor validation checks may produce misleading results.

Features

  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Conformal coating
  • Temperature compensated
  • Hydrophobic membrane

AI brand diving sensors ship with the documentation of a final pressure test for each sensor. The sensor is tested at approximately one ATA in air and 100% oxygen, then tested again at 1.8 ATA in oxygen, and the millivolt readings are recorded for all measurements. The results document that the cell is within specifications for current and linearity up to a PO2 exceeding 1.6 ATA. The dated test results are included in the package with each individual sensor.

More Information
SKU ADI-PSR-11-39-MHD
Brand Analytical Industries
Weight (lbs) 0.2500
