PSR-11-39-JD Oxygen Sensor (R-17D)

Rating:
96% of 100
$79.00
In Stock
SKU
ADI-PSR-11-39-JD
The PSR-11-39-JD Oxygen Sensor is used in the Explorer MK1 and Sentinel rebreathers.

Factory fresh, our oxygen sensors are never more than four months old when we ship to you.

PSR-11-39-JD Oxygen Sensor (R-17D)

PSR-11-39-JD Oxygen Sensor

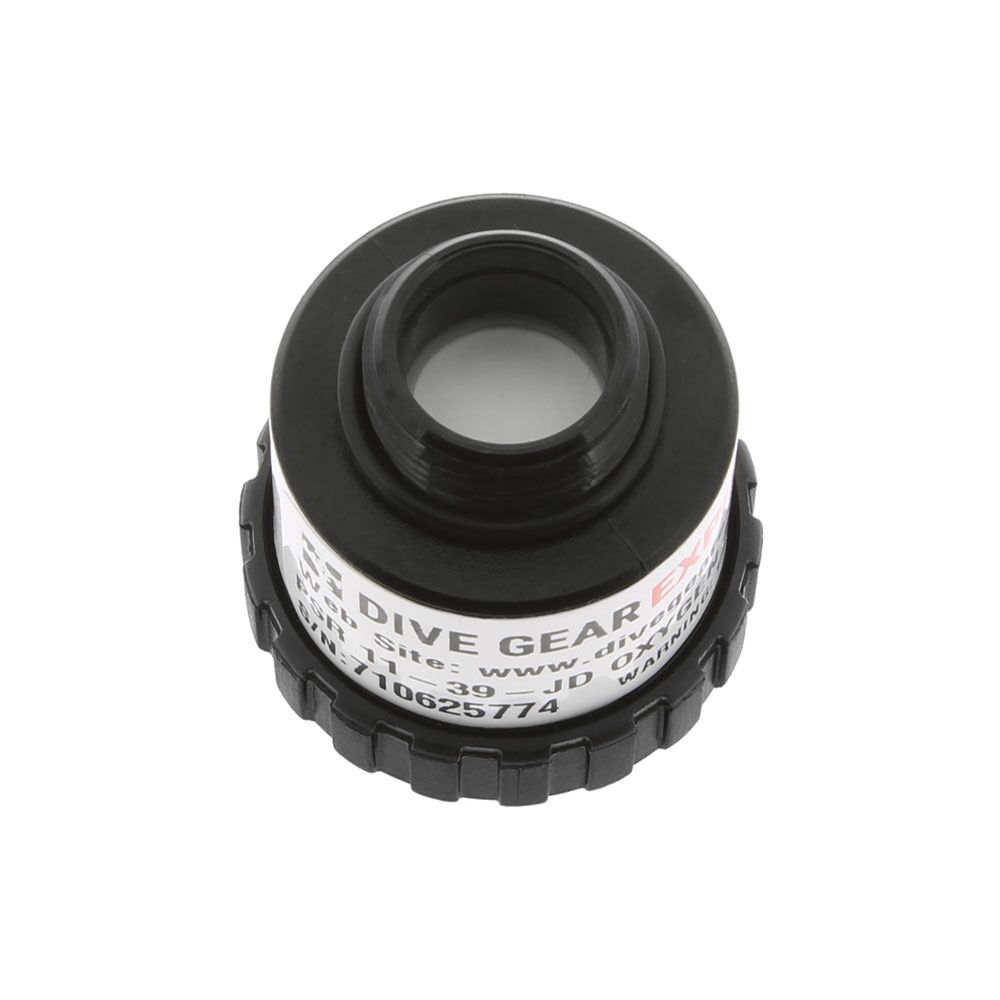

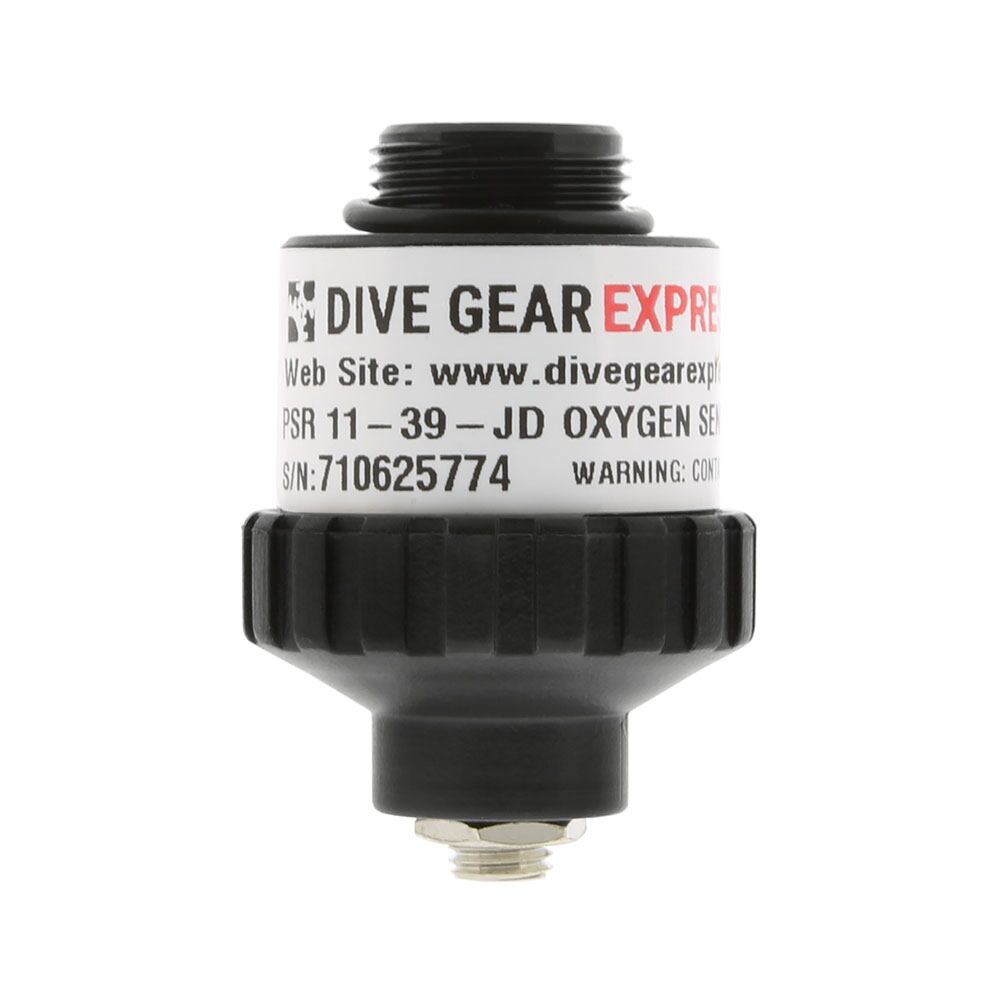

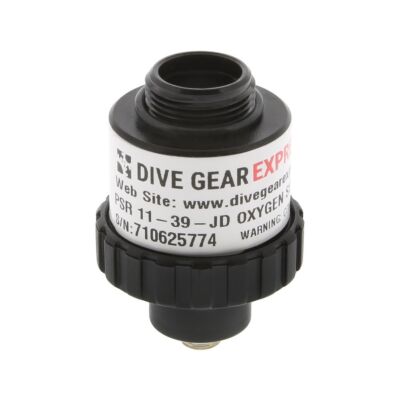

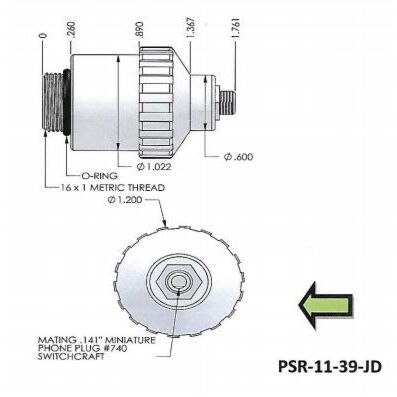

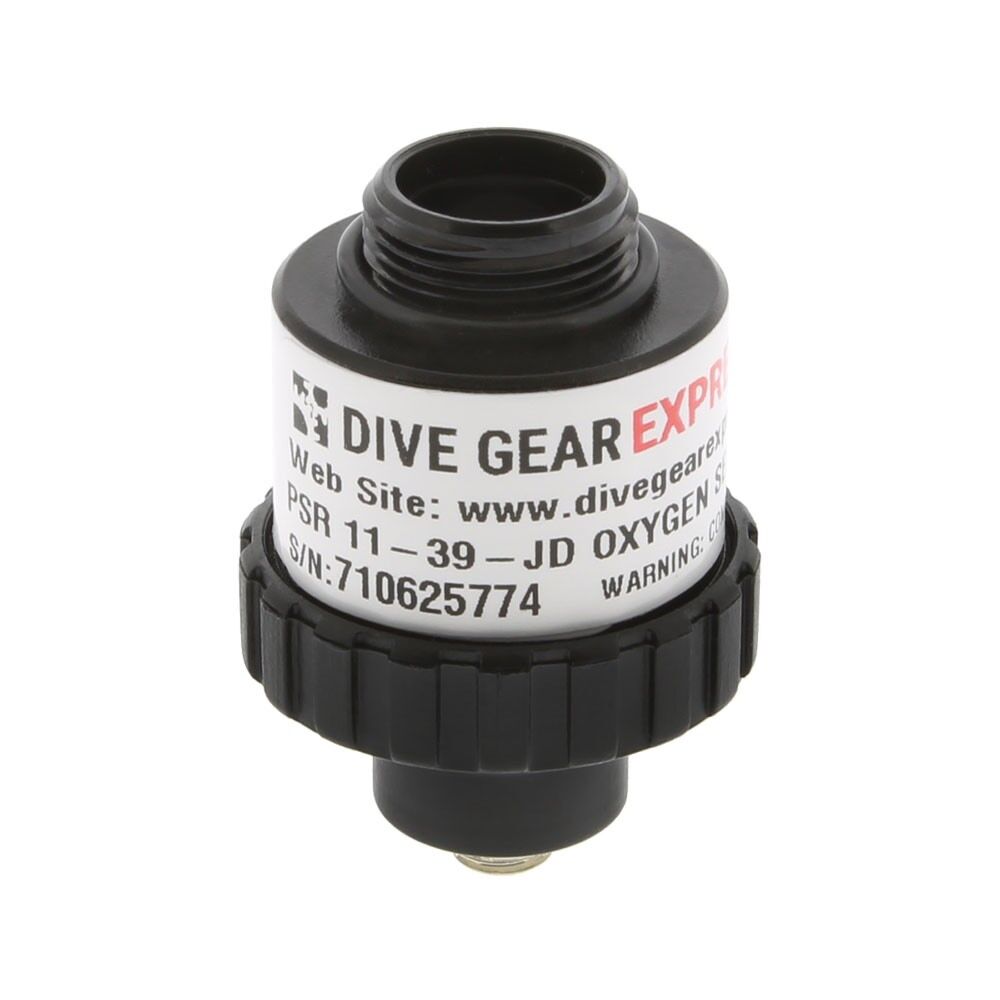

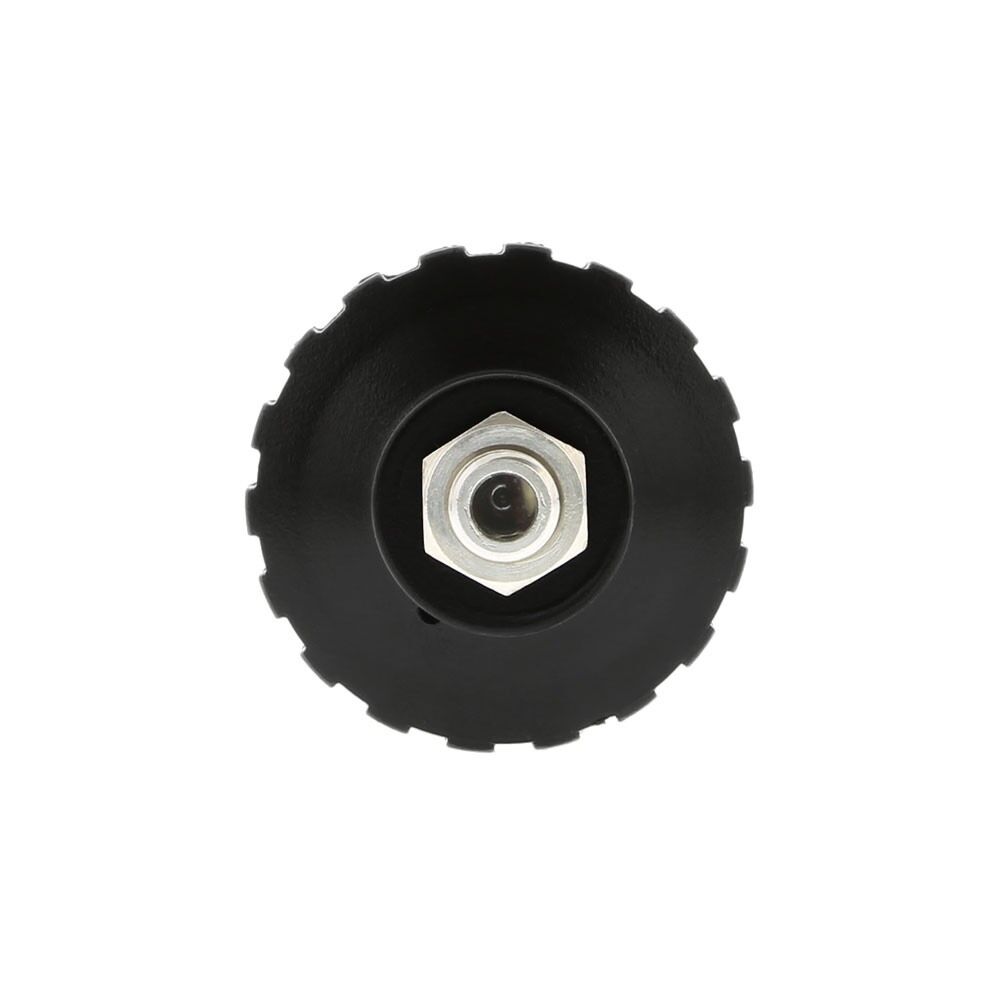

PSR-11-39-JD Oxygen Sensor 3.5 mm Mini-Jack Connector Sample Pressure Test Data Front View Hydrophobic Membrane Sensor Dimensions
  • Oxygen Sensor with mini-jack connection
  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Dated test results included with each sensor
  • Commonly used in the scuba industry

The Analytical Industries (AI) PSR-11-39-JD sensor, with the 3.5 mm mini-jack connector, is compatible with the Teledyne R-17D and used in many analyzers plus a few rebreathers, such as the Hollis Explorer MK1 and the VR Sentinel.

Features

  • Accuracy within +/- 2% of full scale
  • Response time is 6 seconds
  • Conformal coating
  • Temperature compensated
  • Hydrophobic membrane

AI brand diving sensors ship with the documentation of a final pressure test for each sensor. The sensor is tested at approximately one ATA in air and 100% oxygen, then tested again at 1.8 ATA in oxygen, and the millivolt readings are recorded for all measurements. The results document that the cell is within specifications for current and linearity up to a PO2 exceeding 1.6 ATA. The dated test results are included in the package with each individual sensor.

More Information
SKU ADI-PSR-11-39-JD
Brand Analytical Industries
Weight (lbs) 0.2500
