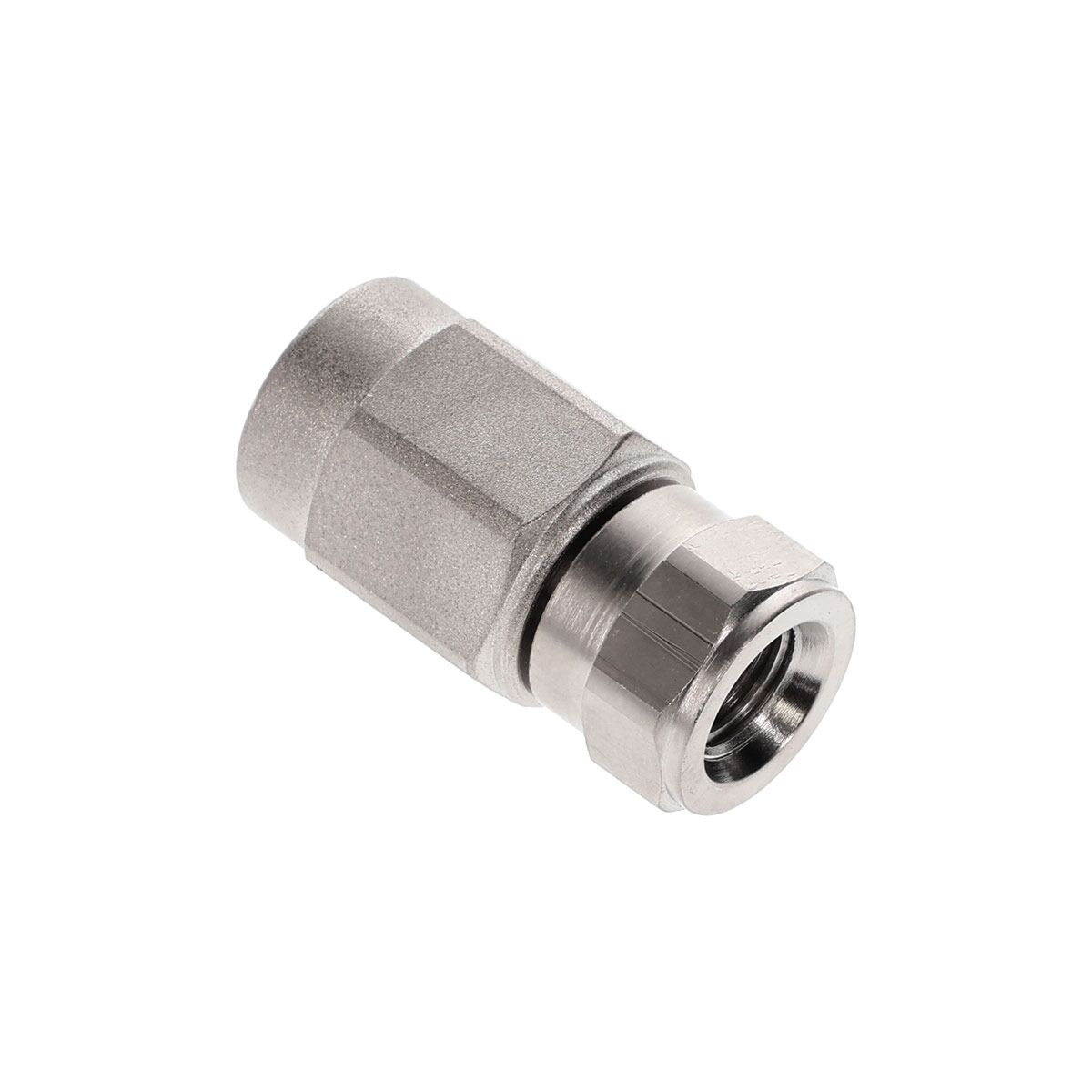

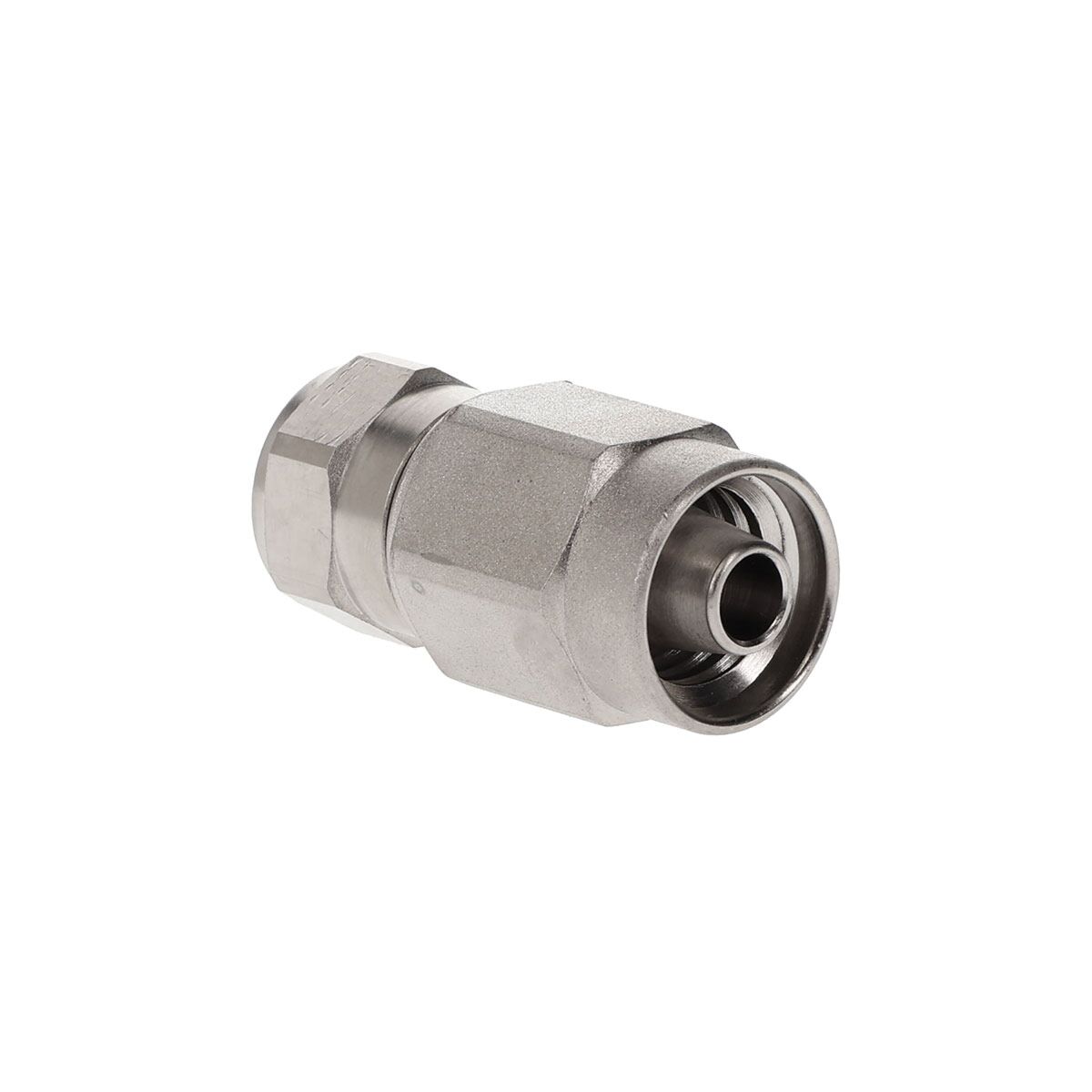

OmniSwivel Hose Repair Kit, 3/8"-24 Female
$59.99
In Stock
SKU
OSI-HRK-ZF
OmniSwivel Hose Repair Kit, 3/8"-24 Female
- 3/8"-24 Female Outlet
- Dimensions: 1-3/4"L x 5/8"O.D
- Solid Brass Construction
- Nitrox Ready

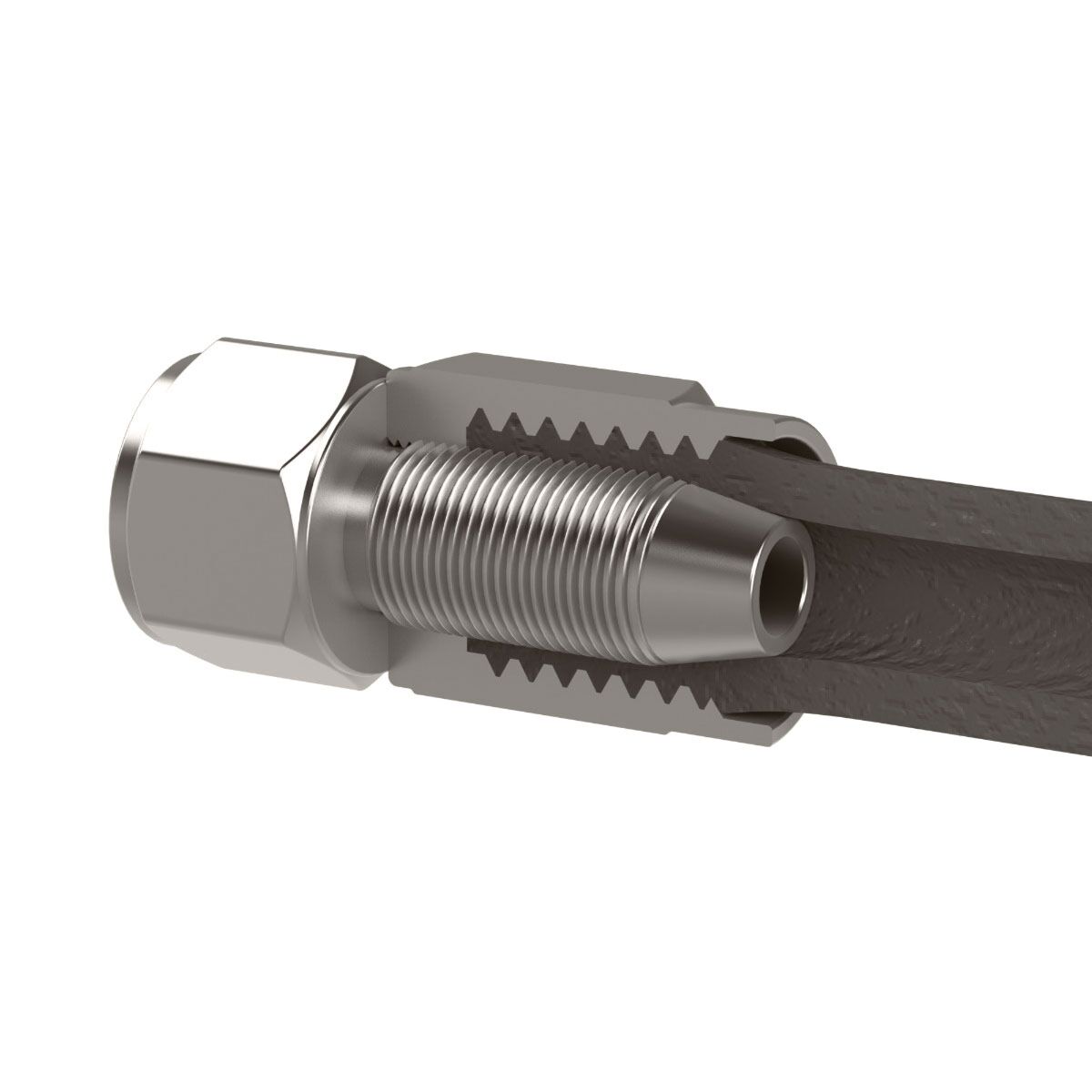

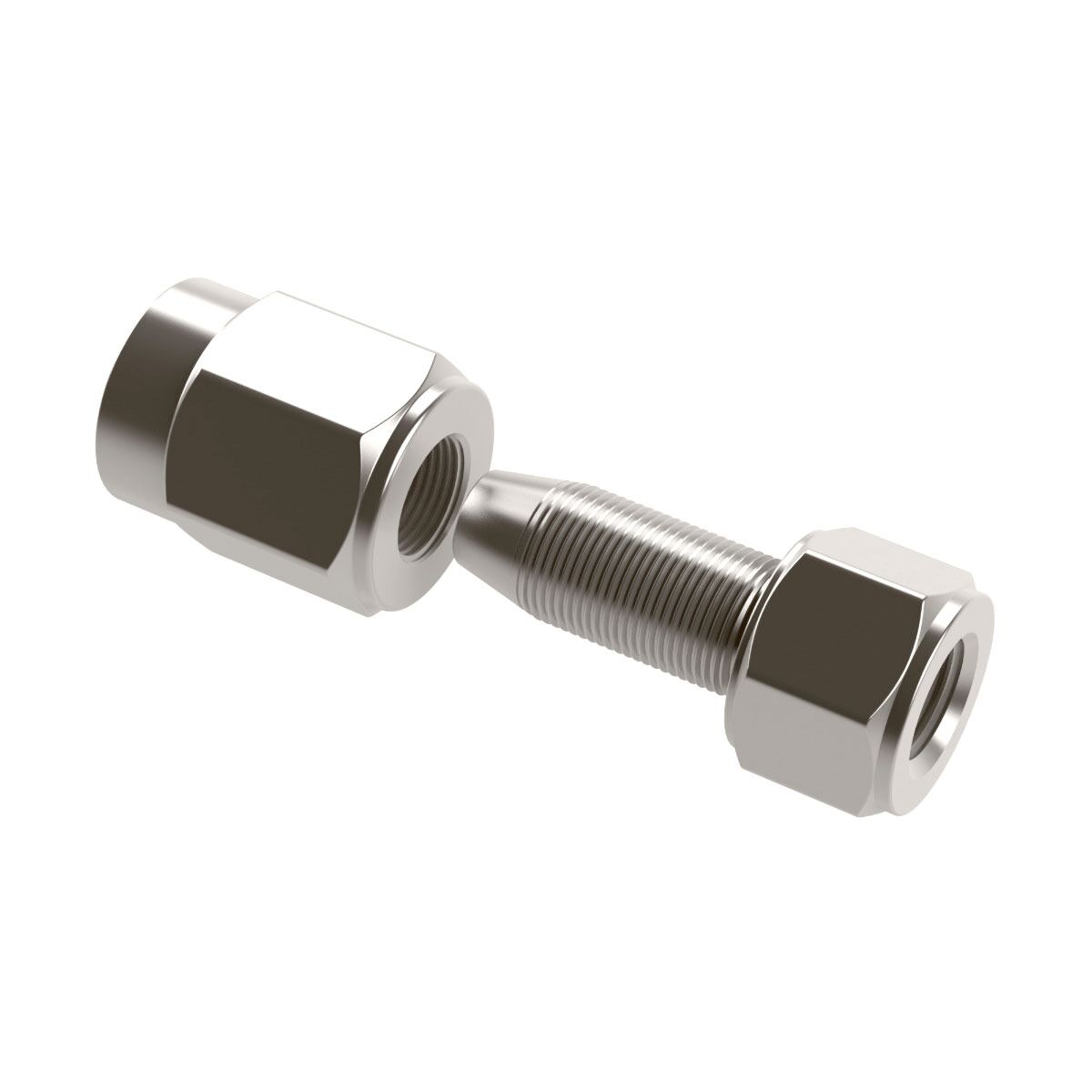

The Omni Swivel Hose Repair Kit 3/8"-24 female is a 2-part fitting that allows the end user to self-install a 3/8"-24 female fitting onto the end of a standard half-inch low pressure-hose, without using a crimping machine.
Installation Instructions
Installation Instructions
- Make a clean perpendicular cut in the hose where the fitting is to be applied.
- Partially thread the outside collar onto the end of the hose. Note: only thread this on partially, or you will have difficulty threading the core in.
- Apply some diving grade lubricant to the end of the core.
- Start to thread the core into the outside collar, remembering these are left hand threads. Only thread this on one or 2 turns.
- Tighten the collar fully down on the hose until the hose end bottoms out inside the collar. Make sure the hose is completely inserted into the collar.
- With a pair of wrenches or using a vice, thread the core the remaining distance into the collar. Snug hand tight.
| Brand | OmniSwivel |
|---|---|
| SKU | OSI-HRK-ZF |
| Weight | 0.020000 |
