OmniSwivel Adapter: 9/16-Inch F = Schrader QD Post

$27.99
In Stock
SKU
OSI-QDBC-YFI
This adapter allows a diver to plug a second stage into the rebreather manual addition hose to allow access to the onboard gas supply

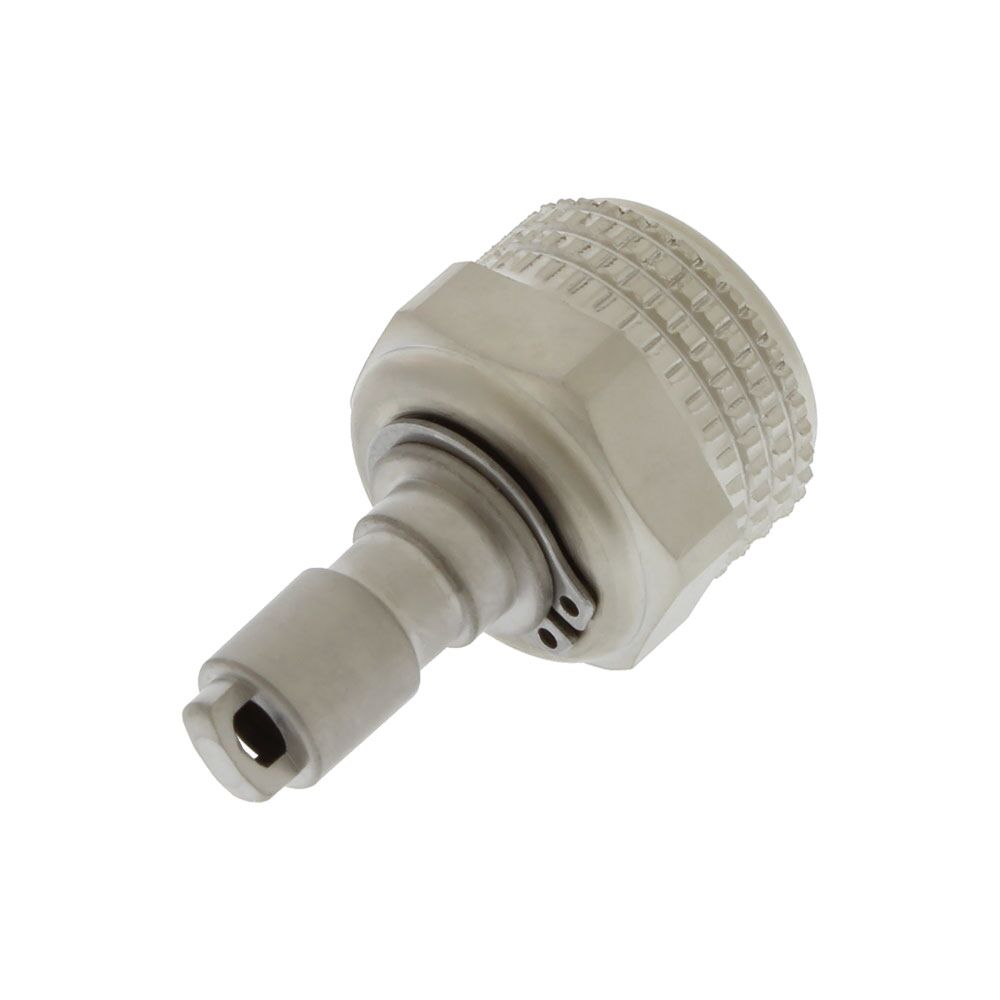

OmniSwivel Adapter: 9/16-Inch F = Schrader QD Post

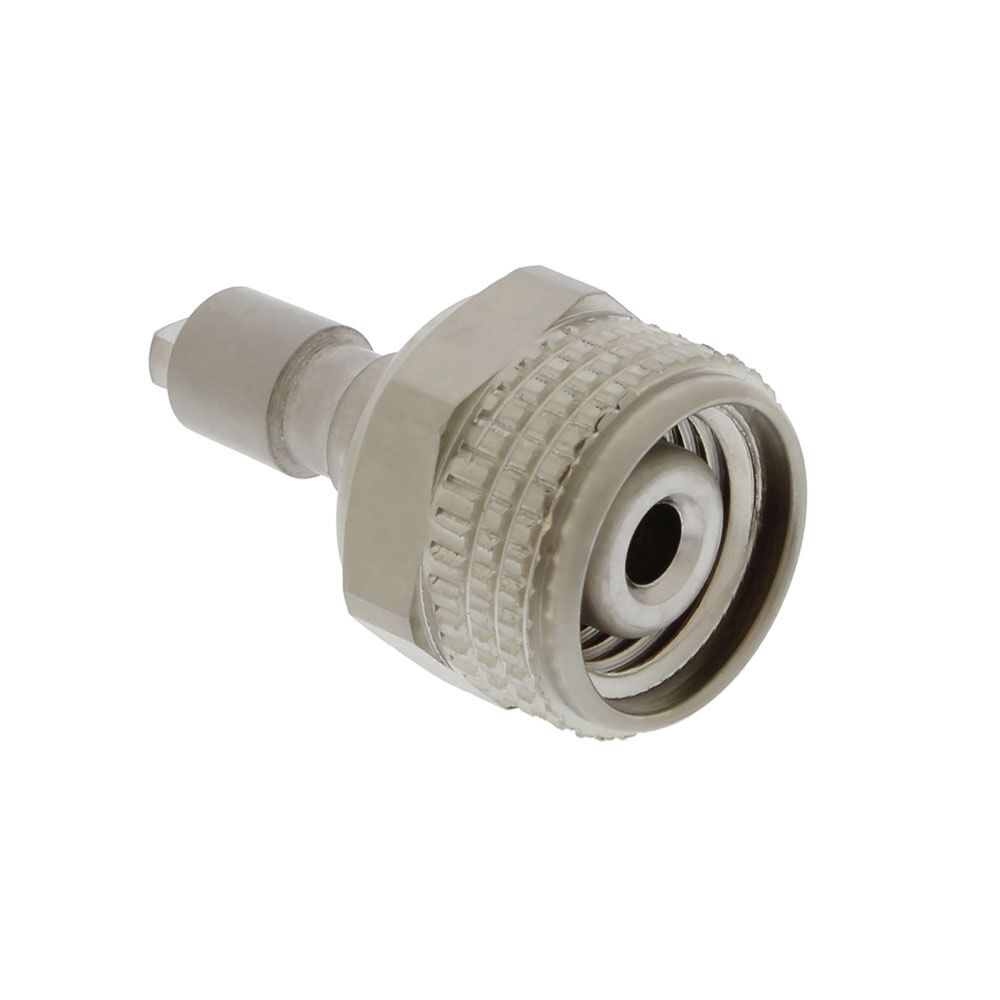

9/16-inch Female

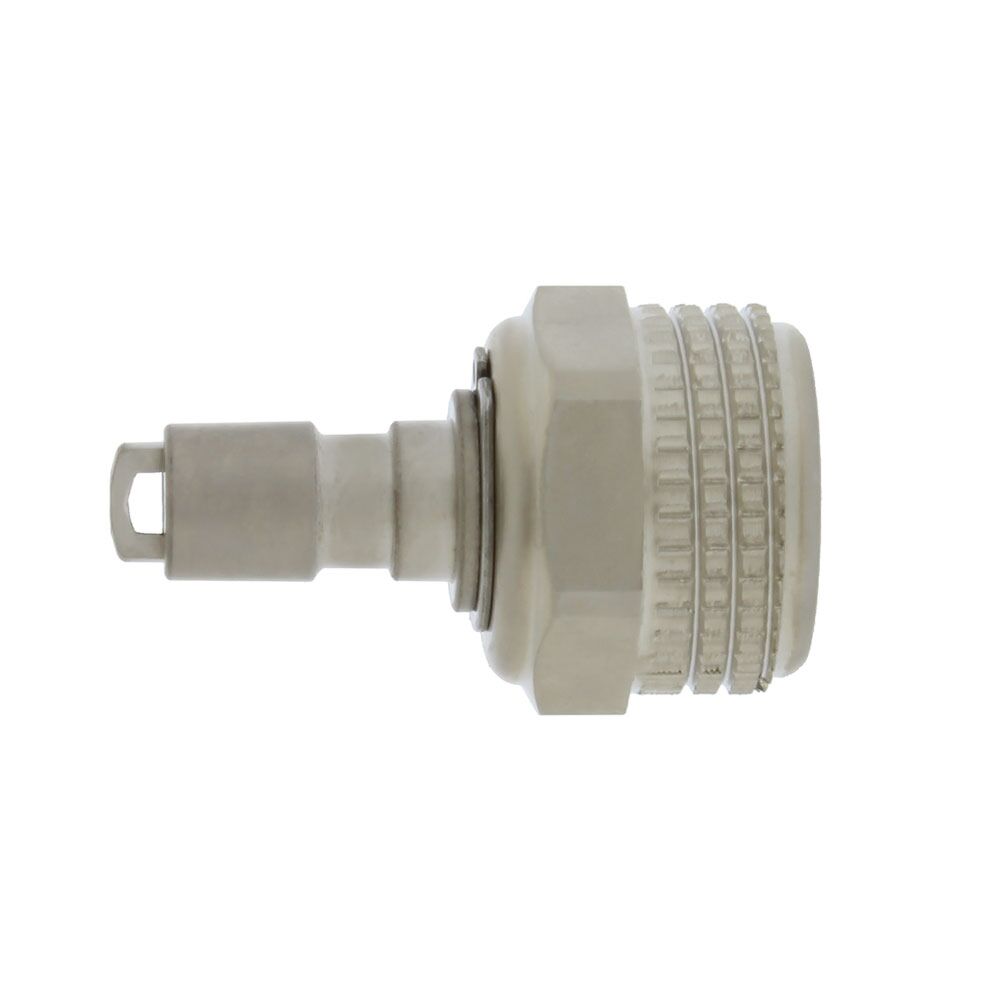

9/16-inch Female Standard BC Inflator Male Quick Disconnect Post Side VIew
  • OmniSwivel Adapter, LP 2nd Stage: 9/16-Inch F = BC Inflator QD Post
  • Adapter attaches to standard 9/16-inch threads - other end has a BC inflator male QD post
  • Allows a diver to plug a second stage into the rebreather manual addition hose
  • Use to gain access to onboard oxygen or diluent
  • Will not supply adequate gas if the diver is deeper than {20 ft | 6 m}

Supplied by OmniSwivel International, the regulator quick connection adapter attaches to the standard 9/16-inch threads found on most second stages, where the low pressure hose would normally attach, and the other end has a standard BC inflator male QD post. This tool allows a diver to plug a second stage into the rebreather manual addition hose to allow access to the onboard gas supply. Typically the adapter would be used to gain access to the onboard oxygen but could be used for shallow access to diluent as well. The 2nd Stage Quick Connection Adapter will not supply adequate gas if the diver is deeper than { 20 ft | 6 m }.

More Information
Brand OmniSwivel
SKU OSI-QDBC-YFI
Weight 0.030000

Customer Reviews

Tek Tip Warning Image WARNING

You can not use a standard BC inflator QD hose Schrader fitting to supply a regulator 2nd stage or a BC integrated alternate air source, as the device would not receive enough gas due to the flow restriction of a standard Schrader fitting.
