Genuine Mares branded DIN-to-Yoke Adapter
Connect any 200 Bar or 300 Bar DIN first stage to a yoke-type cylinder K-valve
Just spin-on to first stage DIN fitting, no tools required
Chromed brass construction with satin finish

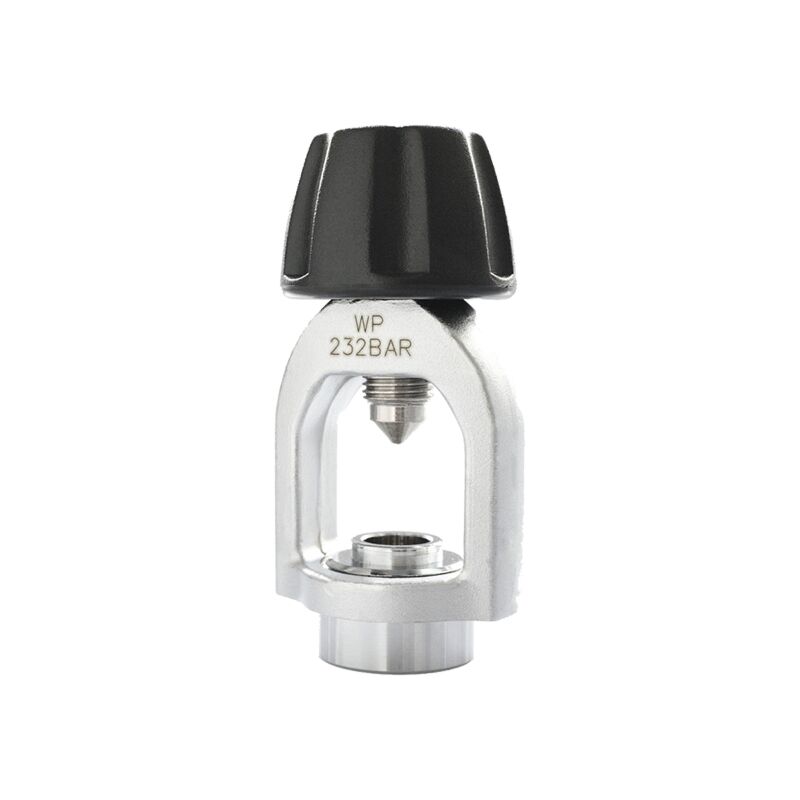

Mares DIN-to-Yoke Spin-on Adapter

Name: Mares DIN-to-Yoke Spin-on Adapter
Brand: Mares Extended Range
SKU: XR-415861
Price: 89.95 USD
Availability: InStock

Next Business Day

$89.95

In Stock

SKU

XR-415861

Use this spin-on adapter to connect any 200 Bar or 300 Bar DIN first stage regulator fitting to a yoke-type cylinder K-valve.

Details

Use this spin-on adapter to connect any 200 Bar or 300 Bar DIN first stage regulator fitting to a yoke-type cylinder K-valve. This Mares brand DIN-to-yoke spin-on adapter is marine grade chrome plated brass construction suitable for use with any yoke (aka A-Clamp) type CGA-850 standard K-valve and steel or aluminum SCUBA cylinder up to {3442 psi | 232 bar} service pressure.

More Information

More Information
Product Name	Mares DIN-to-Yoke Spin-on Adapter
Brand	Mares Extended Range
SKU	XR-415861
Weight	12 oz
Country of Manufacture	Italy
HS Code	9506.29

Reviews

Tek Tip

Dust caps with DIN-to-Yoke adapters are not best practice

You should use a yoke dust cap with native yoke fitting first stages, but you do not need to use a dust cap with DIN-to-Yoke spin-on adapters. Although some adapters include them, you should NOT permanently leave a DIN-to-Yoke adapter in place and cap the adapter. Leaving the adapter permanently on the DIN fitting can eventually cause the DIN fitting to 'lock-in' to the yoke adapter, making it impossible to remove without damaging something.

Best practice for use of all DIN-to-Yoke adapters is to first mount and tighten the adapter to the tank K-valve, then attach the DIN regulator to the adapter. After your dive, first remove the DIN regulator from the adapter, place a dust cap the DIN fitting and then remove the adapter from the tank K-valve. Thus, by following best practice there is no need for yoke dust cap and our generic DIN-to-Yoke adapters don't include a cap. If you are new to DIN fittings on regulators, you might read our Uncoupling DIN Fittings from SCUBA Valves TekTip.

Regardless of Yoke or DIN, do not leave the dust cap attached to the fitting during the dive. Although convenient, unfortunately either the diver fails to dry it off when replacing thus trapping moisture in the regulator inlet, or worse, novices will dry the cap with a blast of compressed gas from the tank valve. The problem with that (as our service techs often complain) is the blast of gas will often blow moisture from the valve face or the attached cap right in to the first stage inlet. When the dust cap is not in use, store it in a dry place.
