DGX Gears Premium H-Connector, Fits Right (Typical Side) Modular Valve

$55.00
In Stock
SKU
DX-722421
This DGX Premium H-Connector converts a modular valve into an H-Valve

This modular H-connector requires a modular series cylinder valve and can not be used independently or with a standalone valve.

DGX Gears Premium H-Connector, Fits Right (Typical Side) Modular Valve

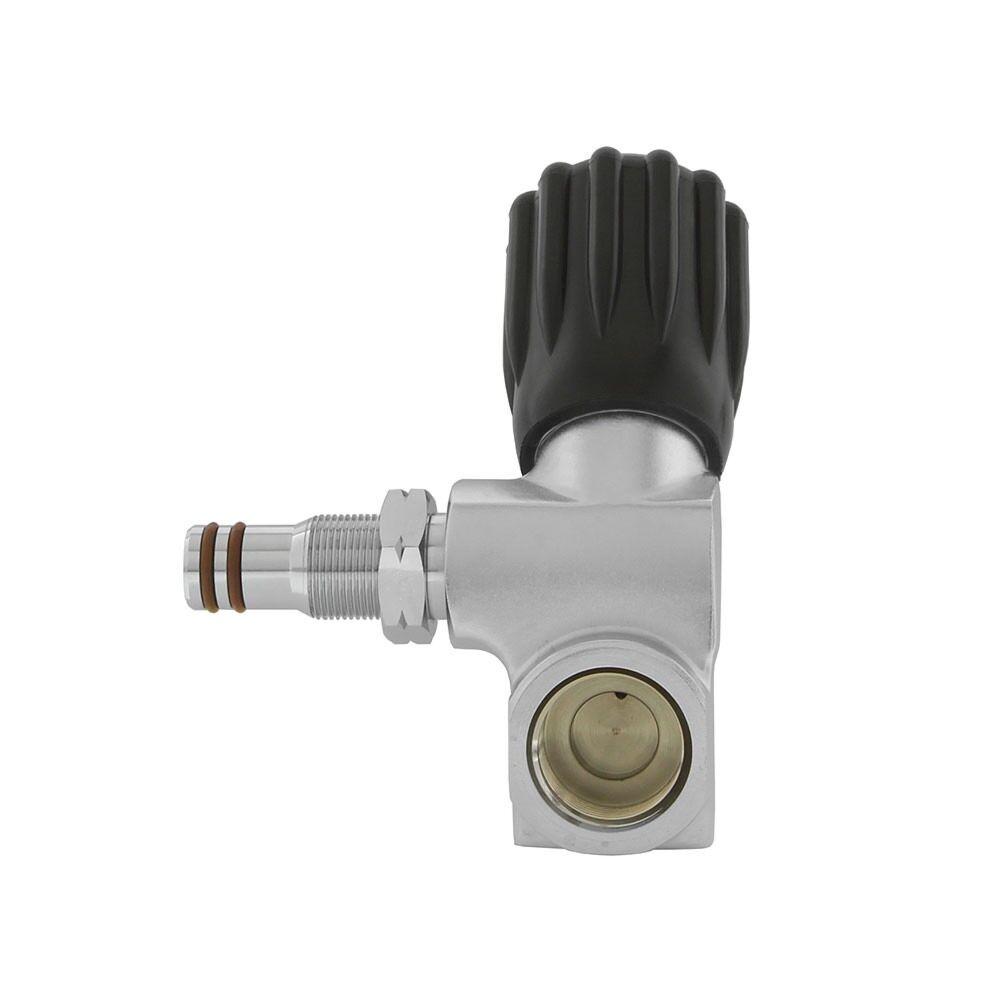

Front View

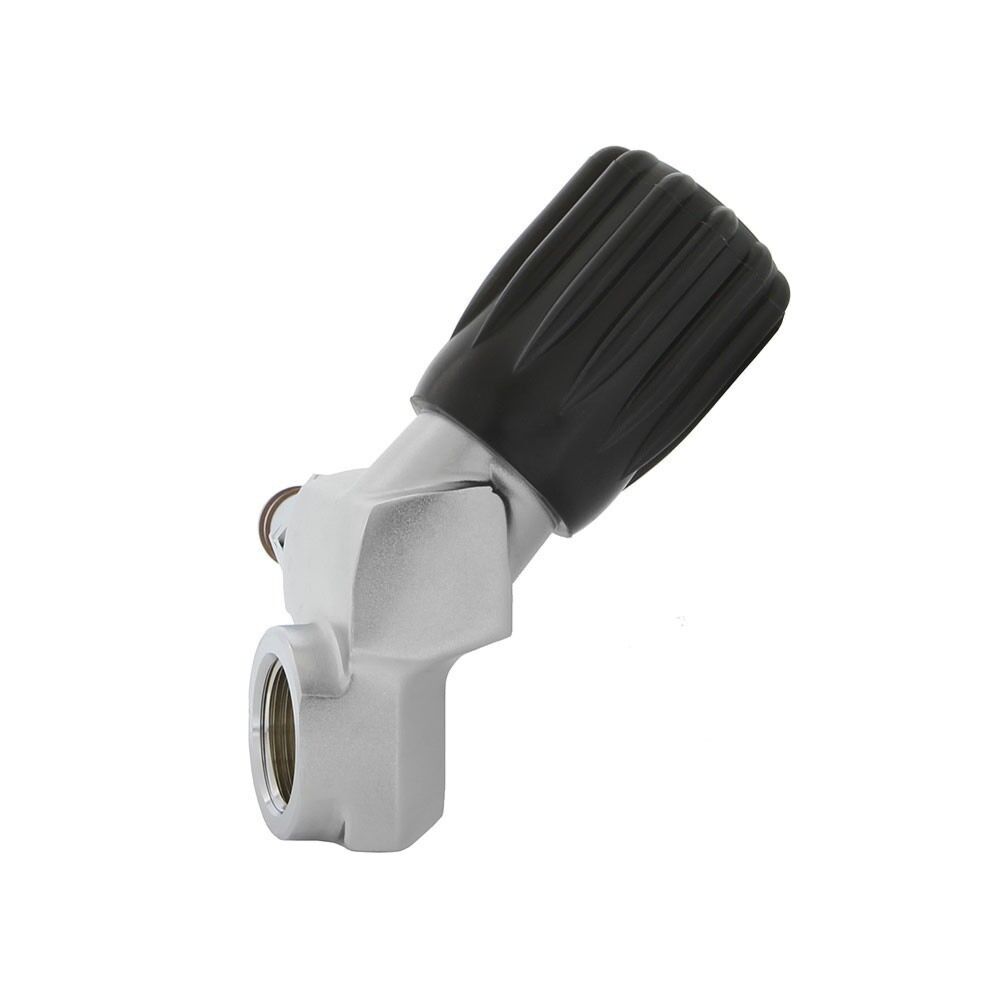

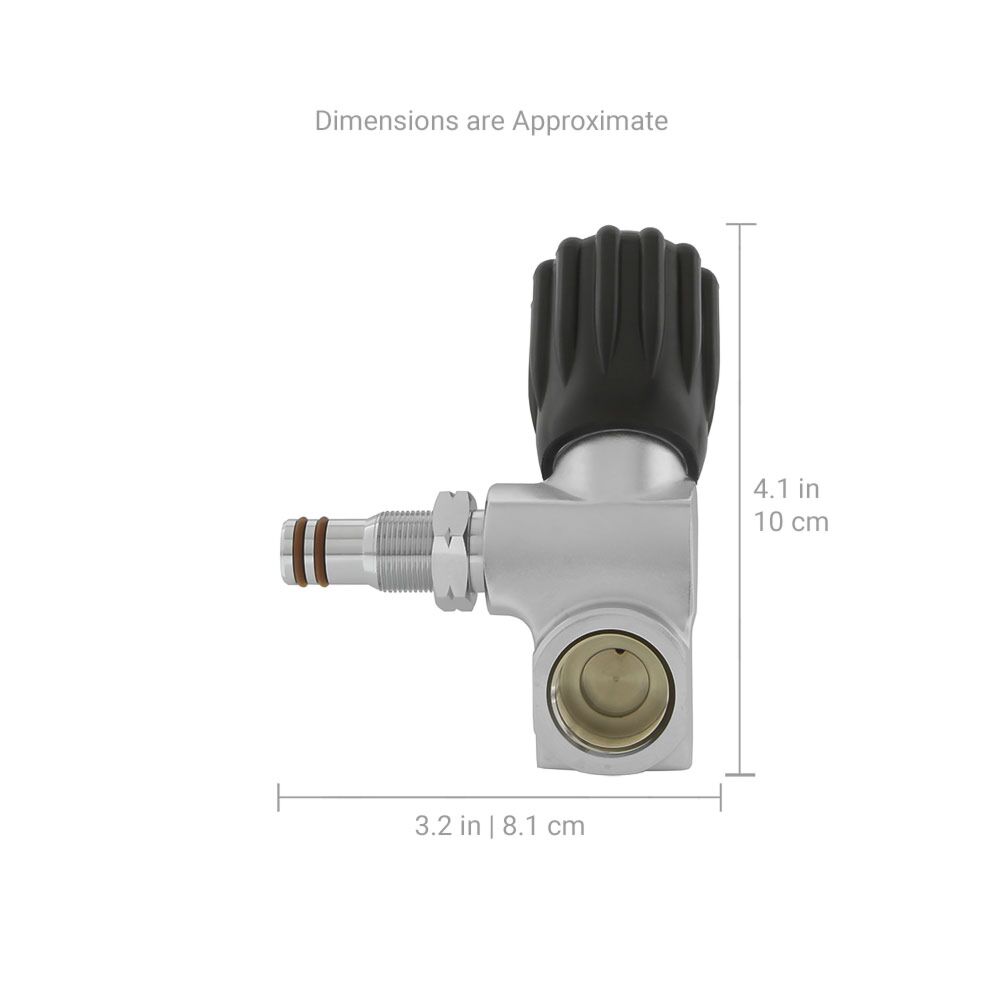

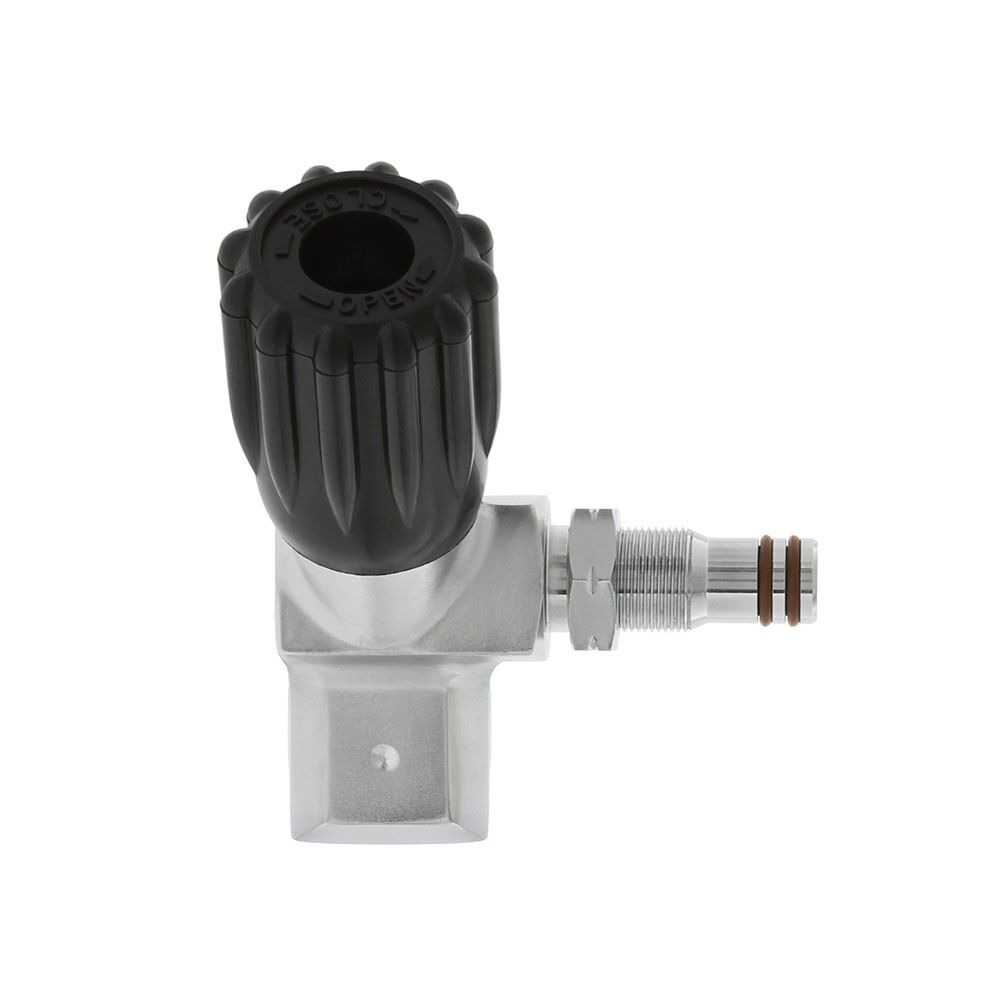

Front View Dimensions are Approximate Side View Back View
  • Compatible with DGX modular valve RIGHT
  • Suitable for either 3000 or 3442 psi cylinders
  • Nitrox Ready - Chromed Brass Construction
  • DIN outlet can accept Yoke inserts

DGX Premium H-Connector (Typical Side) are Nitrox Ready, using oxygen compatible materials and when sealed in the original factory packaging is also free of organic and particle contamination. The valves have DIN outlets that can accept optional removable inserts (sold separately) so the valves may be used with yoke connectors. You may see this style of outlet variously described as Pro, 200-Bar DIN (G 5/8 BSP), or 232-Bar DIN. All these different names apply to exactly the same style valve outlet, which is suitable for use with the 3442 psi service pressure cylinders and any DIN style regulator or (with the addition of an optional insert) converted for any yoke style regulator. Inlets have standard 0.750-14 NPSM (3/4 NPS) neck threads for use with all modern aluminum and steel SCUBA tanks and include a threaded 'dip tube' with hex opening for easy installation.

The DGX Premium valves include a nearly indestructible handwheel made from soft rubber formed around a stainless steel insert. The stainless steel insert ensures positive operation with long-lasting life. The large ribs make it easy to open or close the valve even while wearing gloves. The rubber with stainless steel insert handwheel design is the preferred choice of technical divers. The black color handwheel is standard, and several optional handwheel colors are available.

Note that port plugs and H-connectors used on the modular valve with the typical side handwheel are notched on the corners of the wrench flats. The notches indicate the screw threads are reversed, and must be rotated clockwise to remove and rotated counter-clockwise to install. This is the opposite of typical screw threads and attempting to remove the notched plug or H-connector using counter-clockwise force will permanently damage the valve.

More Information
Brand DGX Gears
SKU DX-722421
Weight 2.500000
