DGX Custom - Dive Rite XT1/XT4 Doubles Reg Package

$1,049.00
In Stock
SKU
PK-753002-XT4

Everything you need for a high performance regulator setup in a hogarthian doubles configuration. The Dive Rite XT4/XT1 Doubles Reg Package offers the ultra performance XT4 second stage together with the high performance XT1 first stage from Dive Rite, providing a low work of breathing and top shelf performance in demanding conditions.

DGX Custom - Dive Rite XT1/XT4 Doubles Reg Package

Sample XT1/XT4 Doubles Reg Package
Sample XT1/XT4 Doubles Reg Package
  • XT4 Ultra Performance Balanced Second Stage
  • XT1 High Performance Swivel Turret First Stage w/ 5 LP ports and 2 HP ports
  • Cold Water and Nitrox Ready
  • New for 2022, not currently CE EN250 approved

The Dive Rite XT4/XT1 Doubles Reg Package offers the ultra performance XT4 second stage together with the high performance XT1 first stage from Dive Rite, providing a low work of breathing and top shelf performance in demanding conditions.

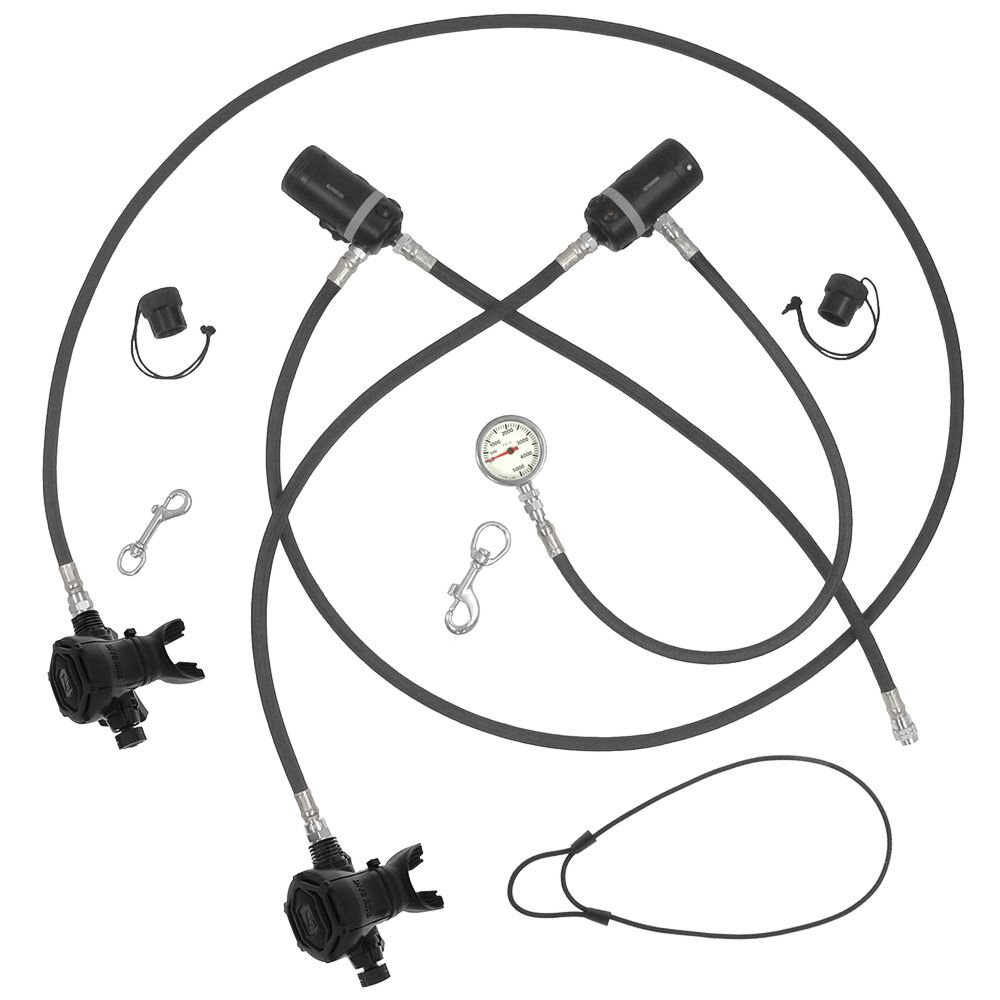

The package is completely assembled by Dive Gear Express and includes:

  • Two Dive Rite XT1 High Performance Environmentally sealed DIN First Stages
  • Two Dive Rite XT4 Ultra Performance Second Stages
  • One Backup LP hose {22 in | 56 cm}
  • Choose length on one Primary LP Hose, one BC hose, one HP hose
  • One "Brass & Glass" SPG
  • Necklace, two S/S Bolt Snaps, two DIN Caps
  • Cold Water and Nitrox Ready
  • New for 2022, the XT4 is currently NOT CE certified to EN250 European standards

This package is assembled by Dive Gear Express using Dive Rite brand first and second stages, together with our flex or rubber hose in your choice of length and also includes a free DIN regulator cap. The XT regulators include Dive Rite's limited lifetime warranty through an authorized Dive Rite dealer as long as the regulator is serviced by an authorized Dive Rite dealer every two years or one hundred dives.

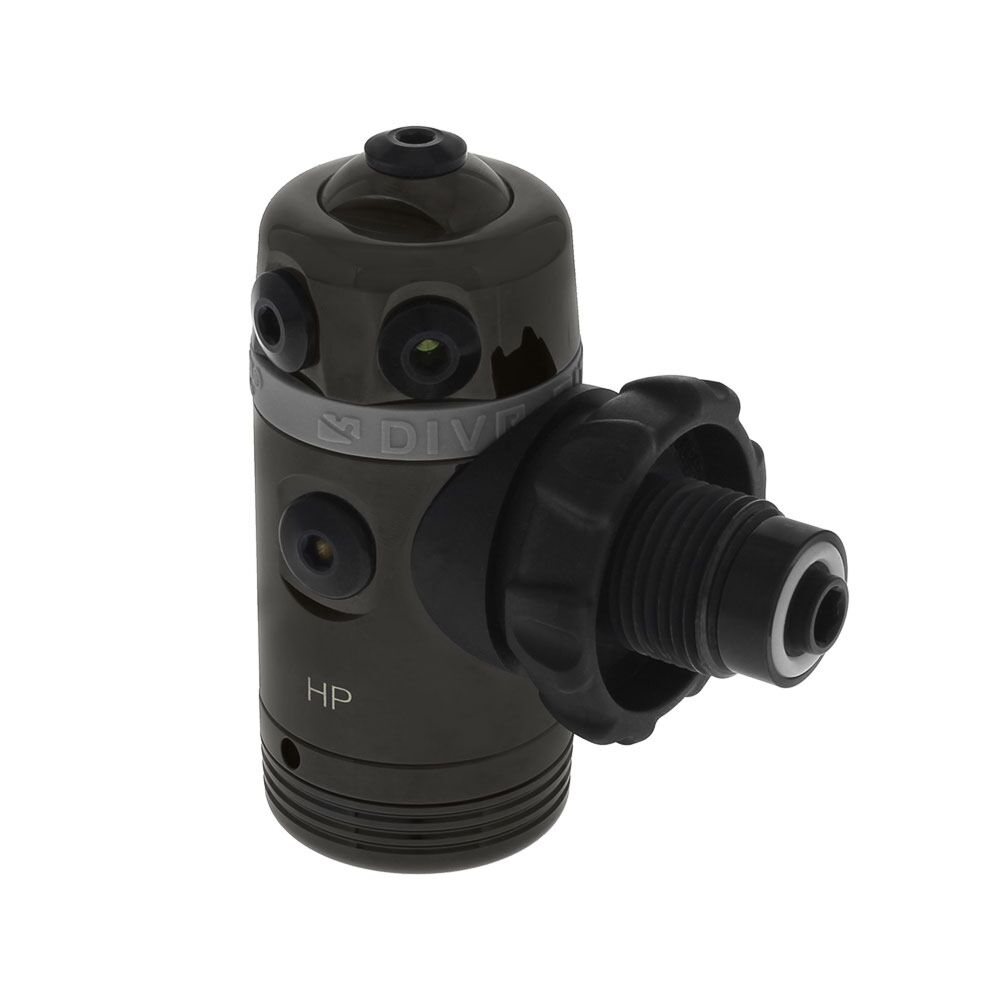

The Dive Rite XT1 First Stage Regulator is a balanced diaphragm design featuring a new generation of first stage regulator performance at Dive Rite. Five low pressure ports and a swivel turret achieve optimal hose routing. Two HP ports are angled 90-degrees from the DIN fitting which gives the perfect angle for the SPG hose routing. The XT1 first stage is environmentally sealed to protect against contaminants and is suitable for diving in cold water to { 29 °F | -2 °C }. It comes standard with a 300-BAR DIN fitting and is Nitrox Ready. A native yoke style A-clamp fitting version is available, or to be able to switch between both DIN and Yoke then add an optional a DIN-to-Yoke spin on adapter

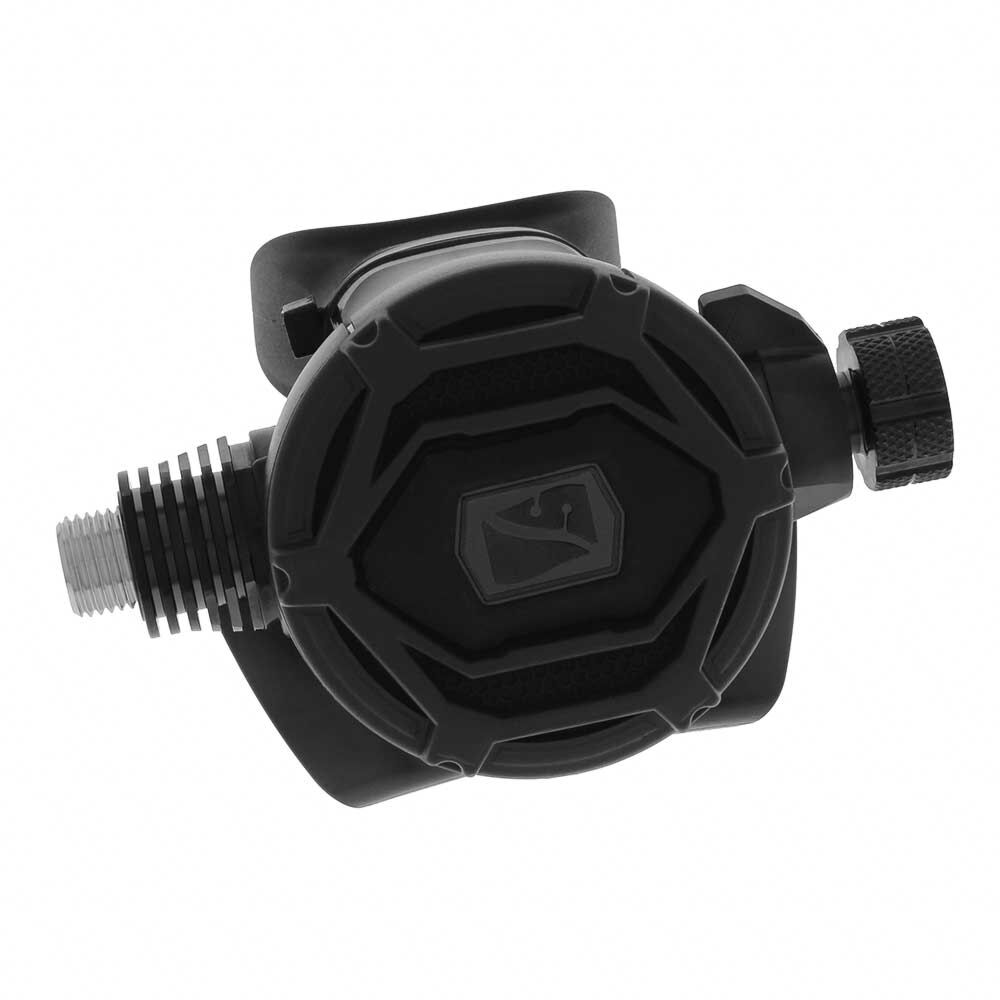

The Dive Rite XT4 Ultra Performance Balanced Second Stage Regulator is a pneumatically balanced downstream design featuring the next generation of second stage regulator performance at Dive Rite. A venturi assist directs airflow from the valve directly to the mouthpiece producing smooth inhalation. A compact yet easy grip dive/pre-dive switch avoids free flow at surface and is suitable for use with gloves. The adjustment knob allows the diver to fine tune cracking pressure so breathing resistance matches diver personal preference. A unique deflection ring works to maximize performance while deterring free flow and all internal moving parts are Teflon® coated for cold-water diving. The XT4 also includes a long bite orthodontic mouthpiece to reduce jaw fatigue. The regulator comes standard with a solid black cover, color kits are not currently available.

More Information
Brand Dive Rite
SKU PK-753002-XT4
Weight 10.000000

How Long is Your Hose?

Dive Gear Express offers regulator configurations that are suitable for hogarthian (aka 'DIR') style diving. A subset of our other regulator packages, the design of the second stages in these selected packages allows the cover to be removed and replaced underwater in order to clear silt or debris, a hogarthian requirement. True hogarthian or not, all of these DGX Custom regulator packages are already configured for hogarthian hose routing to eliminate bowing and dangling hoses. You get the correct length hoses and there is no extra 'hose kit' to buy, making these packages an even better value.

Hogarthian hose routing for doubles yields 'standard' hose lengths that work most divers, but not everyone. Nearly all overhead divers with doubles use a standard { 84 in | 2.1 m } LP hose but a few open water divers use a shorter { 60 | 1.5 m } LP hose for their primary second stage, and both put the backup second stage on a { 22 in | 56 cm} LP hose hung on a necklace directly below their chin. Most doubles divers use a standard {24 in 61| cm} HP hose for their pressure gauge, but some divers (either diving singles or who like to hold their gauge a little further away for reading) prefer a slightly longer {26 in | 66 cm} HP hose. Most divers select a standard {22 in | 56 cm} BC power inflator hose, but a few divers prefer to have the power inflator rest very high on their shoulder and use a shorter {18 in | 46 cm} BC hose. Our configuration tool allows you to build a regulator package to your specifications.
