DGX Adapter: 9/16-18 to Quick Disconnect with Locking Collar

$20.00
In Stock
SKU
DX-704330
9/16-18 to QD with Locking Collar

DGX Adapter: 9/16-18 to Quick Disconnect with Locking Collar

DGX Adapter: 9/16-18 to Quick Disconnect with Locking Collar
DGX Adapter: 9/16-18 to Quick Disconnect with Locking Collar DGX Adapter: 9/16-18 to Quick Disconnect with Locking Collar
  • Automatically seals supply side when disconnected
  • Attach quick disconnect between low-pressure hose and 2nd stage
  • Add optional coupling to join two hoses with QD in between
  • Nitrox Ready with chrome plated brass construction
  • High flow performance (unlike a typical BC quick disconnect)

DGX Adapter: 9/16"-24 to Quick Disconnect with Locking Collar

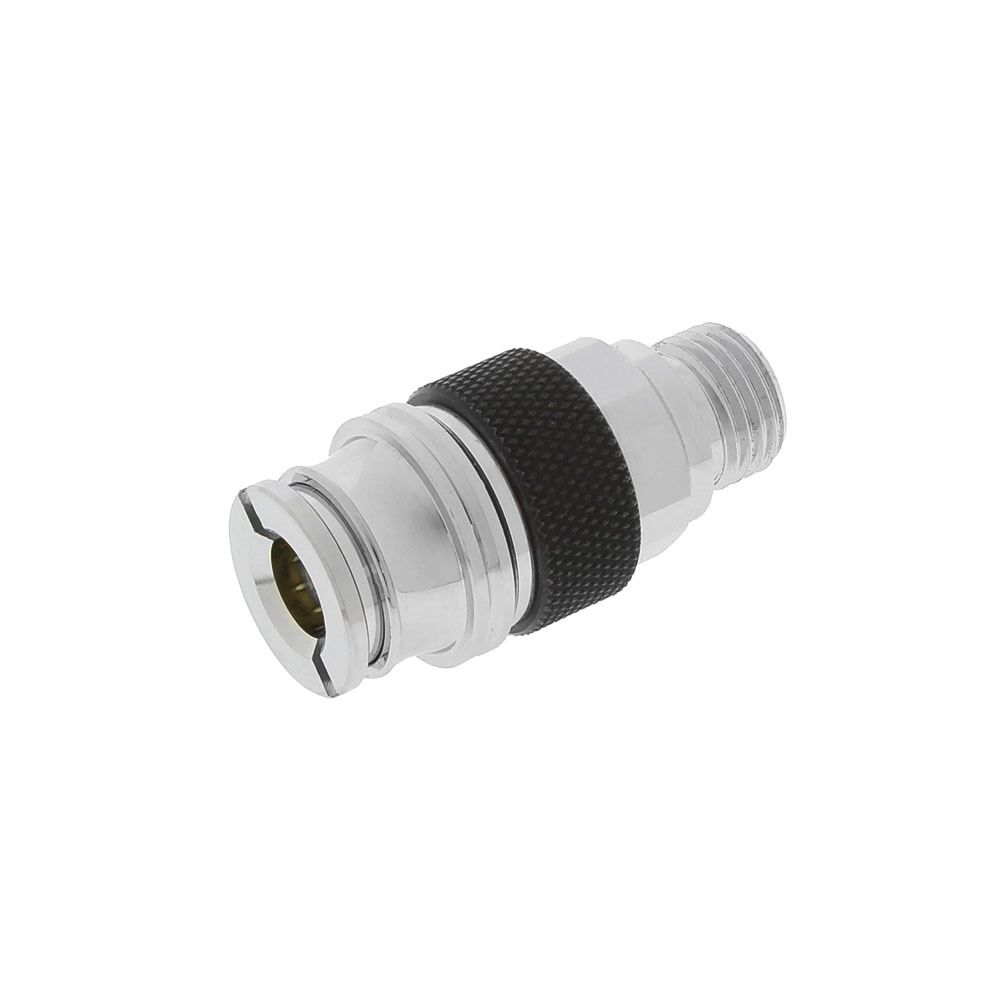

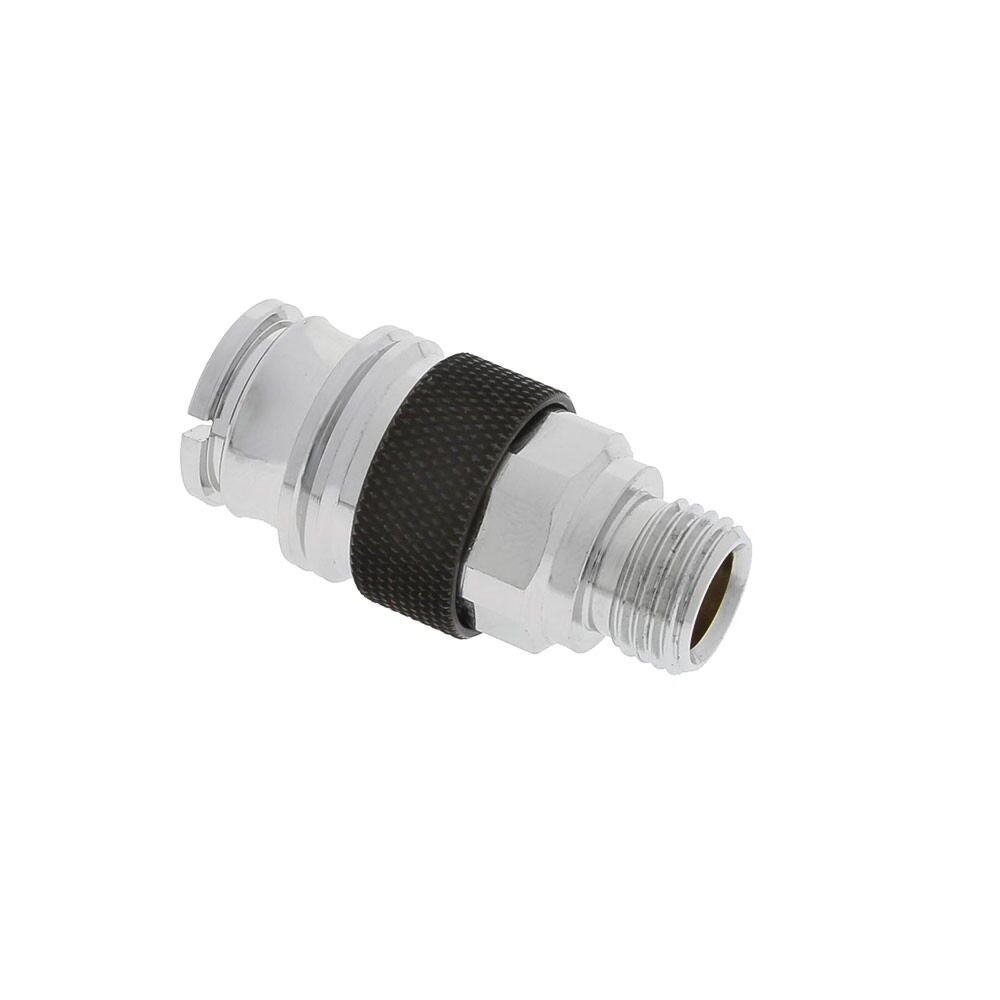

9/16"-18 to Quick Disconnect with Locking Collar This convenient quick disconnect package offers high-flow performance to provide a quick disconnect between a standard low-pressure hose and second stage regulator.

The 9/16-inch female end screws attaches to the standard male threads found on most second stage regulators and at the other end is a QD male post.

Made of chrome plated brass and Nitrox Ready, these value priced DGX High Flow QD fittings ARE compatible with the stainless steel Omniswivel High Flow QD System fittings. When pushed together to form a locked connection, the QD fittings permit unrestricted bidirectional gas flow in the low-pressure hose.

Pull the slide-release to disconnect and automatically seal to block gas flow from the low-pressure supply on the QD female fitting. This also allows the QD male fitting to be connected or released while the QD female fitting is pressurized, although connection and release are much easier to accomplish when un-pressurized.

The QD comes with a spin on/off locking collar to secure the connection.

This unit is compatible with the DGX Male QD to 9/16" (DX-704240).

More Information
Brand DGX
SKU DX-704330
Weight 0.250000
