DGX Adapter: 1/4 NPT Female to DIN SCUBA Connector w/Bleed

$27.00
In Stock
SKU
DX-701481
This fitting as a 1/4" NPT Female (aka FNPT) thread form to DIN 477 (aka G 5/8" BSP) thread form connector.

DGX Adapter: 1/4 NPT Female to DIN SCUBA Connector w/Bleed

DIN Connector
DIN Connector 1/4-Inch NPT Female with Bleed Valve

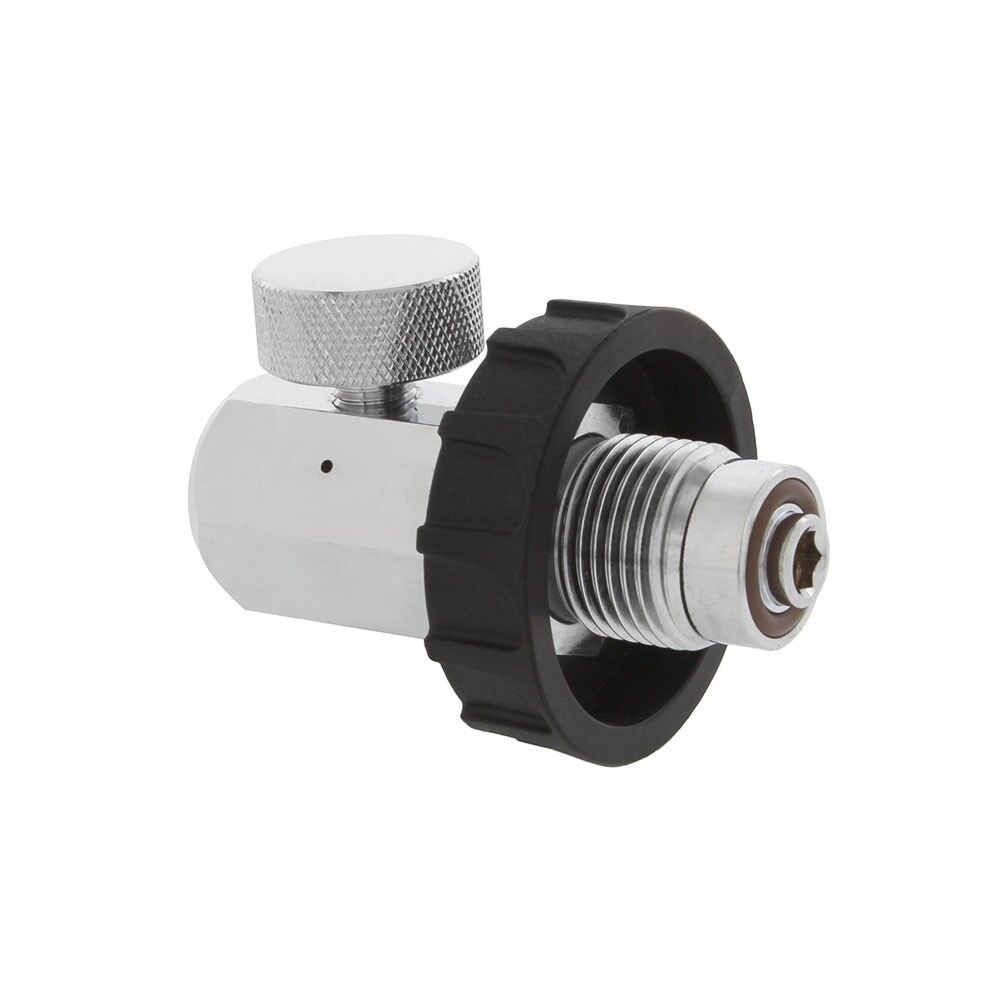

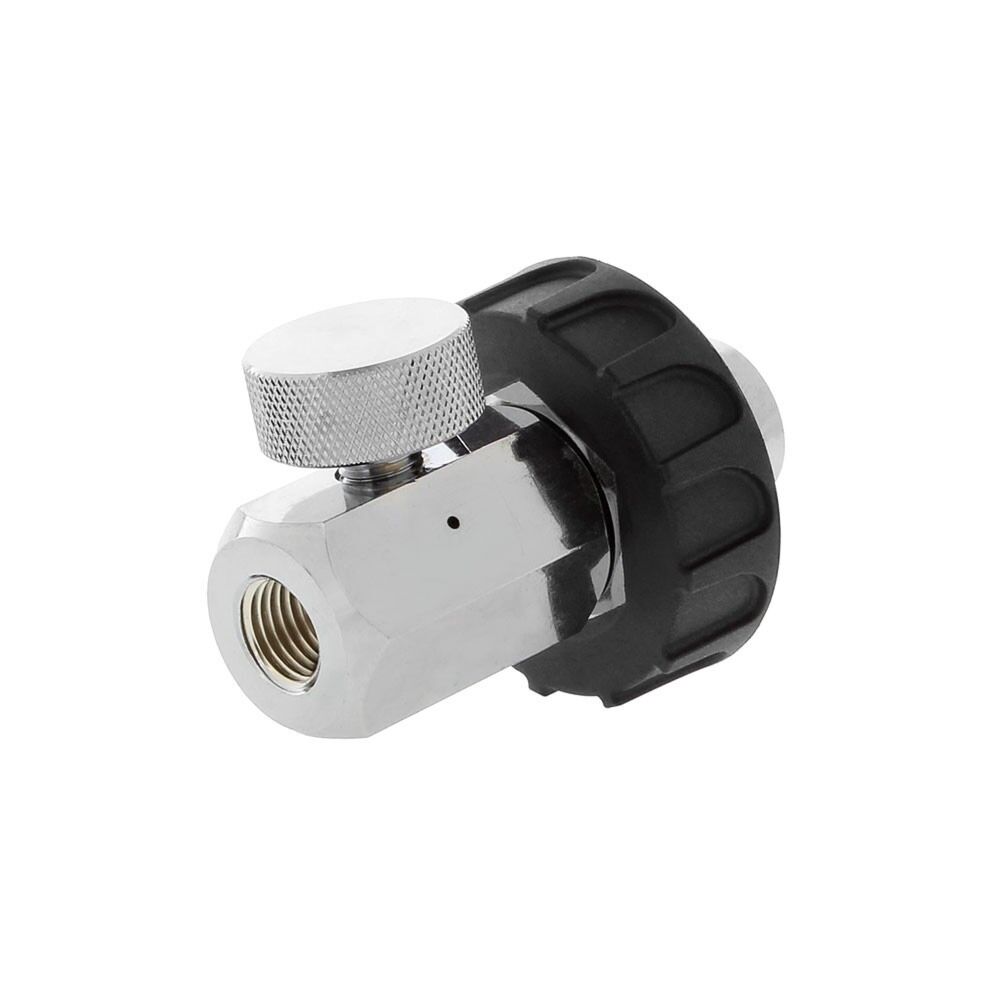

This fitting as a 1/4" NPT Female (aka FNPT) thread form on one end and a DIN 477 (aka G 5/8" BSP) thread form connector suitable for use with 200 Bar and 300 Bar DIN SCUBA cylinder valves on the other end, along with a screw type pressure relief (aka "bleed valve") on the body the fitting. Chromed brass body plus soft easy-grip handwheel and Nitrox Ready with standard Viton 112 DIN O-ring in the nose.
More Information
Brand DGX
SKU DX-701481
Weight 1.000000

What is the difference between "200 Bar" and "300 Bar" fittings?

The two designs are nearly identical, but the 300 bar valve outlet is deliberately deeper so the shorter 200 bar connector will not be long enough to seat properly. This is a safety feature to prevent connecting a low pressure device to a high pressure supply, but it works perfectly well to use a 300 bar connector (like those found on most dive regulators) with a 200 bar valve outlet. The 200 bar outlet can also accept a screw-in adapter to convert the outlet to accept the standard 'yoke' style regulator fittings. It's important to understand that the "200 bar" or "300 bar" descriptions are just slang terms that have nothing to do with the pressure ratings of the outlets and connectors themselves.

Click Here to read SCUBA Valves: Regulator Fittings, 200 vs 300 Bar FAQ and Cylinder Neck Threads.
